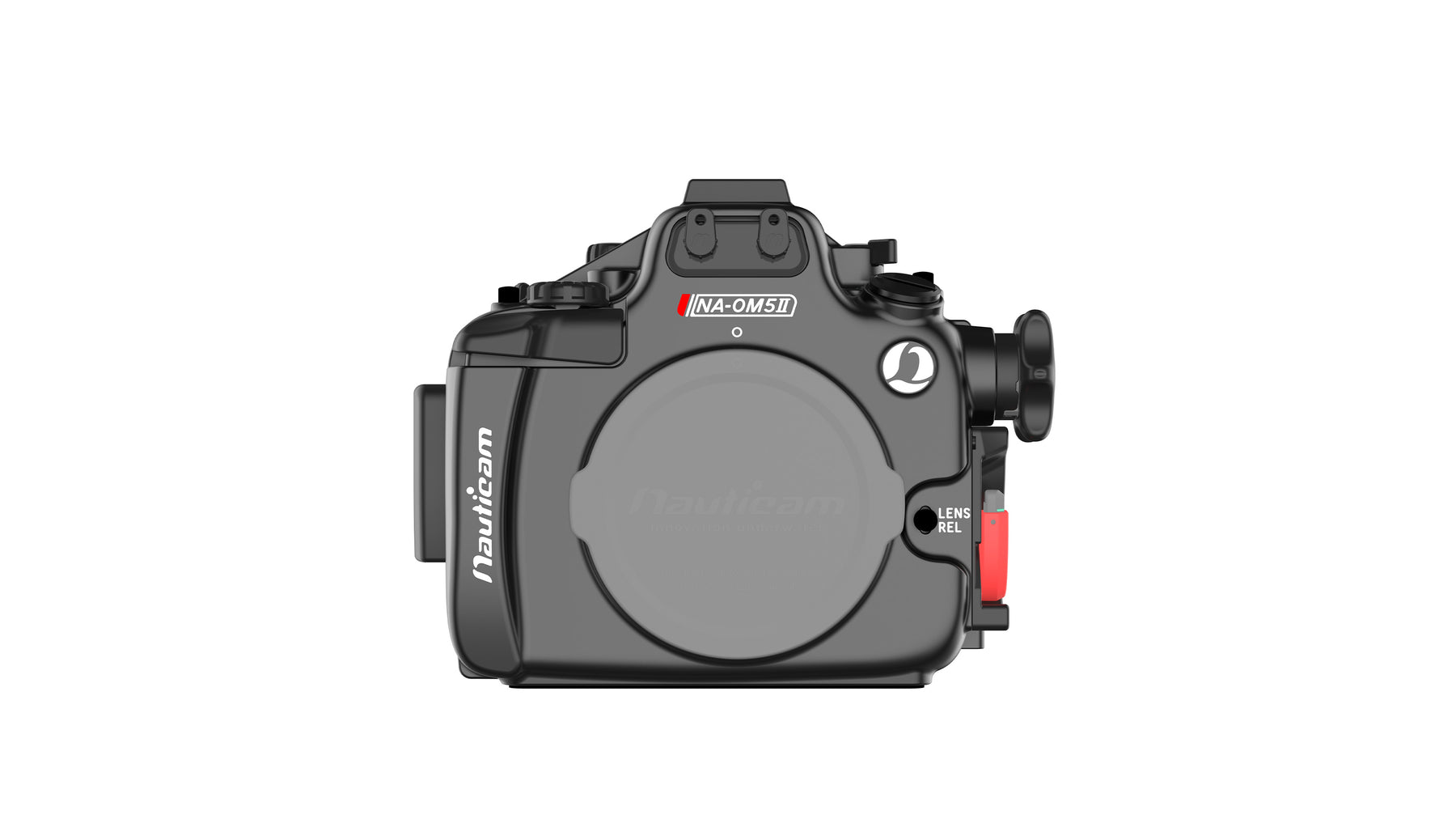

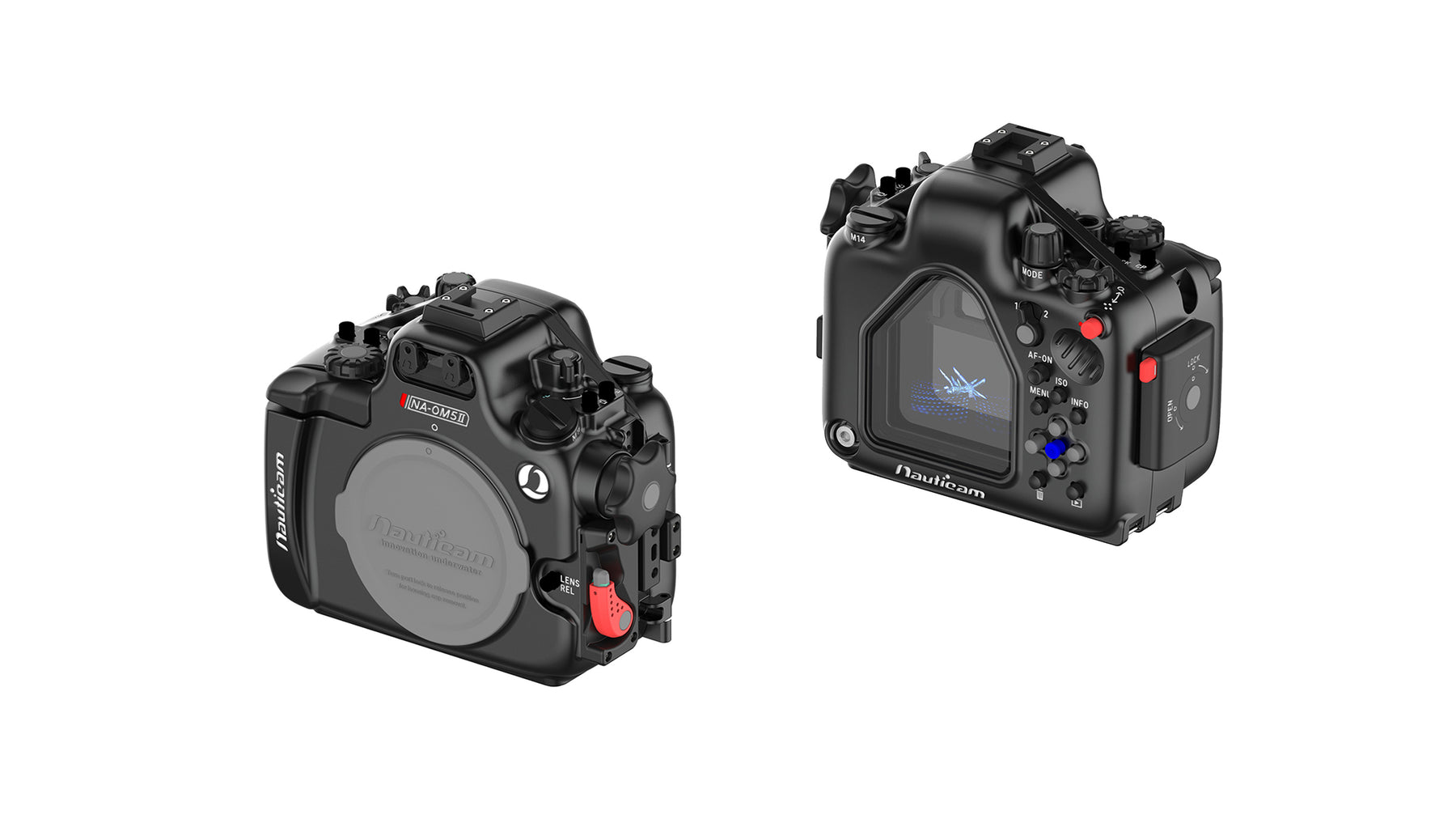

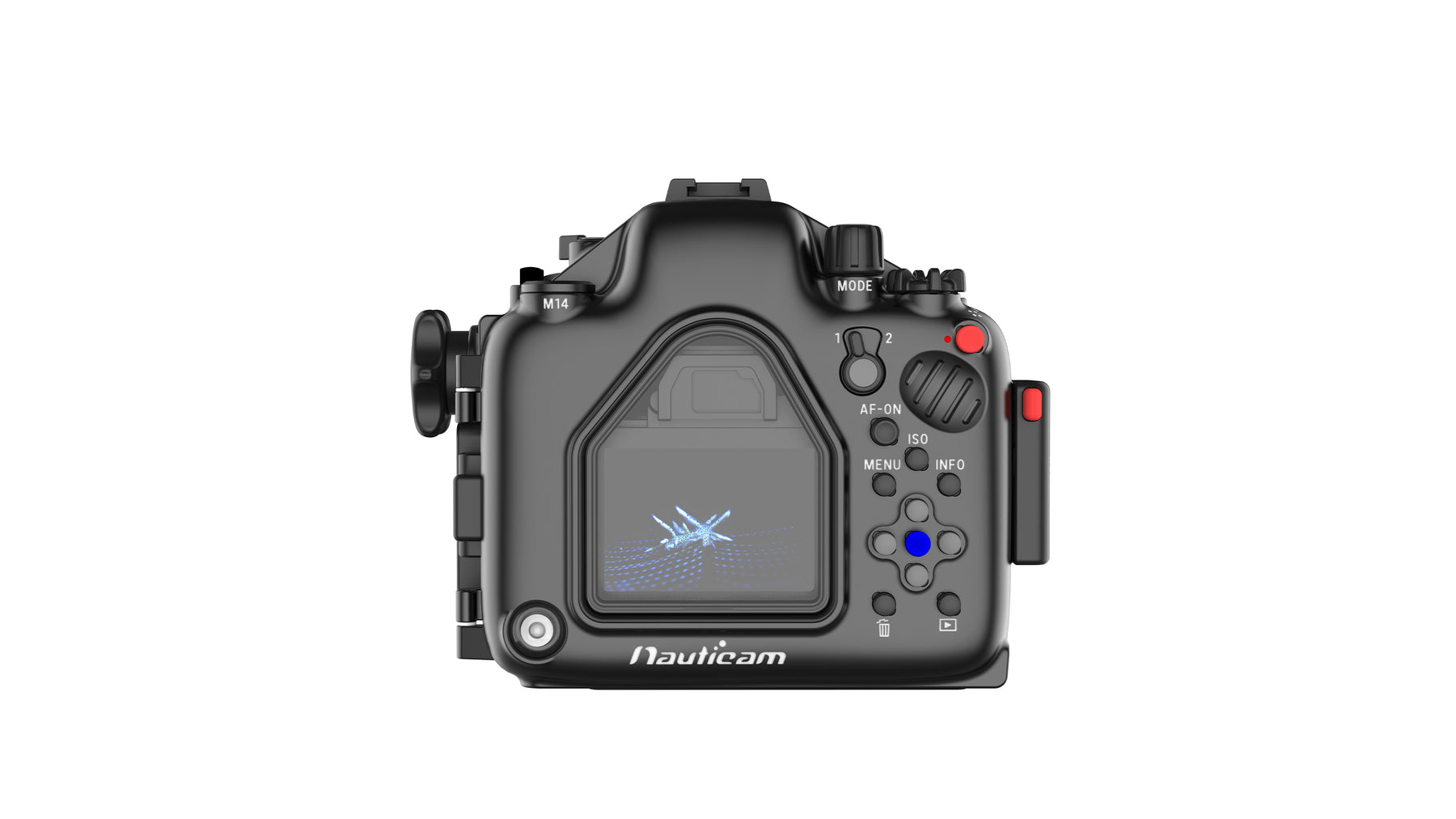

Nauticam NA-OM5II Underwater Housing for OM System OM-5 II Camera

Coming soon.

Technical Specifications

Dimensions 197mm(W)x 154mm(H) x 99mm(D)
Weight in Air TBA
Weight in Water TBA (with camera and battery)
Depth Rating 100m
Port Mount N85
Flash Trigger 26306 Mini Flash Trigger for Olympus (from SN A649652 onwards)
Olympus FL-LM3 not supported
Accessory Ports Front: 1x M16; Rear: 1x M14
Vacuum Valve 25624 M14 vacuum valve II
Handles & Brackets Not included
HDMI HDMI 1.4
Compatible Cameras OM-5 II

What’s in the box

  • NA-OM5II Housing
  • Housing Cap
  • 2x Optical bulkhead caps
  • Panasonic CR-2032 Battery (pre-installed for moisture alarm)
  • 90139 Spare main O-ring, O-ring remover and lubricant
  • Set of Allen Keys
  • Padded housing bag and shoulder strap

Main Features

  • Rotary style housing lock and N85 port lock
  • An M10 threaded accessory mounting point
  • One cold-shoe mount on top
  • Critical controls are easy to access, such as Front & Rear dial, REC, AF-ON, CP, Fn1 & 2 Lever.
  • Integrated Vacuum Check and Leak Detection System

Housing O-rings

  • 90139 Housing o-ring (I.D.=150mm, C.S.=2.5mm)

Port Adaptors

  • 36052 N85 to N120 47mm port adaptor with knob for M4/3 System
  • 36401 N85 to N120 55mm port adaptor

Flash Triggering

  • 26306 Mini Flash Trigger for Olympus (from SN A649652 onwards)

Recommended Accessories

Housing Tray and Hand Strap

  • 71206 Easitray II with left handle (with 2pcs 1/4" screws)
  • 71207 Flexitray II with left handle (with 2pcs 1/4" screws)
  • 71208 Adjustable right handle II (for Easitray II & Flexitray II)
  • 71209 Flexitray plate II W with left handle (with 2 tripod holes)
  • 71311 Strobe mounting ball for Easitray & Flexitray
  • 36316 Hand strap for Mirrorless IL camera & compact camera housing (Standard)
  • 36323 Long hand strap for Mirrorless IL camera & compact camera housing

Shutter Extension

  • 25200 Compact/MIL Housing Shutter Release Extension (for use with 71207, 71209 and 71208)

Housing Mounting options

  • 25311 Strobe mounting ball for cold shoe
  • 25321 Long strobe mounting ball for cold shoe
  • 25312 Light mounting stem for cold shoe
  • 25322 Long light mounting stem for cold shoe
  • 25221 M10 strobe mounting ball for housing

Viewfinder

  • xxxxx NA-OM5II LCD Window for Nauticam Full Frame Viewfinder (TBA)
  • 32211 Nauticam Full Frame Straight Viewfinder 32°/ 1:1
  • 32213 Nauticam Full Frame Angle Viewinder 32°/ 1:1

Surface USB-PD Power bank(TBA)

  • 26325 USB-C Bulkhead with USB-C Connector

HDMI OUTPUT

1) Required accessories for HDMI 1.4 Cable System

  • 25033 Standard HDMI bulkhead with M16 thread
  • 25076 HDMI (D-D) Cable in 200mm Length for NA-XT2/XH1/A6400 (for internal connection from HDMI bulkhead to camera) TBA

2) Compatible Monitor Options

  • 16612 Nauticam 7" T7 UW ULTRAHD Monitor  (HDMI 1.4 input, excl. cables)
  • 25047 HDMI (D-D) cable in 800mm length (for connection between HDMI bulkheads)
    *25047 is Required for use with 16612 monitor housing



  • 17927 NA-Shinobi II Housing for Atomos Shinobi II 5.2" Monitor with HDMI 1.4 input
    *17927 includes 25033,25038,25100.


  • 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
  • 25082 HDMI 1.4 Cable for Ninja V Housing in 0.75m Length (for connection from Ninja V housing to HDMI Bulkhead)
    *25082 is Required for use with 17922 monitor housing

Wet Lenses

Macro

  • 81203 Super Macro Convertor 3 (2.3x Magnification)
  • 81301 Compact Macro Convertor 1 (CMC-1, 4.5x Magnification)
  • 81302 Compact Macro Convertor 2 (CMC-2, 2.8X Magnification)
  • 81501 Mid-range Focus Optimizer 1
  • 81503 Mid-range Focus Optimizer 3

Wide-angle

  • 83202 Wet Wide Lens 1B (WWL-1B) 130 deg. FOV with compatible 28mm lenses (incl. float collar)
  • 83203 Wet Wide Lens Compact (WWL-C) 130 Deg. FOV with Compatible 24mm Lenses (incl. float collar)
  • 86201 Macro to Wide-angle Lens 1 (MWL-1) 150 deg. FOV with full frame 60mm macro lens

Macro to wide-angle

  • 87301 EMWL Set #1 (incl. focusing unit #1, 150mm relay lens and 3 objective lenses)
  • 87201 EMWL Focusing Unit #1 (for Nikon FF 105mm & M4/3 60mm)
  • 87211 EMWL 150mm Relay Lens
  • 87212 EMWL Angled Relay Lens
  • 87221 EMWL 60° Objective Lens
  • 87222 EMWL 100° Objective Lens
  • 87223 EMWL 130° Objective Lens
  • 87226 EMWL 160° Objective Lens

Wet Lenses Accessories

  • 25101 M67 flip diopter holder for M67 macro ports
  • 25108 M67 Double Flip Holder for M67 Macro Ports
  • 83250 M67 to Bayonet Converter II
  • 83251 M77 to Bayonet Converter II
  • 83214 Bayonet Mount Adaptor for SMC/CMC
  • 87501 Flip Holder for EMWL
  • 87512 Shade for 130° Objective Lens
  • 87513 Shade for 100° Objective Lens
  • 87518 Strobe Mounting Brackets for EMWL Relay Lens
  • 87519 Shade for 160° Objective Lens

Lens Holders

  • 72233 Single Bayonet Holder II for Ø70 Float Arm
  • 72234 Double Bayonet Holder II for Ø70 Float Arm
  • 72243 Single Bayonet Holder II for Ø90 Float Arm
  • 72244 Double Bayonet Holder II for Ø90 Float Arm
  • 83252 Bayonet Holder for Arms
  • 83253 Double Bayonet Holder for Arms
  • 83254 Bayonet Lens Holder for Inon Float Arms
  • 87516 EMWL Bayonet Holder for Ø70 Float Arm
  • 87517 EMWL Bayonet Holder for Ø90 Float Arm

Buoyancy Recommendation for Housing Setups

(depending on port and lens choices)

  • 72216 Ø70x200mm Carbon Fibre Aluminium Float Arm (Buoyancy 370g)
  • 72217 Ø70x250mm Carbon Fibre Aluminium Float Arm (Buoyancy 520g)
  • 72218 Ø70x300mm Carbon Fibre Aluminium Float Arm (Buoyancy 670g)
  • 72219 Ø90x170mm Carbon Fibre Aluminium Float Arm (Buoyancy 450g)
  • 72220 Ø90x220mm Carbon Fibre Aluminium Float Arm (Buoyancy 720g)
