NA-ZR Housing for Nikon ZR Camera
17233
Shipping end of November 2025
Specifications
| Dimensions | 338mm(W)x 200m(H) x 125mm(D) |
| Weight in air | 2.45kg |
| Buoyancy in water | Positive 50g (includes camera and battery) |
| Depth Rating | 100m |
| Port mount | N120 |

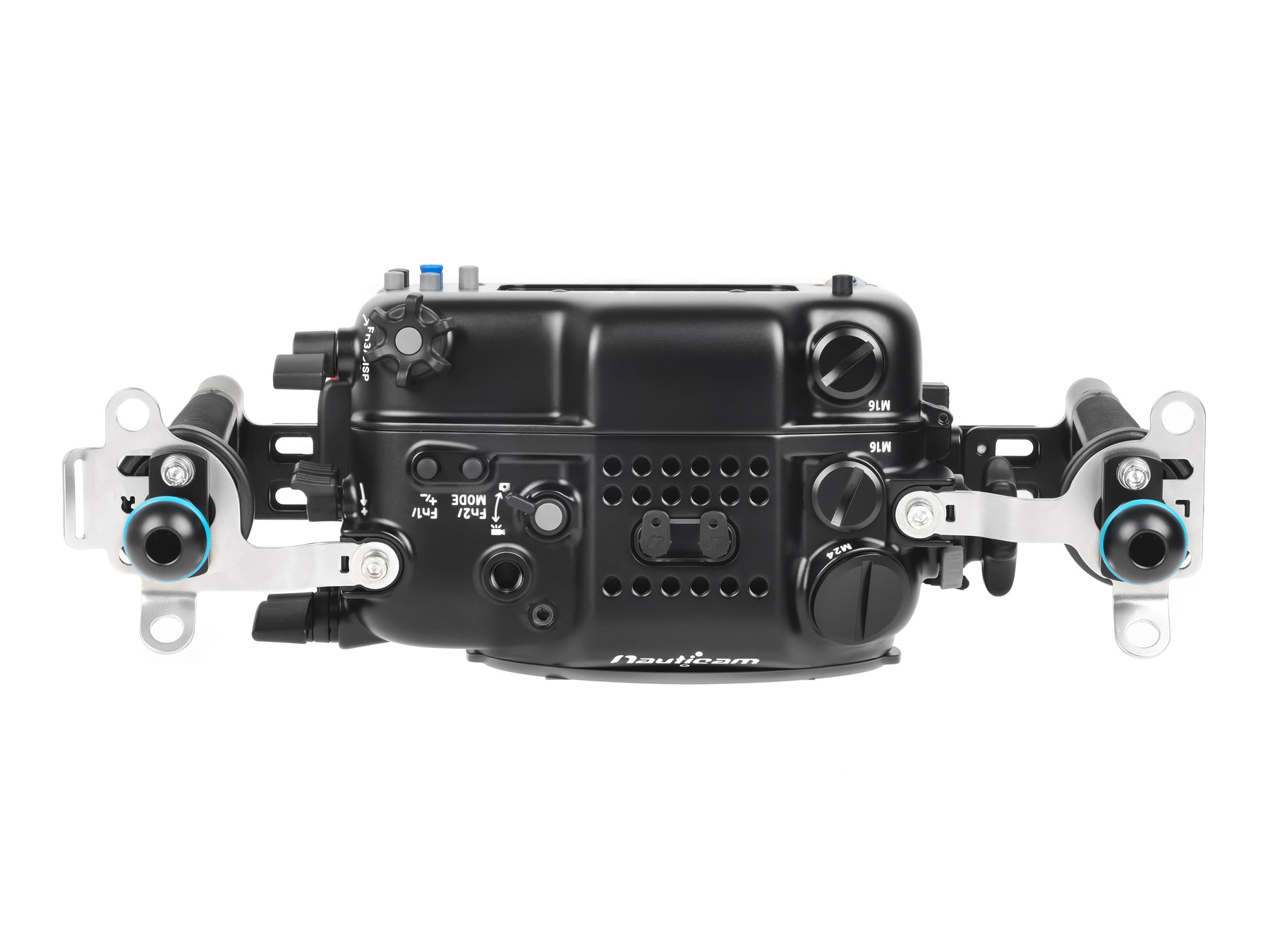

| Accessory ports | Front: 1x M24; 1x M16; 1x M10 threaded hole Rear: 1x M16 |
| Housing O-rings | xxxxx Housing o-ring (I.D.=160mm, C.S.=2.5mm) |
| Vacuum valve (optional) | 25625 M16 vacuum valve II |
| Handles and stabilizing brackets | Pre-installed |
| HDMI support | HDMI 2.0/1.4 |
| Compatible cameras | Nikon ZR Camera |
PDF Manual coming soon
Introducing NA-ZR
Nikon ZR Camera
The Nikon ZR, a full-frame Z-mount cinema camera developed in collaboration with RED Digital Cinema, represents Nikon’s entry into the cinema market. This compact and rugged camera, weighing only 630g with the battery and media, caters to both emerging and high-end filmmakers.
The ZR features a partially stacked 24.5-megapixel CMOS sensor, capable of recording up to 6K/60p internally in the new 12-bit R3D NE RAW format. This format, developed by RED, leverages their color science and offers an impressive dynamic range of over 15 stops.
The camera’s powerful EXPEED 7 image processor and deep-learning AI enable exceptional autofocus with subject detection for people, animals, and vehicles, a feature inherited from Nikon’s flagship Z9.
Designed for versatility and user-friendliness, the ZR incorporates a large 4-inch, 1000-nit, fully articulating DCI-P3 LCD touchscreen. To support extended recording sessions, the ZR employs a fanless, heat-dissipating body design that can record for up to 125 minutes on a single battery. USB-C power delivery is available for longer shoots. Additionally, the ZR facilitates an efficient post-production workflow by enabling LUT previews on its monitor and providing Frame.io cloud transfer functionality.
Key Features
- Fusion of RED + Nikon Cinema Technology
- 6K Full-Frame Z-Mount Cinema Camera
- REDCODE RAW R3D + N-RAW Recording
- ProRes RAW/HQ, H.265/H.264 Codecs
- 32-Bit Float Audio, Dual-Base ISO
- Bright, Folding 4" DCI-P3 Display
- Built-In 3D LUTs, Digital Accessory Shoe
- Dual Built-In Microphones
- 15+ Stops Advertised Dynamic Range
- Frame.io Cloud Integration

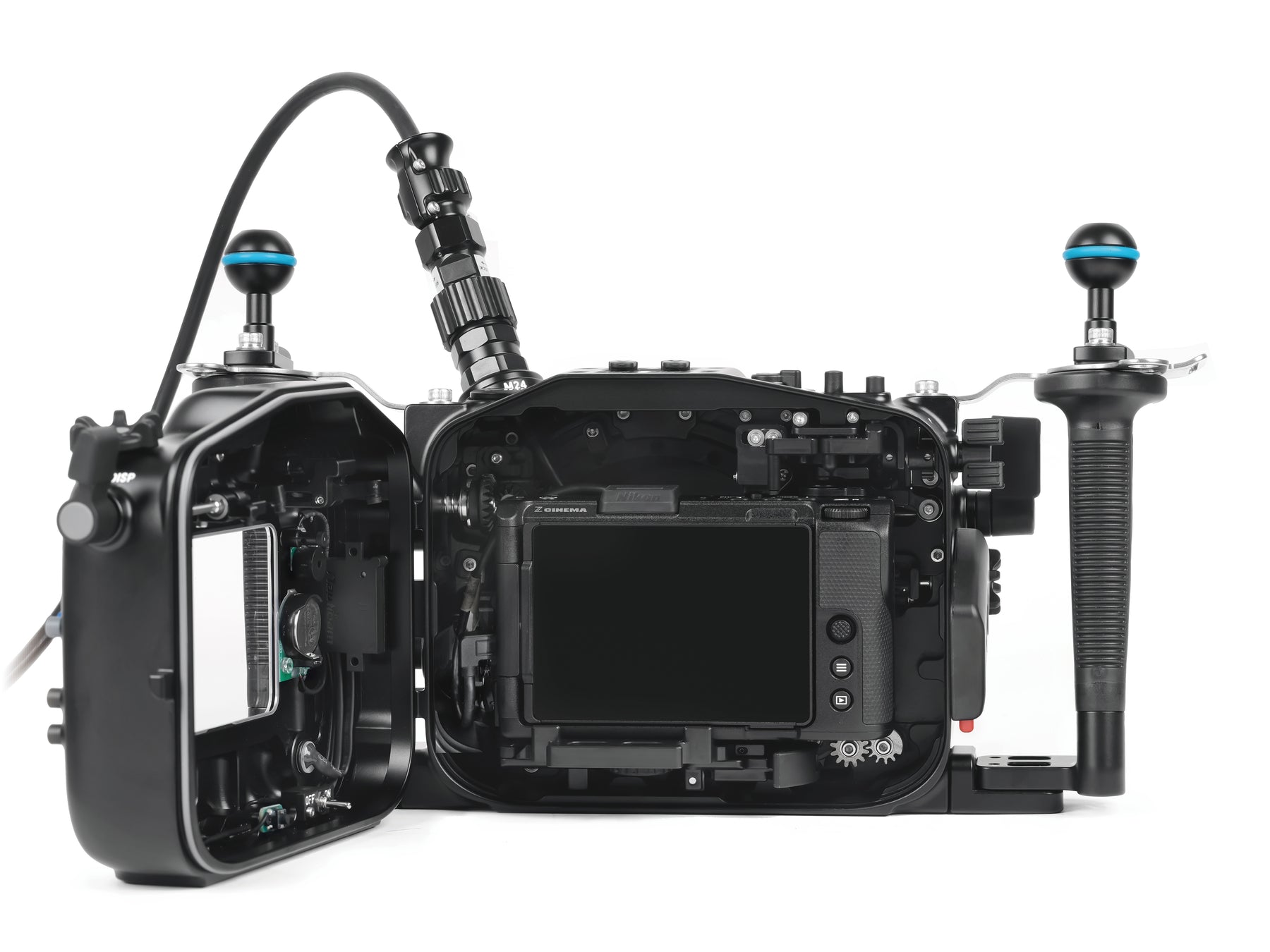

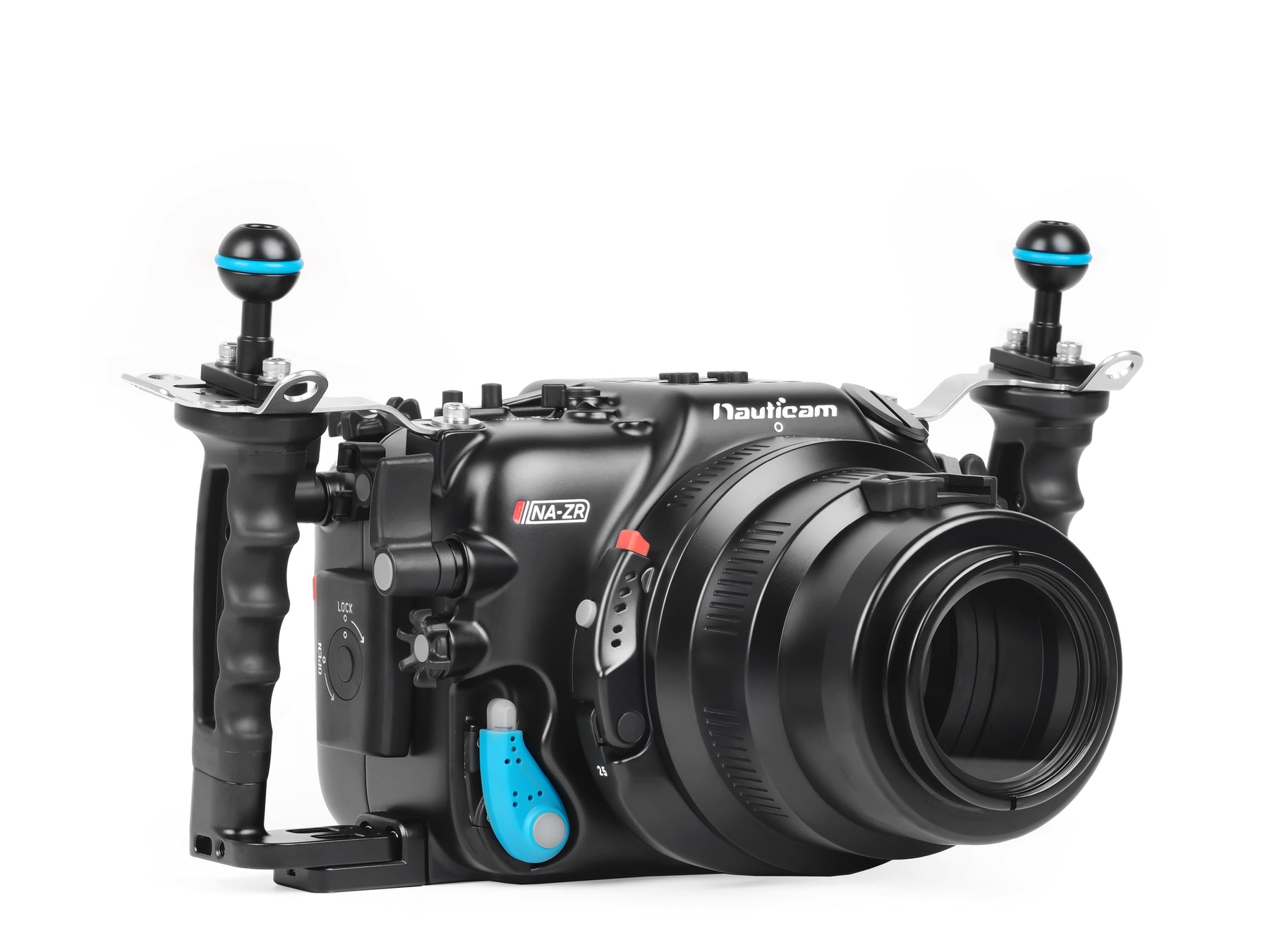

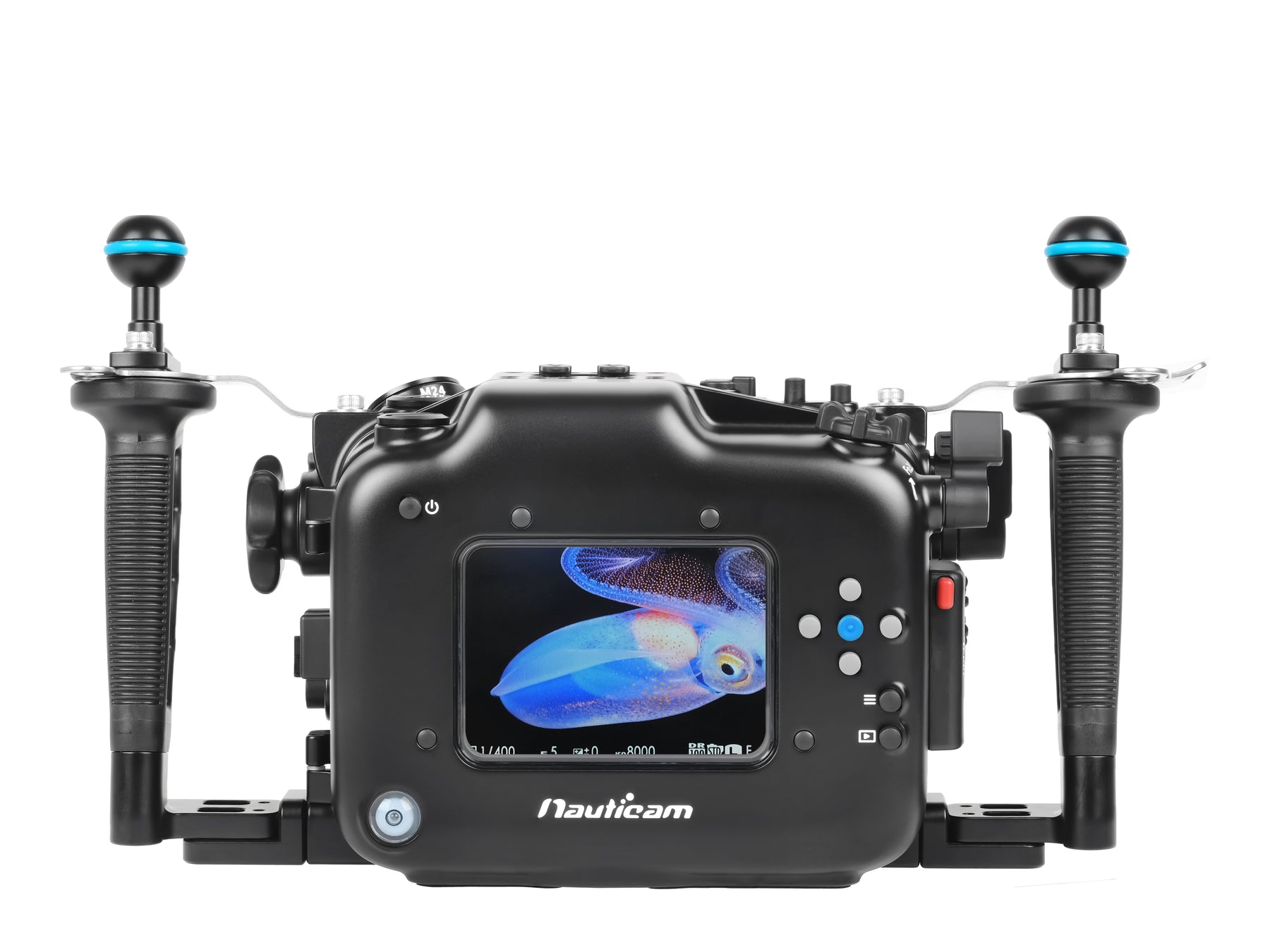

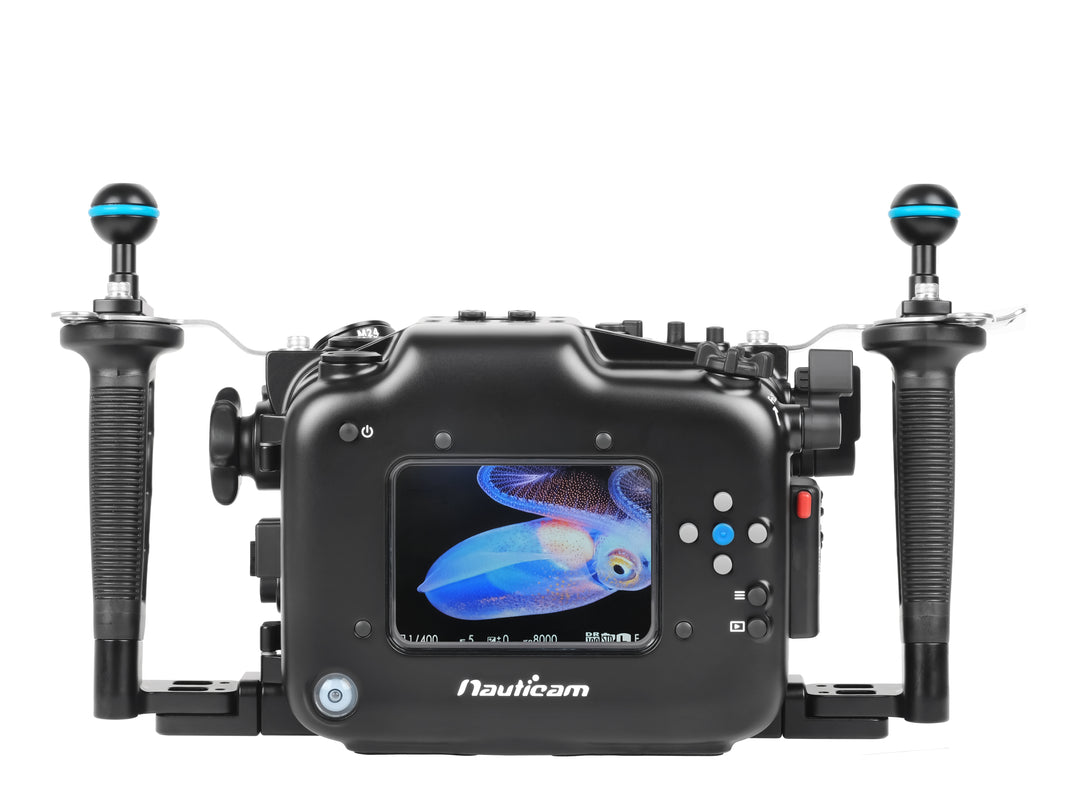

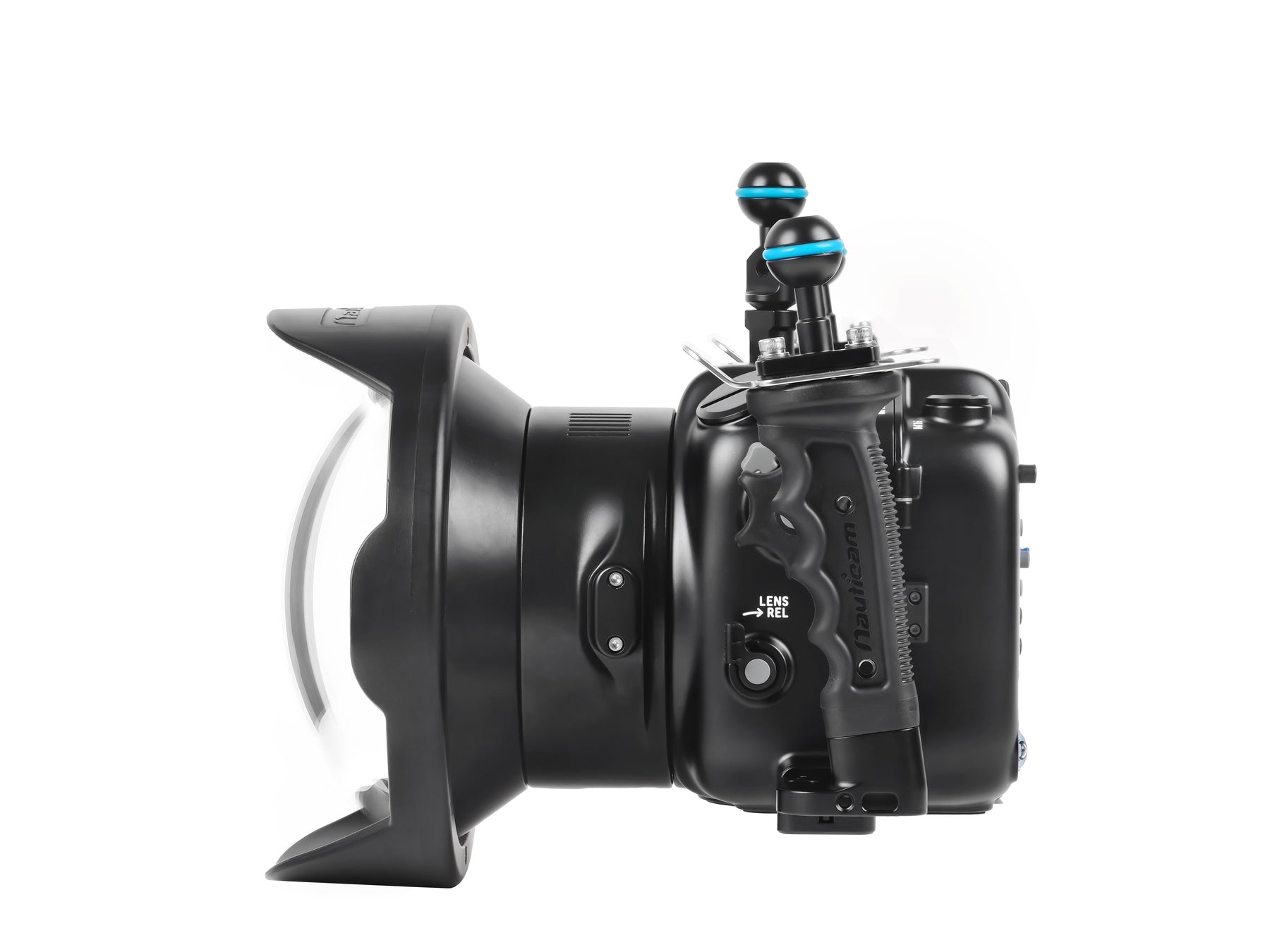

NA-ZR Housing
The NA-ZR underwater housing upholds Nauticam’s dedication to innovation. Essential controls are conveniently accessible via ergonomic handles, facilitating an efficient setup that optimizes time spent in the water and minimizes time spent on rig maintenance. The N120 port system accommodates Nikon Z Mount lens with a new gear system. Nauticam’s extensive range of ports and in-house corrective optics complement the NA-ZR’s capabilities. When equipped with an accessory vacuum valve, the integrated vacuum check and leak detection system provides continuous updates on the housing’s watertight integrity. A vacuum system reset switch, located beneath the tray, eliminates the necessity to open the back of the housing during lens or port changes. The NA-ZR supports additional mounting with a built in 1/4-20 cheese plate.
Main Features

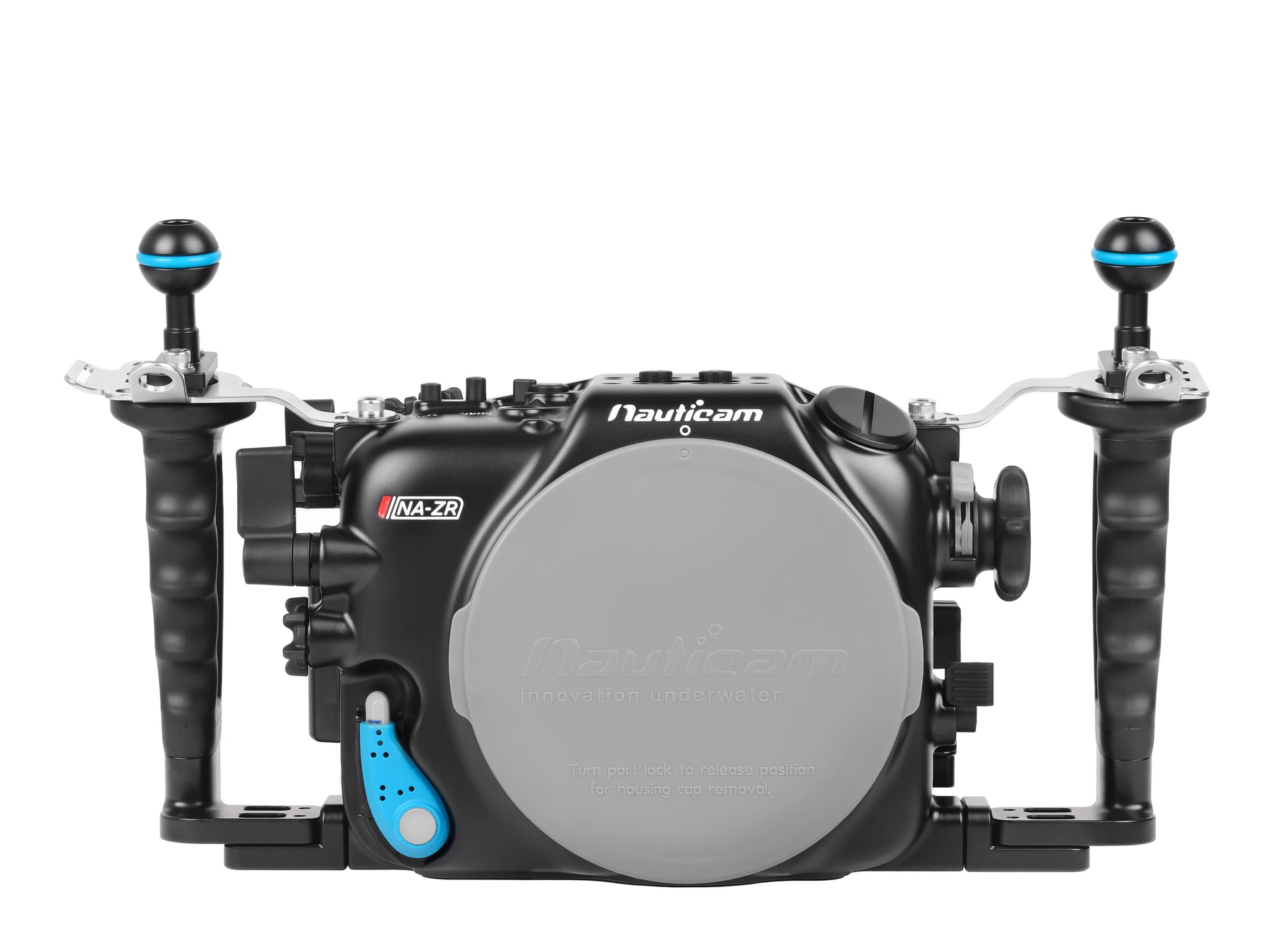

- N120 Port Lock II with Nauticam blue lever
*support to install Extension/Port and lock automatically when the red port lock lever is closed

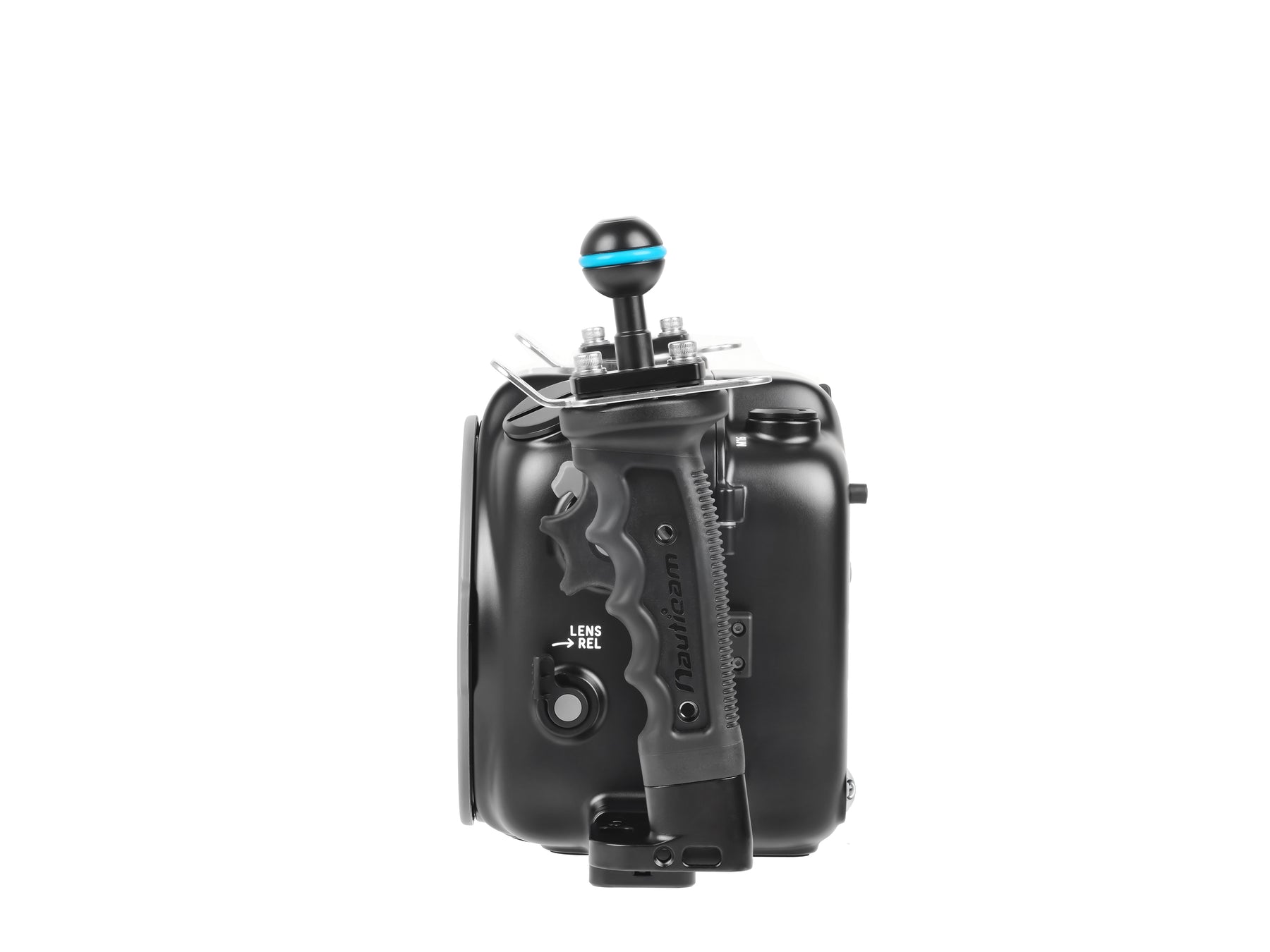

- MIL handles with Rotary Housing Lock.
- + & - Lever, Fn3/DISP Lever are routed to close the right side handle

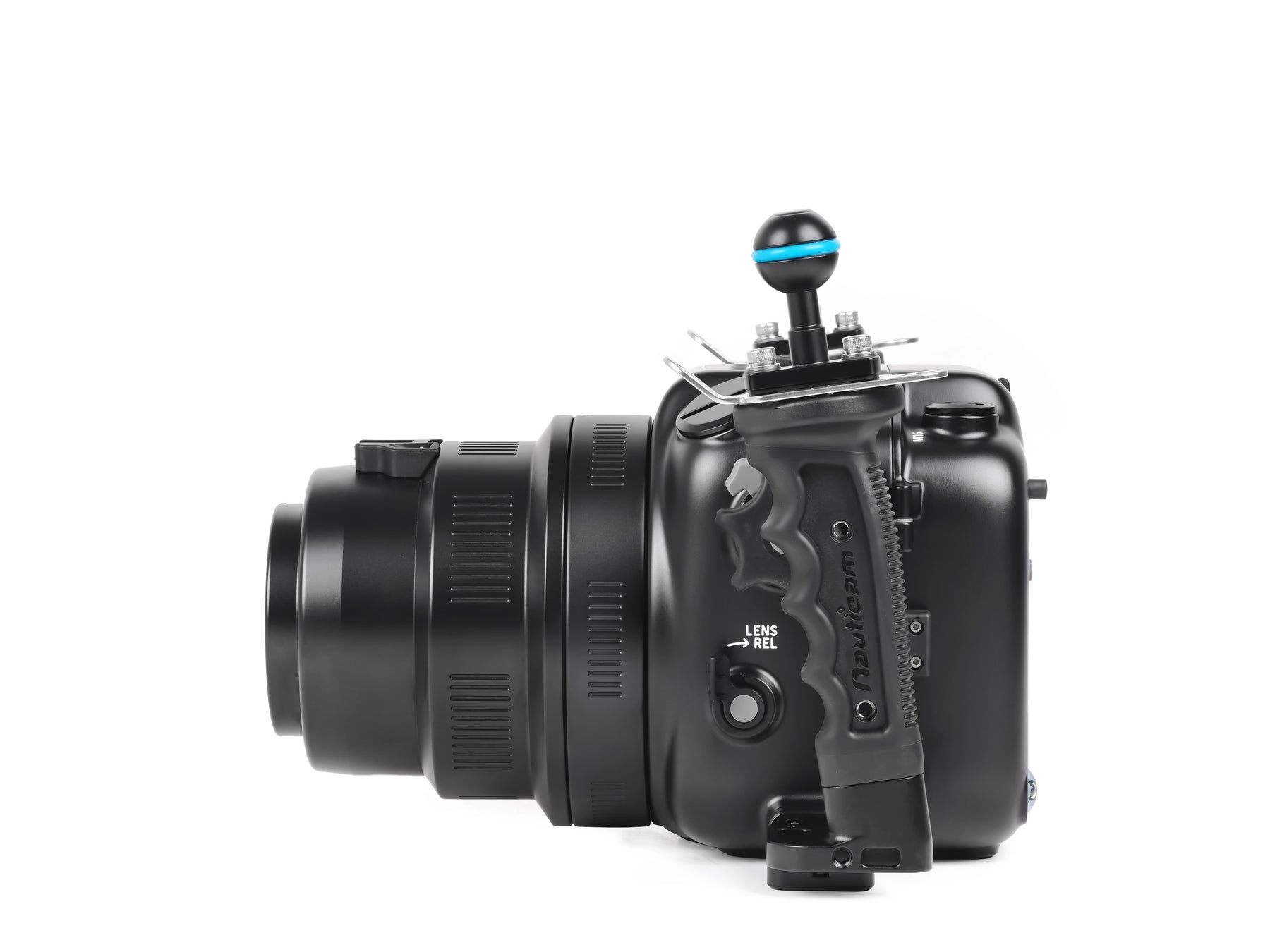

- Lens REL Lever
- Integrated Vacuum Check and Leak Detection System

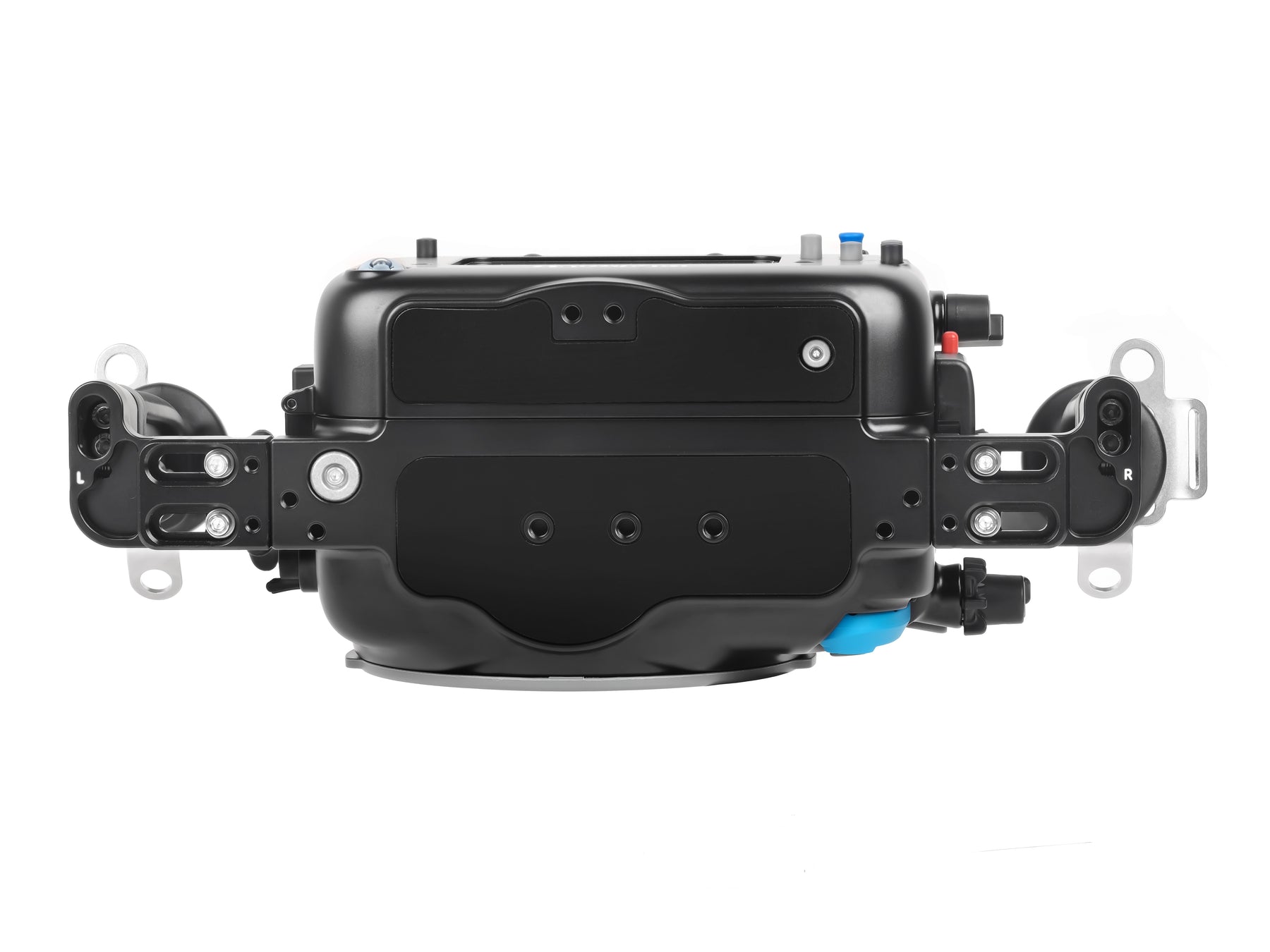

- 1/4-20 thread holes on the top
- Support Z mount lenses with new N120 Z mount Gear System III (PN.19231-19237)
- Support Z mount lenses and gears (V1 version/I) on N120 Nikon Z mount (for Z7II/Z8/Z9)*
- Support F mount lenses and gears with Nikon FTZII adaptor on N120 Nikon F-mount*
*#22225 N120 FTZ Adaptor ER25 is required

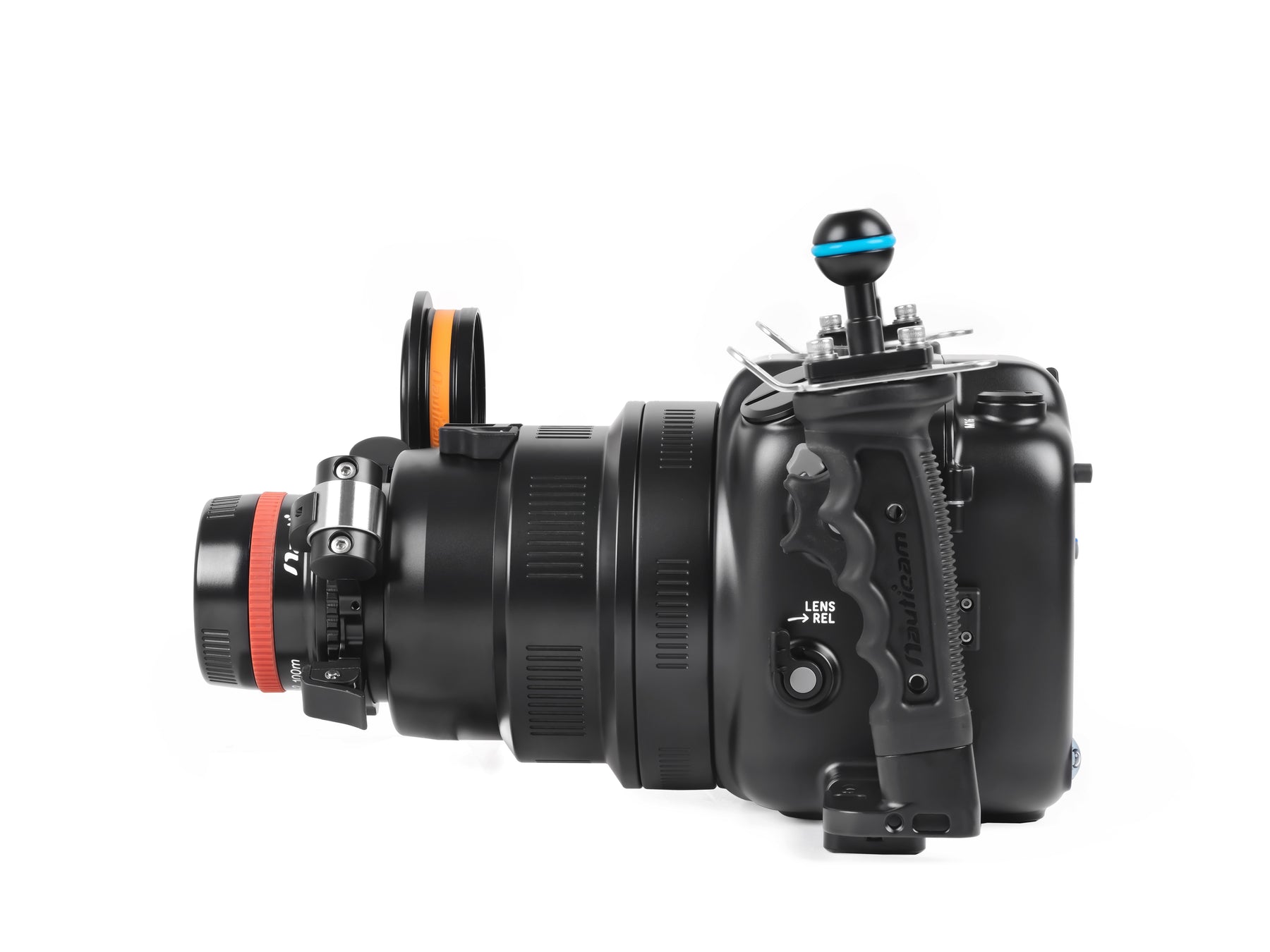

Nikon F-Mount & Z-Mount Lens Support
The Nauticam NA-ZR is designed to accommodate Z-Mount lenses. With the compact design of the NA-ZR housing, there are newly released zoom and focus gears. There is also the 22225 N120 FTZ Adapter ER 25 with Knob which will allow you to manual focus Z-Mount lenses and their corresponding gears. For complete compatibility details, you can view the NA-ZR Port Chart.
PREMIUM PROFESSIONAL OPTICS
Nauticam’s professional water-contact optics deliver the highest underwater image quality. The FCP, WACP, and WWL lines enhance wide-angle, while the MFO and SMC offer exceptional macro and super macro capabilities. The EMWL allows you to shoot macro, wide-angle, or combine the styles for unique images.
Mission Control

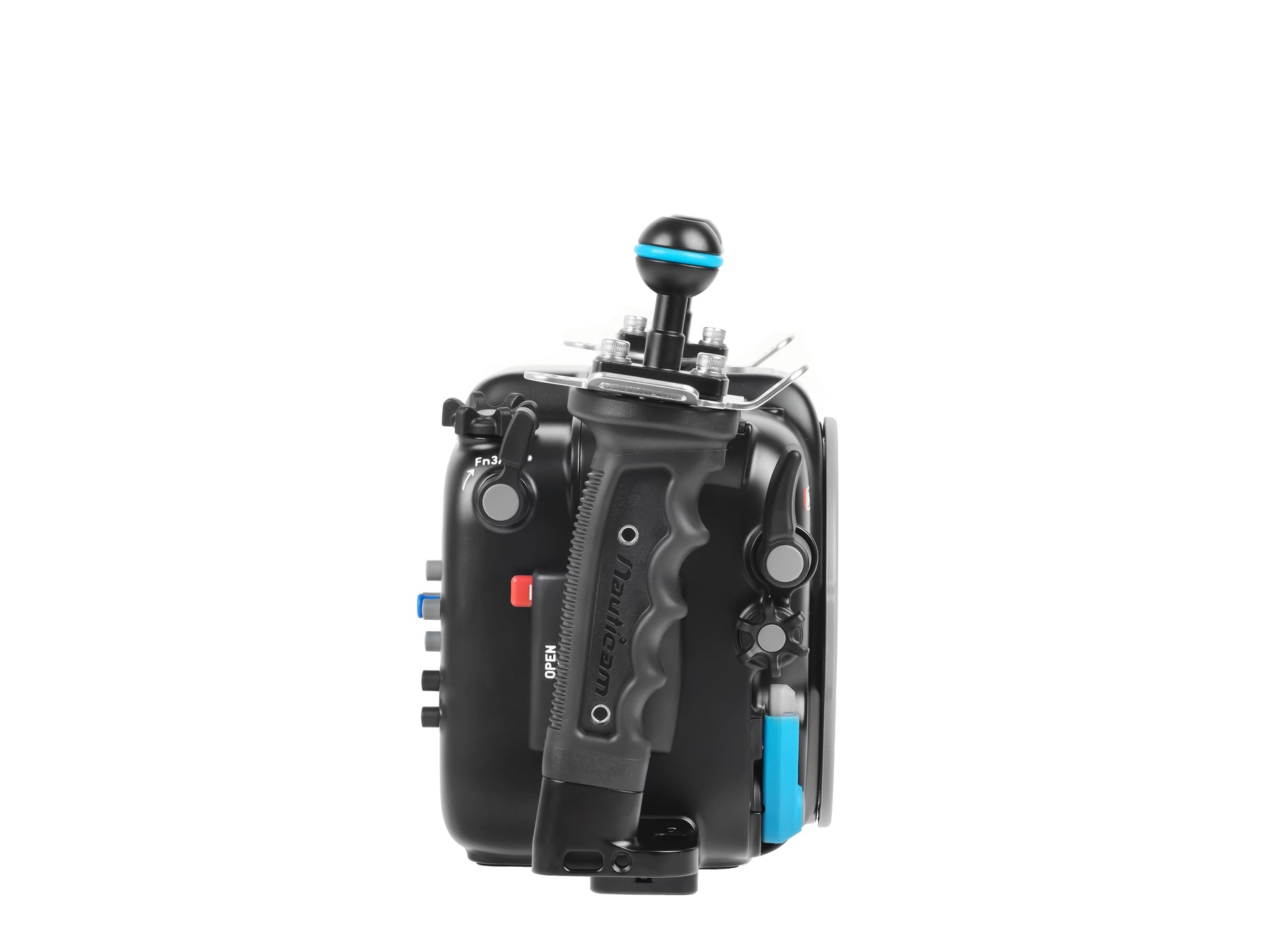

In true Nauticam fashion, essential controls are placed as close to the handles as possible, making these housings the most intuitive and user-friendly available. Our engineers strategically position controls where they’re needed most, rather than simply near the corresponding buttons on the camera. Dials feature rubberized finger grooves, and levers are designed for smooth operation.
Integrated Vacuum Check & Leak Detection Electronics
The Nauticam vacuum check and leak detection system is shipped with NA-ZR as standard equipment. Combined with an accessory vacuum valve (PN 25625), this monitoring system provides constant updates on the water tight and safe-to-dive status of the housing. A simple color coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur.The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action packed dive.
What’s in the box
- NA-ZR Housing
- 2x handles with mounting balls and handle brackets
- Housing Cap
- 2x plugs for Optical fiber cable mount
- Panasonic CR-2032 Battery (pre-installed for moisture alarm)
- Spare main O-ring, O-ring remover and lubricant
- Set of Allen Keys
- Padded housing bag and shoulder strap
Recommended Accessories
Housing O-rings:
- xxxxx Housing O-ring (I.D.=160mm, C.S.=2.5mm)
Port System:
- N120 Nikon Z Mount III (for ZR)
Port Adaptors
- 22225 N120 FTZ Adaptor ER 25 with Knob *for focus control
Compatible Gears
-
19231 Z105-FII for Nikkor Z MC 105mm F/2.8 VR S
-
19232 Z2450-ZII Zoom Gear for Nikkor Z 24-50mm f/4-6.3
-
19233 Z2850-ZII Zoom Gear for NIKKOR Z 24-50mm f/4-6.3 with 28-50mm Limitor Ring
-
19234 Z1424-ZII Zoom Gear for Nikkor Z 14-24mm f/2.8 S
-
19235 Z1430-ZII Zoom Gear for Nikkor 14-30mm f4 S
-
19236 Z2470II-ZII Zoom Gear for Nikkor Z 24-70mm f2.8 S II
- 19237 ZS2860-Z Zoom Gear for Sony FE 28-60 F4-5.6 (withMegadap ETZ 21 Pro+)
Flash Triggering
Optical Trigger
- xxxxx Mini Flash Trigger for NA-ZR
Electrical Triggering
- 25013 M14 Nikonos 5-pin bulkhead with hotshoe connection*
*25013 includes #25019 M16 to M14 step down adapter for electrical bulkhead
Housing Mount
- 25218 Mounting Ball Set for Tripod (for NA-A9/A7RIII/BMPCC/XT3)
- 25221 M10 strobe mounting ball for housing
- 25224 M10 strobe mounting ball for housing (with hole for using with lanyard)
- 25228 M5 strobe mounting ball for housing
Vacuum Valve
- 25625 M16 Vacuum Valve II (Pushbutton Release)
Lanyard
- 25413 27cm lanyard with 2 snap hooks
Surface USB-PD Power bank
- 26325 USB-C Bulkhead with USB-C Connector (not supported to use with HDMI OUT together)
Housing Shade
- xxxxx LCD window shade for NA-ZR

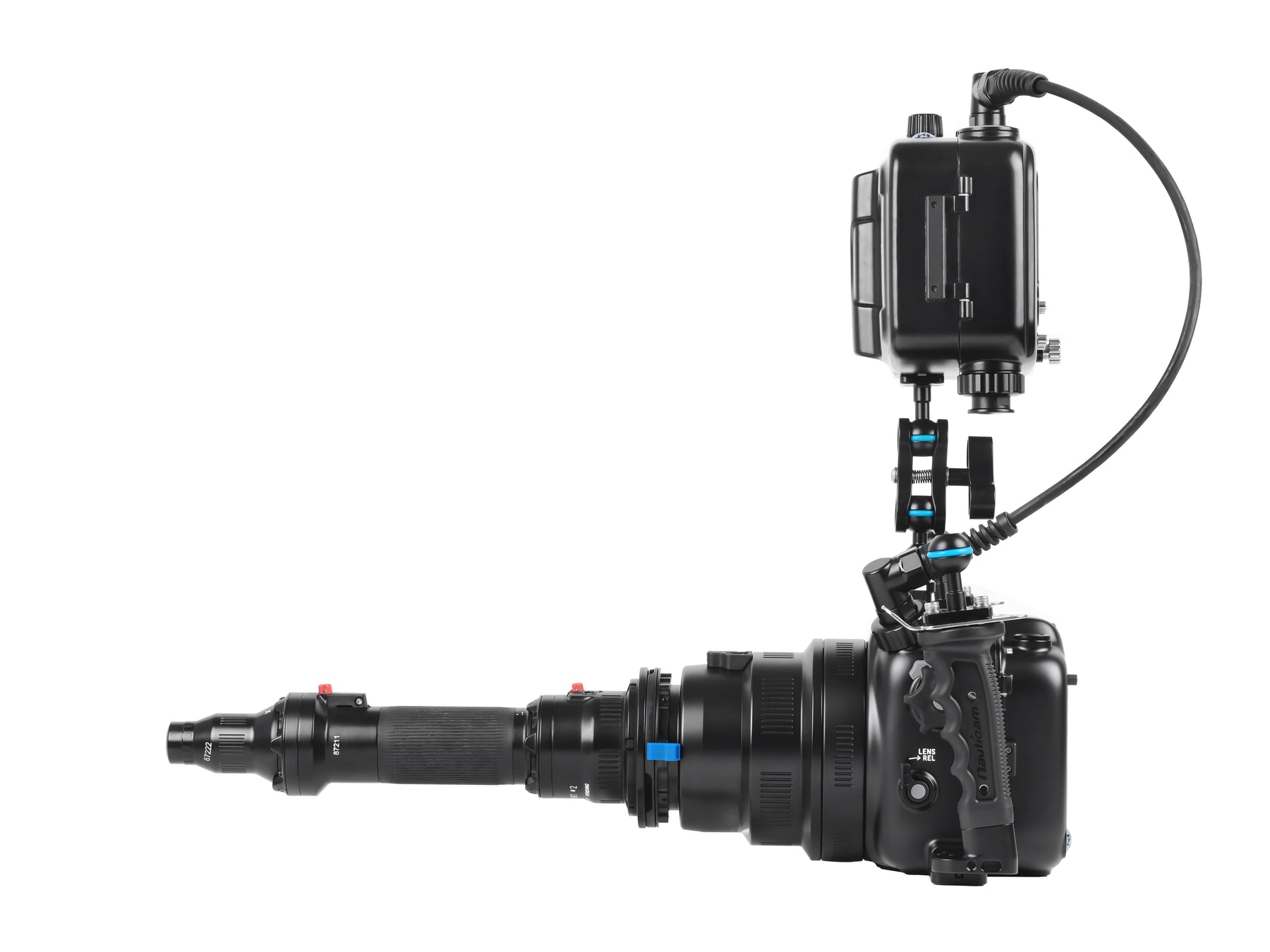

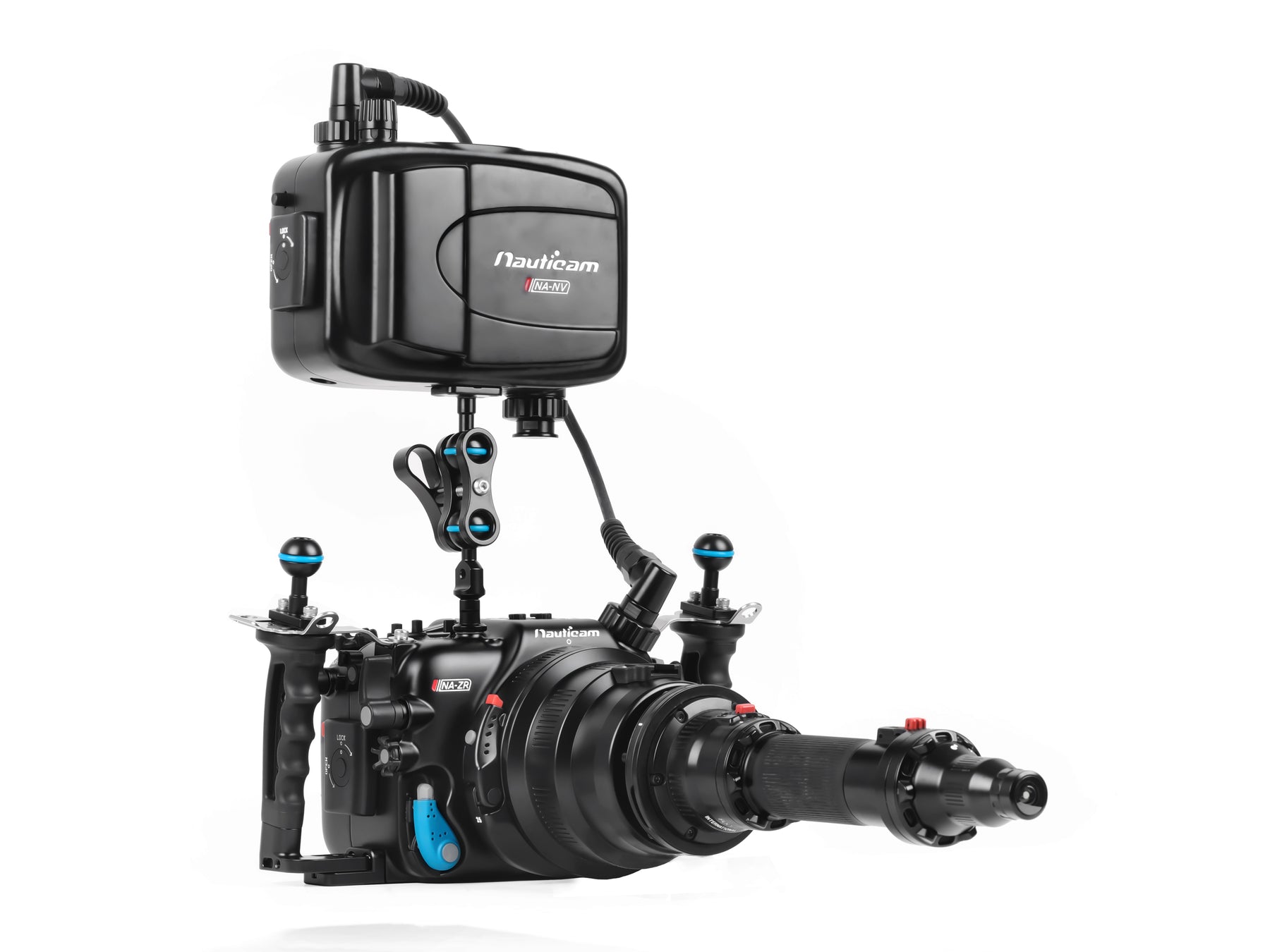

HDMI OUTPUT
1. Required accessories for HDMI 2.0 Cable System
-
25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
- 25077 M24D1R205-M28A1R170 HDMI 2.0 Cable (for NA-XT3 to use with Ninja V housing (TBA)
Monitor housing Options:
-
17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5.2" 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
-
17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5" 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module
Required accessories for HDMI 1.4 Cable System
- 25033 Standard HDMI bulkhead with M16 thread
- 26326 M24-M16 Adaptor for use with 26325 (instead of existing 25081)
- 25076 HDMI (D-D) Cable in 200mm Length for NA-XT2/XH1/A6400 (for internal connection from HDMI bulkhead to camera)
Compatible Monitor Options
- 16611 Nauticam 7" G7 UW ULTRAHD Monitor (4K HDMI, 2K SDI input, excl. cables)
- 16612 Nauticam 7" T7 UW ULTRAHD Monitor (HDMI 1.4 input, excl. cables)
- 25047 HDMI (D-D) cable in 800mm length (for connection between HDMI bulkheads)*25047 is required for use with 16612 monitor housing
- 17927 NA-Shinobi II Housing for Atomos Shinobi II 5.2" Monitor with HDMI 1.4 input *17927 includes 25033, 25038, 25100.
- 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5" 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
- 25082 HDMI 1.4 Cable for Ninja V Housing in 0.75m Length (for connection from Ninja V housing to HDMI Bulkhead) *25082 is required for use with 17922 monitor housing
Monitor Mounting system
- 17951 Nauticam Atomos Shogun housing mounting system
- 17952 Nauticam Monitor Housing Mounting Adaptor
- 17954 Tripod plate for NA-A7S and NA-GH4
- 17960 Universal Quadra-Pod Plate for Nauticam Housings
- 17961 Swivel and Tilt Adjustable Monitor Mount System (compatible with 16612/17927/17922 etc.)
Wet Lenses

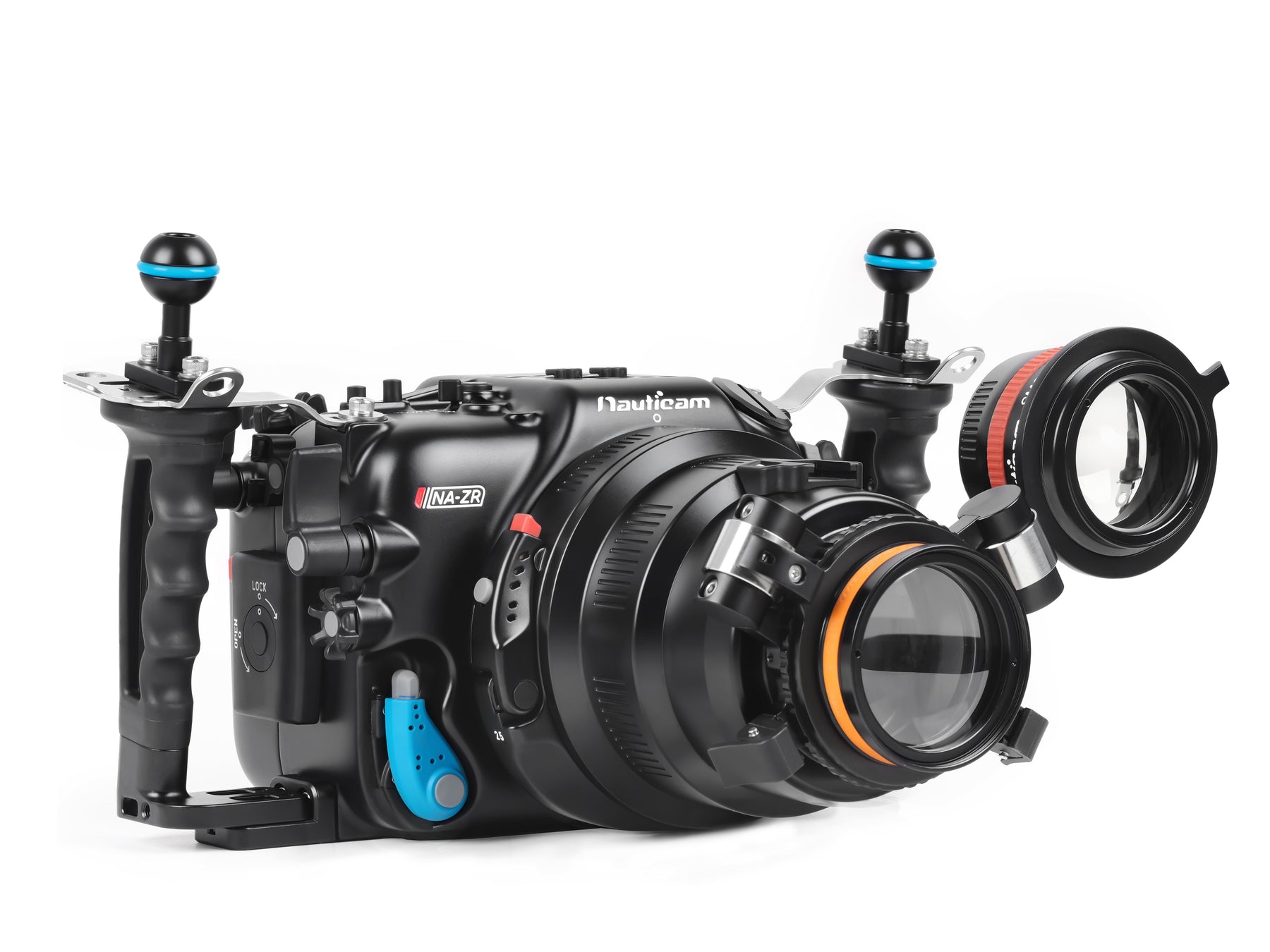

Macro
- 81202 Super Macro Convertor 2 (SMC-2. 4x Magnification)
- 81203 Super Macro Convertor 3 (SMC-3, 2.3x Magnification)
- 81301 Compact Macro Convertor 1 (CMC-1, 4.5x Magnification)
- 81302 Compact Macro Convertor 2 (CMC-2, 2.8X Magnification)
- 81501 Mid-range Focus Optimizer 1 (MFO-1)
- 81503 Mid-range Focus Optimizer 3 (MFO-3)

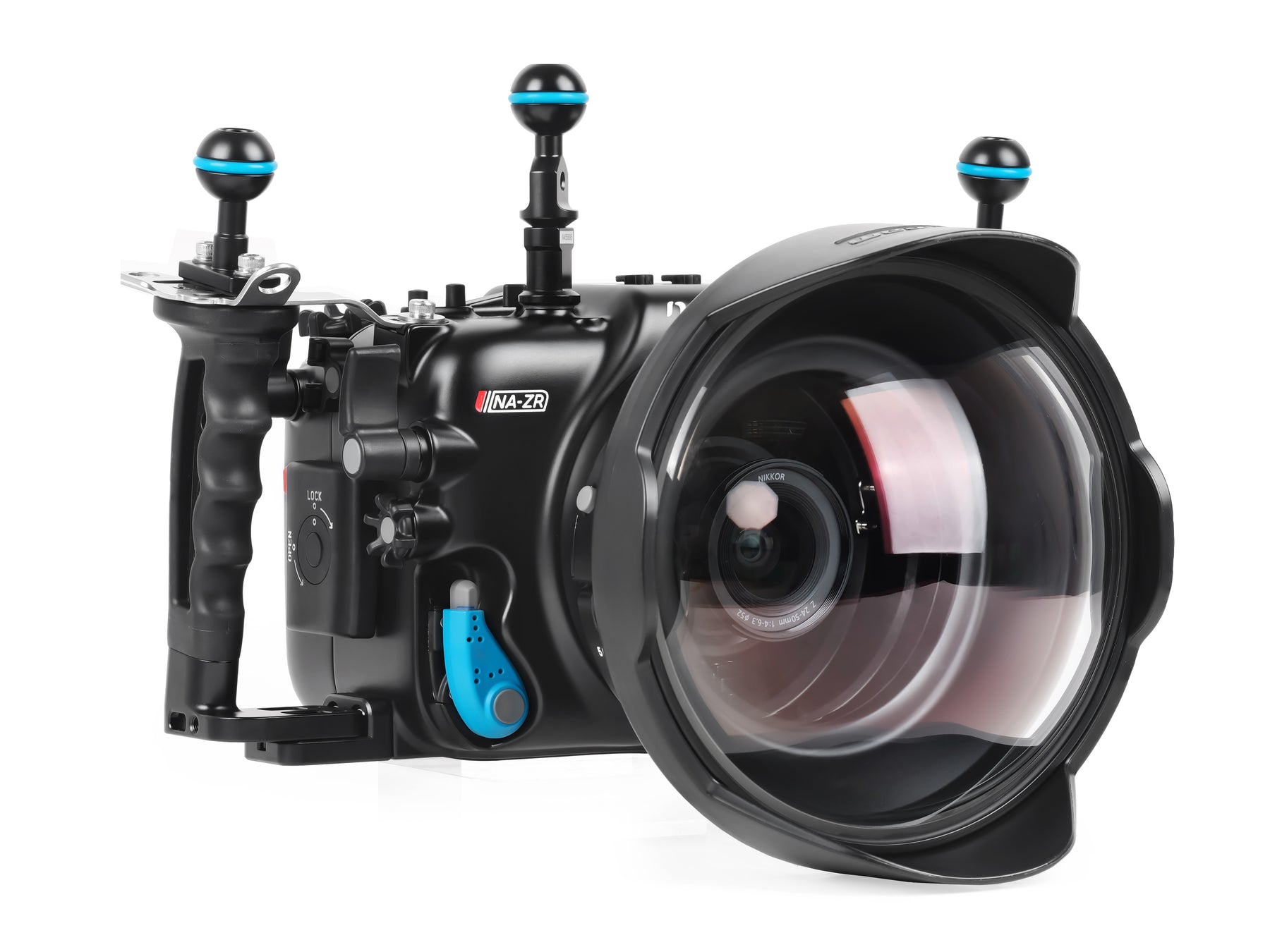

Wide-angle
- 83202 Wet Wide Lens 1B (WWL-1B) 130 deg. FOV with compatible 28mm lenses (incl. float collar)
- 83203 Wet Wide Lens Compact (WWL-C) 130 Deg. FOV with Compatible 24mm Lenses (incl. float collar)
- 85204 Wide Angle Conversion Port - 2 (WACP-2) 140 Deg. FOV with Compatible 14mm Lenes (incl. float collar)
- 85205 N100 0.36x Wide Angle Conversion Port Compact (WACP-C)
- 85206 N120/N100 0.36x Wide Angle Conversion Port with Integrated Float Collar and Interchangeable Port Mounting Ring - (WACP-1B)
- 85207 N120/N100 Fisheye Conversion Port with Integrated Float Collar (FCP) 170 Deg. FOV with Compatible 28mm Lenses
Macro to wide-angle
- 87302 EMWL Set #2 (incl. focusing unit #2, 150mm relay lens and 3 objective lenses)
- 87202 EMWL Focusing Unit #2 (for Canon FF/RF 100mm & APS-C 60mm & Nikkor Z105mm)
- 87211 EMWL 150mm Relay Lens
- 87212 EMWL Angled Relay Lens
- 87221 EMWL 60° Objective Lens
- 87222 EMWL 100° Objective Lens
- 87223 EMWL 130° Objective Lens
- 87226 EMWL 160° Objective Lens
Wet Lens Accessories
- 25101 M67 flip diopter holder for M67 macro ports
- 25108 M67 Double Flip Holder for M67 Macro Ports
- 83250 M67 to Bayonet Converter II
- 83214 Bayonet Mount Adaptor for SMC/CMC
- 87501 Flip Holder for EMWL
- 87512 Shade for 130° Objective Lens
- 87513 Shade for 100° Objective Lens
- 87518 Strobe Mounting Brackets for EMWL Relay Lens
- 87519 Shade for 160° Objective Lens

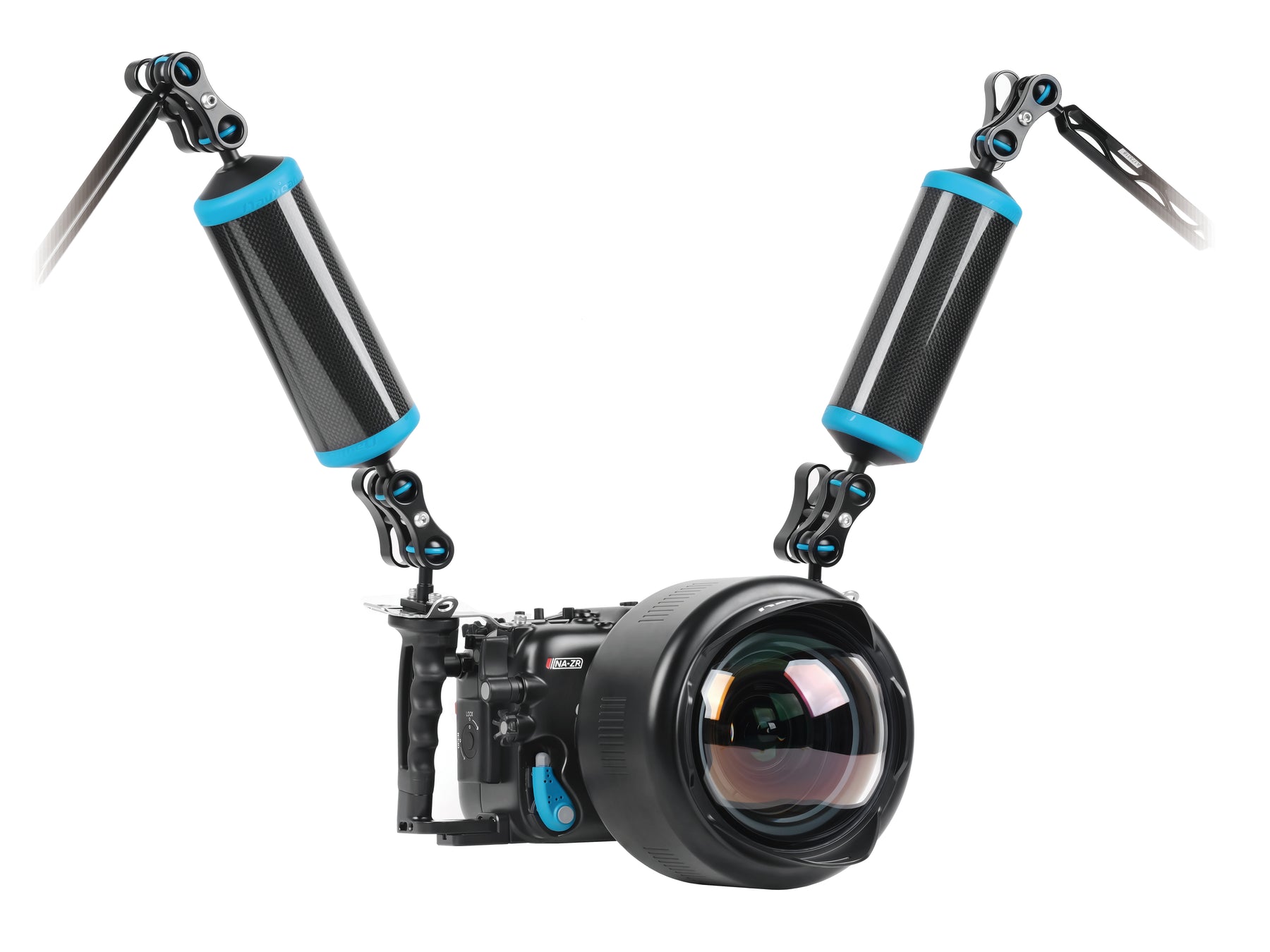

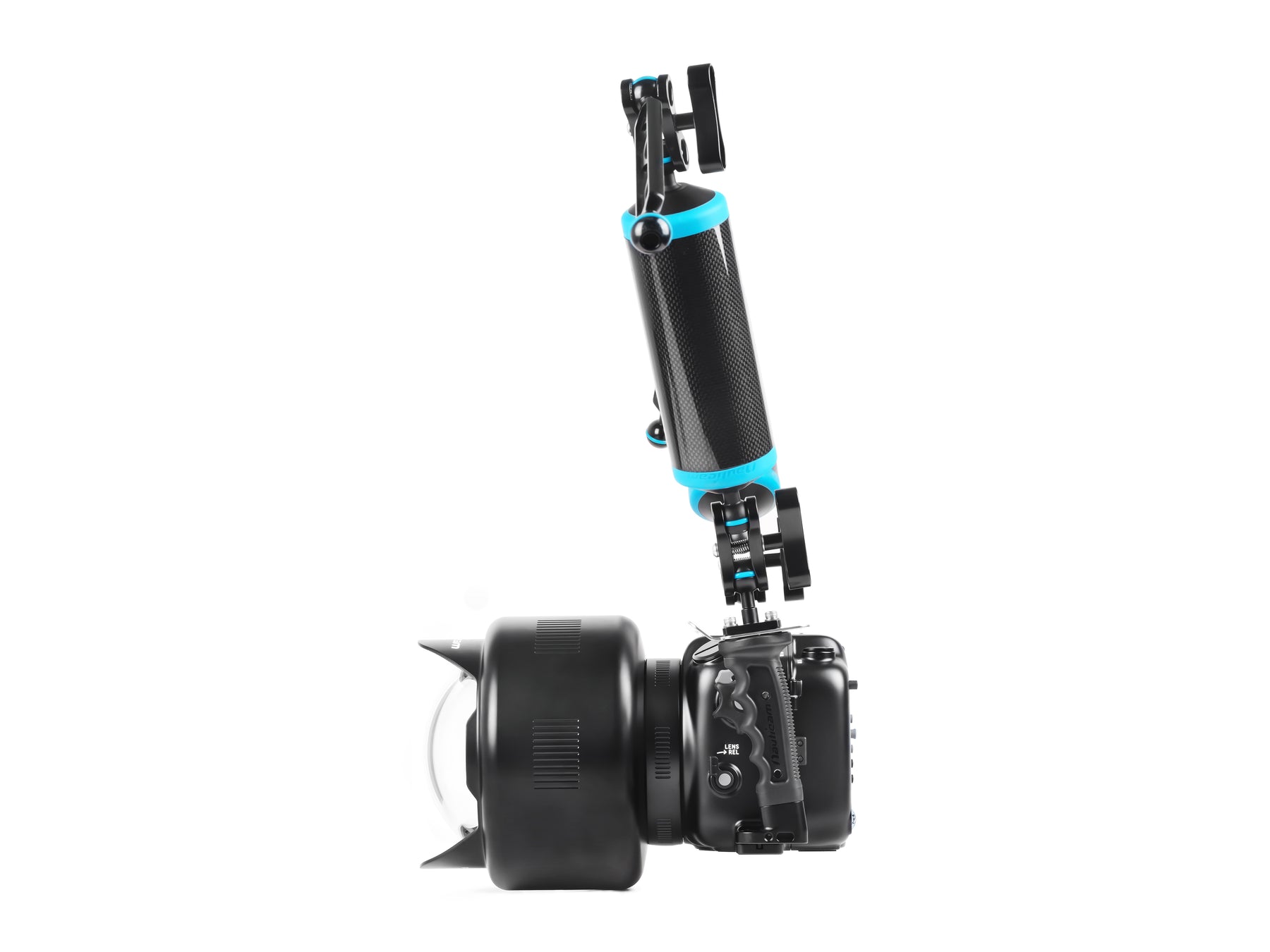

Buoyancy Recommendation for Housing Setups:
(depending on port and lens choices)
- 72216 Ø70x200mm Carbon Fibre Aluminium Float Arm (Buoyancy 370g)
- 72217 Ø70x250mm Carbon Fibre Aluminium Float Arm (Buoyancy 520g)
- 72218 Ø70x300mm Carbon Fibre Aluminium Float Arm (Buoyancy 670g)
- 72219 Ø90x170mm Carbon Fibre Aluminium Float Arm (Buoyancy 450g)
- 72220 Ø90x220mm Carbon Fibre Aluminium Float Arm (Buoyancy 720g)
- 72233 Single Bayonet Holder II for Ø70 Float Arm
- 72234 Double Bayonet Holder II for Ø70 Float Arm
- 72243 Single Bayonet Holder II for Ø90 Float Arm
- 72244 Double Bayonet Holder II for Ø90 Float Arm
- 83252 Bayonet Holder for Arms
- 83253 Double Bayonet Holder for Arms
- 83254 Bayonet Lens Holder for Inon Float Arms
- 87516 EMWL Bayonet Holder for Ø70 Float Arm
-
87517 EMWL Bayonet Holder for Ø90 Float Arm
