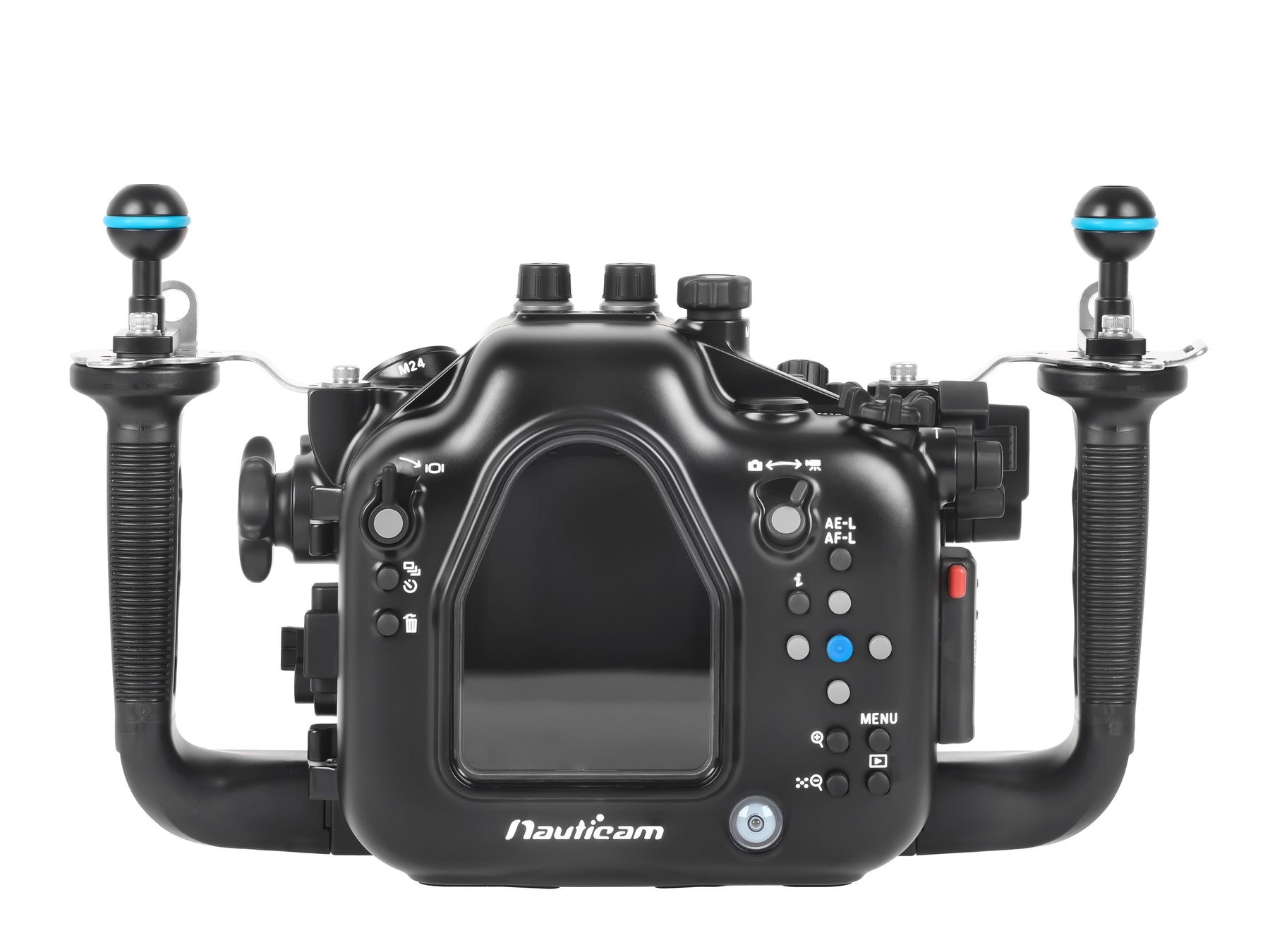

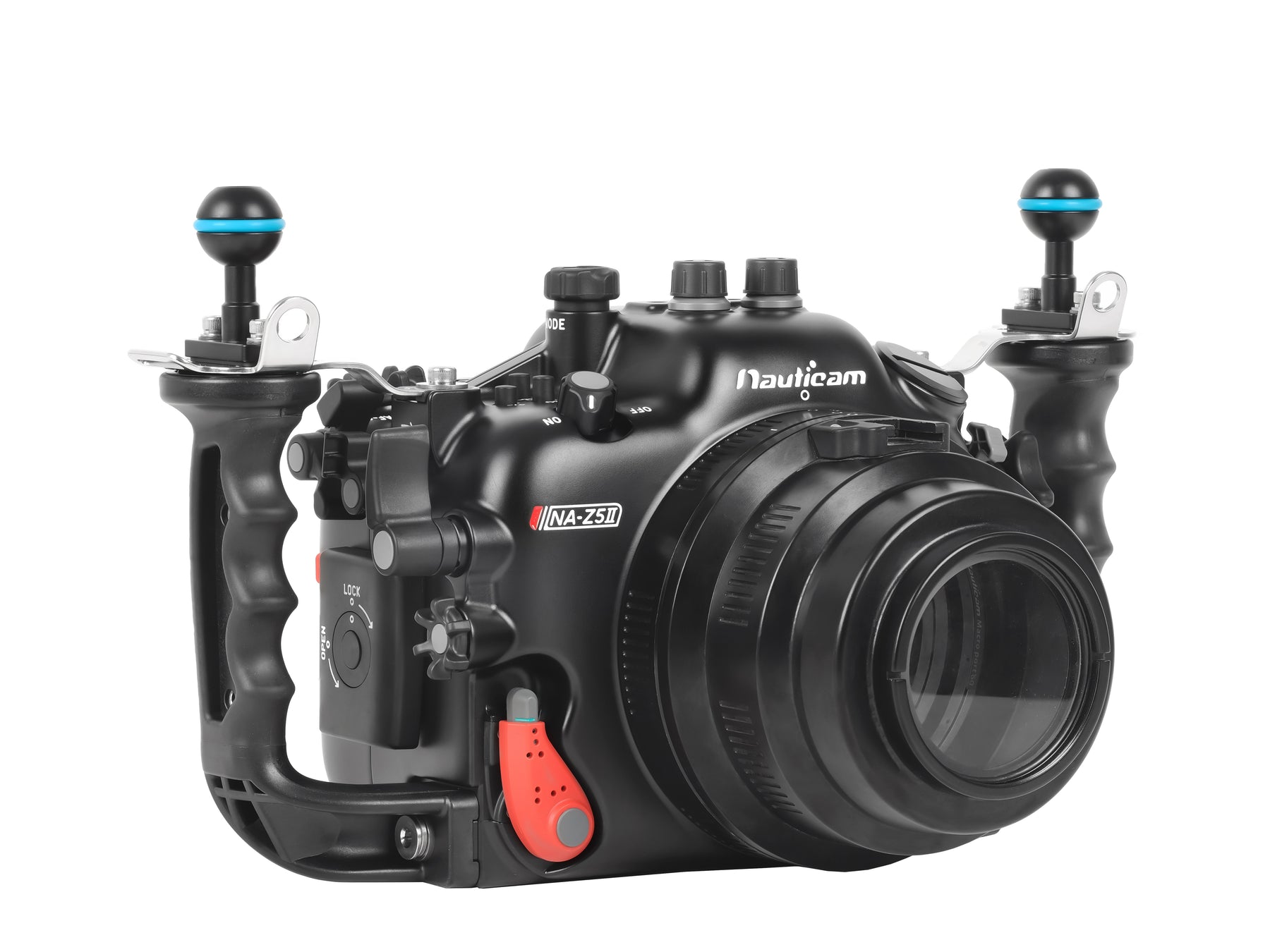

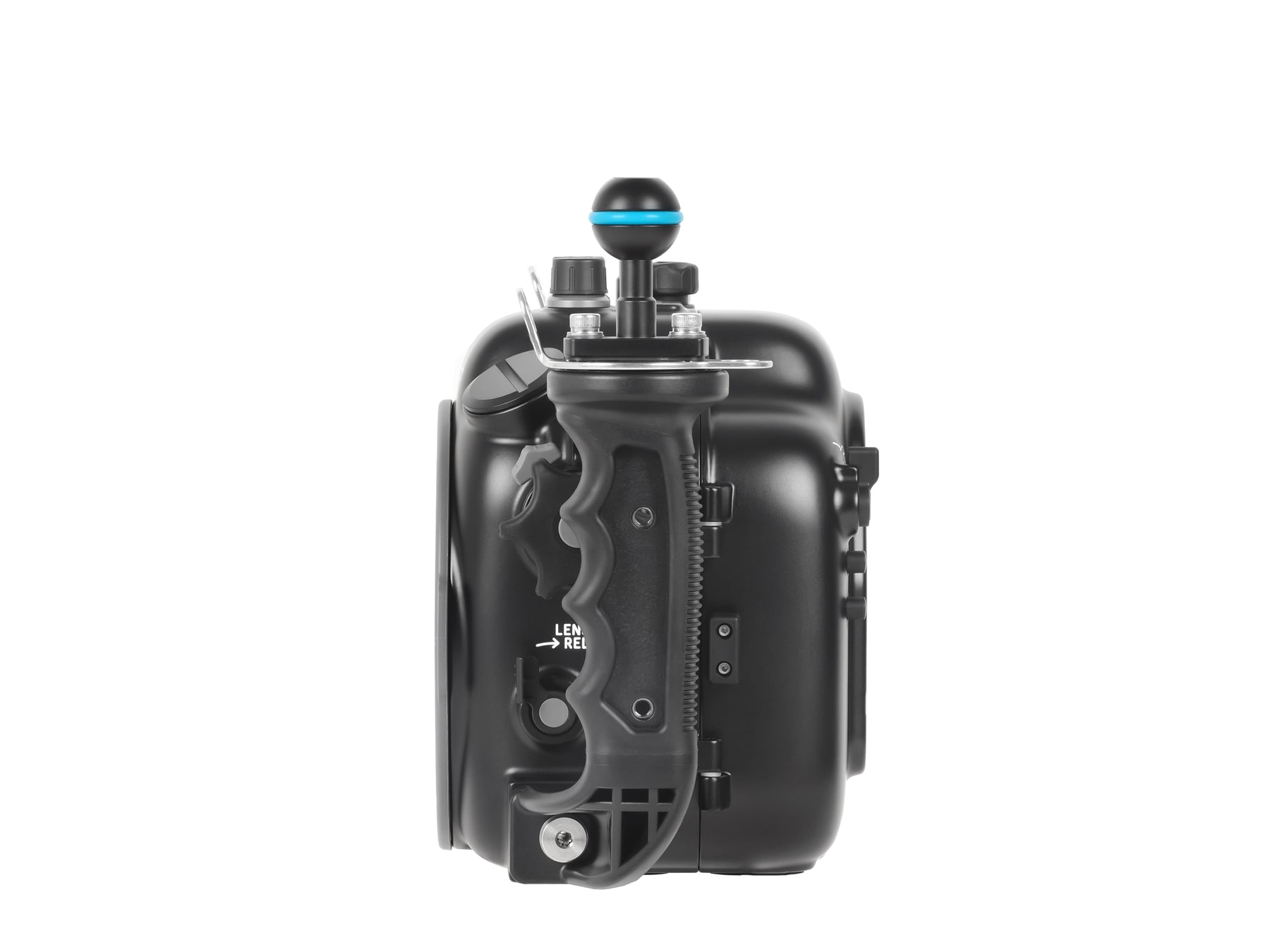

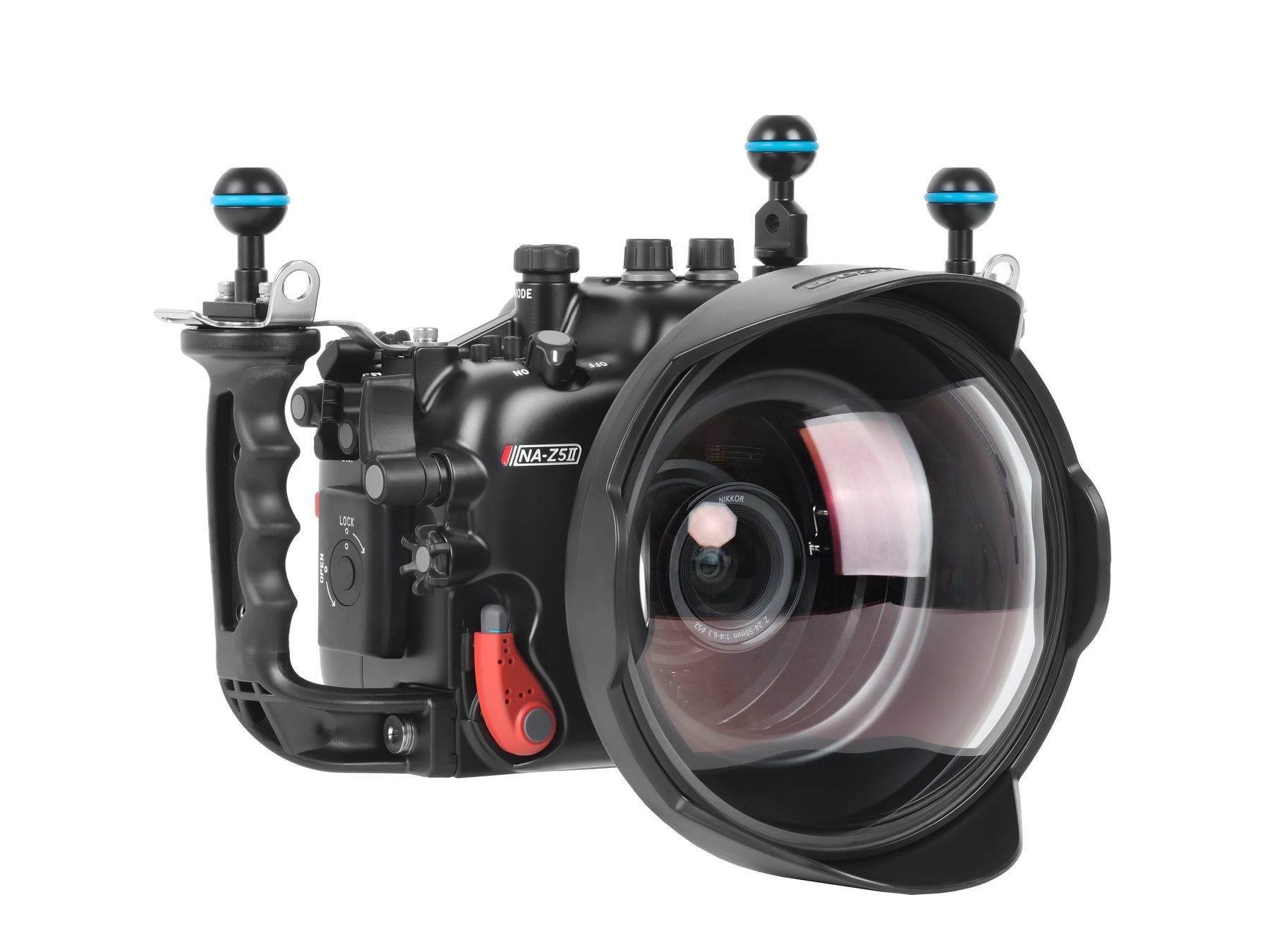

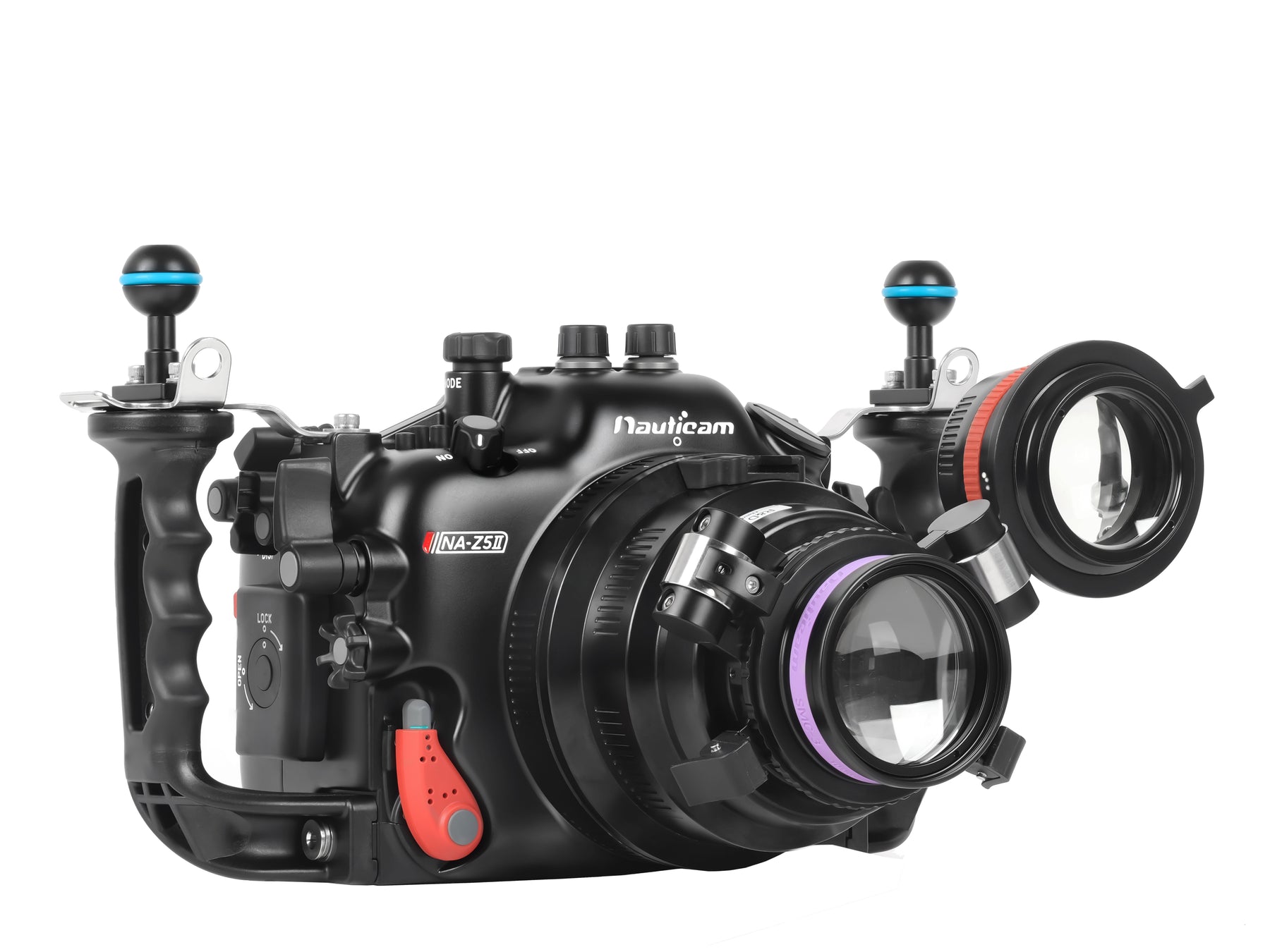

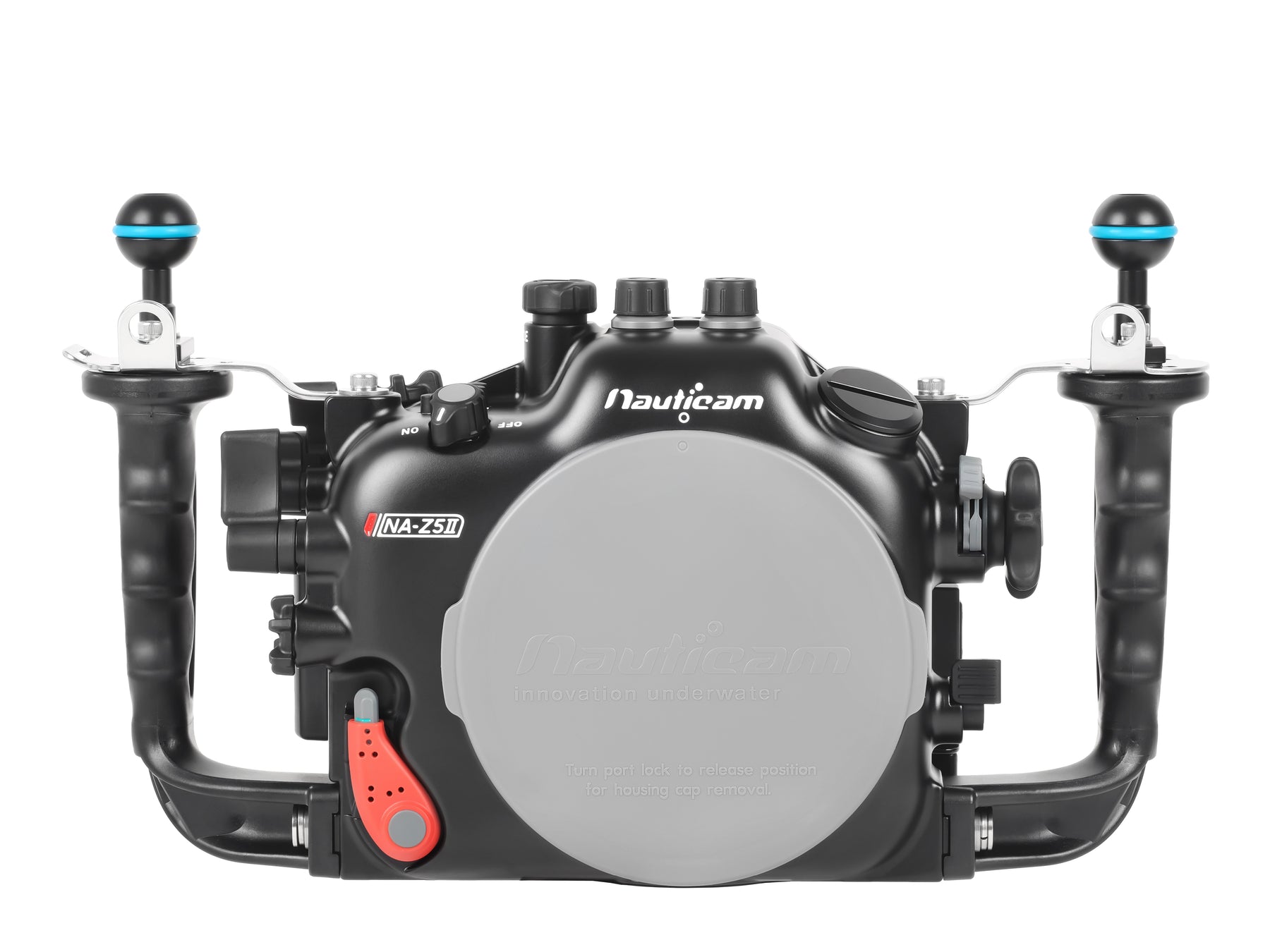

NA-Z5II Housing for Nikon Z5 II Camera
17232
Aug 2025 Promotion: Receive a complementary #22225 FTZ adaptor ER 25 when you buy this housing
Specifications
What’s in the box
- NA- Z5II Housing
- Housing Cap
- 2x Optical bulkhead caps
- 2x Handles with mounting balls and 2x handle brackets
- Panasonic CR-2032 Battery (pre-installed for moisture alarm)
- Spare main O-ring, O-ring remover and lubricant
- Set of Allen Keys
- Padded housing bag and shoulder strap
Features
- DSLR style handles, Port Lock and Rotary Housing Lock.
- Compatible Z mount and F mount lenses with FTZ/FTZ II adapter
- Integrated Vacuum Check and Leak Detection System
- AF-ON and DISP lever on the rear right side.
- Lens REL Lever
- 1/4-20 thread holes on the top (to support 16612/17961 Monitor mount system)
Port Adaptors
-
22225 N120 FTZ Adaptor ER 25 with Knob (for Z6III/Z5II)
*for use with F mount and Other Z mount lenses.
Compatible Gears
- 19200 Z105-F for Nikkor Z MC 105mm F/2.8 VR S
- 19201 Z2450-Z Zoom Gear for Nikkor Z 24-50mm f/4-6.3
- 19202 Z1424-Z Zoom Gear for Nikkor Z 14-24mm f/2.8 S
- 19203 Z1430-Z Zoom Gear for Nikkor 14-30mm f4 S
- 19204 Z2470-Z Zoom Gear for Nikkor Z 24-70mm f4 S
Flash Triggering
Optical Trigger
- 26350 Flash Trigger for Nikon (Compatible with NA-D5/D500/D850)
- 26352 Manual Flash trigger for Nikon II (for Z6III)
- 26601 HSS TTL Converter for Nikon (NA-Z8/Z9/Z6III) *Recommended Aperture in range f16-f22 for TTL mode)
Electrical Triggering
- 25013 M14 Nikonos 5-pin bulkhead with hotshoe connection
- 26326 M24-M16 Adaptor for use with 26325 *instead of existing 25081
Recommended Accessories
Housing Mount
- 25218 Mounting Ball Set for Tripod (for NA-A9/A7RIII/BMPCC/XT3)
- 25221 M10 strobe mounting ball for housing
- 25224 M10 strobe mounting ball for housing (with hole for using with lanyard)
- 25228 M5 strobe mounting ball for housing
Vacuum Valve
- 25625 M16 Vacuum Valve II (Pushbutton Release)
Lanyard
- 25413 27cm lanyard with 2 snap hooks
Hand strap
- 28130 Hand Strap for 28113
Handles
- 28123 Pair of handles - size S (10mm closer to housing)
Viewfinder
- 32221 NA-Z5II LCD Window for Nauticam Full Frame Viewfinder (required to use with below Viewfinders)
- 32212 Nauticam Full Frame Straight Viewfinder 40°/ 0.8:1
- 32214 Nauticam Full Frame Angle Viewinder 40°/ 0.8:1
- 87213 Reverse Angled Viewfinder for EMWL（40°/ 0.8:1）
- 87214 Reverse Straight Viewfinder for EMWL （40°/ 0.8:1）
Surface USB-PD Power bank
- 26325 USB-C Bulkhead with USB-C Connector
- 26326 M24-M16 Adaptor for use with 26325
HDMI OUTPUT
1. Required accessories for HDMI 1.4 Cable System
- 25033 Standard HDMI bulkhead with M16 thread
- 26326 M24-M16 Adaptor for use with 26325 (instead of existing 25081)
- 25076 HDMI (D-D) Cable in 200mm Length for NA-XT2/XH1/A6400 (for internal connection from HDMI bulkhead to camera)
2. Compatible Monitor Options
- 16612 Nauticam 7" T7 UW ULTRAHD Monitor (HDMI 1.4 input, excl. cables)
- 25047 HDMI (D-D) cable in 800mm length (for connection between HDMI bulkheads)*25047 is required for use with 16612 monitor housing
- 17927 NA-Shinobi II Housing for Atomos Shinobi II 5.2" Monitor with HDMI 1.4 input *17927 includes 25033, 25038, 25100.
- 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5" 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
- 25082 HDMI 1.4 Cable for Ninja V Housing in 0.75m Length (for connection from Ninja V housing to HDMI Bulkhead) *25082 is required for use with 17922 monitor housing
Monitor Mounting system
- 17951 Nauticam Atomos Shogun housing mounting system
- 17952 Nauticam Monitor Housing Mounting Adaptor
- 17954 Tripod plate for NA-A7S and NA-GH4
- 17960 Universal Quadra-Pod Plate for Nauticam Housings
- 17961 Swivel and Tilt Adjustable Monitor Mount System (compatible with 16612/17927/17922 etc.) *Compatible with NA-Z5II from SN A665554 onwards.
Wet Lenses
Macro
- 81202 Super Macro Convertor 2 (4x Magnification)
- 81203 Super Macro Convertor 3 (2.3x Magnification)
- 81301 Compact Macro Convertor 1 (CMC-1, 4.5x Magnification)
- 81302 Compact Macro Convertor 2 (CMC-2, 2.8X Magnification)
- 81501 Mid-range Focus Optimizer 1
- 81503 Mid-range Focus Optimizer 3
Wide-angle
- 83202 Wet Wide Lens 1B (WWL-1B) 130 deg. FOV with compatible 28mm lenses (incl. float collar)
- 83203 Wet Wide Lens Compact (WWL-C) 130 Deg. FOV with Compatible 24mm Lenses (incl. float collar)
- 85204 Wide Angle Conversion Port - 2 (WACP-2) 140 Deg. FOV with Compatible 14mm Lenes (incl. float collar)
- 85205 N100 0.36x Wide Angle Conversion Port Compact (WACP-C)
- 85206 N120/N100 0.36x Wide Angle Conversion Port with Integrated Float Collar and Interchangeable Port Mounting Ring - (WACP-1B)
- 85207 N120/N100 Fisheye Conversion Port with Integrated Float Collar (FCP) 170 Deg. FOV with Compatible 28mm Lenses
Macro to wide-angle
- 87302 EMWL Set #2 (incl. focusing unit #2, 150mm relay lens and 3 objective lenses)
- 87202 EMWL Focusing Unit #2 (for Canon FF 100mm & APS-C 60mm)
- 87211 EMWL 150mm Relay Lens
- 87212 EMWL Angled Relay Lens
- 87221 EMWL 60° Objective Lens
- 87222 EMWL 100° Objective Lens
- 87223 EMWL 130° Objective Lens
- 87226 EMWL 160° Objective Lens
Wet Lens Accessories
- 25101 M67 flip diopter holder for M67 macro ports
- 25108 M67 Double Flip Holder for M67 Macro Ports
- 83250 M67 to Bayonet Converter II
- 83214 Bayonet Mount Adaptor for SMC/CMC
- 87501 Flip Holder for EMWL
- 87512 Shade for 130° Objective Lens
- 87513 Shade for 100° Objective Lens
- 87518 Strobe Mounting Brackets for EMWL Relay Lens
- 87519 Shade for 160° Objective Lens
Buoyancy Recommendation for Housing Setups:
(depending on port and lens choices)

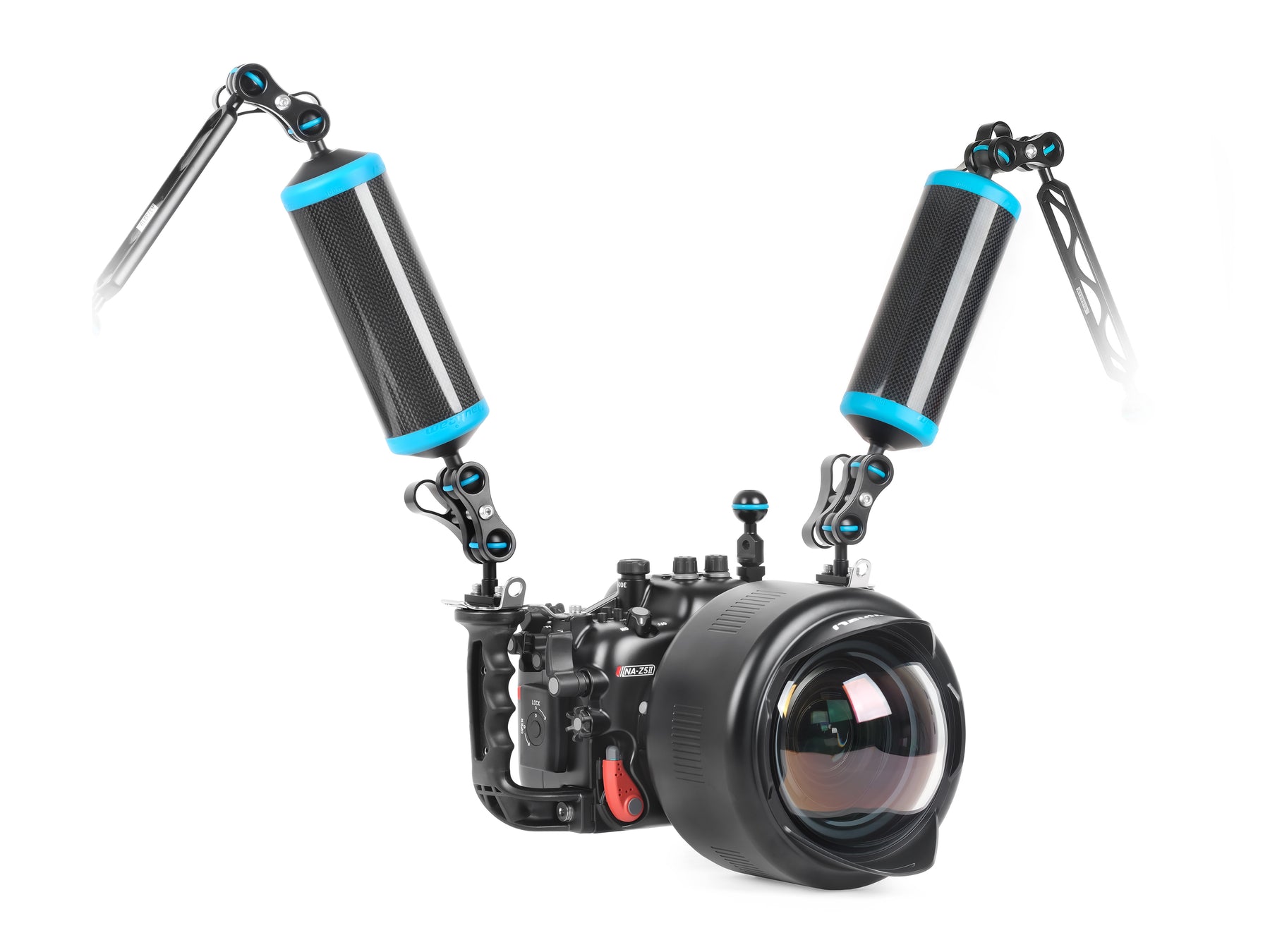

- 72216 Ø70x200mm Carbon Fibre Aluminium Float Arm (Buoyancy 370g)
- 72217 Ø70x250mm Carbon Fibre Aluminium Float Arm (Buoyancy 520g)
- 72218 Ø70x300mm Carbon Fibre Aluminium Float Arm (Buoyancy 670g)
- 72219 Ø90x170mm Carbon Fibre Aluminium Float Arm (Buoyancy 450g)
- 72220 Ø90x220mm Carbon Fibre Aluminium Float Arm (Buoyancy 720g)
- 72233 Single Bayonet Holder II for Ø70 Float Arm
- 72234 Double Bayonet Holder II for Ø70 Float Arm
- 72243 Single Bayonet Holder II for Ø90 Float Arm
- 72244 Double Bayonet Holder II for Ø90 Float Arm
- 83252 Bayonet Holder for Arms
- 83253 Double Bayonet Holder for Arms
- 83254 Bayonet Lens Holder for Inon Float Arms
- 87516 EMWL Bayonet Holder for Ø70 Float Arm
-
87517 EMWL Bayonet Holder for Ø90 Float Arm
