The Canon PowerShot V1 is the latest compact camera from Canon which features an impressive 1.4" CMOS sensor, Dual Pixel CMOS II autofocus system and an ultra wide built in 16-50mm power zoom lens which pairs well with the Nauticam Water Contact Optics.
Technical Specifications
Dimensions | 165mm(W) x 149mm(H) x 139mm(D) |
Weight in Air | 1.2kg |
Buoyancy in Water | negative 0.1g (including camera and battery) |
Depth Rating | 100m |
Port Mount | N50 |

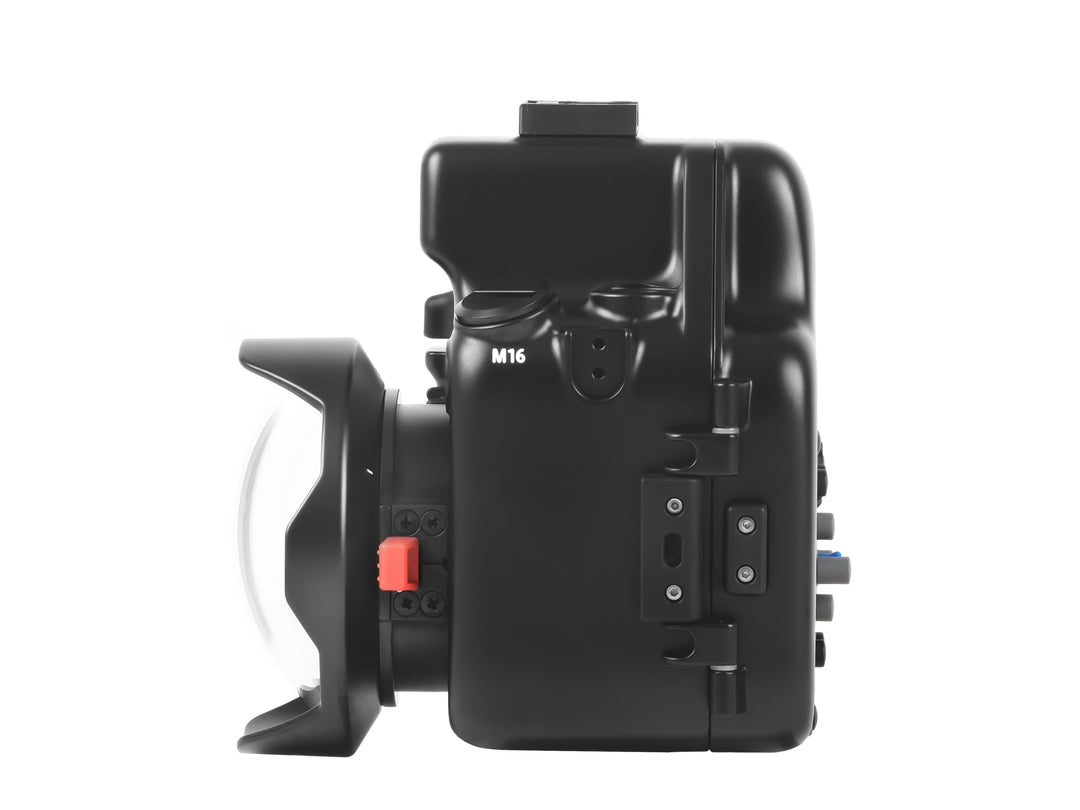

Accessory Ports | Front M16 x 1, M10 x1 on Top |
Vacuum Valve (optional) | 25625 M16 Vacuum Valve II |
Introducing NA-CV1 for Canon PowerShot V1 Digital Camera
The Canon Powershot V1 Camera
Key Camera Specifications
- 22.3MP 1.4" CMOS Sensor
- 16-50mm Equivalent f/2.8-4.5 Lens
- Full-Width 4K 30p; 4K 60p with 1.4x Crop
- 10-bit Recording; Canon Log 3
- Dual Pixel AF II for PowerShot
- Optical Stabilization; 3-Stop ND Filter
-
Active Cooling Extends Shooting Times
The Nauticam NA-CV1 Housing
Features:
- Compact housing design with rotary housing lock.

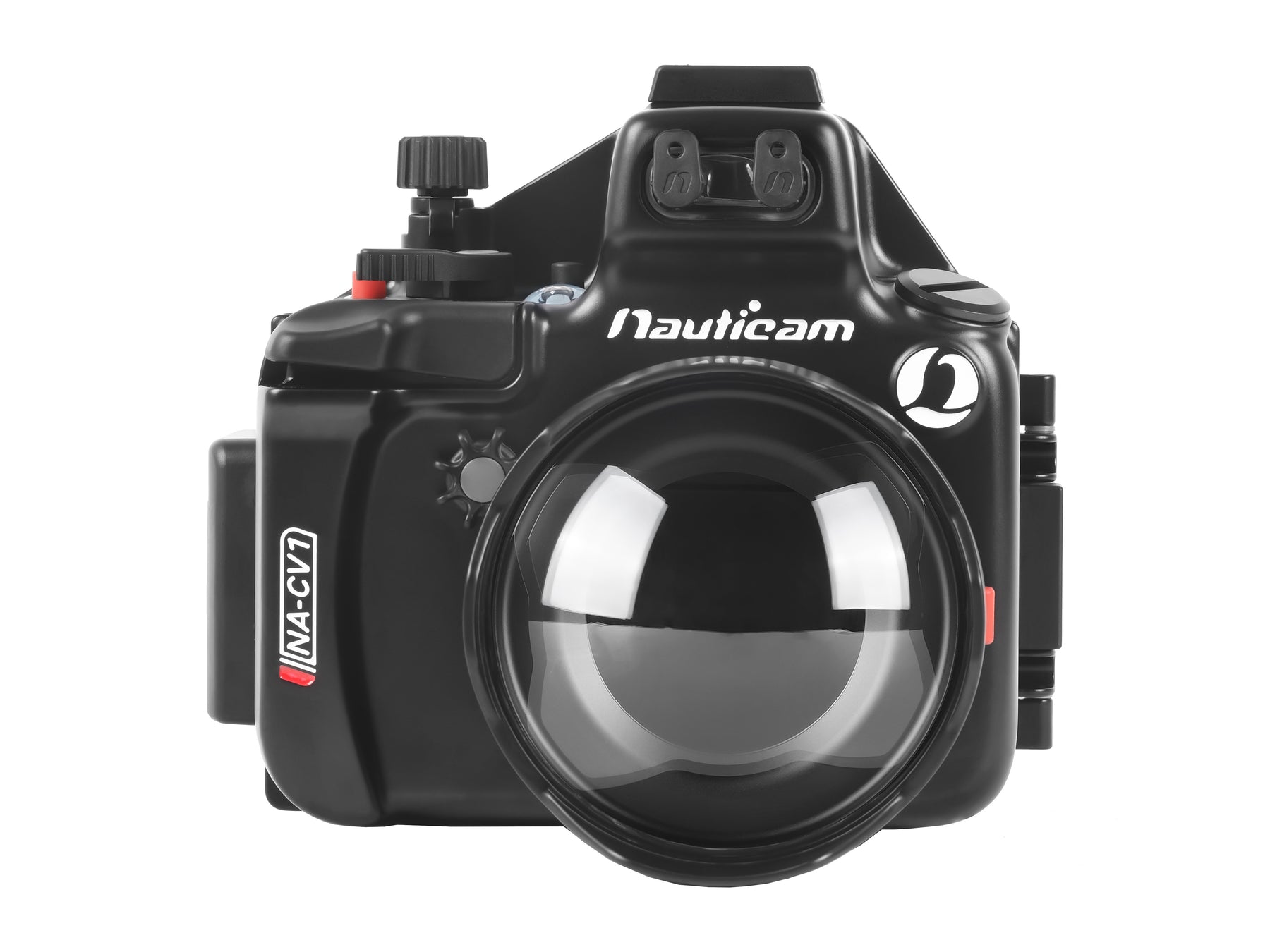

- Dedicated 3.5" acrylic dome port to support full zoom range 16-50mm (35mm equivalent).
- N50 exchangeable port system (for use with wet lenses).

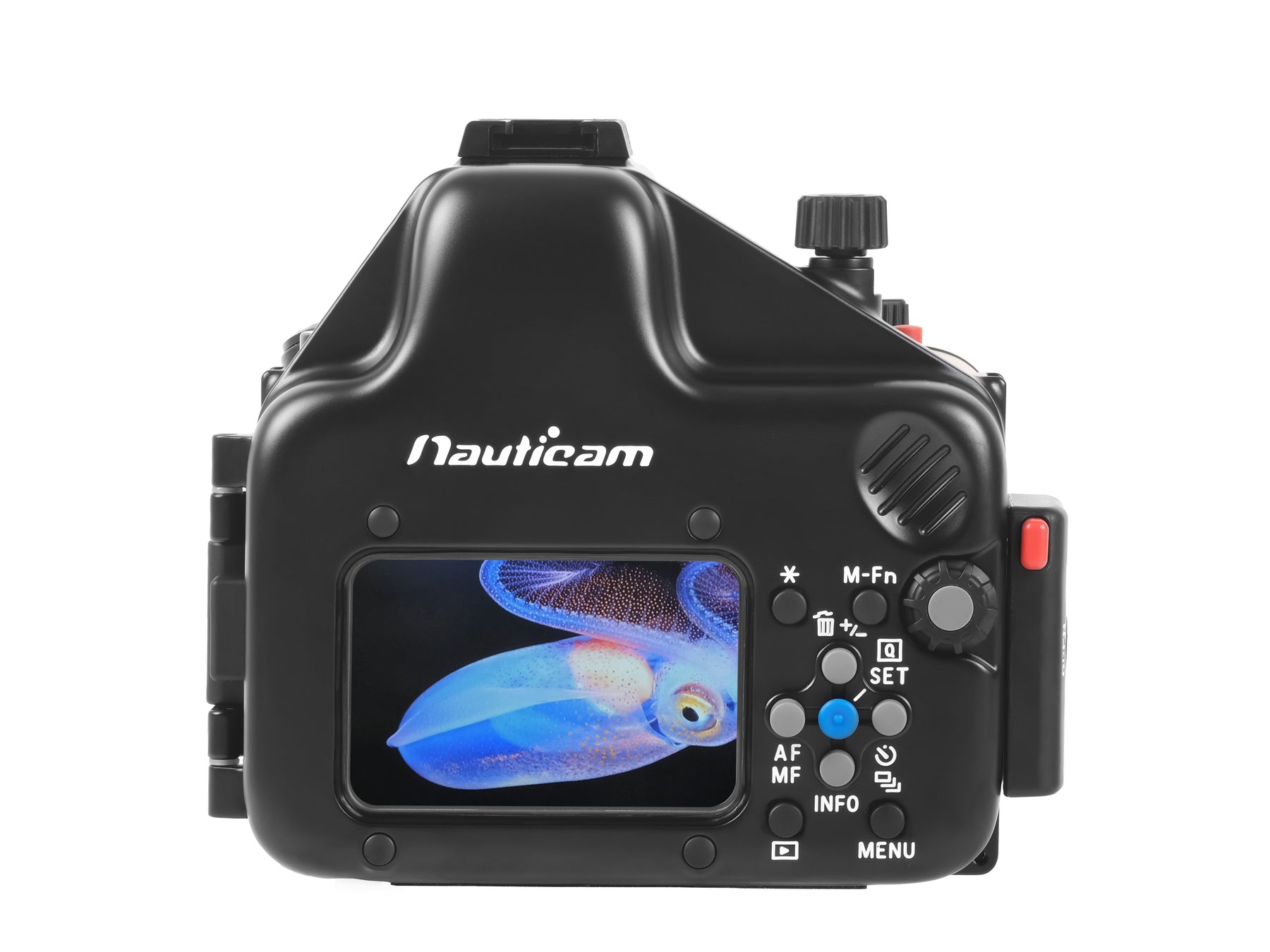

- Supports all camera functions.
- Support Canon Hotshoe Adapter AD-E1 with dedicated Manual Flash Trigger.
HDMI Output and Viewfinder is not supported.
NA-CV1 is the latest iteration in a lineup of advanced housings for very capable compact cameras supported by Nauticam. Many features found on professional DSLR systems have been integrated into this system, and the result is an underwater housing that allows the user to harness the full potential of this advanced compact camera in the water.

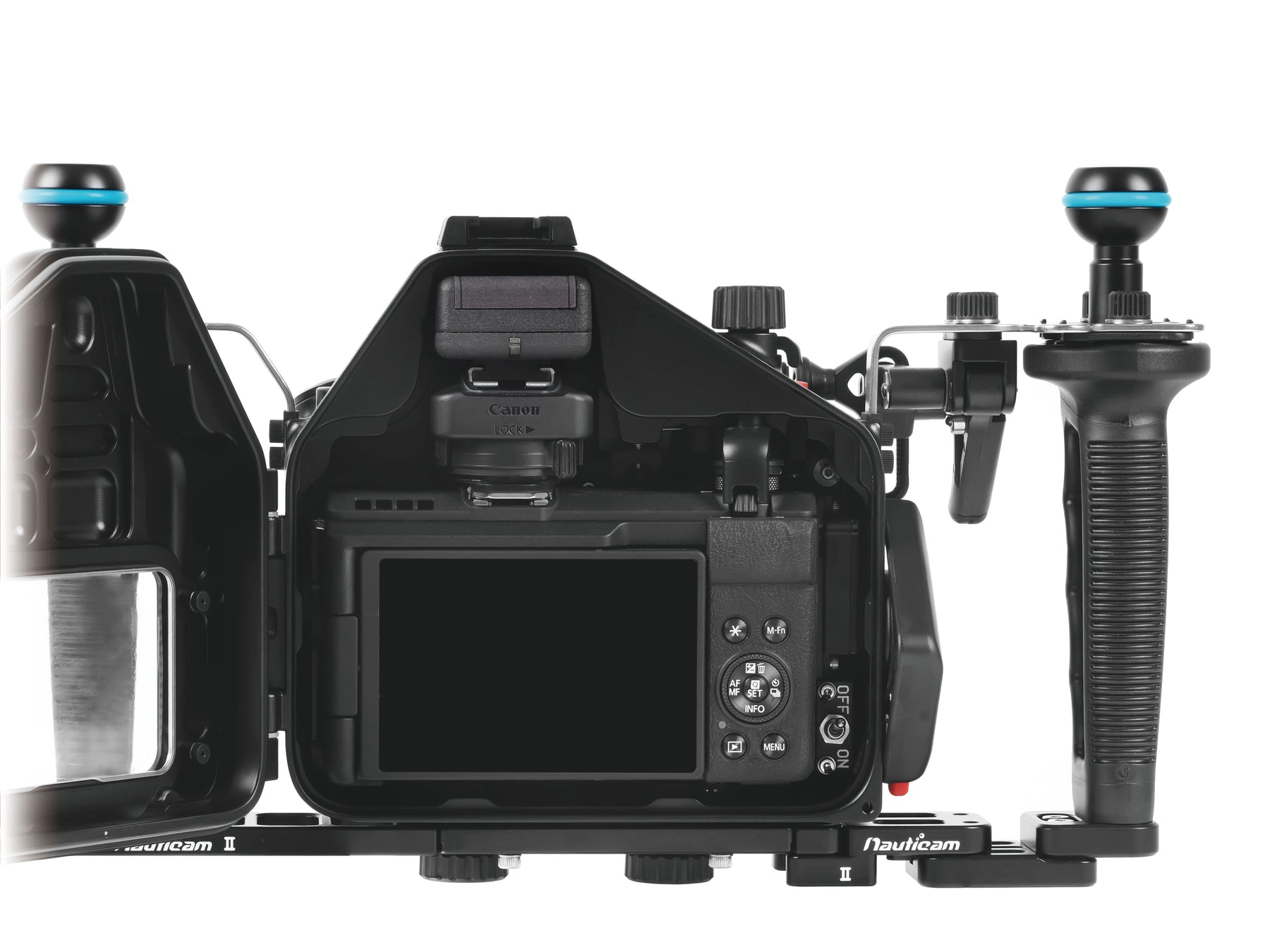

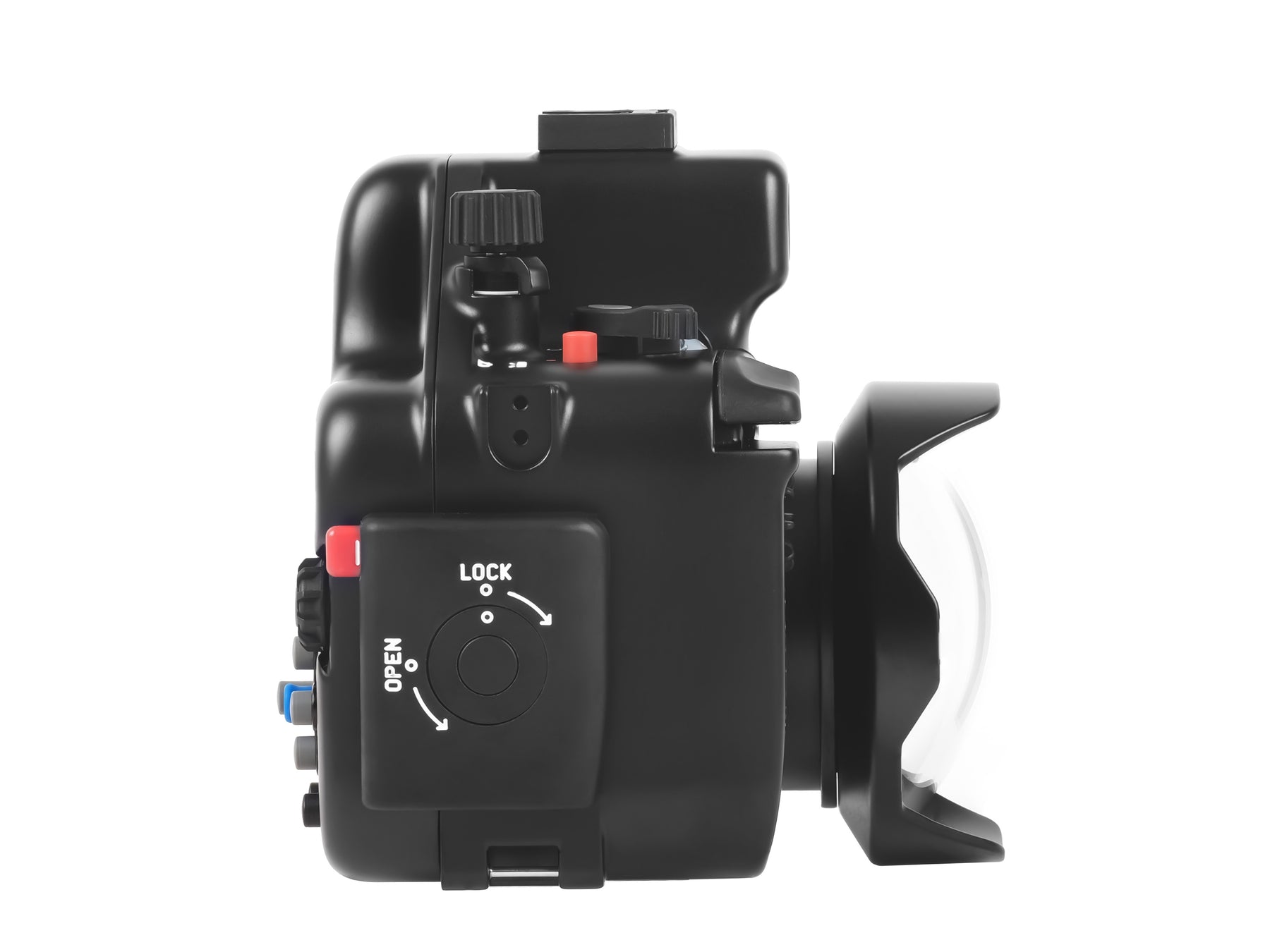

The basic functions and ergonomic enhancements that Nauticam users have grown to know and love are incorporated in NA-CV1. The housing is machined from a solid block of aluminum, then hard anodized to seal out corrosive salt water. It is closed via a simple, yet secure locking rotary latch. The right side of the housing is sculpted to fit the palm of the user’s hand, and Nauticam’s two-stage shutter release lever provides clear differentiation between the half press and full press shutter release positions. All functions are clearly labeled.
The Nauticam leak alarm and vacuum monitoring system is installed as standard equipment. This system provides an audible and visual alert to any water entry in the housing, and when combined with an optional accessory M16 Vacuum Valve II (25625) the watertight integrity of the system can be tested before ever entering the water and monitored during every dive.
Expert product design, modern manufacturing techniques, top quality materials backed by a two-year warranty, and a critical focus on the user experience combine to produce the premier system for Canon Powershot V1.
The N50 Port System

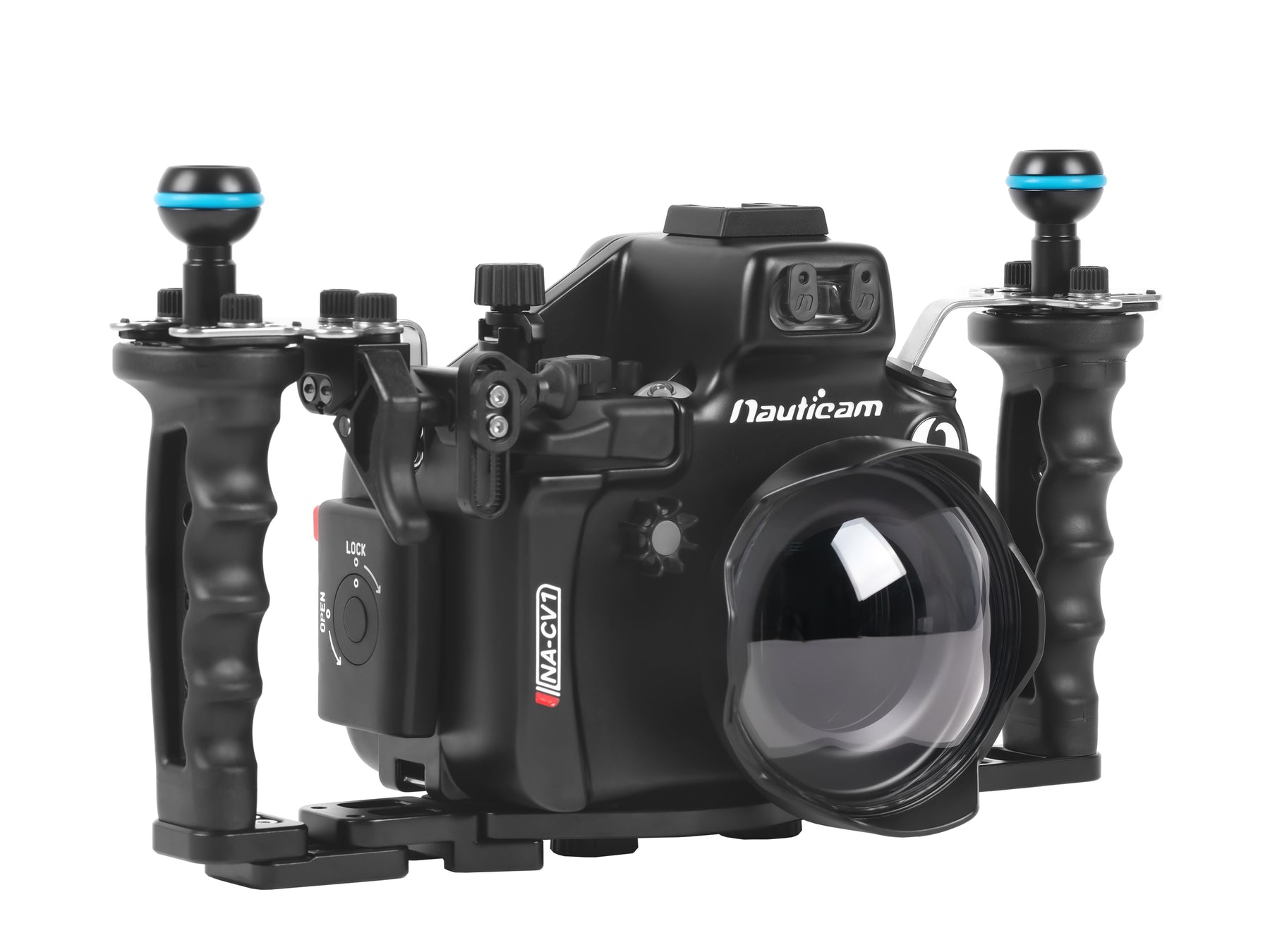

The NA-CV1 ships with the N50 3.5" Acrylic Dome Port that allows the full 16-50mm zoom range, but other ports are available from the N50 system. When combined with the 38703 N50 Short Port 25, you can add on the 83203 WWL-C for a converted FOV of 130 degrees to 71 degrees.
Resources
PDF Manual Coming Soon

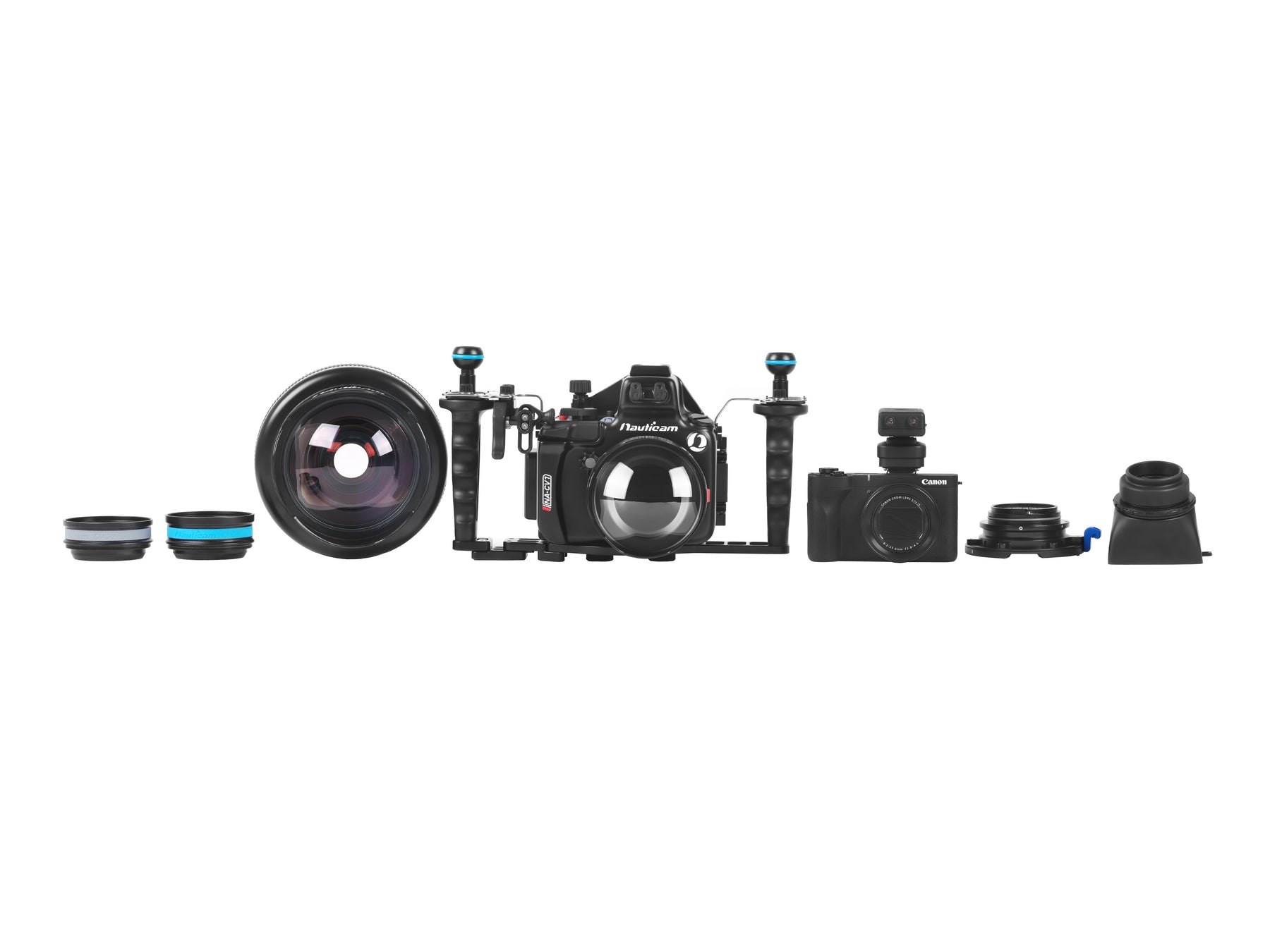

What's In The Box?
- NA-CV1 housing
- N50 3.5" Acrylic Port (The minimum focus distance at Wide 16mm is 25mm, and at Tele 50mm is 530mm)
- Spare main housing o-ring (90131), O-ring remover, Lubricant
- CR2032 battery (for moisture alarm)
- Set of Allen keys
- Padded Housing Bag and shoulder strap
- Set of handle brackets with shutter release trigger
- 2x Plugs for Optical fiber cable mount
Recommended Accessories
Mounts
- 25221 M10 strobe mounting ball for housing
- 25311 Strobe mounting ball for cold shoe
- 25312 Light mounting stem for cold shoe
- 25321 Long Strobe Mounting Ball for Cold Shoe
- 25322 Long Light Mounting Stem for Cold Shoe
- 71311 Strobe mounting ball for Easitray & Flexitray
Vacuum
- 25625 M16 Vacuum Valve II (Pushbutton Release)
LCD Magnifier

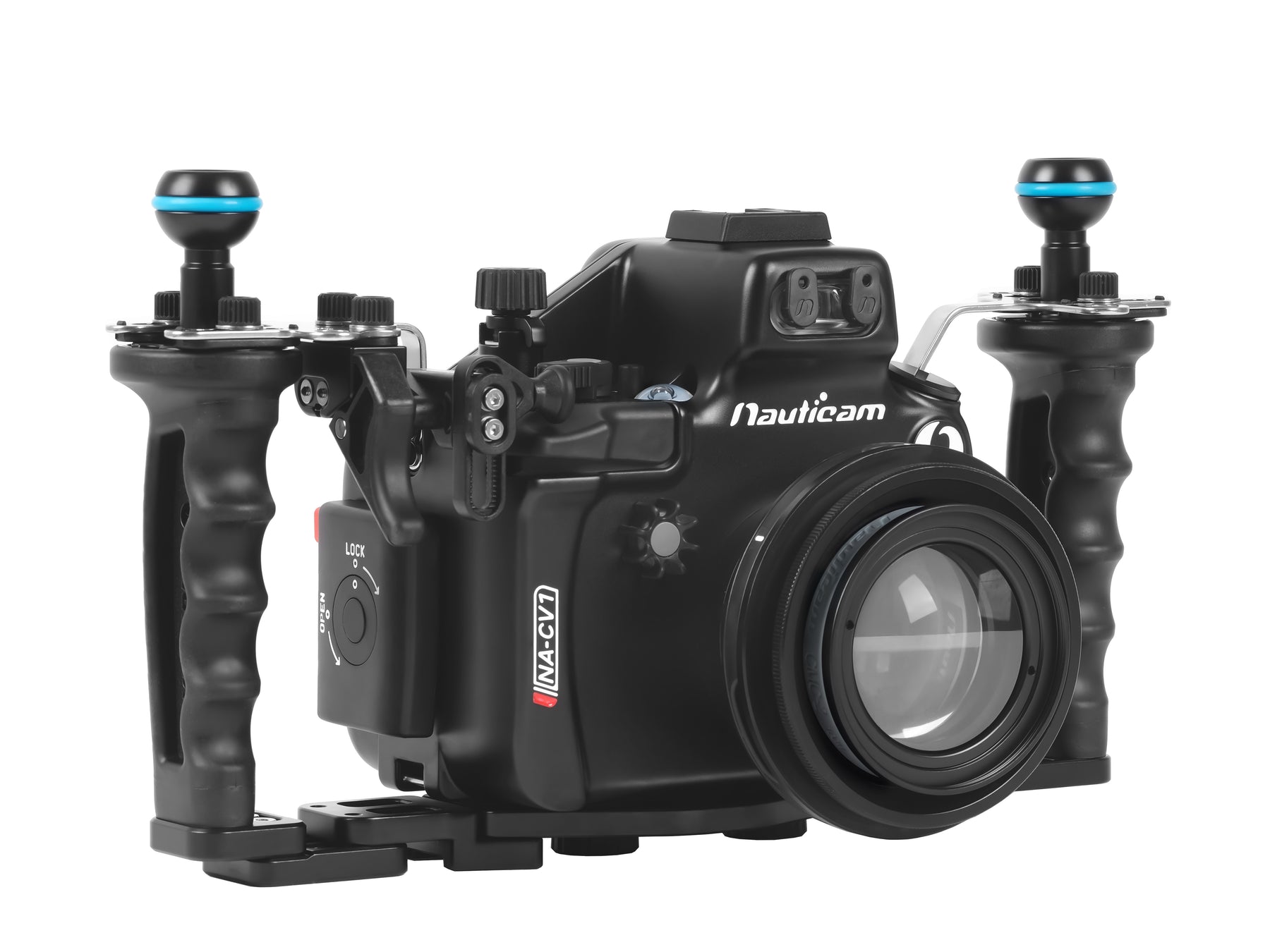

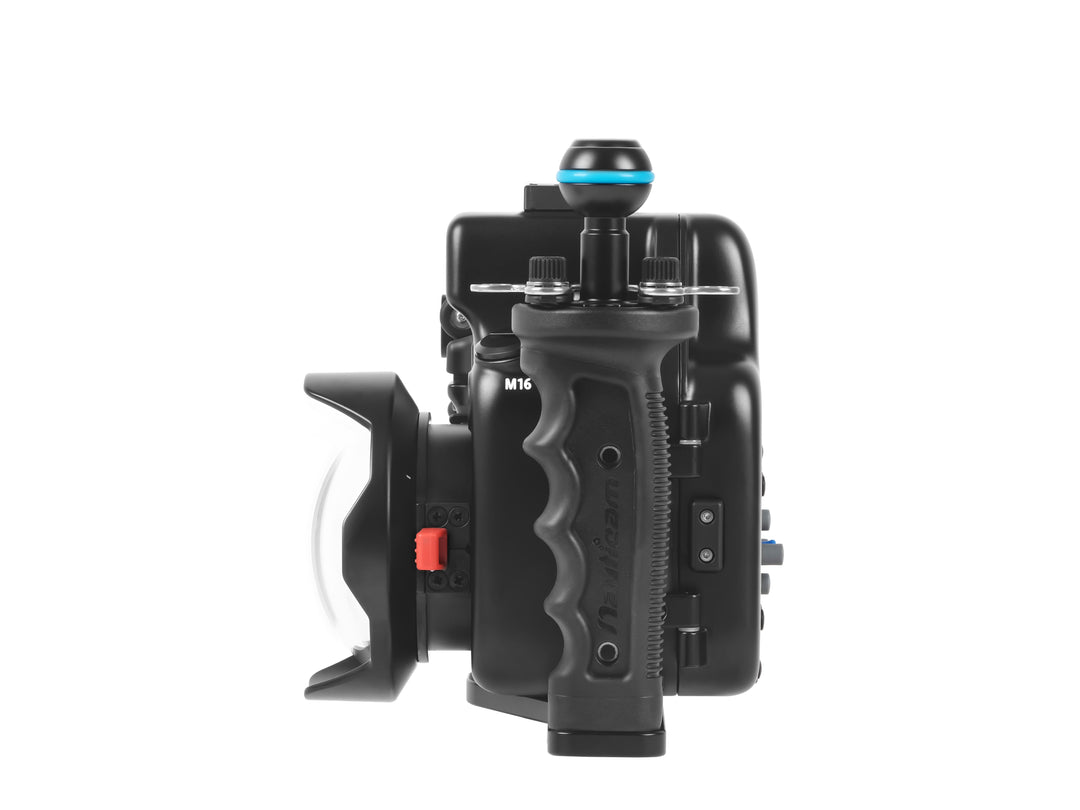

Housing Tray and Hand Strap
- 71207 Flexitray II with left handle (with 2pcs 1/4" screws)
- 71208 Adjustable right handle II (for Easitray II & Flexitray II)
- 36316 Hand strap for Mirrorless IL camera & compact camera housing (Standard)
- 36323 Long hand strap for Mirrorless IL camera & compact camera housing
Lanyard
Wet lenses Recommendation
-

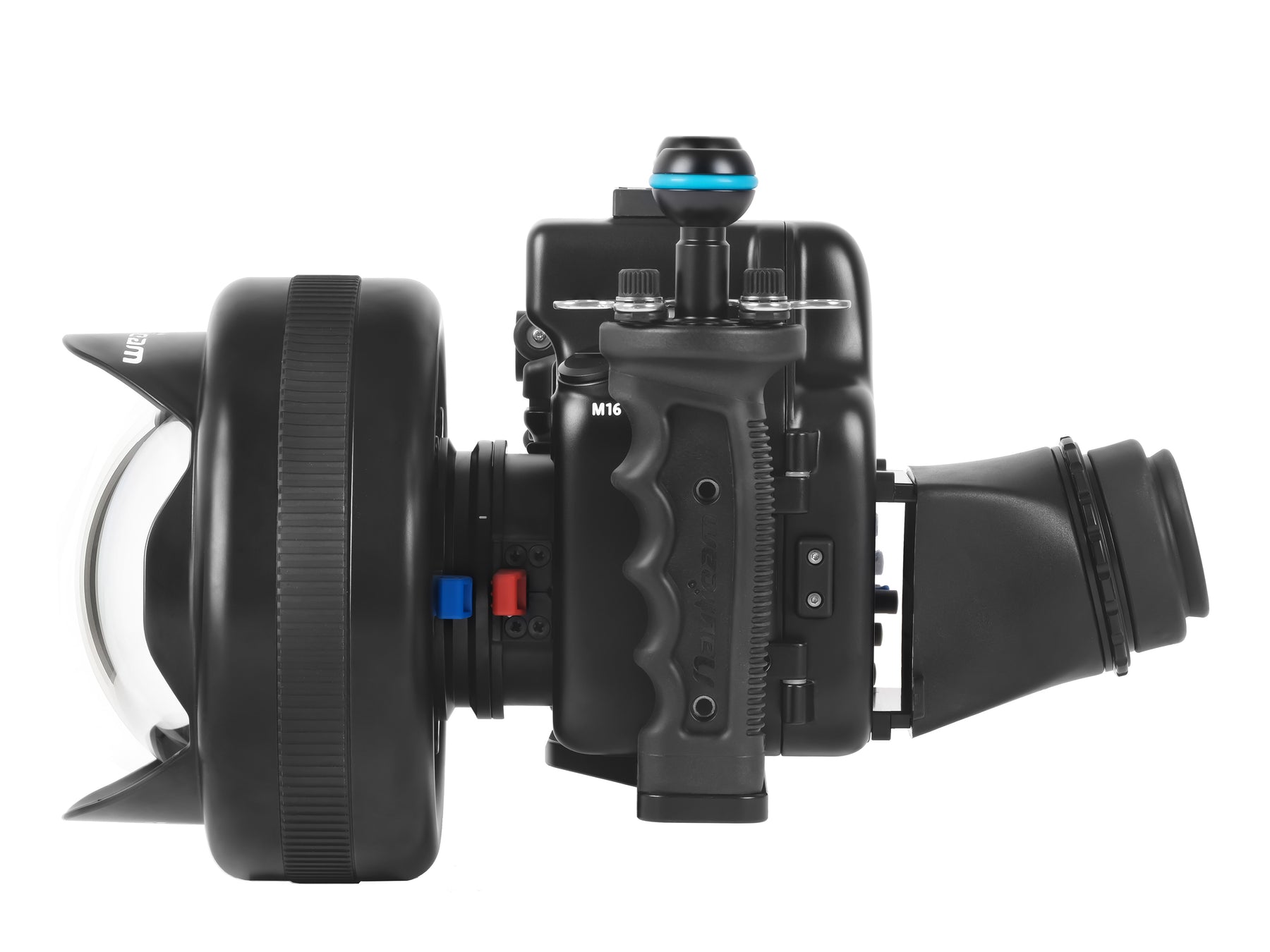

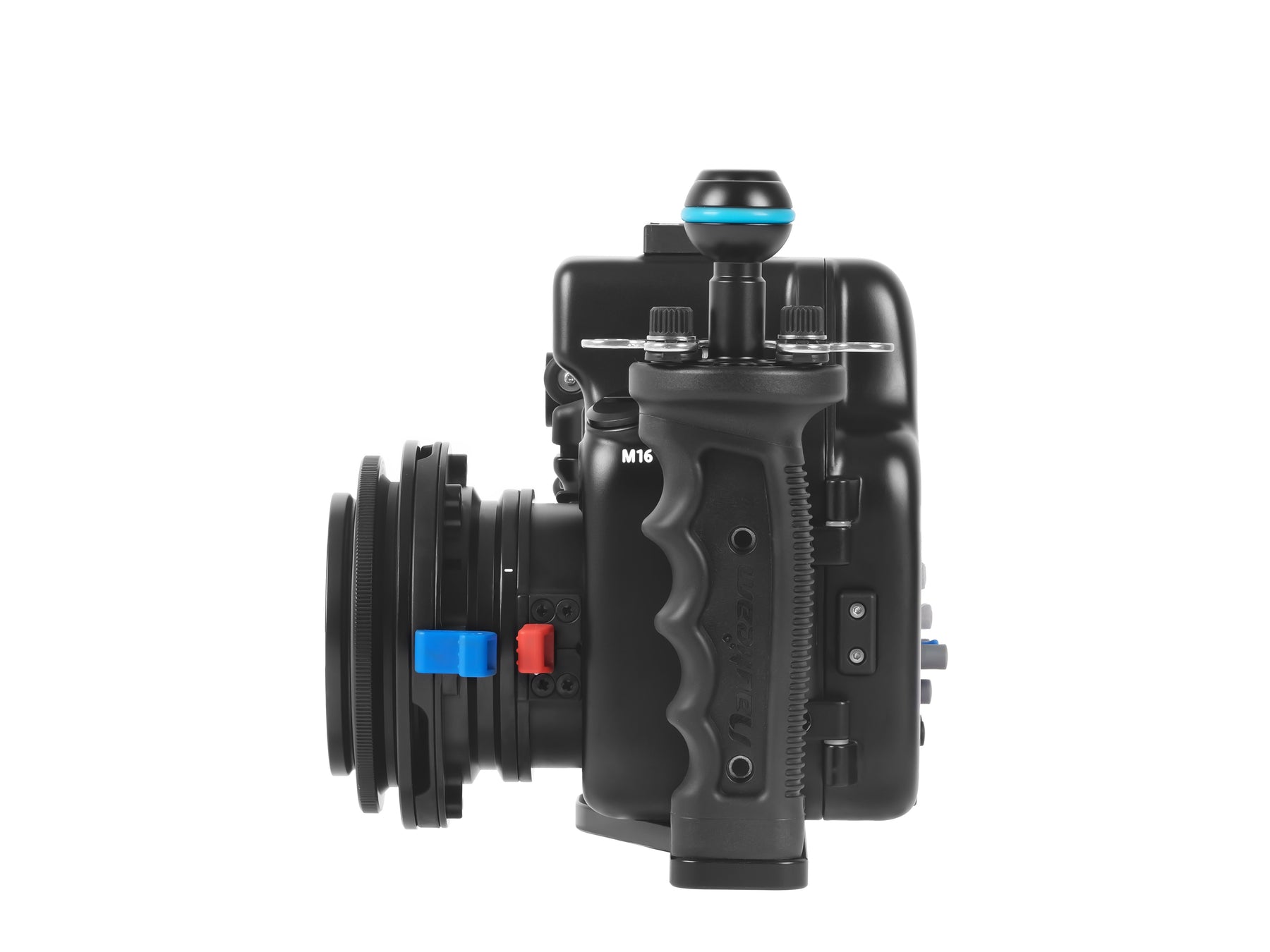

38703 N50 Short Port with Bayonet Mount (To use with WWL-C or WWL-1B)

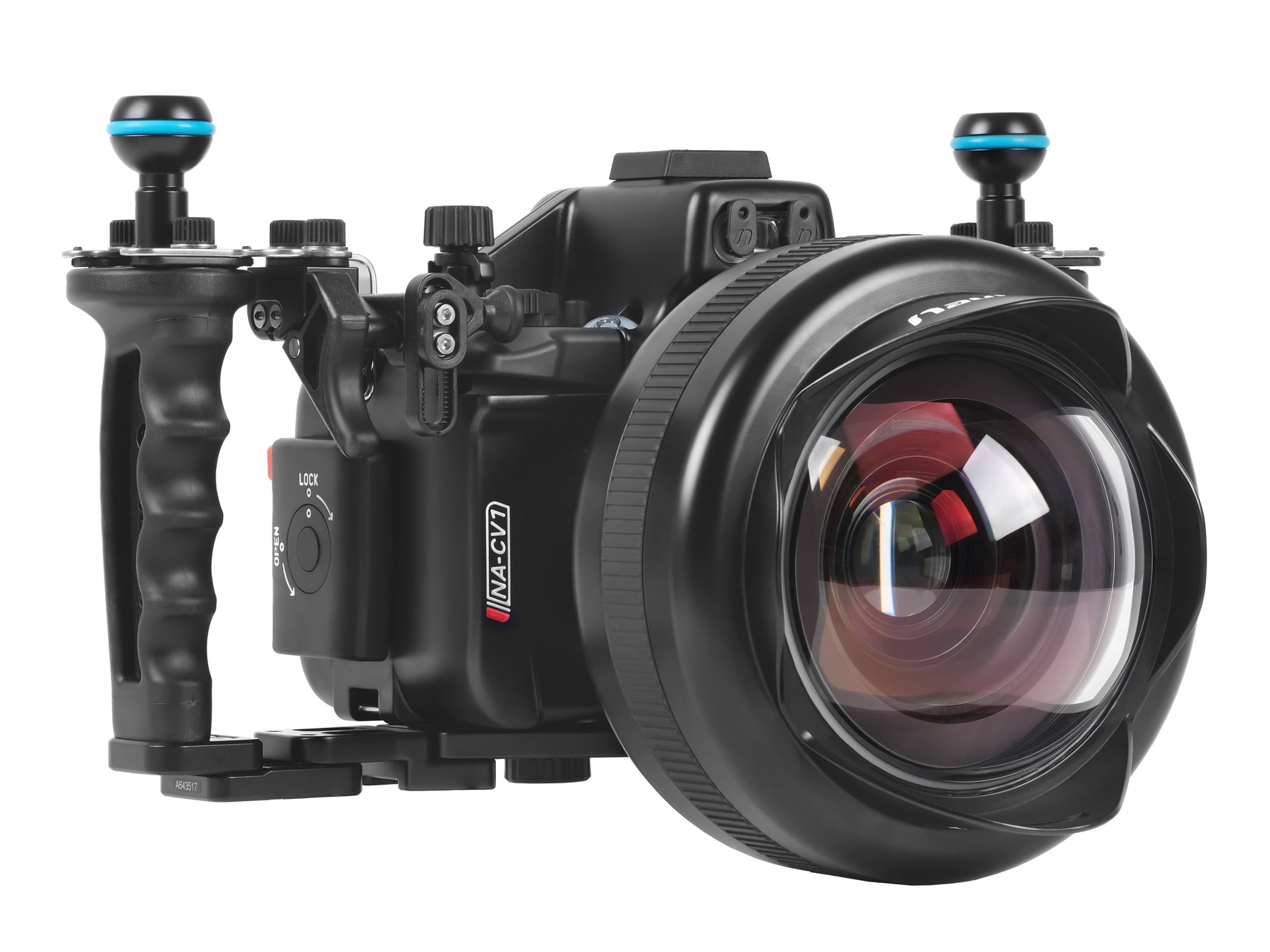

- 83203 Wet Wide Lens for Compact Cameras (WWL-C)
- 83202 Wet Wide Lens 1 (WWL-1B) 130 deg. FOV with compatible 28mm Lenses
- 83214 Bayonet Mount Adaptor for SMC/CMC
- 81301 Compact Macro Convertor 1 (CMC-1, 4.5X Magnification)
- 81302 Compact Macro Convertor 2(CMC-2, 2.8X Magnification)
Flash Triggering
- 26353 Mini Flash Trigger for NA-CV1(for use with Canon Hotshoe Adapter AD-E1)
- 26216 Universal Optical Fiber Cable
Buoyancy Setup Acessories
- 72261 Ø70x200mm Carbon Fibre Aluminium Float Arm (Buoyancy 370g)
- 72262 Ø70x250mm Carbon Fibre Aluminium Float Arm(Buoyancy 520g)
- 72263 Ø70x300mm Carbon Fibre Aluminium Float Arm (Buoyancy 670g)
- 72264 Ø90x170mm Carbon Fibre Aluminium Float Arm (Buoyancy 450g)
- 72265 Ø90x220mmCarbon Fibre Aluminium Float Arm (Buoyancy 720g)
- 72266 Ø50x200mm Carbon Fibre Aluminium Float Arm (Buoyancy 160g)
- 72267 Ø50x250mm Carbon Fibre Aluminium Float Arm (Buoyancy 240g)
- 72268 Ø50x300mm Carbon Fibre Aluminium Float Arm (Buoyancy 320g)
- 72233 Single Bayonet Holder II for Ø70 Float Arm
- 72234 Double Bayonet Holder II for Ø70 Float Arm
- 72243 Single Bayonet Holder II for Ø90 Float Arm
- 72244 Double Bayonet Holder II for Ø90 Float Arm
- 83252 Bayonet Holder for Arms
- 83253 Double Bayonet Holder for Arms
- 83254 Bayonet Lens Holder for Inon Float Arms
N50 Port Chart
38703 N50 Short Port 25 with Bayonet Mount is required for use with both WWL-C/1B and MFO-1, CMC-1/2
- N50 3.5" acrylic dome port , Zoom Range: 16-50mm. *The minimum focus distance at Wide 16mm is 25mm, and at Tele 50mm is 530mm.
- 38703 N50 Short Port 25 + 83203 WWL-C, Lens FOV 84-46º, Converted FOV. 130-71º, Zoom Range 24-50mm *slight vignetting at 24mm.
- 38703 N50 Short Port 25 + 83202 WWL-1B, Lens FOV 75-46º, Converted FOV. 130-80º, Zoom Range 28-50mm
- 38703 + 83214 Bayonet Mount Adaptor for SMC/CMC with MFO-1, CMC-2/1.
*Test at focal range 50mm |
The Smallest Subject Size |
Working Distance |
without diopter |
105 x 70 mm |
175-∞ |
with 81501 MFO-1 |
89 x 59.3 mm |
116-1150 mm |
with 81302 CMC-2 |
48 x 32 mm |
55-125 mm |
with 81301 CMC-1 |
38 x 25.4 mm |
37-74 mm |
