  2. OM System Tough TG-7, Ikelite Housing & Inon UWL-95S Wide Angle Bundle - Black / Glass - Dome Lens Unit IIIG

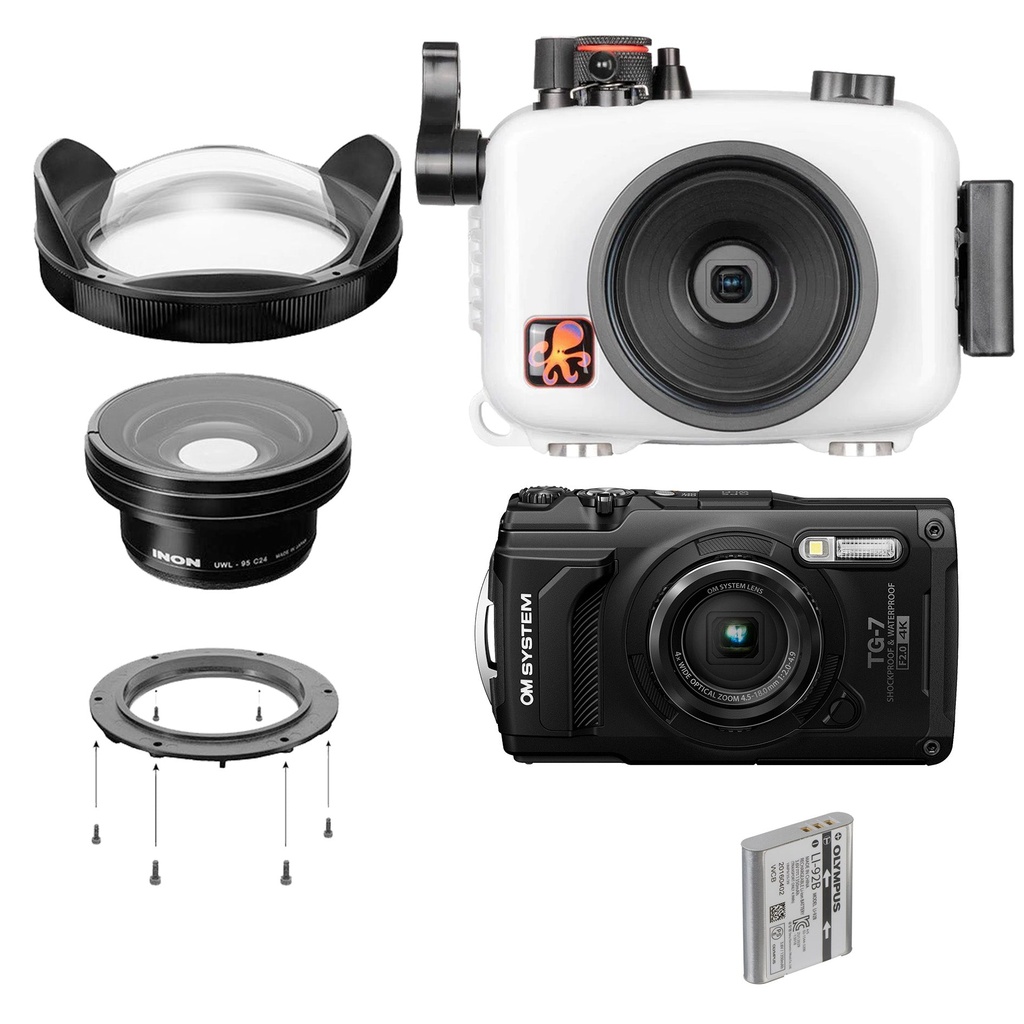

OM System Tough TG-7, Ikelite Housing & Inon UWL-95S Wide Angle Bundle - Black / Glass - Dome Lens Unit IIIG

https://www.seatech.co.nz/web/image/product.template/29802/image_1920?unique=d6d7335

This product is no longer available.

Port Fitting: M67

Stock Code: WA-BUND-4G-BLACK

This bundle includes:

OM System Tough TG-7 Features

  • Water, Shock, Freeze, Dust & Shockproof (waterproof to 15m)
  • Anti-Fog Lens Glass
  • 12 Megapixel high speed CMOS Image Sensor
  • TruePic™ VIII
  • Built-in Bluetooth + Wi-Fi
  • Macro Photo Modes
  • Underwater Photo Modes
  • Pro Capture
  • Time Lapse Video
  • Live Composite
  • Vertical Video
  • RAW Capture
  • Action Track Sensors
  • Date Imprint
  • Ultra HD 4K Video

More info here.

INON UWL-95S + Dome Lens Unit III Features

  • Maximum view angle 95° underwater/159° in air, dual use wide conversion lens. (*Actual angle of view differs depending on camera/housing to use.)
  • Combination with optional Dome Lens Unit III further increases view angle underwater up to 141°
  • The minimum focus distance of compatible cameras can be reduced to 0cm, making the lens very effective for CFWA imaging as well.
  • Renewed optical design effectively suppresses flare/ghost even in backlit condition.
  • Designed to support a camera of large 1-inch type sensor with bright master lens.
Dimensions Dia. 156mm x 78mm
Weight in Air 1.05kg
Weight in Water 0.17kg
Lens Construction 4 elements
Lens Coatings Anti-reflective on both sides
Dome Coating Multi-layer Broad-band Antireflective Coating
Focal Range Front Element to Infinity
Maximum Field of View (underwater) 130º for 24mm equivalent lens
Mounting System Bayonet Mount
Depth Rating 100m

Ikelite Housing for TG-7 #6233.06 Specs
  • 200 ft (60m) depth rating
  • Controls for all camera functions except Log Switch
  • Slightly positive buoyancy in fresh water
  • 1/4-20 thread tray mounting with 3-inch (76mm) spacing
  • Weight 1.1 lb (500 g)
  • Dimensions 6.2 x 4.4 x 3.7 in (158 x 112 x 94 mm) including projections
  • 3.0-inch diameter glass lens port
  • M67 threaded port.
More info here.

UWL-95S M52 Wide Conversion Lens
Outer diameter φ90 mm/3.5 in
Length 48.3 mm/1.9 in
Weight approx.392 g(13.8 oz)[air]
/611 g(21.5 oz)[underwater]
Mount INON M52 Mount
Depth ratng 60 m/196.9 ft
Body material
/ finishing		 Corrosion-resistant aluminum alloy
/rigid black almite
Glass
/coating		 Optical glass
/both side anti-reflection coating
Construction
/ magnification		 3 groups 4 elements
/0.63 (afocal system)
Max. view angle ** Underwater: 95.1° /Air: 159.0°

*Specification is subject to change without prior notice.
**(*2) Actual view angle (actual field of view) varies depending on the camera/housing used.

More info here for UWL-95S

More info here for Dome Lens Unit III
