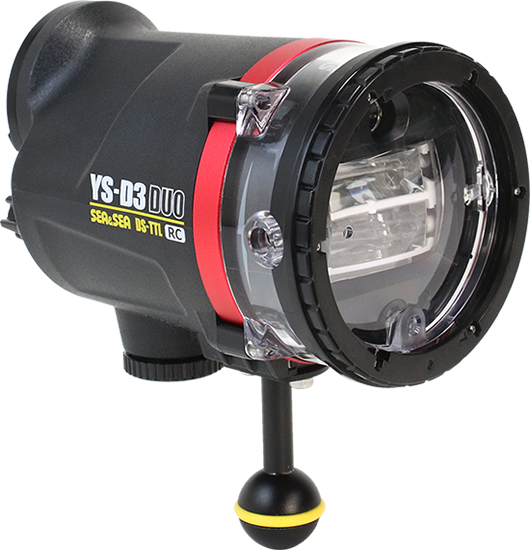

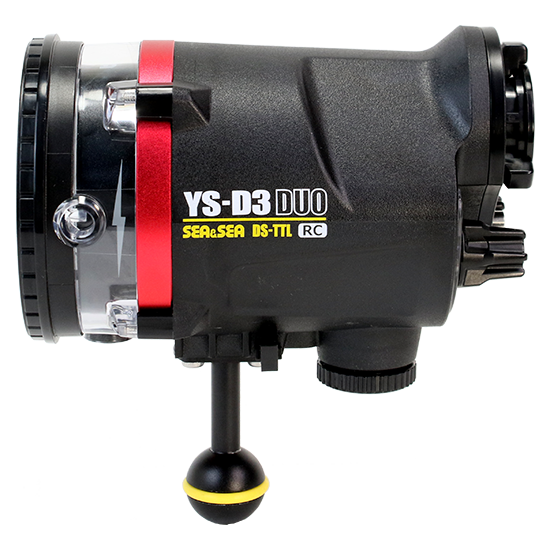

SEA&SEA YS-D3 DUO Underwater Strobe - Red
| Manufacturer: Sea&Sea |
Documents
Stock Code:
S&S-03130
The YS-D3 DUO is a high-specification underwater strobe with three shooting modes: DS-TTL, RC mode, and manual.
The YS-D3 DUO delivers even and uniform light distribution with a large light output of GN33.
Custom settings allow the strobe to be used with high precision with a variety of cameras and shooting styles.
Features
Shooting Mode
The mode switch can be used to switch between "DS-TTL", "RC mode", and "Manual". It is conveniently identifiable by colour.
Blue：DS-TTL II
Red：RC mode
Orange：Manual 1 - for the camera with pre-flash function.
Green：Manual 2 - for the camera without pre-flash function.
Highly accurate DS-TTL dimming
DS-TTL dimming accuracy has been greatly improved by adopting a newly designed light receiving sensor. By applying detailed custom settings, it can be used with high accuracy with a wide variety of cameras of multiple brands.
*When shooting TTL with a camera of a brand other than OM SYSTEM (OLYMPUS), select DS-TTL as the shooting mode.
*Pre-custom settings must be made for each camera in advance when shooting with DS-TTL.
In DS-TTL II mode. Exposure compensation can be made with the light level control dial on the right. +2.0 to -2.0
RC Mode
The "RC System" is a flash system for OM SYSTEM digital cameras, and the YS-D3 DUO was developed in collaboration with OM Digital Solutions to incorporate the RC mode.
RC mode is a light control mode in which the camera automatically controls the flash output based on the brightness through the lens. The YS-D3 DUO is equipped with a more precise "RC mode" that was developed based on system information officially provided by OM Digital Solutions. The YS-D3 DUO is equipped with a more precise "RC mode" developed based on the system information officially provided by OM Digital Solutions.
*Since the strobe is system-linked to the camera, flash output compensation can be adjusted not only on the strobe side but also on the camera side while shooting in RC mode.
*Setting the camera to RC mode can prolong (save) the camera's battery life.
In RC mode. The light level control dial on the right can be used for exposure compensation.
Manual mode has 11 steps
In manual mode, light intensity can be adjusted in 11 steps. The settings are (GN: 1 / 1.4 / 2 / 2.8 / 4 / 5.6 / 8 / 11 / 16 / 22 / 33). The value can be easily seen on the scale on the light intensity adjustment dial. Compatible with digital cameras that do not have a pre-flash function.
*Only manual flash is available, but if your camera housing is equipped with a strobe connector/converter connector, you can also use a sync cord to connect the strobe.
In manual mode. Select the guide number with the light level control dial.
YS-D3 DUO can also be connected with a sync cord
Customise
The YS-D3 DUO can be set up with high precision to accommodate a variety of shooting styles with different cameras by making custom settings. Refer to the table for settings according to the shooting mode used and the method of synchronizing the camera and strobe.
*For the procedure to change custom settings, please refer to page E-31 of the operation manual.
*Video of the custom setting procedure is shown in the media tab.
Shooting in DS-TTL mode and manual mode
Click here to shoot with DS-TTL using an optical/TTL converter.
*Custom settings are not required when using manual trigger. Use the default settings.
When shooting in DS-TTL/Manual using the built-in flash:
*See page E-28 of the instruction manual for procedures to change custom settings.
Shooting in RC mode
When shooting in RC mode with an OM SYSTEMS (OLYMPUS) camera, no custom settings are required. Select "RC mode shooting" in the flash mode setting on the camera side; YS-D3 DUO should be set to "RC" for shooting mode.
*For details on "RC mode shooting," please refer to the user's manual of the camera to be used.
Light Source
This is a high-performance strobe that pursues quality of light, and its high luminous flux and wide beam angle are effective for wide-angle photography with fish-eye lenses and other wide-angle lenses. The strobe also features our proprietary light distribution technology.
High light intensity GN33
The light output has a guide number (GN) of 33, one of the highest among general-purpose underwater strobes. The use of two discharge tubes increases power and achieves GN 33 at full flashing.
Two discharge tubes
Uniform and even light distribution
The originally developed "aspherical toroidal lens" is placed in front of the light-emitting tube, and the two discharge tubes and the "aspherical toroidal lens" provide uniform and even light distribution to the periphery, making it an ideal light source for external illumination.
Aspherical optical toroidal lens
Adjust beam angle with diffuser
The beam angle is 80°×105° without the diffuser and 100°×110° with the included diffuser for soft lighting. When the optional dome diffuser is attached, the beam angle increases to 150°×170°. The dome diffuser is effective when using a fisheye lens or when lighting with soft light (guide number is reduced by approximately -1.5 EV).
Without diffuser
With attached diffuser
Dome diffuser installed
Without diffuser
With attached diffuser
Dome diffuser installed
Operability
We placed particular emphasis on ease of use, especially underwater handling. The more you use it, the more you will appreciate its easy-to-turn dial, easy-to-see panel display, and good underwater balance.
Large dial
Underwater operation is performed with the mode switch and light intensity control dial. The large dials are non-slip and the height difference allows smooth operation even when wearing thick gloves. It is designed to stop in steps with a click-click to minimize malfunctions.
Easy-to-read backlit panel
The indicator color changes each time the mode switch is repositioned. Blue (in DS-TTLII mode), red (in RC mode), yellow (in manual mode with pre-flash), and green (in manual mode without pre-flash) are the different colors for identification, so positioning of the controls is easy to see even when night diving.
In DS-TTL IIII mode
In RC mode
In manual pre-flash mode
In manual non pre-flash mode
Underwater Balance
YS-D3 DUO has almost zero buoyancy with the ball mount and clamp in place. Heavy underwater weight requires unexpected force to operate the clamp, but the YS-D3 DUO is unaffected by buoyancy, so operation is smooth. Even if you change the strobe position, the underwater balance of the entire housing set does not change significantly and you can feel how easy it is to handle.
Two patterns of target lights
The LED target light function is useful for focusing and checking the beam angle of the strobe. Choose either 300 lumens or 150 lumens depending on the situation.
One-touch battery replacement
The power source is AA batteries, which are widely distributed in general. Four of the same type (1.5V alkaline AA batteries and 1.2V nickel-hydrogen AA batteries). The battery box is opened and closed by a bayonet type that does not put a burden on the O-ring. It is a one-touch operation and does not require force like the screw-in type.
Hook for Fiber Optics
A hook for fiber-optic cable on the strobe body smartly guides the fiber-optic cable.
How to connect with the arm of your choice
A straight type ball base is included, but the YS Mount Strobe Adaptor or Strobe Ball Base 35 can be attached as an option depending on the application.
CAUTION: Use of genuine SEA&SEA Fiber-Optic Cables is recommended. SEA&SEA strobes may not function properly if a third-party Fiber-Optic Cables are used (functions such as TTL auto exposure in particular).
*Do not use non-recommended batteries (such as lithium primary batteries). Use of non-recommended batteries may cause battery leakage and overheating and may cause the strobe to rupture, which could result in personal injury.
