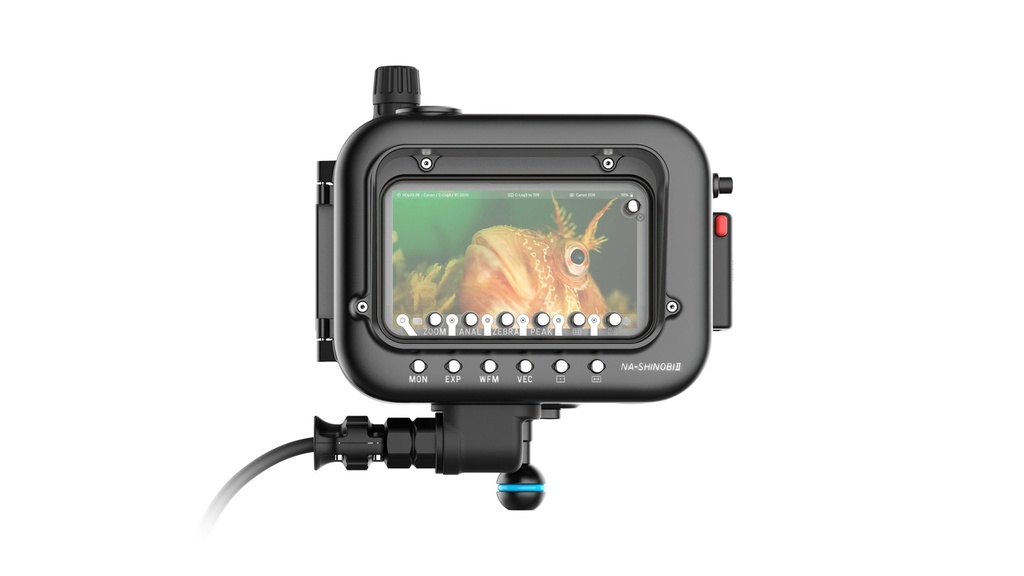

Nauticam NA-Shinobi II for Atomos Shinobi 5.2" Monitor with HDMI 1.4 input - 17927

The NA-Shinobi II Housing is designed around the Atomos Shinobi II, a powerful yet compact 5" 10-bit HDR monitor with a full suite of advanced tools and 1500-nit peak brightness. Intended for both photo and video shooters, the Shinobi II connects via our HDMI cable system to supported housings to allow for enhanced ease of viewing.

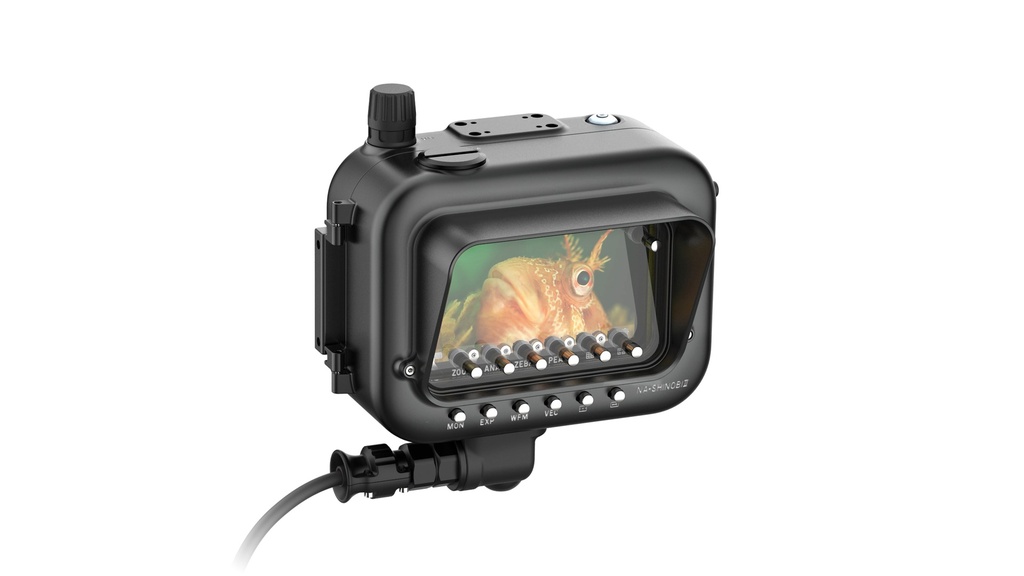

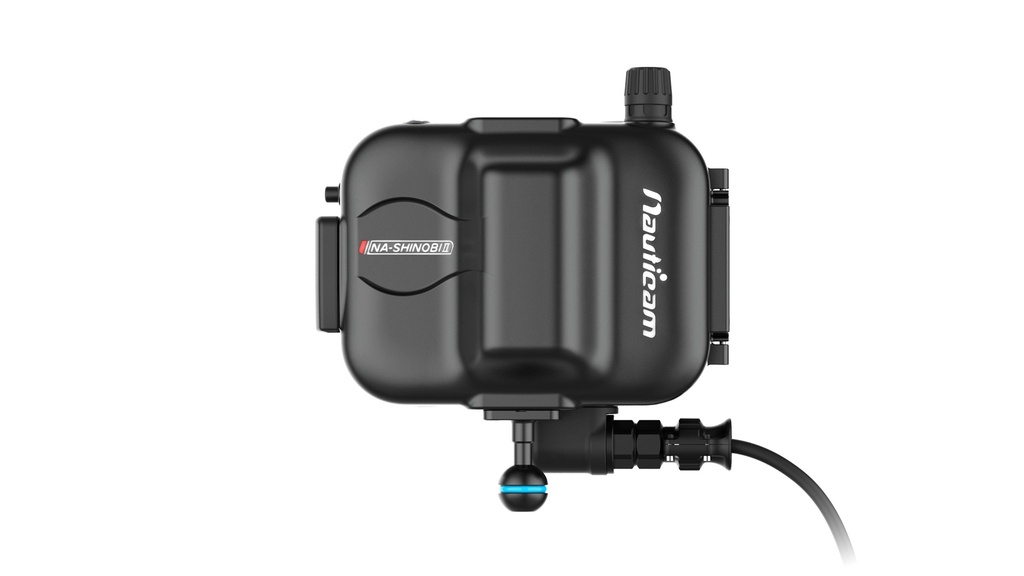

The Nauticam NA-Shinobi II Housing

The Atomos Shinobi II features a bright 5" 1500-nit 10-bit HDR screen that is powered by Sony FP series batteries. The Nauticam NA-Shinobi II Housing seamlessly integrates the Shinobi II into your underwater system. Connected to supported cameras and housing with the Nauticam HDMI Cable and Bulkhead system, shooters can take advantage of the monitors full suite of focus and exposure analysis tools.

Enhanced Toolset

The various overlays and visualizations of the Shinobi II can be activated via the buttons on the face of the NA-Shinobi II including the powerful Analysis Mode that places the most commonly used exposure tools alongside the footage.

Various Aspect Ratio overlays are also available in addition to traditional Focus Peaking and False Color overlays. LUTs can also be uploaded to the monitor to enable Live LUT preview of the footage with the LUT applied.

HMDI Connectivity

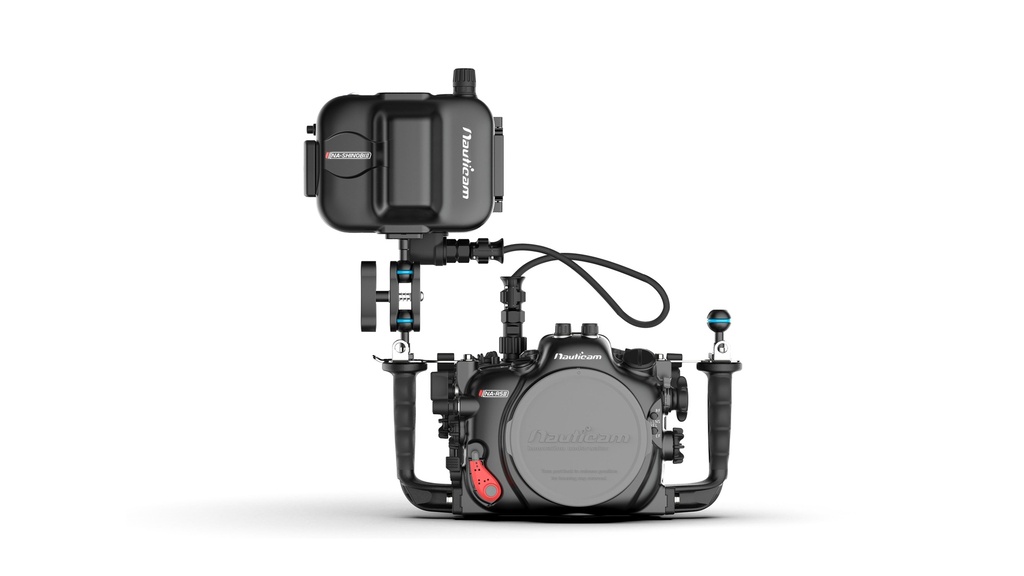

The NA-Shinobi II comes with the outgoing watertight Standard HDMI bulkhead and cable pre-installed as well as the additional M16 HDMI that is affixed to the supported camera housing. A 200mm HDMI (D-A) cable is included for connecting the M16 bulkhead to the camera inside the camera housing.

Integrated Vacuum Check and Leak Detection System

The Nauticam vacuum check and leak detection system is shipped with NA-Shinobi II as standard equipment which along with the pre-installed accessory vacuum valve (PN 25625), this monitoring system provides constant updates on the water tight and safe-to-dive status of the housing. A simple color coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur. The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action packed dive.

Features

• Support HDMI in

• Rotary locking latch

• 1/4-20UNC x4pcs mounting points on bottom and top (for use with 17951)

• M3 x 4pcs threaded holes on bottom and top for Mounting Ball PN17958

• Includes Vacuum check and leak detection system

In the box

• NA-Shinobi II monitor Housing

• Monitor Hood

• 25625 M16 Vacuum Valve II (pre-installed)

• 25038 HDMI (A-D) cable in 750mm length (for connection from monitor housing to HDMI bulkhead) *preinstalled.

• 25100 HDMI (D-A) 1.4 Cable in 200mm length for NA-a1 (for connection from HDMI bulkhead to camera)

• 25033 Standard HDMI bulkhead with M16 thread (Watertight version)

• 17958 Mounting Ball for NA-502/502B/503/ Ninja V/ Ninja V-S/Shinobi RT4.7/FHD5/058

• CR2032 Battery (for moisture alarm and vacuum system)

• Spare main O-ring, O-ring remover and lubricant

• M16 extension ring

• HDMI A to A Right-Angle Adapter

• Padded Travel Case

Housing Main O-rings:  90136 (I.D.=155mm, C.S.=2.5mm) for NA-502/NA-Shinobi II
