The SmallHD Ultra 5 Camera Monitor is their brightest and most feature-rich monitor to date that adds camera controls for a variety of cinema cameras such as ARRI, Sony and RED. The 300nit 5" HD screen is flanked by 3 custom function buttons. The Nauticam NA-Ultra5 is sure to be an indispensable tool for underwater filmmakers.
THE SMALLHD ULTRA 5 CAMERA MONITOR
SmallHD's Ultra 5 camera monitor is an ultra-bright 300nit 10-bit HD display that supports both HDMI and SDI input as well as cross conversion (HDMI in/SDI out). In addition to monitoring, the Ultra 5 also offers camera control for ARRI, RED and Sony cinema cameras. Powered by their PageOS 5 operating system, the Ultra 5 features exposure tools such as the new EL Zone false-color overlay that uses sensor data to display parts of the image that are above or below 18% grey. Focus assist, peaking and waveforms are also still available as with previous SmallHD monitors.
Camera settings are displayed at the top and bottom of the screen, not overlayed on the image and are visible on all screens. The three custom buttons can be programmed to a variety of of functions such as activating tools or adjusting display brightness.

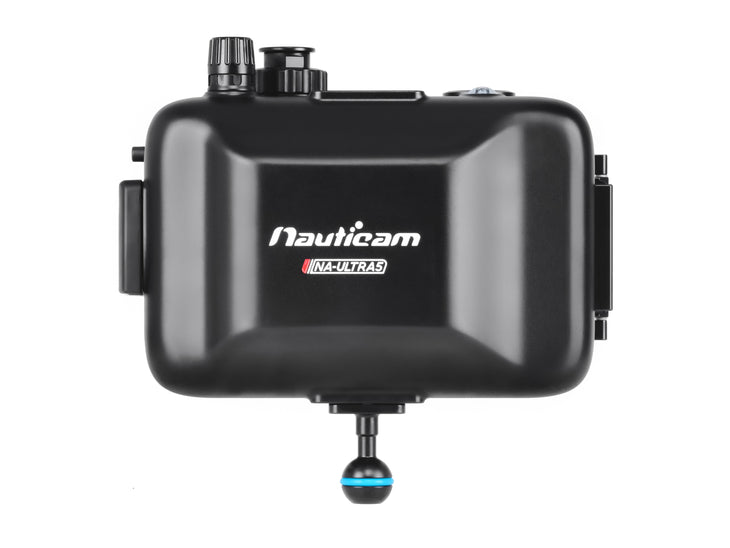

THE NA-ULTRA5 MONITOR UNDERWATER HOUSING
Nauticam has supported a variety of SmallHD monitors with underwater housings including support for both HDMI (1.4 and 2.0), SDI, cross-conversion even surface monitoring. The NA-Ultra5 builds on this strong platform with the addition of supporting the camera control functions of the Ultra5 through the use of the dedicated control bundles below.
DEDICATED CINEMA CAMERA CONTROL BUNDLES
-
16265A Camera Control Cable Bundle for NA-Ultra5 (with SDI, Ethernet, Power Cables in one for ARRI mini LF/Alexa 35)
-
16265R Camera Control Cable Bundle for NA-Ultra5 (with SDI, Ethernet, Power Cables in one for RED Raptor/XL) *a special order is required for Cinema housing with M24 only
-
16265S Camera Control Cable Bundle for NA-Ultra5 (with SDI, Ethernet, Power Cables in one for Sony Venice II)
The NA-Ultra5 features two M28 accessory bulkheads at the top of the housing as well as one on the bottom to support cross conversion for surface monitoring. There are dedicated 1/4-20 UNCx4 mounting points on the bottom and top of the housing as M3 x4 threaded holes for use with Mounting Ball (17958).
The NA-Ultra5 supports the use of the SmallHD Micro Battery Plate for V-Mount when used with the Fxlion NANO ONE 50Wh 14.8V Ultra-Compact V-Mount battery.
The NA-Ultra5 comes with (25625) M16 Vacuum Valve pre-installed as well as Nauticam's Vacuum Check and Leak Detection system.
RESOURCES
In The Box
- NA-Ultra 5 monitor Housing
- Monitor Hood
- M16 Vacuum Valve II (pre-installed) PN25625
- M28 HDMI 2.0 Adapter (pre-installed) PN25089
- Mounting Ball PN17958
- Spare silicone rubber main O-ring PN 90254
- O-ring removal tool and lubricant
- CR2032 battery
- Allen Wrench Set
