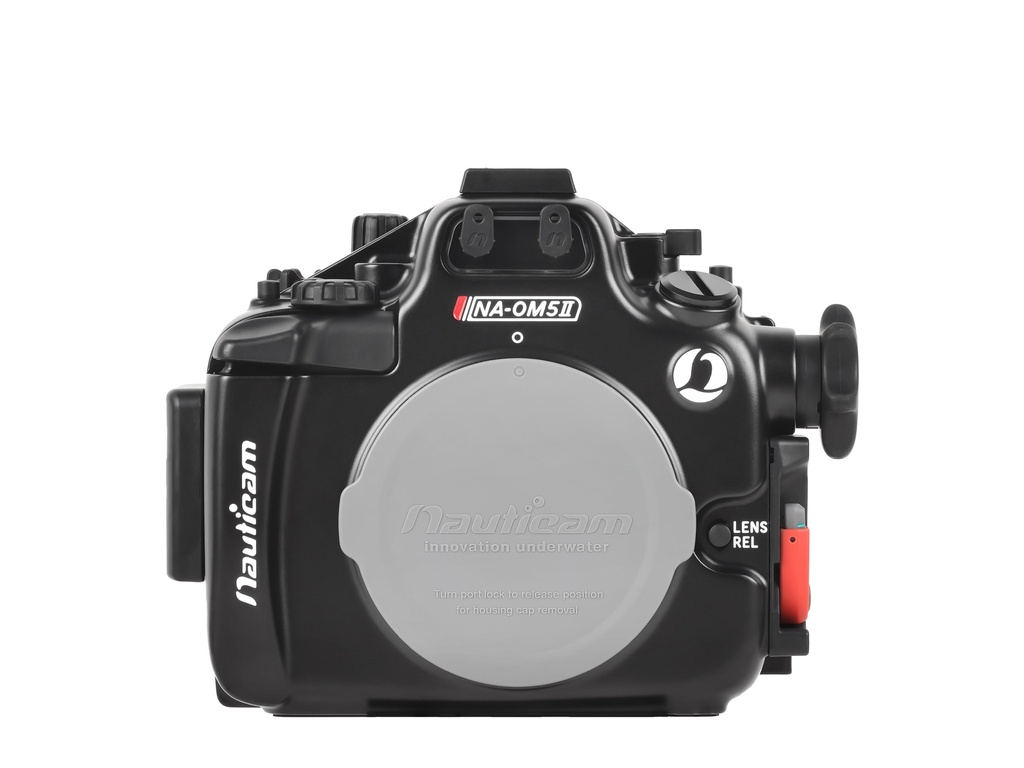

NA-OM5II Housing
The NA-OM5II adheres to Nauticam’s Mission Control philosophy,
ensuring accessible and intuitive control for critical functions. These
include Front & Rear dials, REC, AF-ON, CP, Fn1 and Fn2 Lever.
Nauticam’s Port locking system facilitates rapid and seamless lens
changes. Battery and memory card replacements are equally effortless
thanks to the rotary-style housing lock and lens release button. An
optional M14 vacuum valve unlocks the full capabilities of the
pre-installed Vacuum Check and Leak Detection System. The NA-OM5II LCD
window, available as an optional feature, enables the utilization of
Nauticam Full Frame viewfinders for enhanced viewing. For lighting and
accessories, the housing incorporates an M10 threaded mounting point, a
cold shoe mount, and optional handles and tray equipped with strobe
mounting balls.
Main Features
-
Rotary style housing lock and N85 port lock
-
An M10 threaded accessory mounting point
-
One cold-shoe mount on top
-
Critical controls are easy to access, such as Front & Rear dial, REC, AF-ON, CP, Fn1 & 2 Lever.
-
Integrated Vacuum Check and Leak Detection System
Flash Triggering
For high-speed manual flash triggering, the optional Mini Flash
Trigger for Olympus (26306) can be used. The trigger is powered by
onboard coin-style lithium batteries, with thousands of flashes
available from a set. Electrical triggering of legacy wired strobe
systems is possible via an electrical Nikonos style bulkhead (optional).
Premium Professional Optics
A camera system is only as good as the optics placed in front of it.
Nauticam's extensive line of dome and flat ports support a wide variety
of Micro Four Thirds lenses. For even higher image quality and
versatility, the NA-OM5II can be used in conjunction with Nauticam's
lineup of Water Contact Optics. For example, with the Olympus 14-42mm
f/3.5-5.6 EZ Lens, the Nauticam WWL-1 provides a full zoom through ultra
wide-angle 130º field of view.
Vacuum Check and Leak Detection System
The Nauticam vacuum check and leak detection system is standard
equipment on the NA-OM5II. When combined with the optional M14 Vacuum
Valve II (PN 25624), this monitoring system continuously provides
updates on the water tightness and safety of the housing. A simple coded
LED lighting system informs the user if the vacuum is functioning
properly or if the housing is losing vacuum. Leak detection is
integrated into the same circuit, so if water enters the housing, an
audible and visual indication will be given.
In the box
-
NA-OM5II Housing
-
Housing Cap
-
2x Optical bulkhead caps
-
Panasonic CR-2032 Battery (pre-installed for moisture alarm)
-
90139 Spare main O-ring, O-ring remover and lubricant
-
Set of Allen Keys
-
Padded housing bag and shoulder strap
