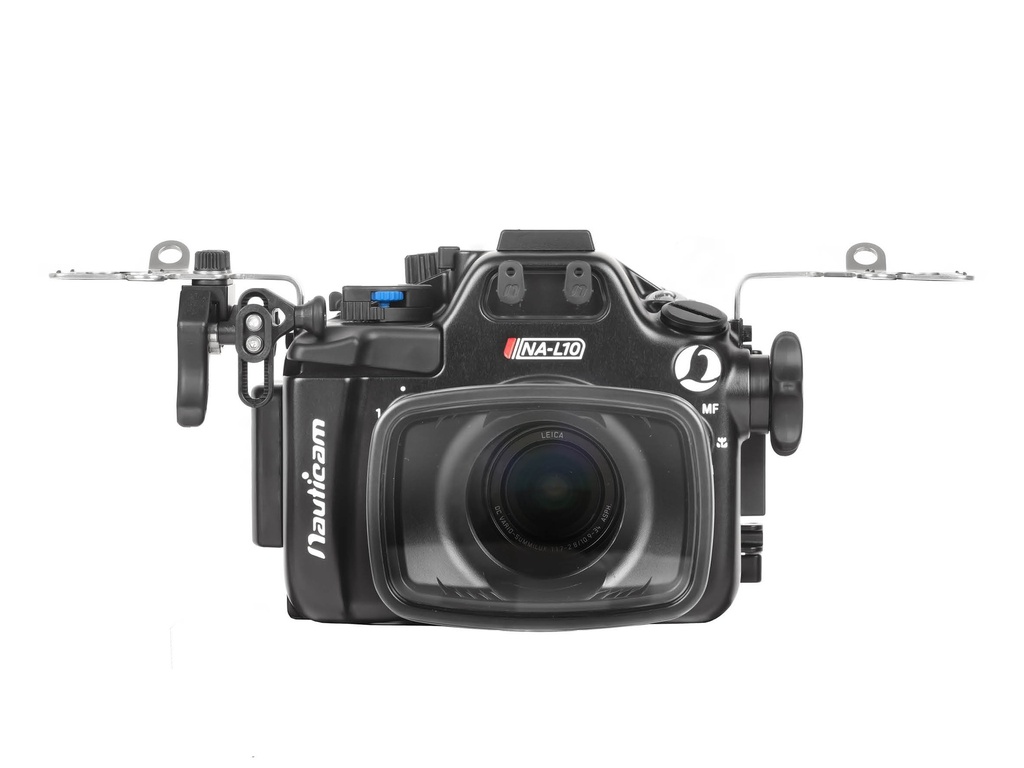

Panasonic Lumix L10 - Nauticam NA-L10 Housing

The Panasonic LUMIX L10 is a premium compact camera that offers advanced versatility and impressive quality. It features a 20.4MP Multi-Aspect BSI CMOS sensor and a Leica-designed 24-75mm-equivalent zoom lens. The large sensor and flexible zoom make it a compelling choice for underwater photography. Despite its compact design, the camera boasts both a viewfinder and a rear monitor, along with numerous direct controls. This design choice gives it a more DSLR or mirrorless feel compared to a typical compact camera. Capable of recording stunning photos with film-inspired Photo Styles and videos up to 5.6K with accurate focus, reliable optical image stabilization, and packed in a handsome retro body design. The Four Thirds-format BSI CMOS sensor offers impressive noise performance and is proven for high-quality video work, offering 5.6K 30p and DCI 4K 120p recording in 4:2:0 10-bit or DCI 4K 60p recording in 4:2:2 10-bit. The Multi-Aspect sensor enables open gate recording for various aspect ratios, and V-Log provides color grading control in post-production. Advanced AI-based subject detection recognizes and locks onto eyes, faces, pets, vehicles, and other moving subjects for quick, precise, and smooth focus.

Features

• Compact design with rotary housing lock.
• Mission Control with big zoom/focus Knob, Dedicated dials for Aspect Ratio, Focus mode, Exposure Mode, and Rear Dial, front REC Button re-mapped to the rear and close to the thumb area.
• Vacuum Detection/Moisture Alarm system
• N50 port system
• Handle brackets and shutter release extension (25200) are included
• Compatible with Flexitray system and optical products

Premium Proffesional Optics

Nauticam’s professional water-contact optics deliver the highest underwater image quality. The WWL-1B and WWL-C offer wide-angle coverage up to 130°, while the MFO-1, CMC-1 and CMC-2 offer exceptional macro capabilities.

Mission Control

In true Nauticam fashion, essential controls are placed as close to the optional handles as possible, making these housings the most intuitive and user-friendly available. Our engineers strategically position controls where they’re needed most, rather than simply near the corresponding buttons on the camera. Dials feature rubberized finger grooves, and levers are designed for smooth operation.

Integrated Vacuum Check & Leak Detection Electronics

The Nauticam vacuum check and leak detection system is shipped with NA-L10 as standard equipment. Combined with an accessory vacuum valve (PN 25625), this monitoring system provides constant updates on the water tight and safe-to-dive status of the housing. A simple color coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur.The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action packed dive. The (PN 25625) vacuum valve is included and pre installed with the NA-L10 pro package.

Flash Triggering

Optical flash triggering is available on the Nauticam NA-L10 with the Panasonic Lumix L10.

• 26309 Mini Flash Trigger for NA-GH5/G9/S1R/S1H/GH6/L10 (from SN A573875)

In the box

• NA-L10 Housing with N50 Standard Port
• 2x Plugs for Optical fiber cable mount
• Panasonic CR-2032 Battery (pre-installed for moisture alarm)
• Spare O-ring (PN 90131), lubricant and removal tool
• Set of Allen Keys
• Handle Brackets and Shutter Release Extension
• Padded housing bag and shoulder strap
