  2. Sony Alpha a7 V - Nauticam NA-A7V Housing - 17439

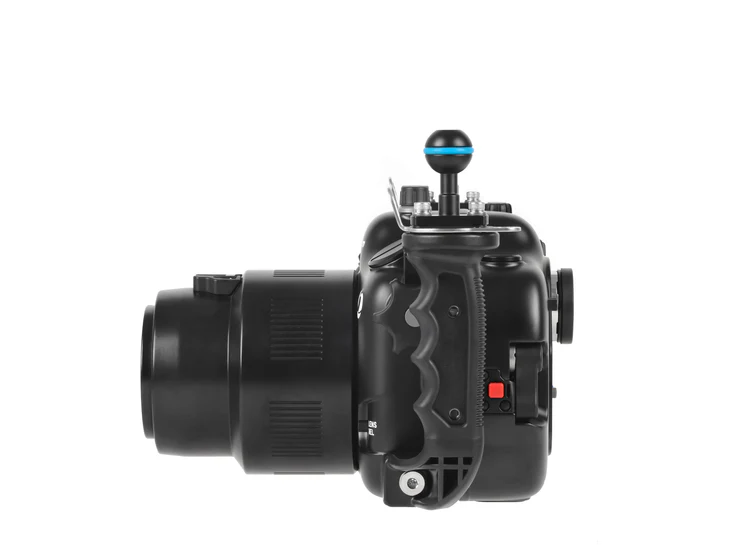

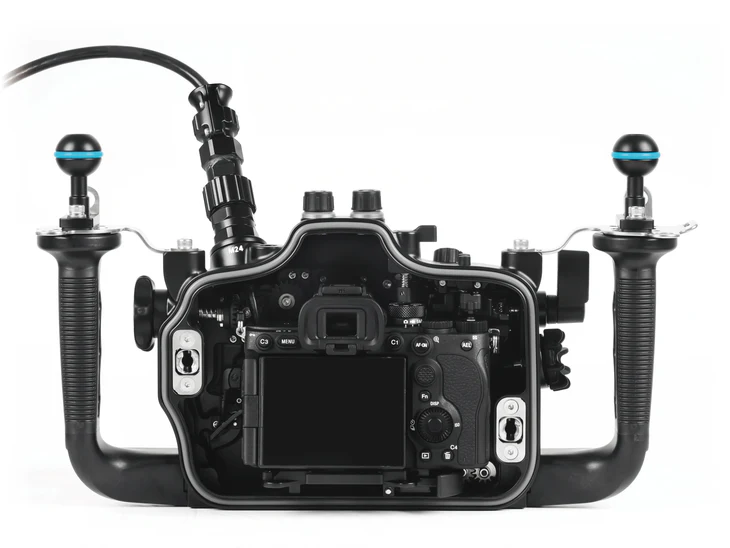

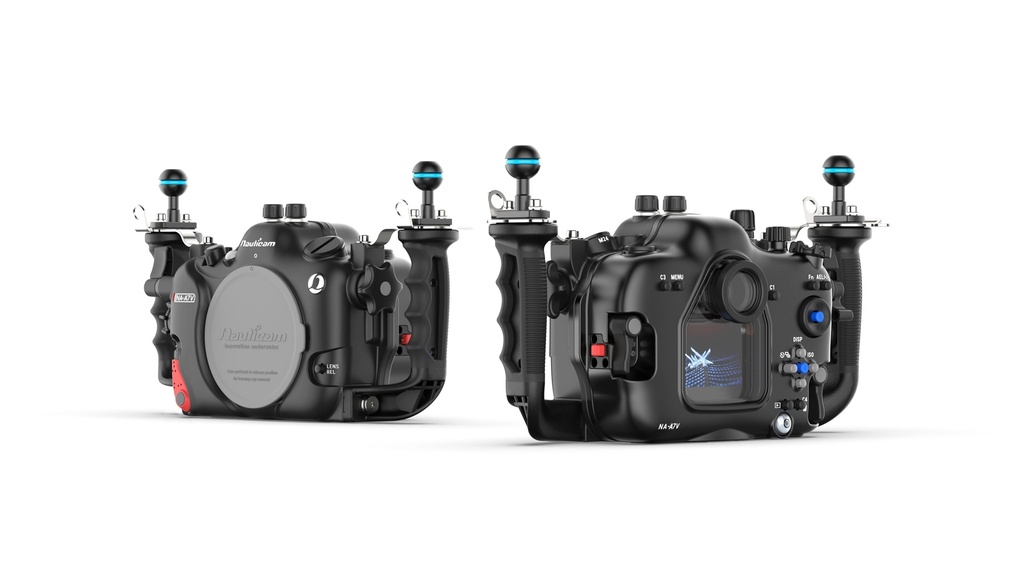

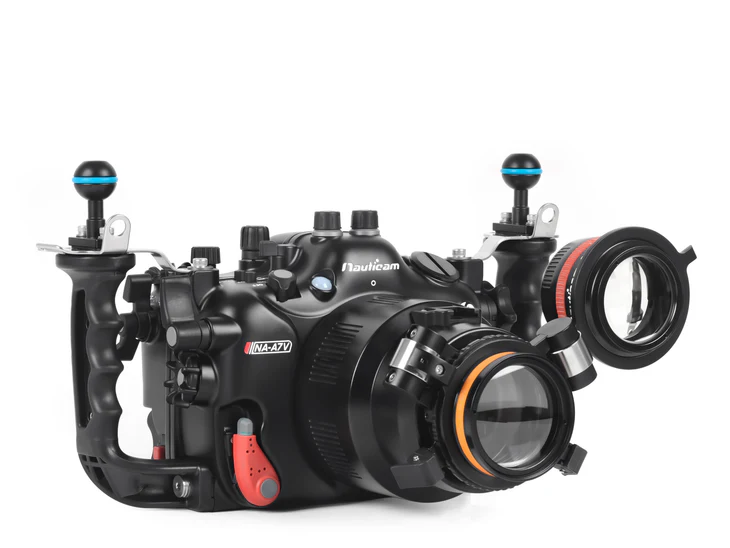

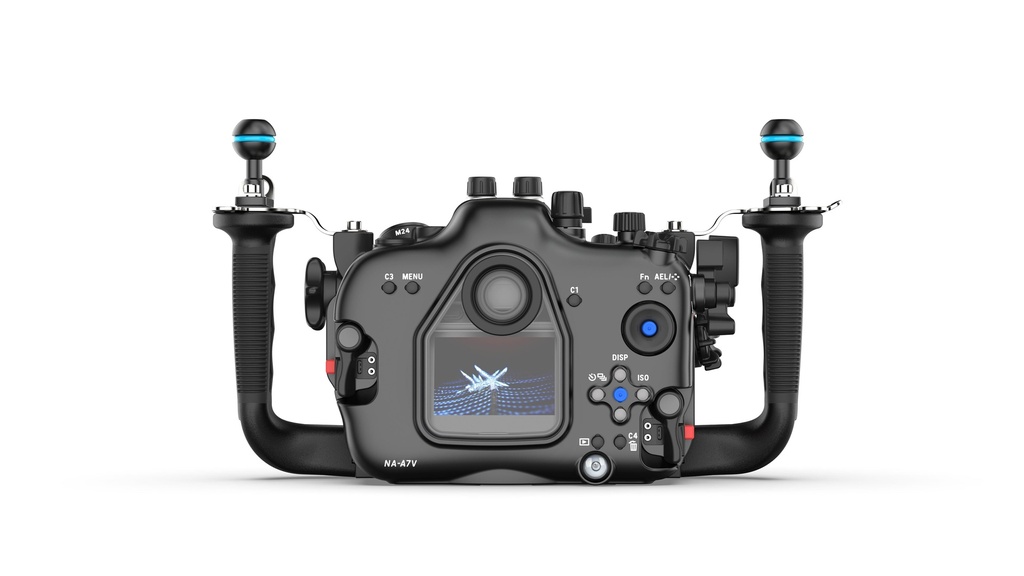

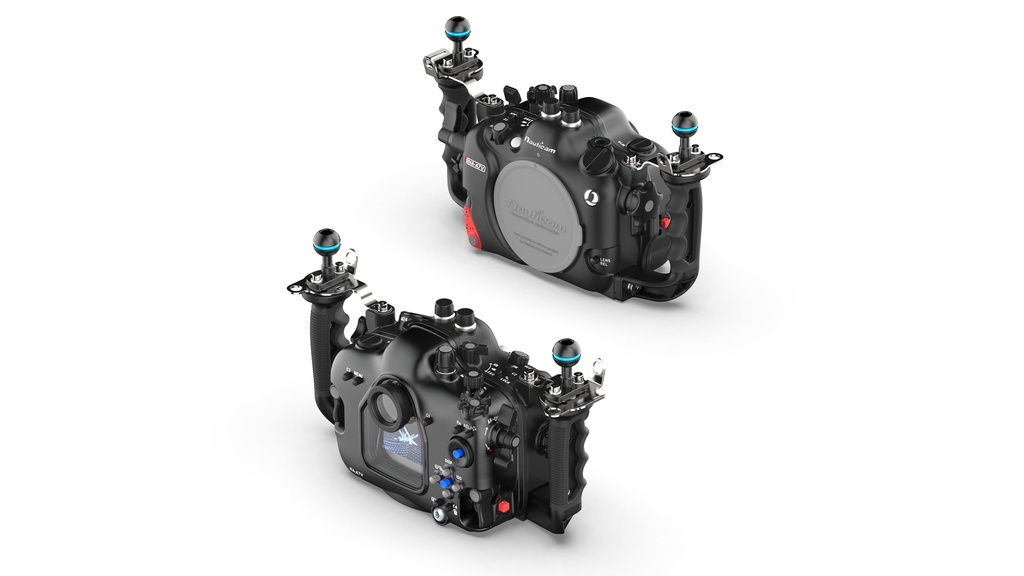

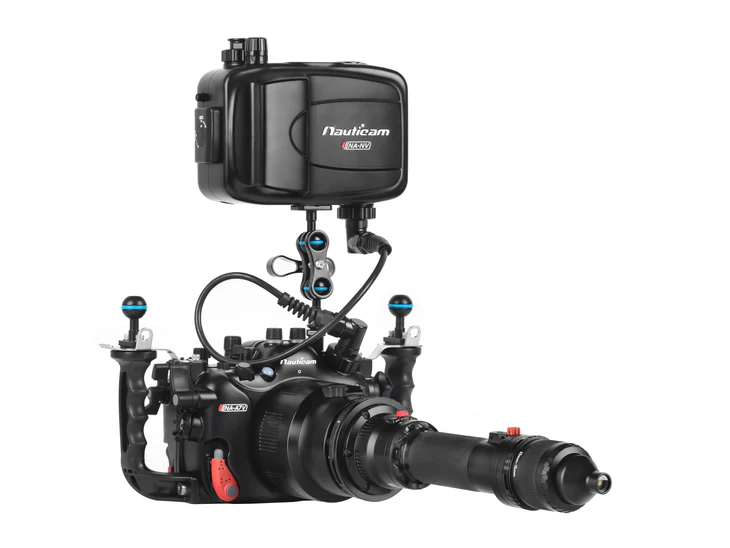

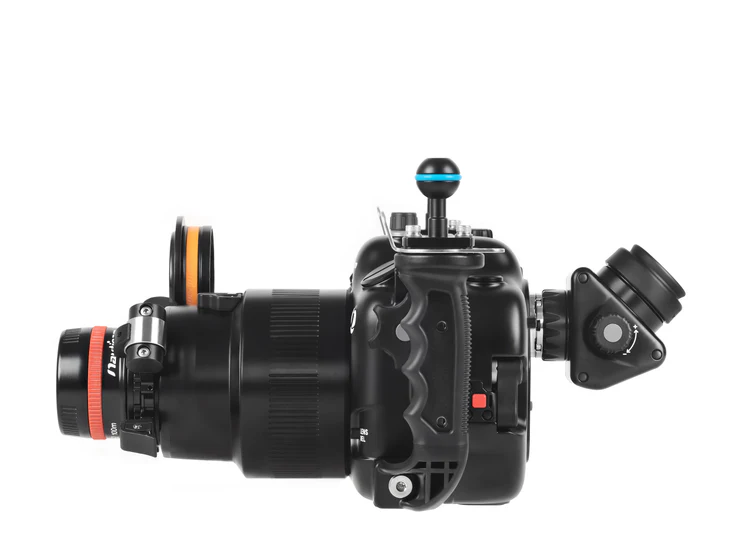

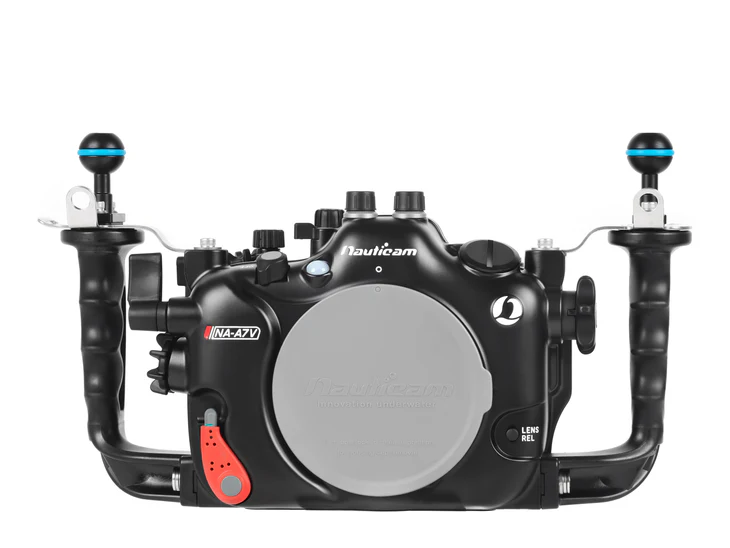

Sony Alpha a7 V - Nauticam NA-A7V Housing - 17439

https://www.seatech.co.nz/web/image/product.template/27947/image_1920?unique=7b4b20e

$ 7,530.99 7530.99 NZD $ 7,530.99

$ 6,548.69

Not Available For Sale

  • Manufacturer
  • Port Fitting
  • Depth Rating
  • Housing Type

This combination does not exist.

Contact Us
Manufacturer: Nauticam
Port Fitting: N100 Port
Depth Rating: 100m
Housing Type: FF-MIL Housings

Stock Code: NAU-17439


What is in the box?

  • NA-A7V Housing
  • 90120 Spare main O-ring, O-ring remover and lubricant
  • 2x Handles with mounting balls and stabilizing brackets
  • Panasonic CR-2032 Battery (for moisture alarm and vacuum detector)
  • Set of Allen Keys
  • Manual instruction card
  • Padded housing bag and shoulder strap

Features

  • Mainly same as NA-A7RV, but Playback use a push button instead.
  • DSLR style housing lock with an integrated locking shaft



Introducing NA-A7V for Sony A7 V Camera

What is in the box?

  • NA-A7V Housing
  • 90120 Spare main O-ring, O-ring remover and lubricant
  • 2x Handles with mounting balls and stabilizing brackets
  • Panasonic CR-2032 Battery (for moisture alarm and vacuum detector)
  • Set of Allen Keys
  • Manual instruction card
  • Padded housing bag and shoulder strap

Features

  • Mainly same as NA-A7RV, but Playback use a push button instead.
  • DSLR style housing lock with an integrated locking shaft

Recommended Accessories



Housing O-rings

  • 90120 Housing O-ring (I.D. =180mm, C.S. =4.0mm)

N100-N120 adaptors

  • 37305 N100 to N120 35.5mm Port Adaptor II
  • 37306 N100 to N120 25mm Port Adaptor

Optical Triggering

  • 26302 Mini flash trigger for Sony
  • 26216 Universal Optical Fiber Cable

Electrical Triggering

  • 26326 M24-M16 Adaptor for use with 26325
  • 25056 M14 Nikonos 5-pin bulkhead with universal hotshoe connection

Housing mounting ball

  • 25221 M10 strobe mounting ball for housing
  • 25228 M5 strobe mounting ball for housing
  • 25218 Mounting Ball Set for Tripod (for NA-A9/A7RIII/BMPCC/XT3)

Vacuum Valve

  • 25624 M14 Vacuum Valve II (Pushbutton Release)

Lanyard

  • 25413 27cm lanyard with 2 snap hooks

Hand strap

  • 28130 Hand Strap for 28113

Handles

  • 28123 Pair of handles - size S (10mm closer to housing)
    *Special handle brackets are required for use with 28123

Viewfinder

  • 32211 Nauticam Full Frame Straight Viewfinder 32°/ 1:1
  • 32212 Nauticam Full Frame Straight Viewfinder 40°/ 0.8:1
  • 32213 Nauticam Full Frame Angle Viewinder 32°/ 1:1
  • 32214 Nauticam Full Frame Angle Viewinder 40°/ 0.8:1
    *32212/32214 is preferred.

Surface USB-PD Power bank

  • 26325 USB-C Bulkhead with USB-C Connector
  • 26326 M24-M16 Adaptor for use with 26325

HDMI OUTPUT

1)     Required accessories for HDMI 2.0 Cable System

  • 25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
  • 25094 M24A3R140-M28A1R170 HDMI 2.0 Cable (for NA-A7SIII to use with Ninja V housing)

Monitor Options:

  • 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bitReorder/Monitor/Player (excl. HDMI 2.0 cable)
  • 17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit

2)   Required accessories for HDMI 1.4 Cable System

  • 25033 standard HDMI bulkhead with M16 thread
  • 26326 M24-M16 Adaptor for use with 26325
  • 25095 HDMI (D-A) 1.4 Cable in 170mm Length (for connection from HDMI bulkhead to camera)

Monitor housing Options:

  • 16611 Nauticam 7'' G7 UW ULTRAHD Monitor (4K HDMI, 2K SDI input, excl. cables)
  • 16612 Nauticam 7'' T7 UW ULTRAHD Monitor (HDMI 1.4 input, excl. cables)
  • 25047 HDMI (D-D) cable in 800mm length (for connection between HDMI bulkheads)
    *25047 is required for use with 16611/16612
  • 17927 NA-Shinobi II Housing for Atomos Shinobi II 5.2" Monitor with HDMI 1.4 input
    *17927 includes 25033, 25038 and 25100
  • 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
  • 25082 HDMI 1.4 Cable for Ninja V Housing in 0.75m Length (for connection from Ninja V housing to HDMI Bulkhead)
    *25082 is required for use with 17922 monitor housing

Monitor mounting system

  • 17951 Nauticam Atomos Shogun housing mounting system
  • 17952 Nauticam Monitor Housing Mounting Adaptor
  • 17954 Tripod plate for NA-A7S and NA-GH4
  • 17960 Universal Quadra-Pod Plate for Nauticam Housings

Wet Lenses:

Macro

  • 81202 Super Macro Convertor 2 (4x Magnification)
  • 81203 Super Macro Convertor 3 (2.3x magnification
  • 81301 Compact Macro Convertor 1 (CMC-1, 4.5x Magnification)
  • 81302 Compact Macro Convertor 2 (CMC-2, 2.8X Magnification)
  • 81501 Mid-range Focus Optimizer 1
  • 81503 Mid-range Focus Optimizer 3

Wide Angle

  • 83202 Wet Wide Lens 1B (WWL-1B) 130 deg. FOV with compatible 28mm lenses (incl. float collar)
  • 83203 Wet Wide Lens Compact (WWL-C) 130 Deg. FOV with Compatible 24mm Lenses
  • 85204 Wide Angle Conversion Port -2 (WACP-2) 140 Deg. FOV with Compatible 14mm Lenses (incl. float collar)
  • 85205 N100 0.36x Wide Angle Conversion Port Compact (WACP-C)
  • 85206 N120/N100 0.36x Wide Angle Conversion Port with Integrated Float Collar and Interchangeable Port Mounting Ring - (WACP-1B)
  • 85207 N120/N100 Fisheye Conversion Port with Integrated Float Collar (FCP) 170 Deg. FOV with Compatible 28mm Lenses

Macro to Wide Angle

  • 86201 Macro to wide-angle Lens 1 (MWL-1) 150 deg. FOV with full rame 60mm macro lens
  • 87303 EMWL Set #3 (incl. focusing unit #3, 150mm relay lens and 3 objective lenses)
  • 87203 EMWL Focusing Unit #3 (for Canon RF 100mm f2.8 Macro)
  • 87211 EMWL 150mm Relay Lens
  • 87212 EMWL Angled Relay Lens
  • 87221 EMWL 60° Objective Lens
  • 87222 EMWL 100° Objective Lens
  • 87223 EMWL 130° Objective Lens
  • 87226 EMWL 160° Objective Lens

Optional Accessories for using with Wet Lenses:

  • 25101 M67 flip diopter holder for M67 macro ports
  • 25108 M67 Double Flip Holder for M67 Macro Ports
  • 83250 M67 to Bayonet Converter II
  • 83251 M77 to Bayonet Converter II
  • 83214 Bayonet Mount Adaptor for SMC/CMC
  • 86221 M67 Flip holder for MWL-1
  • 86222 Double Flip Holder for MWL-1
  • 87501 Flip Holder for EMWL
  • 87512 Shade for 130° Objective Lens
  • 87513 Shade for 100° Objective Lens
  • 87516 EMWL Bayonet Holder for Ø70 Float Arm
  • 87517 EMWL Bayonet Holder for Ø90 Float Arm
  • 87518 Strobe Mounting Brackets for EMWL Relay Lens

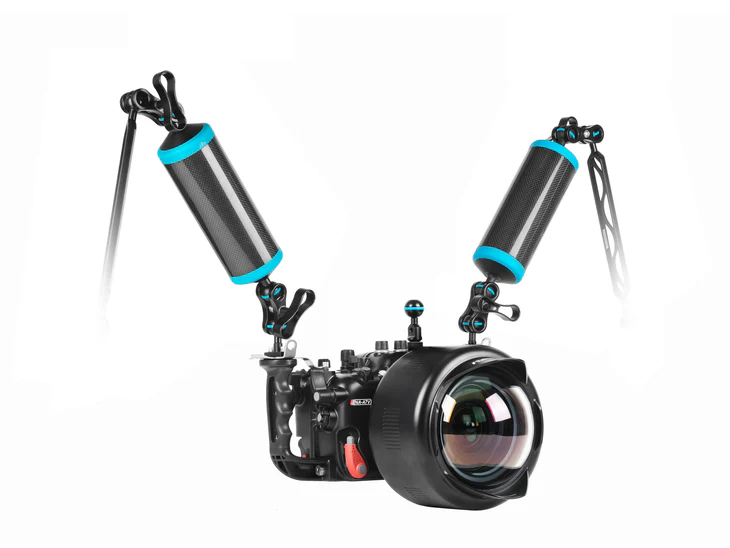

Buoyancy Recommendation for Housing Setups: (depending on port and lens choices)

  • 72261 Ø70x200mm Carbon Fibre Aluminium Float Arm (Buoyancy 370g)
  • 72262 Ø70x250mm Carbon Fibre Aluminium Float Arm(Buoyancy 520g)
  • 72263 Ø70x300mm Carbon Fibre Aluminium Float Arm (Buoyancy 670g)
  • 72264 Ø90x170mm Carbon Fibre Aluminium Float Arm (Buoyancy 450g)
  • 72265 Ø90x220mmCarbon Fibre Aluminium Float Arm (Buoyancy 720g)
  • 72266 Ø50x200mm Carbon Fibre Aluminium Float Arm (Buoyancy 160g)
  • 72267 Ø50x250mm Carbon Fibre Aluminium Float Arm (Buoyancy 240g)
  • 72268 Ø50x300mm Carbon Fibre Aluminium Float Arm (Buoyancy 320g)
  • 72233 Single Bayonet Holder II for Ø70 Float Arm
  • 72234 Double Bayonet Holder II for Ø70 Float Arm
  • 83252 Bayonet Holder for Arms
  • 83253 Double Bayonet Holder for Arms
  • 83254 Bayonet Lens Holder for Inon Float Arms
  • 87516 EMWL Bayonet Holder for Ø70 Float Arm
  • 87517 EMWL Bayonet Holder for Ø90 Float Arm
Dimensions 340mm (W) x 170mm (H) x 127m (D)
Weight in air 2.7kg
Weight in water Negative 0.2kg (incl. camera)
Depth Rating 100m
Port System N100 Sony E Mount
Accessory Ports Front: M24 x 1, M10 x 1 (Mounting) Rear: M14 x 1 (Vacuum Valve)
Manual Flash Trigger 26302 Mini Flash Trigger for Sony
HDMI Support HDMI 2.0 / 1.4
Compatible Camera Sony a7 V camera
