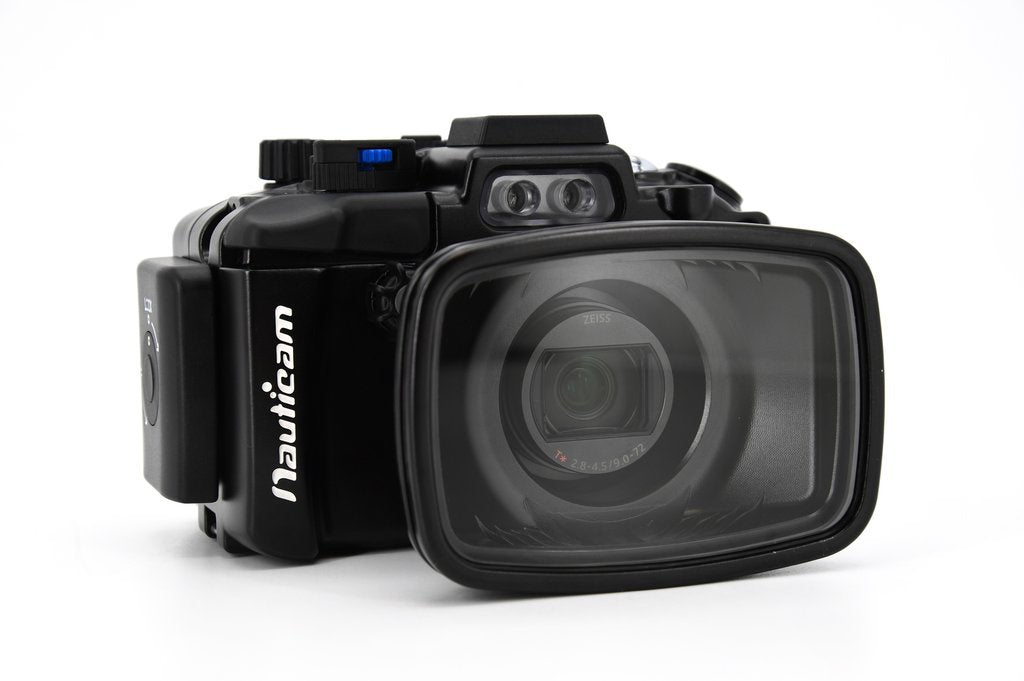

Sony Cyber-shot RX100 VII - Nauticam NA-RX100VII housing Pro Package - 17424P

The continuation of the longer 24-200mm equivalent zoom lens with the RX100 VII (same as the RX100VI) sets this camera apart from the very popular RX100 V. It hosts a redesigned 20.1MP 1" Exmor RS CMOS sensor, along with an improved BIONZ X image processor, and highly-accurate 357-point hybrid autofocus system. With 5-axis image stabilization and the 20fps blackout free silent shooting (with autofocus), the RX100 VII is going to track your subjects more accurately in photo and video modes.

The RX100 VII captures UHD 4K 30/24fps video that downsamples from the entire sensor width giving extremely sharp details. For slow-motion capture, there is 120fps Full HD, as well as a dedicated HFR mode that allows the camera to record frame rates up to 960fps. Also offering "Steady Shot Active Mode", the RX100VII combines in camera and lens stabilization to give a smooth look to your videos even when making big movements, and with the addition of a microphone jack, video shooters will certainly want to give this camera a second look.

The NA-RX100VII Underwater Housing

Nauticam has supported every version of the Sony RX100 lineup and with the RX100 VII the housing continues with the N50 interchangeable port system. The NA-RX100VII features the same innovative and user-friendly rotary-latch locking system and two-stage trigger from previous versions as well as the clearly-labeled and intuitive buttons and dials.

Mission Control

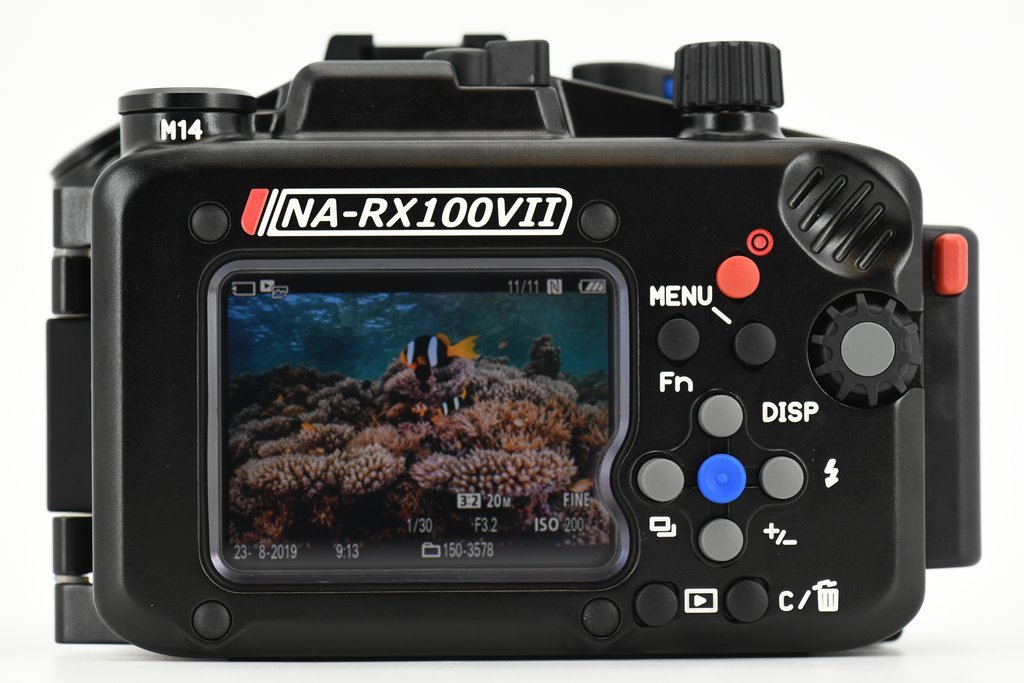

The NA-RX100VII follows Nauticam's design philosophy of placing the camera controls where they are most needed and easily accessible. The record button is colored red and within easy reach of the right side of the housing, even when using an optional tray system. The pop-up flash can be activated or stowed with the camera inside the housing, eliminating the need to preset the flash before inserting the camera and allowing quick changes between artificial and ambient lighting scenarios.

The shutter speed and aperture controls feature easy-to-use control wheels, with the front dial sporting large grooves to facilitate fingertip control without having to reach forward.

Interchangeable N50 Port

To maximize the added flexibility of the longer zoom lens on the RX100 VII, the NA-RX100VII features an interchangeable N50 port. The Standard Port that is included with the housing allows for the use of the full zoom range and is compatible with the 25107 M67 Flip Diopter Holder. At 90mm equivalent and above, the RX100VII can be used with the SMC-1 wet-optic to achieve true super-macro capability.

Premium Profesional Optics

For super wide-angle, the standard port can be changed for 38702 N50 Short Port with Bayonet Mount. This port is ready to support the WWL-1 Wet-Wide Lens with the intuitive and convenient bayonet-mounting system. Zoom range is still accessible but is limited to 65mm equivalent. The WWL-1 can be changed underwater with the CMC-1 or CMC-2 to give macro capabilities on the same dive.

Optional Pro Package Configuration

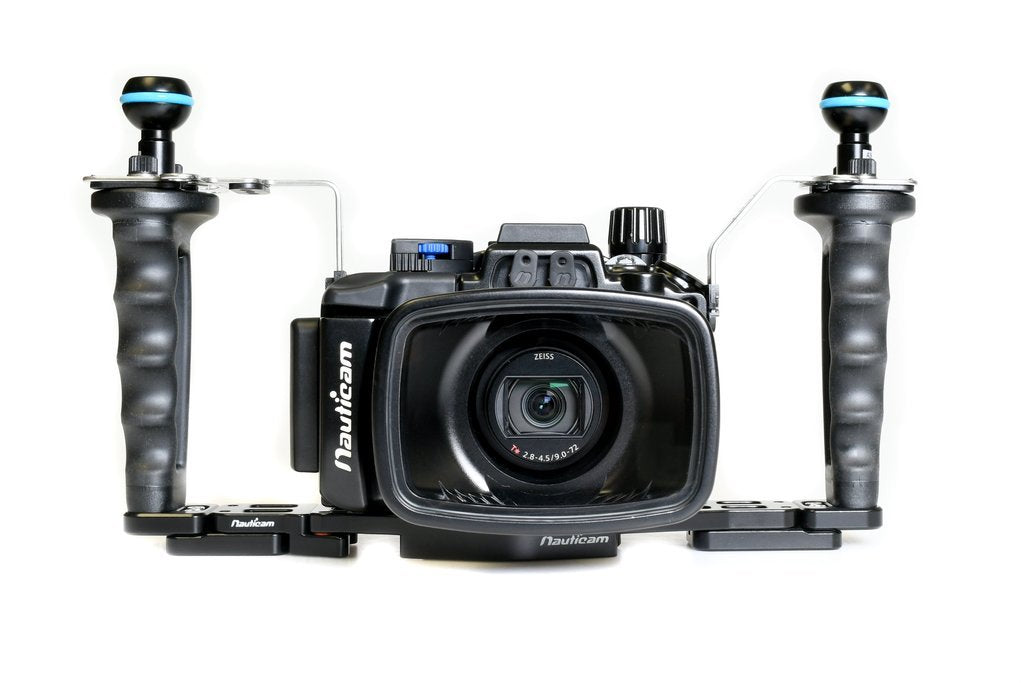

The NA-RX100VII is also available in the Pro Package configuration that comes with the Flexitray II, Right Handle, two ball-mounts and M14 vacuum valve pre-installed. The standard NA-RX100VII ships with stainless steel stiffening brackets and shutter release extension should a Nauticam Easitray or Flexitray be added later.

HDMI Output

The RX100VII has HDMI output for video, allowing for the use of external monitors which make judging exposure, focus and composition easier than using the built-in LCD of the camera. By adding the optional 25028 Socket Extension and 25032 Custom HDMI bulkhead, the NA-RX100VII is compatible with external monitor housings such as the NA-502B-H or NA-Ninja V (HDMI 1.4 connection only).

Integrated Vacuum Check and Leak Detection System

The Nauticam vacuum check and leak detection system is shipped with NA-RX100VII as standard equipment. Combined with an accessory M14 Vacuum Valve II (PN 25624), this monitoring system provides constant updates on the water tight and safe-to-dive status of the housing. A simple color coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur.

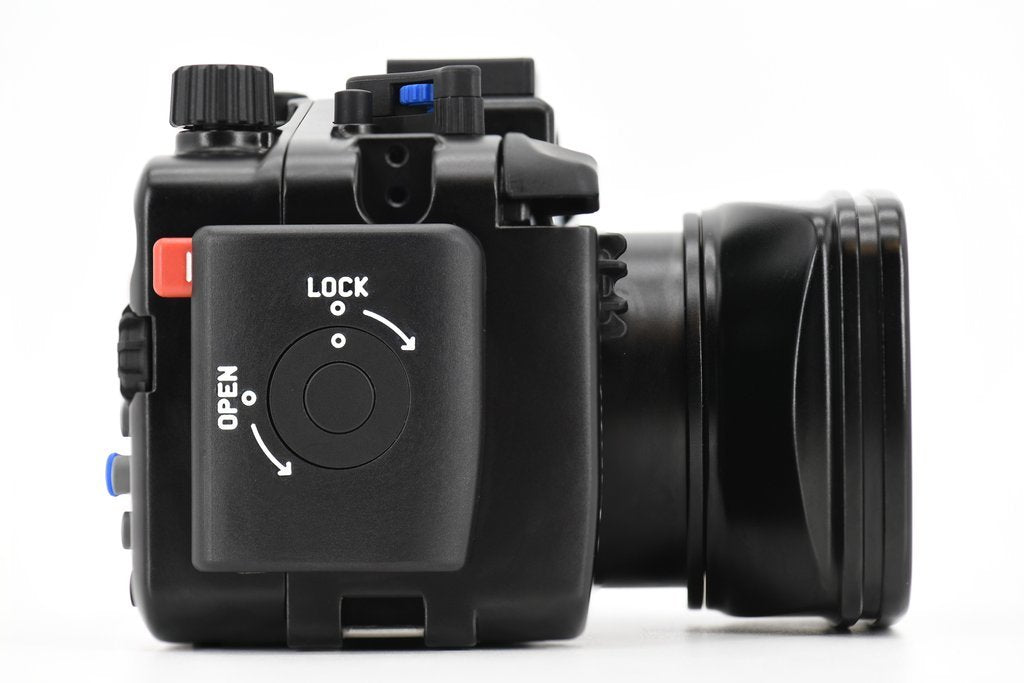

Rotary Locking Latch

An oversized rotary latch seals the housing, and securely locks in place without risk of accidental opening.

In The Box

• NA-RX100VII Housing with Standard Port
• Spare O-ring 90135, Removal Tool and Lubricant
• Allen key Set
• Padded Travel Case
• CR2032 Battery (for vacuum system)
• Set of handle brackets with shutter release trigger

Pro package also includes:

• Flexitray II
• Right Handle
• 2x ball-mounts
• M14 vacuum valve pre-installed
