Recommended Power bank (inside housing)
- Nauticam recommends the Anker 20,000 mAh 87W Power Bank, Model number A1383. At time of writing this is unavailable in NZ.
- Maximum Power bank dimensions: 165mm (W) x 76mm (D) x 26mm (H)
Recommended Accessories
Housing Mounting options
- 16701 Top Handle for E2/F/C70/BGH1/BMPCC/R5C
- 17959 Housing Mounting Ball with 1/4" Screws
- 25221 M10 strobe mounting ball for housing
- 25224 M10 strobe mounting ball for housing (with hole for using with lanyard)
- 25218 Mounting Ball Set for Tripod
- 25228 M5 strobe mounting ball for housing
Lanyard
- 25413 27cm lanyard with 2 snap hooks
Hand strap
- 28130 Hand Strap for 28113
Handles
- 28123 Pair of handles - size S (10mm closer to housing)
Surface USB-PD Power bank
- 26325 USB-C Bulkhead with USB-C Connector
HDMI OUTPUT
1) Required accessories for HDMI 2.0 Cable System
- 25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
- 25099 M24A2R200-M28A1R170 HDMI 2.0 Cable (for NA-α1/GH6/A9III to use with Ninja V housing) (TBD)
Compatible Monitor Options
- 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5" 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
- 17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5" 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module
2) Required accessories for HDMI 1.4 Cable System
- 25033 Standard HDMI bulkhead with M16 thread
- 26326 M24-M16 Adaptor for use with 26325
- 25100 HDMI (D-A) 1.4 Cable in 200mm length for NA-a1/FX3/GH6 (for connection from HDMI bulkhead to camera) (TBD)
Compatible Monitor Options

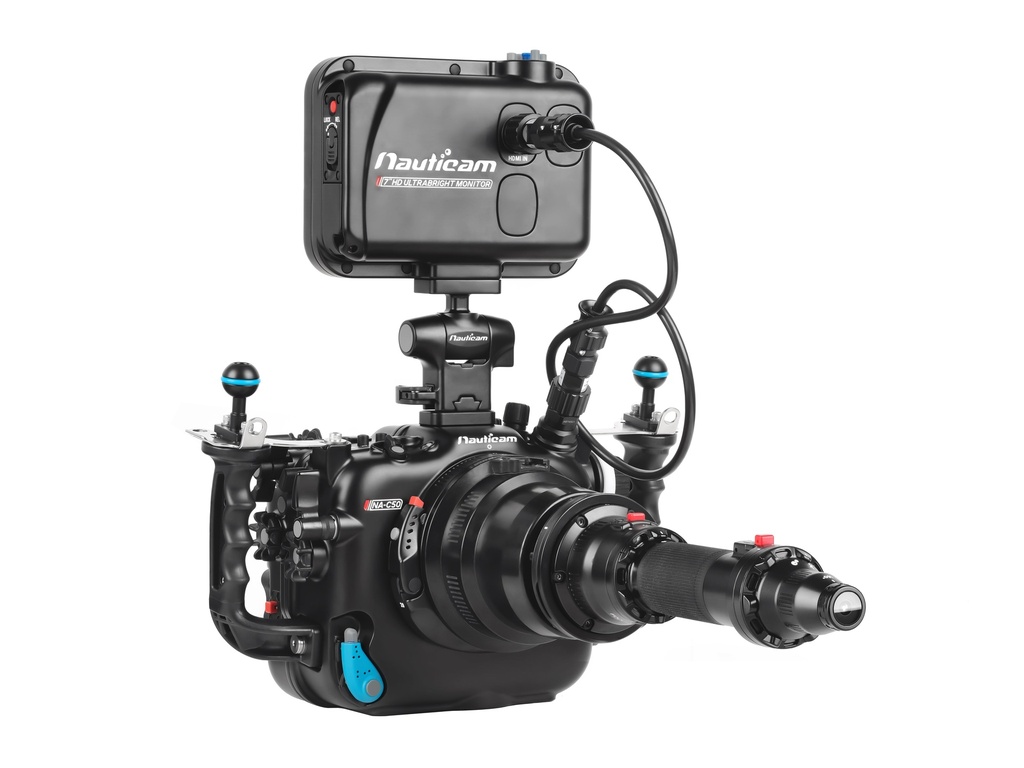

- 16611 Nauticam 7" G7 UW ULTRAHD Monitor (4K HDMI, 2K SDI input, excl. cables)
- 16612 Nauticam 7" T7 UW ULTRAHD Monitor (HDMI 1.4 input, excl. cables)
- 25047 HDMI (D-D) cable in 800mm length (for connection between HDMI bulkheads)
*25047 is required for use with 16612 monitor housing
- 17927 NA-Shinobi II Housing for Atomos Shinobi II 5.2" Monitor with HDMI 1.4 input
*17927 includes 25033, 25038, 25100.
- 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
- 25082 HDMI 1.4 Cable for Ninja V Housing in 0.75m Length (for connection from Ninja V housing to HDMI Bulkhead)
*25082 is required for use with 17922 monitor housing
Monitor Mounting system
- 17951 Nauticam Atomos Shogun housing mounting system
- 17954 Tripod plate for NA-A7S and NA-GH4
- 17957 Nauticam Monitor Housing Mounting Adaptor (TBD)
- 17960 Universal Quadra-Pod Plate for Nauticam Housings
- 17961 Swivel and Tilt Adjustable Monitor Mount System (compatible with 16612/17927/17922 etc.)
Wet Lenses
Macro
- 81202 Super Macro Convertor 2 (4x Magnification)
- 81203 Super Macro Convertor 3 (2.3x Magnification)
- 81301 Compact Macro Convertor 1 (CMC-1, 4.5x Magnification)
- 81302 Compact Macro Convertor 2 (CMC-2, 2.8X Magnification)
- 81501 Mid-range Focus Optimizer 1
- 81503 Mid-range Focus Optimizer 3
Wide-angle
- 83202 Wet Wide Lens 1B (WWL-1B) 130 deg. FOV with compatible 28mm lenses (incl. float collar)
- 83203 Wet Wide Lens Compact (WWL-C) 130 Deg. FOV with Compatible 24mm Lenses (incl. float collar)
- 85204 Wide Angle Conversion Port - 2 (WACP-2) 140 Deg. FOV with Compatible 14mm Lenes (incl. float collar)
- 85025 N100 0.36x Wide Angle Conversion Port Compact (WACP-C)
- 85206 N120/N100 0.36x Wide Angle Conversion Port with Integrated Float Collar and
Interchangeable Port Mounting Ring - (WACP-1B)
- 85207 N120/N100 Fisheye Conversion Port with Integrated Float Collar (FCP) 170 Deg.
FOV with Compatible 28mm Lenses
Macro to wide-angle
- 86201 Macro to Wideangle Lens 1 (MWL-1) 150 deg. FOV with full rame 60mm macro lens
- 87301 EMWL Set #1 (incl. focusing unit #1, 150mm relay lens and 3 objective lenses)
- 87201 EMWL Focusing Unit #1 (for Nikon FF 105mm & M4/3 60mm)
- 87211 EMWL 150mm Relay Lens
- 87212 EMWL Angled Relay Lens
- 87221 EMWL 60° Objective Lens
- 87222 EMWL 100° Objective Lens
- 87223 EMWL 130° Objective Lens
- 87226 EMWL 160° Objective Lens
Wet Lenses Accessories

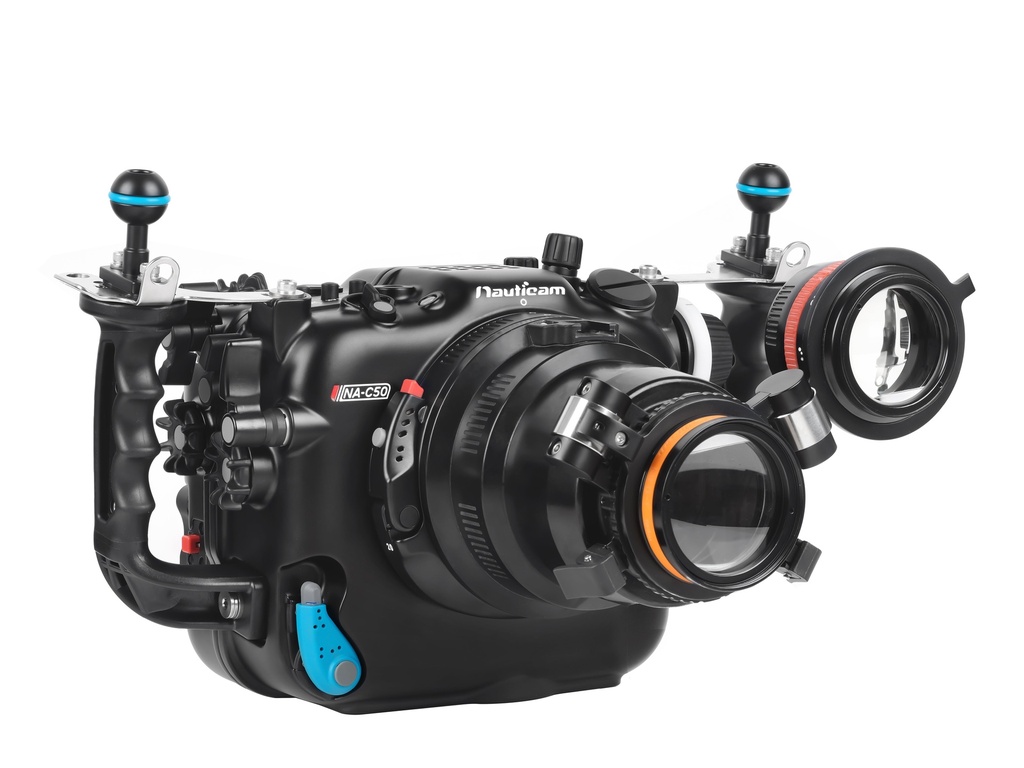

- 25101 M67 flip diopter holder for M67 macro ports
- 25108 M67 Double Flip Holder for M67 Macro Ports
- 83250 M67 to Bayonet Converter II
- 83251 M77 to Bayonet Converter II
- 83214 Bayonet Mount Adaptor for SMC/CMC
- 87501 Flip Holder for EMWL
- 87512 Shade for 130° Objective Lens
- 87513 Shade for 100° Objective Lens
- 87515 M67 Mount to EMWL Focusing Unit
- 87518 Strobe Mounting Brackets for EMWL Relay Lens
- 87519 Shade for 160° Objective Lens
Lens Holders
- 72233 Single Bayonet Holder II for Ø70 Float Arm
- 72234 Double Bayonet Holder II for Ø70 Float Arm
- 72243 Single Bayonet Holder II for Ø90 Float Arm
- 72244 Double Bayonet Holder II for Ø90 Float Arm
- 83252 Bayonet Holder for Arms
- 83253 Double Bayonet Holder for Arms
- 83254 Bayonet Lens Holder for Inon Float Arms
- 87516 EMWL Bayonet Holder for Ø70 Float Arm
- 87517 EMWL Bayonet Holder for Ø90 Float Arm

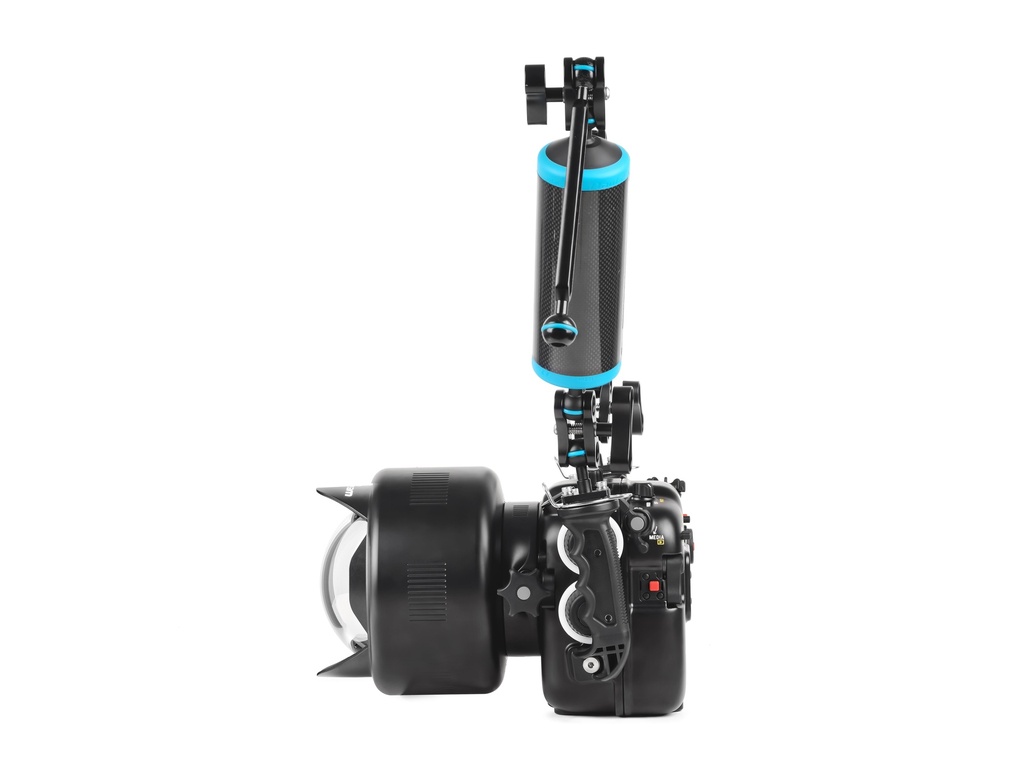

Buoyancy Recommendation for Housing Setups
(depending on port and lens choices)
- 72216 Ø70x200mm Carbon Fibre Aluminium Float Arm (Buoyancy 370g)
- 72217 Ø70x250mm Carbon Fibre Aluminium Float Arm (Buoyancy 520g)
- 72218 Ø70x300mm Carbon Fibre Aluminium Float Arm (Buoyancy 670g)
- 72219 Ø90x170mm Carbon Fibre Aluminium Float Arm (Buoyancy 450g)
- 72220 Ø90x220mm Carbon Fibre Aluminium Float Arm (Buoyancy 720g)
