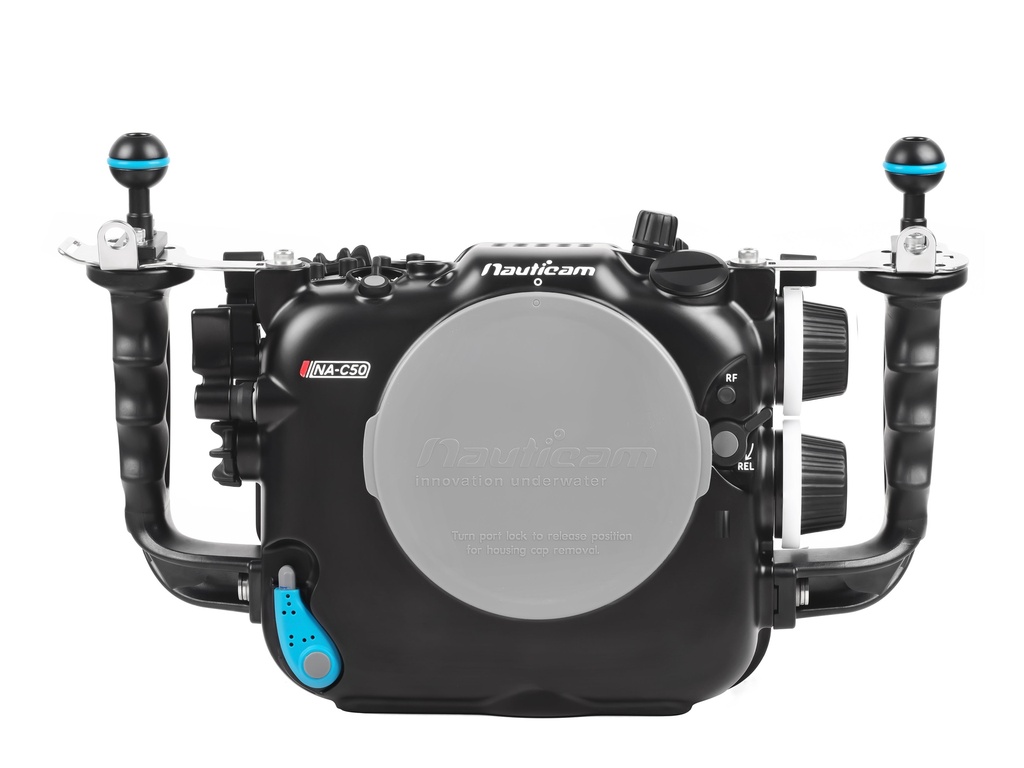

Canon C50 - Nauticam NA-C50 Housing - 17344

NA-C50 Housing

The NA-C50 underwater housing upholds Nauticam’s dedication to innovation. Essential controls are conveniently accessible via ergonomic handles, facilitating an efficient setup that optimizes time spent in the water and minimizes time spent on rig maintenance. The N120 port system accommodates Canon RF and EF-Mount lens. For EF lens the RF to EF adapter with a variable ND filter can be used with an optional control kit. Nauticam’s extensive range of ports and in-house corrective optics complement the NA-C50’s capabilities. When equipped with an accessory vacuum valve, the integrated vacuum check and leak detection system provides continuous updates on the housing’s watertight integrity. A vacuum system reset switch, located beneath the tray, eliminates the necessity to open the back of the housing during lens or port changes. The NA-C50  supports additional mounting with a built in 1/4-20 cheese plate.

USB Power Bank Support

The Nauticam NA-C50 features space inside the housing on the bottom for a USB power bank.

Recommended Power bank:

Amazon.com: Anker Power Bank, 20,000mAh Travel Essential Portable Charger with Built-in USB-C Cable, 3-Port 87W Max Fast Charging Battery Pack, for MacBook, iPhone 16/15 Series, Samsung, Switch, and More : Cell Phones & Accessories

The maximum size of Power Bank: 165mm (W) x 76mm (D) x 26mm (H )

Premium Professional Optics

Nauticam’s professional water-contact optics deliver the highest underwater image quality. The FCP, WACP, and WWL lines enhance wide-angle, while the MFO and SMC offer exceptional macro and super macro capabilities. The EMWL allows you to shoot macro, wide-angle, or combine the styles for unique images.

Mission Control

In true Nauticam fashion, essential controls are placed as close to the handles as possible, making these housings the most intuitive and user-friendly available. Our engineers strategically position controls where they’re needed most, rather than simply near the corresponding buttons on the camera. Dials feature rubberized finger grooves, and levers are designed for smooth operation.

Integrated Vacuum Check & Leak Detection Electronics

The Nauticam vacuum check and leak detection system is shipped with NA-C50 as standard equipment. Combined with an accessory vacuum valve (PN 25625), this monitoring system provides constant updates on the water tight and safe-to-dive status of the housing. A simple color coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur.The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action packed dive.

What’s in the box

• NA-C50 Housing
• 90222 Housing O-ring, lubricant, O-ring remover
• 2x Handles with mounting balls
• CR2032 Battery (for moisture alarm and vacuum system)
• Allen Wrench Set
• USB-C to USB-C Right Angled Cable for Power Delivery
• Housing carry bag and shoulder strap

Main Features

• N120 Port Lock II (support to install Extension/Port and lock automatically when the red port lock lever is closed)
• Reserve space on the bottom for power bank

• DSLR Housing lock and tilted handles, Compatible with hand strap (#28130)

• Cinematic style big zoom and focus knob, ADAP FN knob on the top.

• FUNC/M-Fn Lever on the front right

• Double lever on the rear left to access DISP/INFO, and MEDIA/PLAYBACK.

• Double lever on the rear right to access AF-ON and MAGNIFY.

• Flash trigger or X-Sync for still shooting is unsupported.

• Mounting points - Front top: 15x 1/4-20 UNC (for 16701 top handle and 17959 mounting ball), 1x M10 thread hole; Bottom:  3x 1/4-20 UNC (for tripod plate or skids), 6x M5 mounting points (#25218 mounting ball set)

Housing O-rings

• 90222 Housing O-ring (I.D.=220mm, C.S.=4.0mm)

About the Canon C50 camera
