  2. Canon EOS R1 - Nauticam NA-R1 Housing - 17342

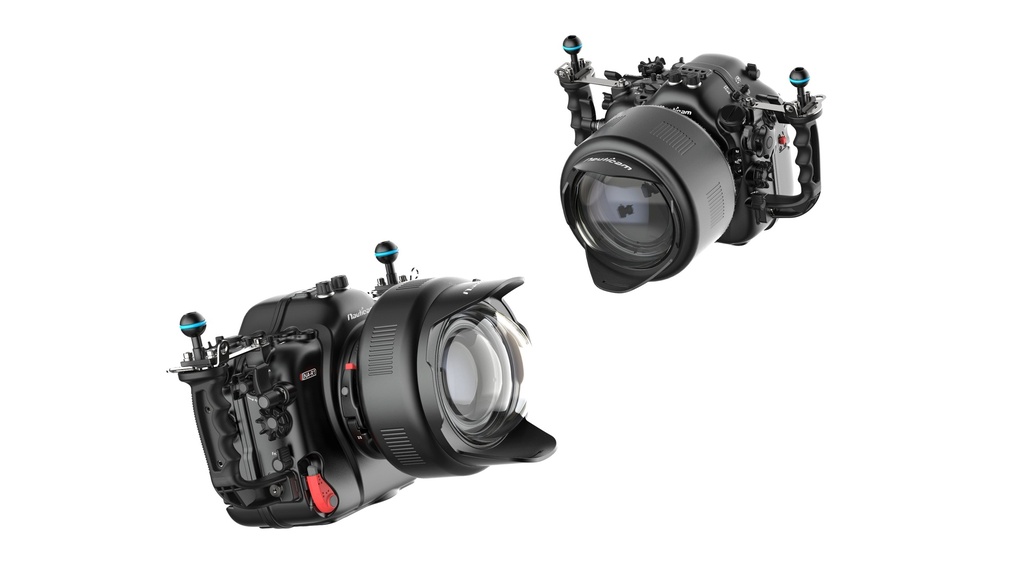

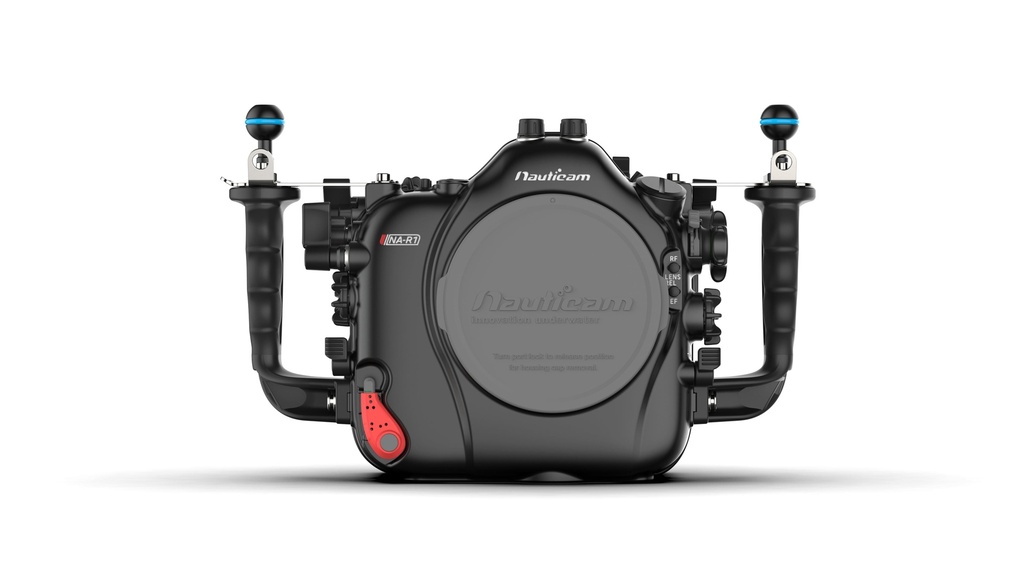

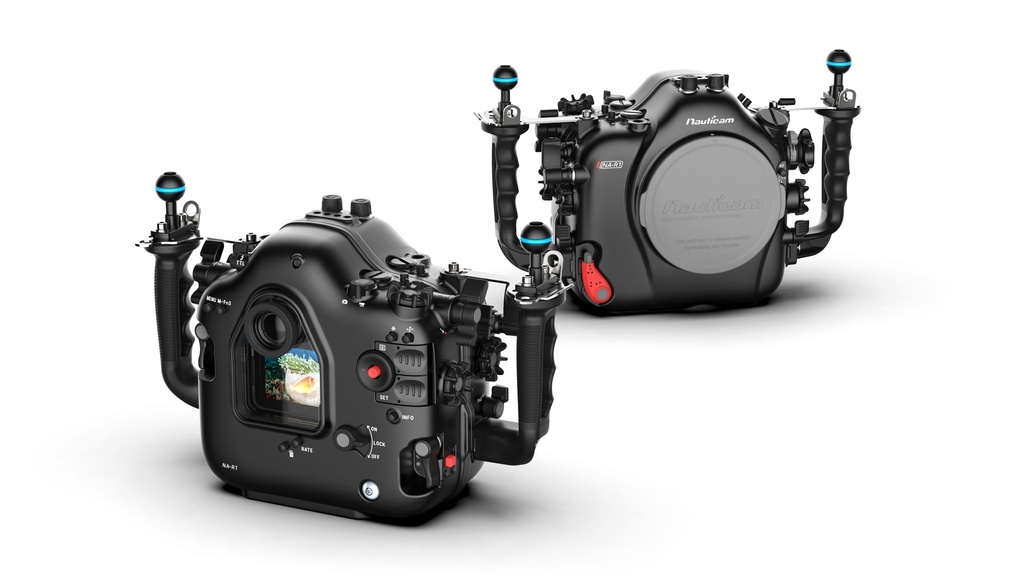

Canon EOS R1 - Nauticam NA-R1 Housing - 17342

https://www.seatech.co.nz/web/image/product.template/28106/image_1920?unique=0d0f09b

$ 13,062.99 13062.99 NZD $ 13,062.99

$ 11,359.12

Not Available For Sale

  • Manufacturer
  • Port Fitting
  • Depth Rating
  • Housing Type

This combination does not exist.

Contact Us
Manufacturer: Nauticam
Port Fitting: N120 Port
Depth Rating: 100m
Housing Type: FF-MIL Housings

Stock Code: NAU-17342

*The first batch(6pcs) is 80m, SN from A637182 to A637187.

Features

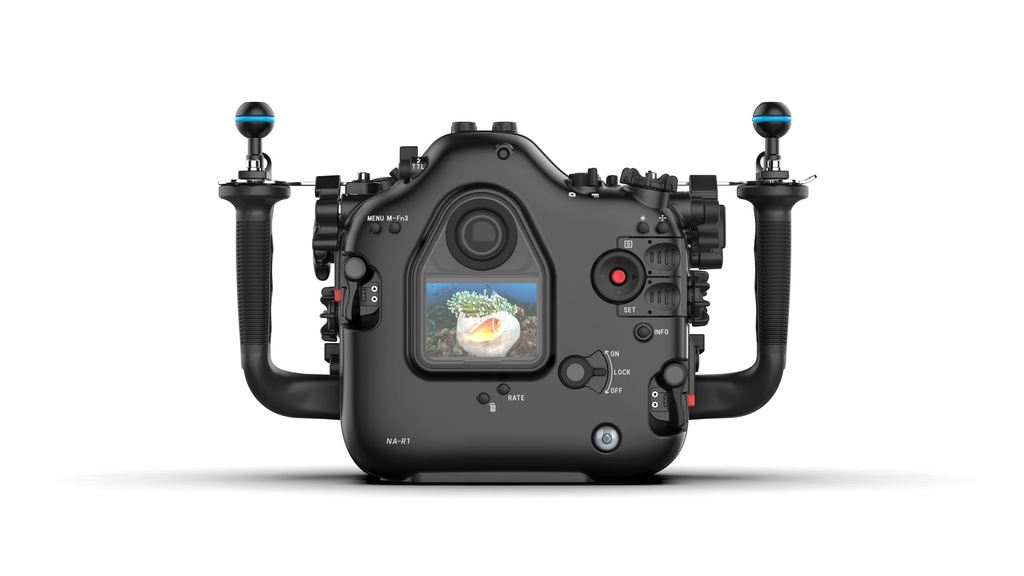

  • Multi-directional pad with two Piano keys to access Q and Set button
  • Magnify and Playback can be accessed by the left side double Pad
  • AF-ON and Record can be accessed by the right side double Pad
  • Infor Button is routed to the right side of housing
  • TTL Flash Switch Lever on the top left, and Still/Movie Switch Lever on the top
  • right

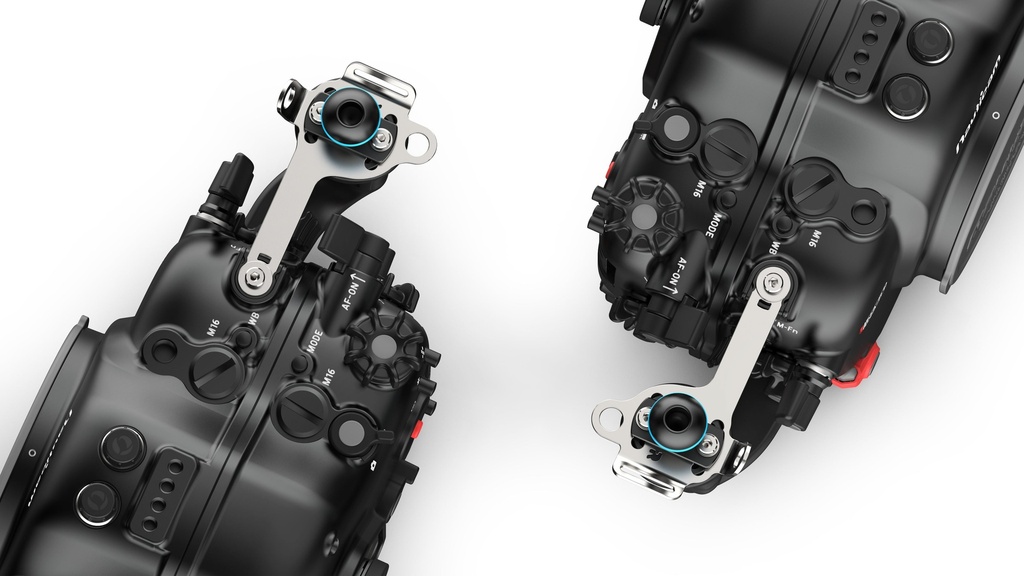

  • Fn1 and Fn2 Lever routed to front left and front right side
  • Plastic holder for Apple air-tag

Housing O-rings:

  • 90222 Housing O-ring (I.D.=220mm, C.S.=4.0mm)

Port system:

  • N120 Canon RF mount port system
  • N120 Canon EF mount port system for EF lenses with below adapters
  • Canon EF to EOS R mount adaptor
  • Canon EF to EOS R control ring adaptor (19561 gear is required)
  • Canon Drop-In Filter Mount Adapter EF-EOS R with Variable ND Filter.
    *26320 Control Kit for Canon Drop-In Filter Mount Adapter EF-EOS R, SN after SN A484149 is required.

What’s in the box

  • NA-R1 Housing
  • Housing Cap
  • 2x Optical bulkhead caps
  • 2x Handles with mounting balls and 2x handle brackets pre-installed
  • Panasonic CR-2450 Battery (pre-installed for moisture alarm)
  • Spare main O-ring, O-ring remover and lubricant
  • Set of Allen Keys
  • Padded housing bag and shoulder strap
 Dimensions:370mm(W)x 236mm(H) x 166mm(D)
Weight in air:3.94kg
Buoyancy in water:Positive 0.45kg (includes camera and battery)
Depth Rating: 100m*
Port mount:N120
Accessory ports: Front: 1x M24, 1xM16, 1x M10 threaded hole and 4x 1/4"-20 threaded holes.
Rear: 1x M16
Vacuum valve:25625 M16 vacuum valve II (optional)
HDMI support: HDMI 1.4/2.0
Compatible cameras:Canon EOS R1 Camera

*The first batch(6pcs) is 80m, SN from A637182 to A637187.

Recommended Accessories

Flash Triggering

Optical Trigger

  • 26301 Flash trigger for Canon
  • 26321 TTL Flash Trigger for Canon
  • *26216 Universal Optical Fiber Cable is required.

Electrical Triggering

  • 25017 M14 6 pin bulkhead for Canon system
  • 25020 Canon hotshoe plug to a M14 Nikonos bulkhead (x and ground connection only)
  • 25022 Canon hotshoe plug to M14 Ikelite style bulkhead (x and ground connection only)

Housing Mounts

  • 17959 Housing Mounting Ball with 1/4" Screws
  • 25221 M10 strobe mounting ball for housing
  • 25224 M10 strobe mounting ball for housing (with hole for using with lanyard)
  • 25228 M5 strobe mounting ball for housing

Vacuum Valve

  • 25625 M16 Vacuum Valve II (Pushbutton Release)

Lanyards & Handles

  • 25413 27cm lanyard with 2 snap hooks
  • 28130 Hand Strap for 28113
  • 28123 Pair of handles - size S (10mm closer to housing)

Viewfinder

  • 32212 Nauticam Full Frame Straight Viewfinder 40°/ 0.8:1
  • 32214 Nauticam Full Frame Angle Viewfinder 40°/ 0.8:1
  • 87213 Reverse Angled Viewfinder for EMWL 40°/ 0.8:1
  • 87214 Reverse Straight Viewfinder for EMWL 40°/ 0.8:1

Surface USB-PD Power bank

  • 26325 M16 USB-C Bulkhead with USB-C Connector
  • 26326 M24-M16 Adaptor for use with 26325
    *26325 can't be used with HDMI OUT simultaneously.

HDMI OUTPUT

1) Required accessories for HDMI 2.0 Cable System

  • 25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
  • 25099 M24A2R200-M28A1R170 HDMI 2.0 Cable (for NA-a1 to use with Ninja V housing)

Compatible Monitor Options:

  • 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5" 4Kp60 4:2:2 10-bit Recorder/Monitor/Player (excl. HDMI 2.0 cable)
  • 17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5" 4Kp60 4:2:2 10-bit Recorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module

2) Required accessories for HDMI 1.4 Cable System

  • 25033 Standard HDMI bulkhead with M16 thread
  • 25100 HDMI (D-A) 1.4 Cable in 200mm length for NA-a1 (for connection from HDMI bulkhead to camera)
  • 26326 M24-M16 Adaptor for use with 26325 *instead of existing 25081

Compatible Monitor Options:

  • 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5" 4Kp60 4:2:2 10-bit Recorder/Monitor/Player (excl. HDMI 2.0 cable)
  • 25082 HDMI 1.4 Cable for Ninja V Housing in 0.75m Length (for connection from Ninja V housing to HDMI Bulkhead)

Required Monitor Mounting system

  • 17951 Nauticam Atomos Shogun housing mounting system
  • 17954 Tripod plate for NA-A7S and NA-GH4
  • 17957 Nauticam Atomos Shogun Housing Mounting Adaptor (after SN A439736)
  • 17960 Universal Quadra-Pod Plate for Nauticam Housings

Wet Lenses

Macro

  • 81203 Super Macro Convertor 3 (2.3x Magnification) - SMC-3
  • 81202 Super Macro Convertor 2 (4x Magnification) - SMC-2
  • 81501 Mid-range Focus Optimizer 1 - MFO-1

Wide Angle

  • 83202 Wet Wide Lens 1B (WWL-1B) 130° FOV with compatible 28mm lenses (incl. float collar)
  • 83203 Wet Wide Lens Compact (WWL-C) 130° FOV with Compatible 24mm Lenses (incl. float collar)
  • 85204 Wide Angle Conversion Port - 2 (WACP-2) 140° FOV with Compatible 14mm Lenses (incl. float collar)
  • 85205 N100 0.36x Wide Angle Conversion Port Compact (WACP-C)
  • 85206 N120/N100 0.36x Wide Angle Conversion Port with Integrated Float Collar and Interchangeable Port Mounting Ring - (WACP-1B)
  • 85207 N120/N100 Fisheye Conversion Port with Integrated Float Collar (FCP) 170° FOV with Compatible 28mm Lenses

Macro to Wide Angle

  • 87302 EMWL Set #2 (incl. focusing unit #1, 150mm relay lens and 3 objective lenses)
  • 87202 EMWL Focusing Unit #2 (for Canon FF 100mm & APS-C 60mm)
  • 87211 EMWL 150mm Relay Lens
  • 87212 EMWL Angled Relay Lens
  • 87221 EMWL 60° Objective Lens
  • 87222 EMWL 100° Objective Lens
  • 87223 EMWL 130° Objective Lens
  • 87226 EMWL 160° Objective Lens

Wet Lens Accessories

  • 25101 M67 flip diopter holder for M67 macro ports
  • 25108 M67 Double Flip Holder for M67 Macro Ports
  • 83250 M67 to Bayonet Converter II
  • 83251 M77 to Bayonet Converter II
  • 83214 Bayonet Mount Adaptor for SMC/CMC
  • 87501 Flip Holder for EMWL
  • 87512 Shade for 130° Objective Lens
  • 87513 Shade for 100° Objective Lens
  • 87518 Strobe Mounting Brackets for EMWL Relay Lens
  • 87519 Shade for 160° Objective Lens

Buoyancy Recommendation for Housing Setups:

(Depending on port and lens choices)

  • 72216 Ø70x200mm Carbon Fibre Aluminium Float Arm (Buoyancy 370g)
  • 72217 Ø70x250mm Carbon Fibre Aluminium Float Arm (Buoyancy 520g)
  • 72218 Ø70x300mm Carbon Fibre Aluminium Float Arm (Buoyancy 670g)
  • 72219 Ø90x170mm Carbon Fibre Aluminium Float Arm (Buoyancy 450g)
  • 72220 Ø90x220mm Carbon Fibre Aluminium Float Arm (Buoyancy 720g)
  • 72233 Single Bayonet Holder II for Ø70 Float Arm
  • 72234 Double Bayonet Holder II for Ø70 Float Arm
  • 72243 Single Bayonet Holder II for Ø90 Float Arm
  • 72244 Double Bayonet Holder II for Ø90 Float Arm
  • 83252 Bayonet Holder for Arms
  • 83253 Double Bayonet Holder for Arms
  • 83254 Bayonet Lens Holder for Inon Float Arms
  • 87516 EMWL Bayonet Holder for Ø70 Float Arm
  • 87517 EMWL Bayonet Holder for Ø90 Float Arm
