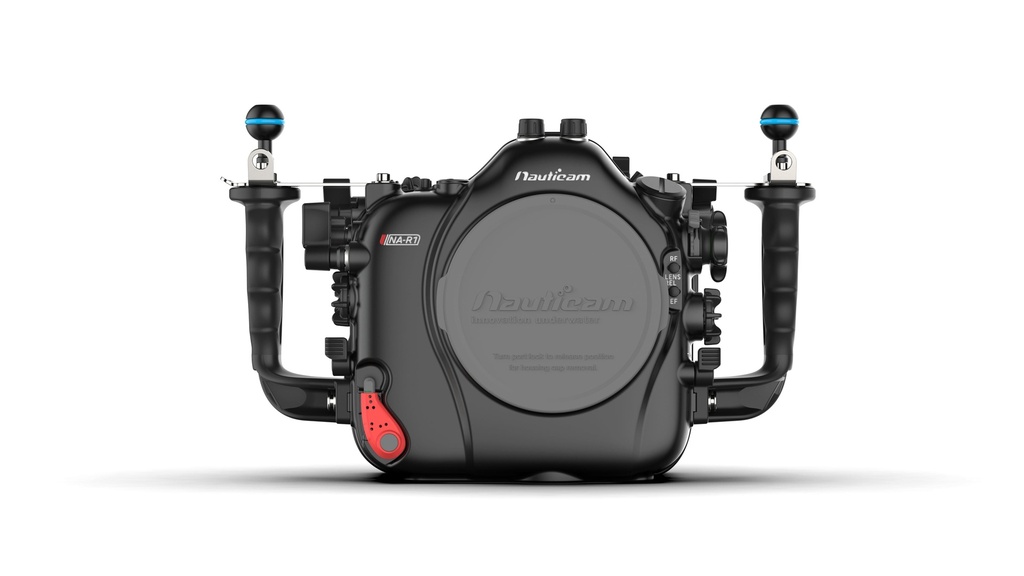

The Nauticam NA-R1 Underwater Housing

When it comes to professional underwater imaging, Nauticam housings set the industry standard. Renowned for their intuitive design, unmatched reliability, and a wide range of precision-engineered optics, Nauticam remains the top choice for elite image-makers worldwide. The newest addition to the Canon RF lineup, the NA-R1, brings seamless underwater control to the Canon EOS R1, offering thoughtfully positioned controls, ergonomic handles, and precision dials and levers. The NA-R1 provides full access to all essential controls and customizable buttons, allowing professionals to tailor the housing to their exact needs.

Features

• Multi-directional pad with two Piano keys to access Q and Set button

• Magnify and Playback can be accessed by the left side double Pad

• AF-ON and Record can be accessed by the right side double Pad

• Infor Button is routed to the right side of housing

• TTL Flash Switch Lever on the top left, and Still/Movie Switch Lever on the top right

• Fn1 and Fn2 Lever routed to front left and front right side

• Plastic holder for Apple air-tag

Housing O-rings

• 90222 Housing O-ring (I.D.=220mm, C.S.=4.0mm)

Port system

• N120 Canon RF mount port system

• N120 Canon EF mount port system for EF lenses with below adapters

• Canon EF to EOS R mount adaptor

• Canon EF to EOS R control ring adaptor (19561 gear is required)

• Canon Drop-In Filter Mount Adapter EF-EOS R with Variable ND Filter.
  *26320 Control Kit for Canon Drop-In Filter Mount Adapter EF-EOS R, SN after SN A484149 is required.

Nauticam Optics

To harness the full potential of the R1's 24.2MP CMOS sensor, pairing it with Nauticam's cutting-edge underwater optics is essential. Whether using high-quality glass and acrylic dome ports, the revolutionary WACP series, or the new FCP system, Nauticam optics ensure unparalleled image quality, no matter the subject or conditions.

Enhanced Viewfinders

The Canon R1’s 9.44M-dot EVF is elevated further with Nauticam’s Enhanced Viewfinders, which provide crystal-clear edge-to-edge viewing in both angled and straight designs, ensuring comfort and accuracy underwater.

Flash Triggering

For lighting, the NA-R1 supports external flash triggering via built-in fiber optic bulkheads, with optional manual or TTL flash triggers. Hardwired cable connections are also available using additional bulkheads for maximum flexibility when using strobes that don’t support fiber-optic triggering.

HDMI Output

The R1’s clean 6K HDMI output can be transmitted to external monitors or recorders through Nauticam’s HDMI 1.4 and 2.0 bulkheads and supported monitor housings, making it a complete solution for underwater professionals.

Vacuum Check and Leak Detection System

The Nauticam vacuum check and leak detection system comes standard with the NA-R1, ensuring unparalleled peace of mind for underwater photographers. When paired with an optional vacuum valve, this advanced monitoring system continuously updates the housing's watertight integrity and dive-ready status. A simple, color-coded LED display allows users to instantly verify if the vacuum is secure or detect if the housing is losing pressure.

Integrated leak detection further enhances safety, providing both audible and visual alerts in the event of water intrusion. The system’s temperature compensation feature prevents false alarms caused by environmental temperature shifts or heat generated by the camera during intense shooting sessions. With this robust technology, divers can focus on capturing stunning images, confident that their equipment is protected.

What’s in the box

• NA-R1 Housing

• Housing Cap

• 2x Optical bulkhead caps

• 2x Handles with mounting balls and 2x handle brackets pre-installed

• Panasonic CR-2450 Battery (pre-installed for moisture alarm)

• Spare main O-ring, O-ring remover and lubricant

• Set of Allen Keys

• Padded housing bag and shoulder strap
