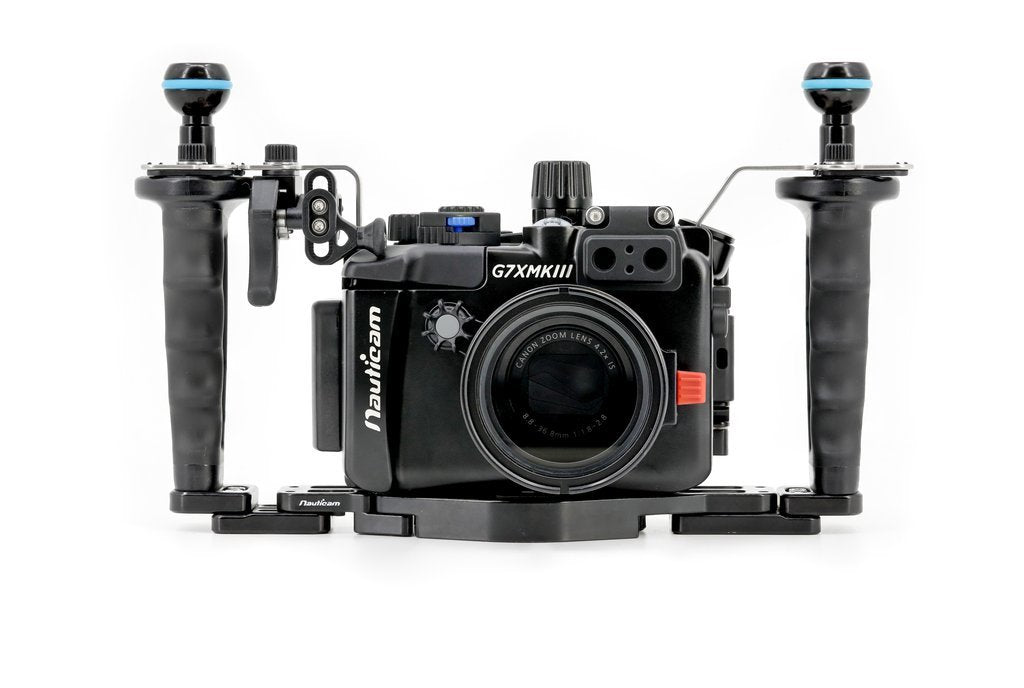

Canon PowerShot G7 X Mk III Housing - Nauticam NA-G7XIII Pro Package

The Nauticam NA-G7XIII Housing

NA-G7XIII is the latest iteration in a lineup of advanced housings for very capable compact cameras supported by Nauticam.  Many features found on professional DSLR systems have been integrated into this system, and the result is an underwater housing that allows the user to harness the full potential of this advanced compact camera in the water.

The basic functions and ergonomic enhancements that Nauticam users have grown to know and love are incorporated in NA-G7XIII.  The housing is machined from a solid block of aluminum, then hard anodized to seal out corrosive salt water.  It is closed via a simple, yet secure locking rotary latch. The right side of the housing is sculpted to fit the palm of the user’s hand, and Nauticam’s two-stage shutter release lever provides clear differentiation between the half press and full press shutter release positions.  All functions are clearly labeled.

The Nauticam leak alarm and vacuum monitoring system is installed as standard equipment.  This system provides an audible and visual alert to any water entry in the housing, and when combined with an accessory M14 Vacuum Valve (25624) the watertight integrity of the system can be tested before ever entering the water and monitored during every dive.

Expert product design, modern manufacturing techniques, top quality materials backed by a two-year warranty, and a critical focus on the user experience combine to produce the premier system for Canon Powershot G7X Mark III.

The N50 Port System

The NA-G7X Mark III ships with the “Standard” Port but other ports are available from the N50 system.  Supplied with the housing, this port allows full zoom through and features a 67mm threaded front for attaching accessory macro lenses or a flip-adapter. This port is ideal for mid-range fish portraiture or close-up and macro work with add on wet-lenses.

Integrated Vacuum Check and Leak Detection System

The Nauticam vacuum check and leak detection system is shipped with NA-G7XMKIII as standard equipment.  Combined with an accessory vacuum valve (PN 25624), this monitoring system provides constant updates on the watertight and safe-to-dive status of the housing.  A simple color-coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur.

The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action-packed dive.

Pro Package Configuration

The NA-G7XIII is available in the Pro Package configuration that comes with the Flexitray II, Right Handle, two ball-mounts and M14 vacuum valve pre-installed. The standard NA-G7XIII ships with stainless steel stiffening brackets and shutter release extension should a Nauticam Easitray or Flexitray be added later.

HDMI Output

The G7X Mark III has HDMI output for video, allowing for the use of external monitors which make judging exposure, focus and composition easier than using the built-in LCD of the camera. Nauticam has included an M16 port on the NA-G7XIII to take advantage of HDMI connectivity. By adding the optional 25028 Socket Extension and 25032 Custom HDMI bulkhead, the NA-G7XIII  is compatible with external monitor housings such as the NA-502B-H or NA-Ninja V (HDMI 1.4 connection only).

In The Box

• NA-G7XIII housing
• N50 Standard Port
• Spare silicone rubber housing o-ring (90135)
• O-ring remover
• CR2032 battery (for moisture alarm)
• Lubricant
• Set of Allen keys
• Set of handle brackets with shutter release trigger

Pro Package also includes

• flexitray
• right handle
• two mounting balls
• M14 vacuum valve
• shutter extension
