  2. Nikon Z5 II - Nauticam NA-Z5II Housing - 17232

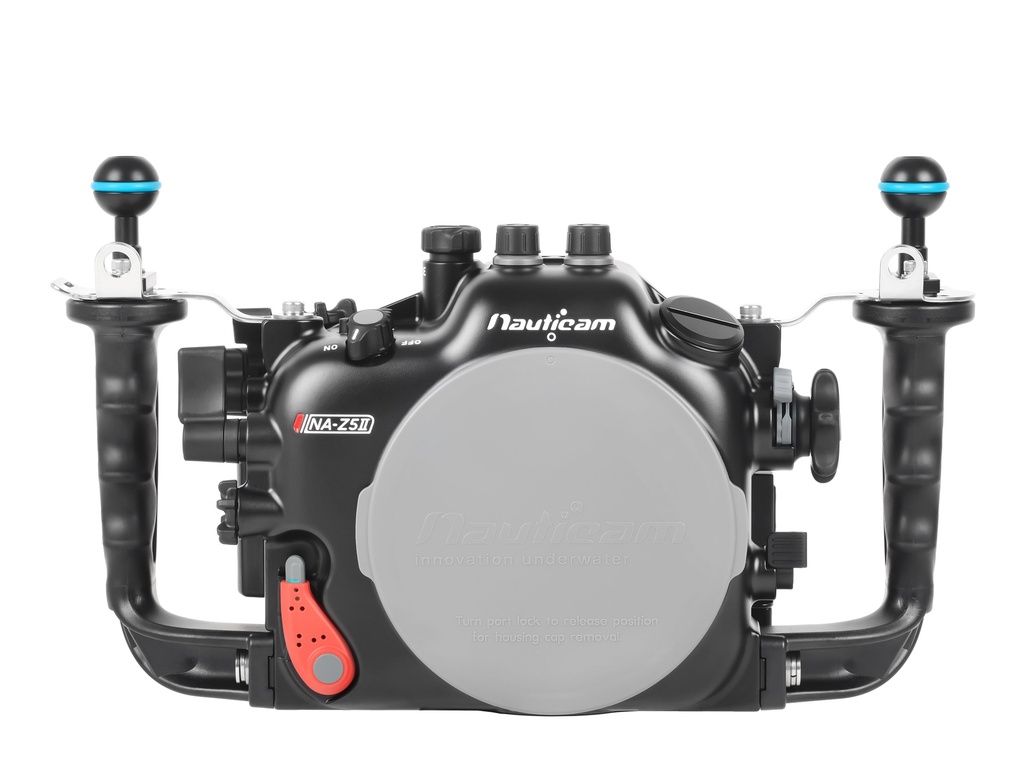

Nikon Z5 II - Nauticam NA-Z5II Housing - 17232

https://www.seatech.co.nz/web/image/product.template/29749/image_1920?unique=9deb5c6

$ 6,086.00 6086.0 NZD $ 6,086.00

$ 5,292.17

Not Available For Sale

  • Manufacturer
  • Port Fitting
  • Depth Rating
  • Housing Type

This combination does not exist.

Contact Us
Manufacturer: Nauticam
Port Fitting: N120 Port
Depth Rating: 100m
Housing Type: MIL Housings

Stock Code: NAU-17232

What’s in the box

  • NA- Z5II Housing
  • Housing Cap
  • 2x Optical bulkhead caps
  • 2x Handles with mounting balls and 2x handle brackets
  • Panasonic CR-2032 Battery (pre-installed for moisture alarm)
  • Spare main O-ring, O-ring remover and lubricant
  • Set of Allen Keys
  • Padded housing bag and shoulder strap

Features

  • DSLR style handles, Port Lock and Rotary Housing Lock.
  • Compatible Z mount and F mount lenses with FTZ/FTZ II adapter
  • Integrated Vacuum Check and Leak Detection System
  • AF-ON and DISP lever on the rear right side.
  • Lens REL Lever
  • 1/4-20 thread holes on the top (to support 16612/17961 Monitor mount system)

Port Adaptors

  • 22225 N120 FTZ Adaptor ER 25 with Knob (for Z6III/Z5II)
    *for use with F mount and Other Z mount lenses.

Compatible Gears

  • 19200 Z105-F for Nikkor Z MC 105mm F/2.8 VR S
  • 19201 Z2450-Z Zoom Gear for Nikkor Z 24-50mm f/4-6.3
  • 19202 Z1424-Z Zoom Gear for Nikkor Z 14-24mm f/2.8 S
  • 19203 Z1430-Z Zoom Gear for Nikkor 14-30mm f4 S
  • 19204 Z2470-Z Zoom Gear for Nikkor Z 24-70mm f4 S

Flash Triggering

Optical Trigger

  • 26350 Flash Trigger for Nikon (Compatible with NA-D5/D500/D850)
  • 26352 Manual Flash trigger for Nikon II (for Z6III)
  • 26601 HSS TTL Converter for Nikon (NA-Z8/Z9/Z6III) *Recommended Aperture in range f16-f22 for TTL mode)

Electrical Triggering

  • 25013 M14 Nikonos 5-pin bulkhead with hotshoe connection
  • 26326 M24-M16 Adaptor for use with 26325    *instead of existing 25081
Dimensions 340mm(W)x 200m(H) x 127mm(D)
Weight in air2.42kg
Buoyancy in water60g (includes camera and battery)
Depth Rating100m
Port mountN120
Accessory portsFront: 1x M24; 1x M10 threaded hole
Rear: 1x M16
Housing O-rings90137 Housing o-ring (I.D.=170mm, C.S.=2.5mm)
Vacuum valve (optional)25625 M16 vacuum valve II
Handles and stabilizing bracketsPre-installed
HDMI supportHDMI 1.4
Compatible camerasNikon Z5II Camera

Housing Mount

  • 25218 Mounting Ball Set for Tripod (for NA-A9/A7RIII/BMPCC/XT3)
  • 25221 M10 strobe mounting ball for housing
  • 25224 M10 strobe mounting ball for housing (with hole for using with lanyard)
  • 25228 M5 strobe mounting ball for housing

Vacuum Valve

  • 25625 M16 Vacuum Valve II (Pushbutton Release)

Lanyard

  • 25413 27cm lanyard with 2 snap hooks

Hand strap

  • 28130 Hand Strap for 28113

Handles

  • 28123 Pair of handles - size S (10mm closer to housing)

Viewfinder

  • 32221 NA-Z5II LCD Window for Nauticam Full Frame Viewfinder (required to use with below Viewfinders)
  • 32212 Nauticam Full Frame Straight Viewfinder 40°/ 0.8:1
  • 32214 Nauticam Full Frame Angle Viewinder 40°/ 0.8:1
  • 87213 Reverse Angled Viewfinder for EMWL（40°/ 0.8:1）
  • 87214 Reverse Straight Viewfinder for EMWL （40°/ 0.8:1）

Surface USB-PD Power bank

  •  26325 USB-C Bulkhead with USB-C Connector
  •  26326 M24-M16 Adaptor for use with 26325

HDMI OUTPUT

1. Required accessories for HDMI 1.4 Cable System

  • 25033 Standard HDMI bulkhead with M16 thread
  • 26326 M24-M16 Adaptor for use with 26325 (instead of existing 25081)
  • 25076 HDMI (D-D) Cable in 200mm Length for NA-XT2/XH1/A6400 (for internal connection from HDMI bulkhead to camera)

2. Compatible Monitor Options

  • 16612 Nauticam 7" T7  UW ULTRAHD Monitor  (HDMI 1.4 input, excl. cables)
  • 25047 HDMI (D-D) cable in 800mm length (for connection between HDMI bulkheads)*25047 is required for use with 16612 monitor housing
  • 17927 NA-Shinobi II Housing for Atomos Shinobi II 5.2" Monitor with HDMI 1.4 input  *17927 includes 25033, 25038, 25100.
  • 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5" 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
  • 25082 HDMI 1.4 Cable for Ninja V Housing in 0.75m Length (for connection from Ninja V housing to HDMI Bulkhead) *25082 is required for use with 17922 monitor housing

Monitor Mounting system

  • 17951 Nauticam Atomos Shogun housing mounting system
  • 17952 Nauticam Monitor Housing Mounting Adaptor
  • 17954 Tripod plate for NA-A7S and NA-GH4
  • 17960 Universal Quadra-Pod Plate for Nauticam Housings
  • 17961 Swivel and Tilt Adjustable Monitor Mount System (compatible with 16612/17927/17922 etc.)  *Compatible with NA-Z5II from SN A665554 onwards.

Wet Lenses

Macro

  • 81202 Super Macro Convertor 2 (4x Magnification)
  • 81203 Super Macro Convertor 3 (2.3x Magnification)
  • 81301 Compact Macro Convertor 1 (CMC-1, 4.5x Magnification)
  • 81302 Compact Macro Convertor 2 (CMC-2, 2.8X Magnification)
  • 81501 Mid-range Focus Optimizer 1
  • 81503 Mid-range Focus Optimizer 3

Wide-angle

  • 83202 Wet Wide Lens 1B (WWL-1B) 130 deg. FOV with compatible 28mm lenses (incl. float collar)
  • 83203 Wet Wide Lens Compact (WWL-C) 130 Deg. FOV with Compatible 24mm Lenses (incl. float collar)
  • 85204 Wide Angle Conversion Port - 2 (WACP-2) 140 Deg. FOV with Compatible 14mm Lenes (incl. float collar)
  • 85205 N100 0.36x Wide Angle Conversion Port Compact (WACP-C)
  • 85206 N120/N100 0.36x Wide Angle Conversion Port with Integrated Float Collar and Interchangeable Port Mounting Ring - (WACP-1B)
  • 85207 N120/N100 Fisheye Conversion Port with Integrated Float Collar (FCP) 170 Deg. FOV with Compatible 28mm Lenses

Macro to wide-angle

  • 87302 EMWL Set #2 (incl. focusing unit #2, 150mm relay lens and 3 objective lenses)
  • 87202 EMWL Focusing Unit #2 (for Canon FF 100mm & APS-C 60mm)
  • 87211 EMWL 150mm Relay Lens
  • 87212 EMWL Angled Relay Lens
  • 87221 EMWL 60° Objective Lens
  • 87222 EMWL 100° Objective Lens
  • 87223 EMWL 130° Objective Lens
  • 87226 EMWL 160° Objective Lens

Wet Lens Accessories

  • 25101 M67 flip diopter holder for M67 macro ports
  • 25108 M67 Double Flip Holder for M67 Macro Ports
  • 83250 M67 to Bayonet Converter II
  • 83214 Bayonet Mount Adaptor for SMC/CMC
  • 87501 Flip Holder for EMWL
  • 87512 Shade for 130° Objective Lens
  • 87513 Shade for 100° Objective Lens
  • 87518 Strobe Mounting Brackets for EMWL Relay Lens
  • 87519 Shade for 160° Objective Lens

Buoyancy Recommendation for Housing Setups:
(depending on port and lens choices)

  • 72216 Ø70x200mm Carbon Fibre Aluminium Float Arm (Buoyancy 370g)
  • 72217 Ø70x250mm Carbon Fibre Aluminium Float Arm (Buoyancy 520g)
  • 72218 Ø70x300mm Carbon Fibre Aluminium Float Arm (Buoyancy 670g)
  • 72219 Ø90x170mm Carbon Fibre Aluminium Float Arm (Buoyancy 450g)
  • 72220 Ø90x220mm Carbon Fibre Aluminium Float Arm (Buoyancy 720g)
  • 72233 Single Bayonet Holder II for Ø70 Float Arm
  • 72234 Double Bayonet Holder II for Ø70 Float Arm
  • 72243 Single Bayonet Holder II for Ø90 Float Arm
  • 72244 Double Bayonet Holder II for Ø90 Float Arm
  • 83252 Bayonet Holder for Arms
  • 83253 Double Bayonet Holder for Arms
  • 83254 Bayonet Lens Holder for Inon Float Arms
  • 87516 EMWL Bayonet Holder for Ø70 Float Arm
  • 87517 EMWL Bayonet Holder for Ø90 Float Arm

Description here


Start with the customer – find out what they want and give it to them.


Dimensions  340mm(W)x 200m(H) x 127mm(D)
Weight in air 2.42kg
Buoyancy in water 60g (includes camera and battery)
Depth Rating 100m
Port mount N120
Accessory ports Front: 1x M24; 1x M10 threaded hole
Rear: 1x M16
Housing O-rings 90137 Housing o-ring (I.D.=170mm, C.S.=2.5mm)
Vacuum valve (optional) 25625 M16 vacuum valve II
Handles and stabilizing brackets Pre-installed
HDMI support HDMI 1.4
Compatible cameras Nikon Z5II Camera
