  2. Nauticam Atomos Ninja TX Housing for Atomos Ninja TX /TX GO/ RAW

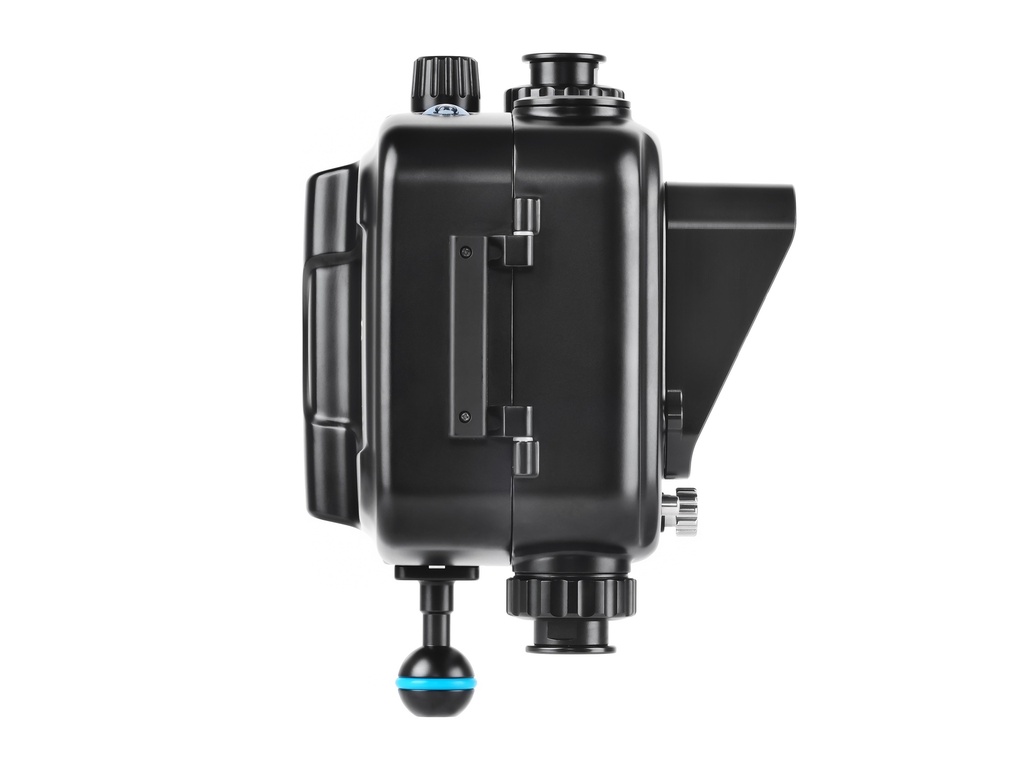

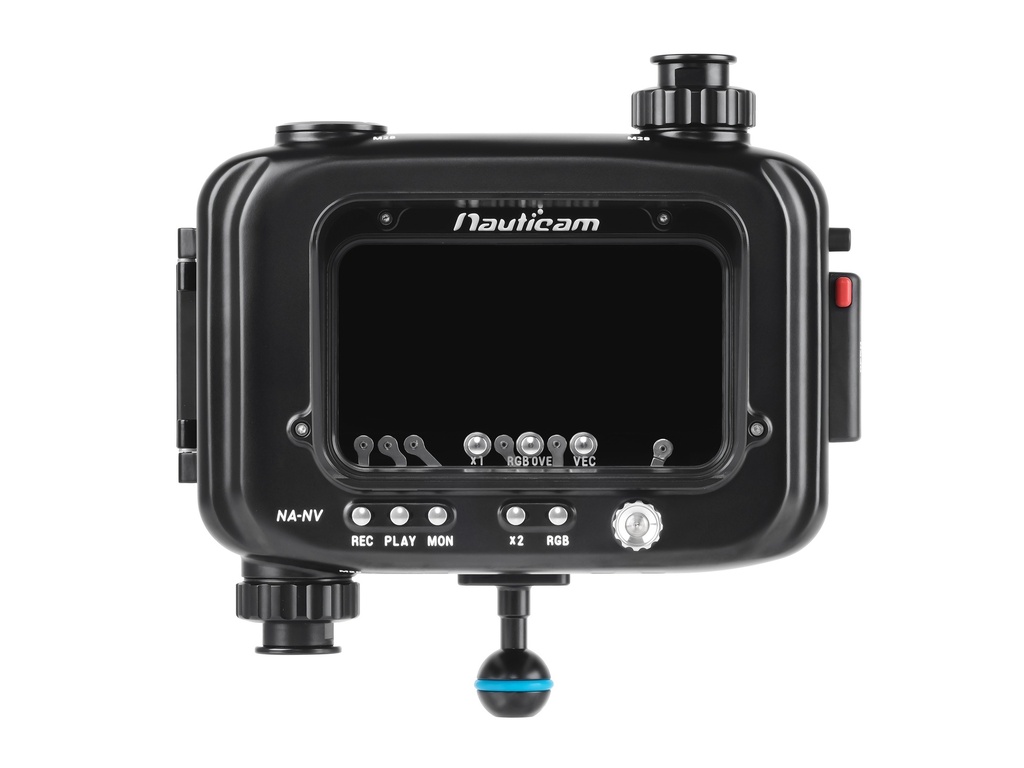

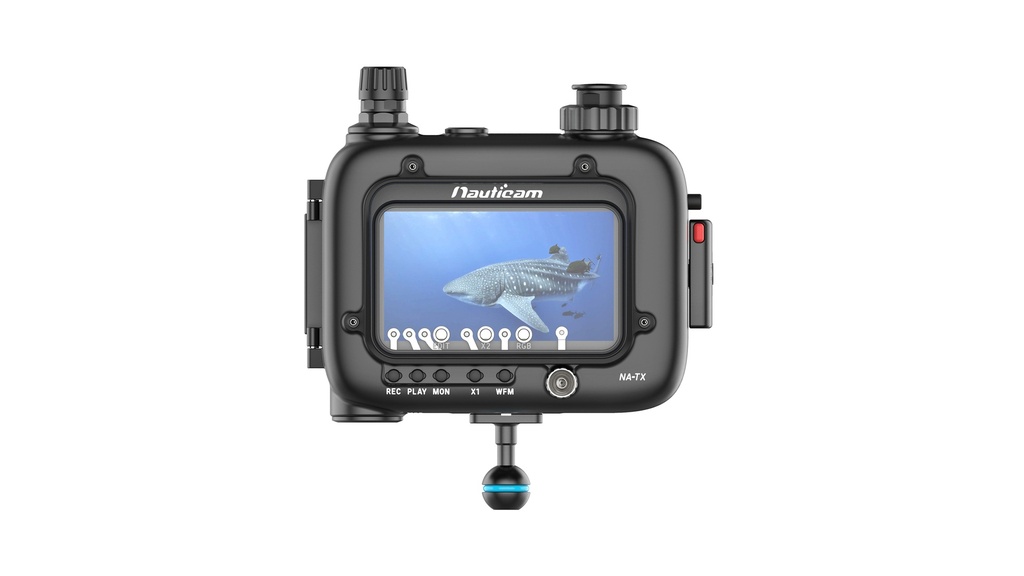

Nauticam Atomos Ninja TX Housing for Atomos Ninja TX /TX GO/ RAW

https://www.seatech.co.nz/web/image/product.template/31180/image_1920?unique=de63b49

$ 6,940.99 6940.99 NZD $ 6,940.99

$ 6,035.64

Not Available For Sale

  • Manufacturer
  • Depth Rating
  • Housing Type
  • Camera Brand

This combination does not exist.

Contact Us
Manufacturer: Nauticam
Depth Rating: 100m
Housing Type: Monitor Housings
Camera Brand: Atomos

Stock Code: NAU-16613

Available early July 26

This housing is compatible with three models: NINJA TX, NINJA TX GO, and NINJA RAW.The housing will start shipping in early July. Pre-order now!

Excludes Cables

Main Features:

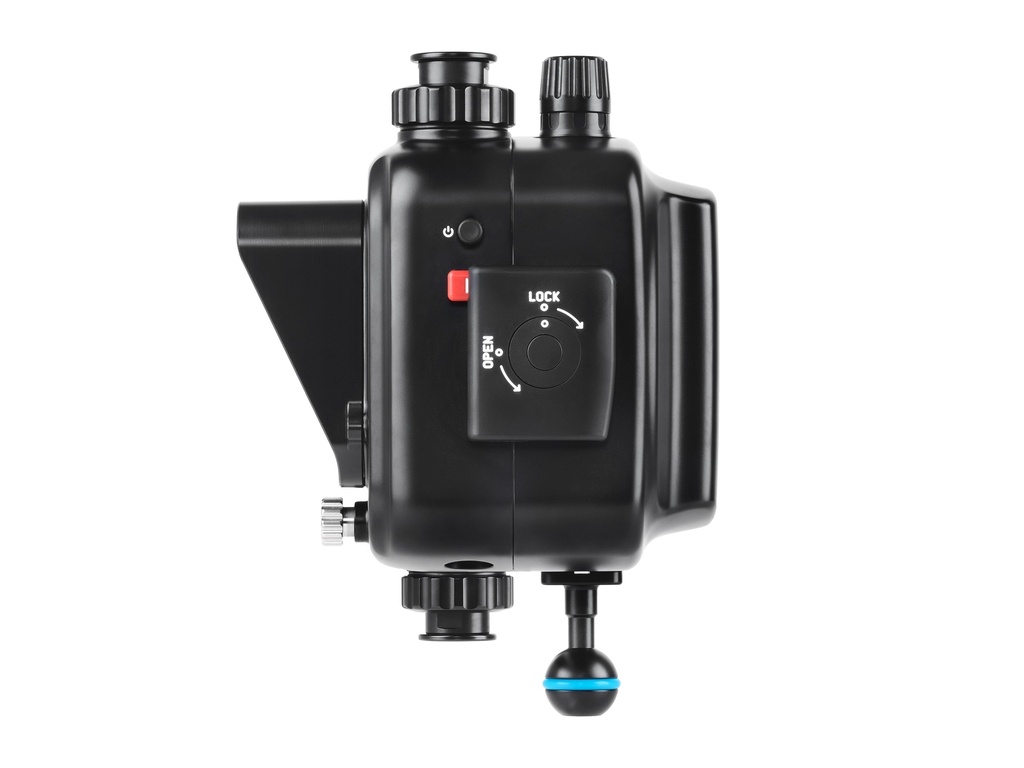

  • Reliable Rotary Housing Lock Mechanism
  • Support HDMI in & SDI out (cross conversion), SDI in & SDI out
  • 2x M28 accessory ports on top, 4pcs 1/4-20 UNC thread holes for both top and bottom.
  • Compatible with Sony NP-F series battery, and SmallRig L-Series/NP-F970 USB-C Rechargeable battery, Max. size (Lx W x D) : 71.6 x 38.5 x 74.6.
  • Includes Vacuum check and leak detection system

What’s in the box?

  • NA-Atomos Ninja Tx Housing
  • 25625 M16 Vacuum Valve II (pre-installed)
  • 25089 M28 HDMI 2.0 Adaptor (pre-installed)
  • 17958 Mounting ball (pre-installed)
  • Monitor hood
  • 90137 Housing O-ring, lubricant, O-ring remover

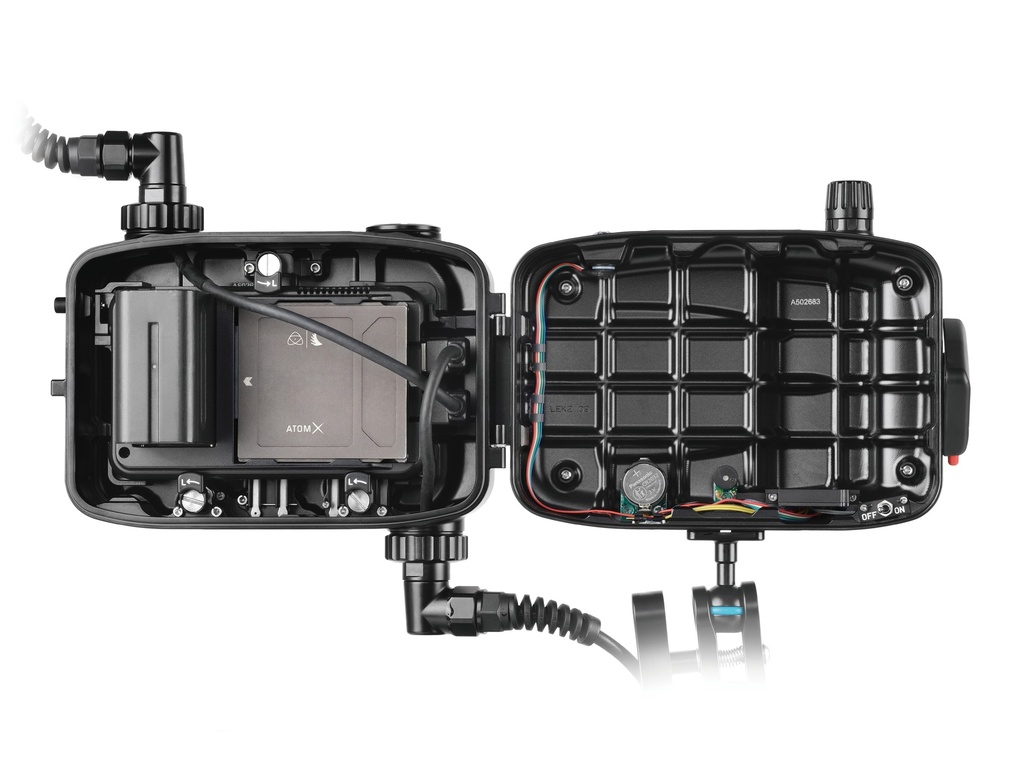

  • CR2032 Battery (for moisture alarm and vacuum system)
  • Allen Wrench Set
  • Padded Travel Case



Dimensions 206mm (W) × 143mm (H) × 153mm (D)  (Excl. ball mount, Vacuum Valve accessories)
Weight (in air) 1.56 kg
Weight (in water) TBA (Incl. Ninja TX with NP-F970 battery)
Depth Rating 100m

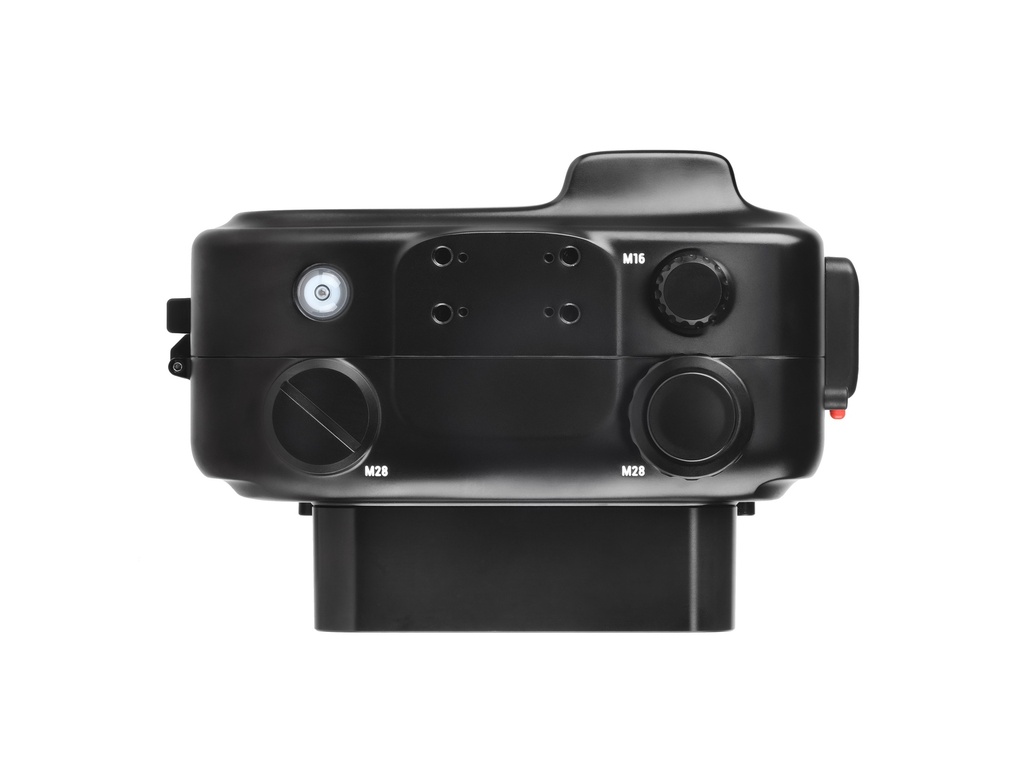

Accessory ports on top 2x M16, 2x M28

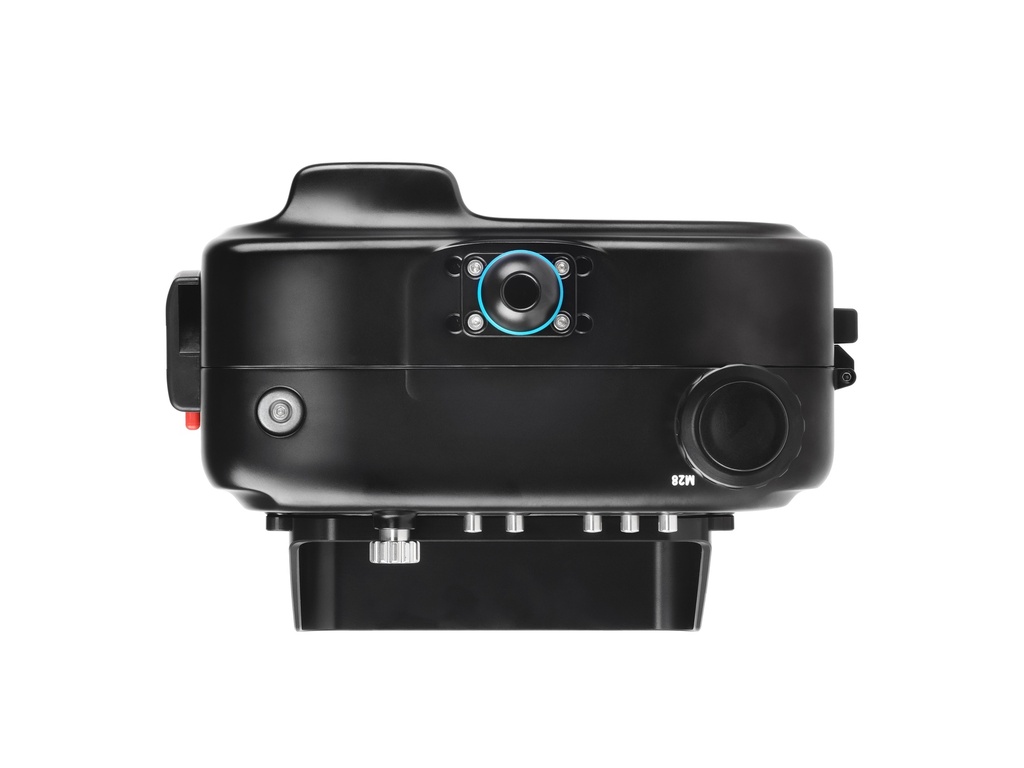

Accessory ports on bottom 1x M28
Mounting thread holes on top   4x M3 for mounting ball (#17958), 4x 1/4-20 for Housing Mounting System (#17951)
Mounting thread holes (bottom)  4x M3 for mounting ball (#17958),  4x 1/4-20 for Monitor Mount System (#17961)
Vacuum valve 25625 M16 Vacuum Valve II (pre-installed)
Compatible monitors Ninja TX /TX GO/ RAW Monitor-Recorders
Compatible batteries NP-F970 battery, SmallRig L-Series/NP-F970 USB-C Rechargeable Camera Battery (10,500mah/76.65Wh capacity)

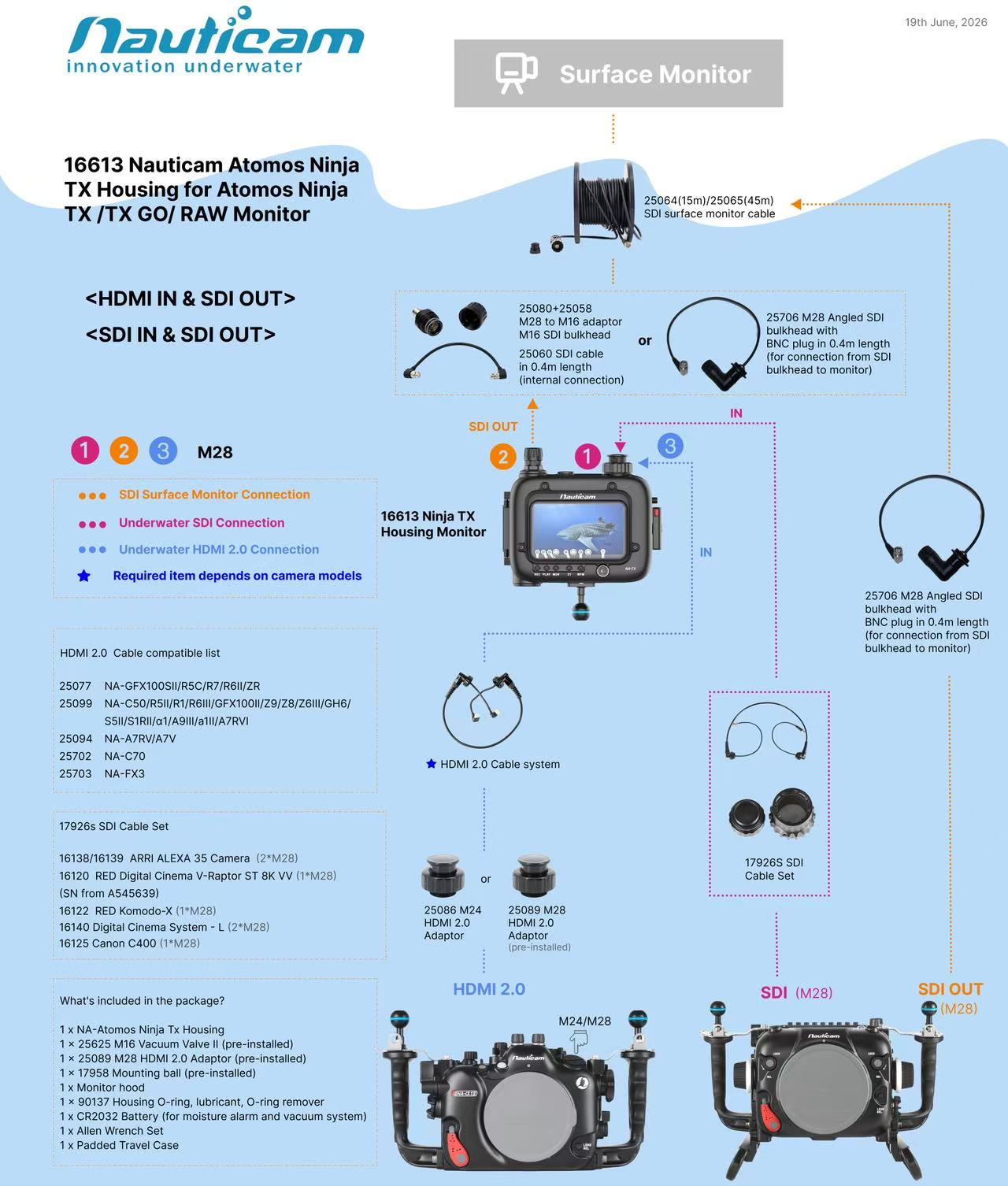

Optional Accessories for Signal input and output

 1)HDMI 2.0 input

25077 M24D1R205-M28A1R170 HDMI 2.0 Cable (for NA-XT3/R5/6/OM1/R5C/R7 /R6II/XT5 to use with Ninja V housing)

25094 M24A3R140-M28A1R170 HDMI 2.0 Cable (for NA-A7SIII to use with Ninja V

25099 M24A2R200-M28A1R170 HDMI 2.0 Cable (for NA-A1 to use with Ninja V housing)

 And internal MOD items

25079 M28A2R210-M28A1R170 HDMI 2.0 Cable (for NA-GH5V to use with Ninja V housing)

25084 M24D1R270-M28A1R170 HDMI 2.0 Cable (for NA-EM1X to use with Ninja V housing)

25085 M28C1R200-M28A1R170 HDMI 2.0 Cable (for NA-Z7V to use with Ninja V housing)

25087 M24D2R200-M28A1R170 HDMI 2.0 Cable (for NA-A7RIV/α1 to use with Ninja V housing)

25091 M28C1R215-M28A1R170 HDMI 2.0 Cable (for NA-1DXIII to use with Ninja V housing)

25098 M24D3R140-M28A1R170 HDMI 2.0 Cable (for NA-A7C to use with Ninja V housing)

25702 M24A3R210-M28A1R170 HDMI 2.0 Cable (for NA-C70 to use with Ninja V housing)



2)  HDMI 1.4 input

25033 Standard HDMI bulkhead with M16 thread

25082 HDMI 1.4 Cable for Ninja V Housing in 0.75m Length (for connection from Ninja V housing to HDMI Bulkhead)



3)     SDI input

a). with right angle cable set.

17926S SDI Cable Set for use with NA-Ultra5/Ninja V/Nina TX.*

*96184 M24 Adaptor (FOC) is required for use with 16120 before A545638.



b). with straight SDI bulkheads/cable

25060 SDI cable in 0.4m length (SDI cable in 0.4m length (for connection from camera/monitor to underside of SDI Bulkhead) x 2pcs

25058 M16 SDI Bulkhead (mounted on Cinema housing) x2pcs

25061 SDI cable in 0.75m length (for connection between SDI Bulkheads)



c). with Angled SDI bulkheads.

25705 M16 Angled SDI bulkhead with BNC plug in 0.4mm length (for connection from SDI bulkhead to camera)

25706 M28 Angled SDI bulkhead with BNC plug in 0.4mm length (for connection from SDI bulkhead to monitor)

25061 SDI cable in 0.75m length (for connection between SDI Bulkheads)

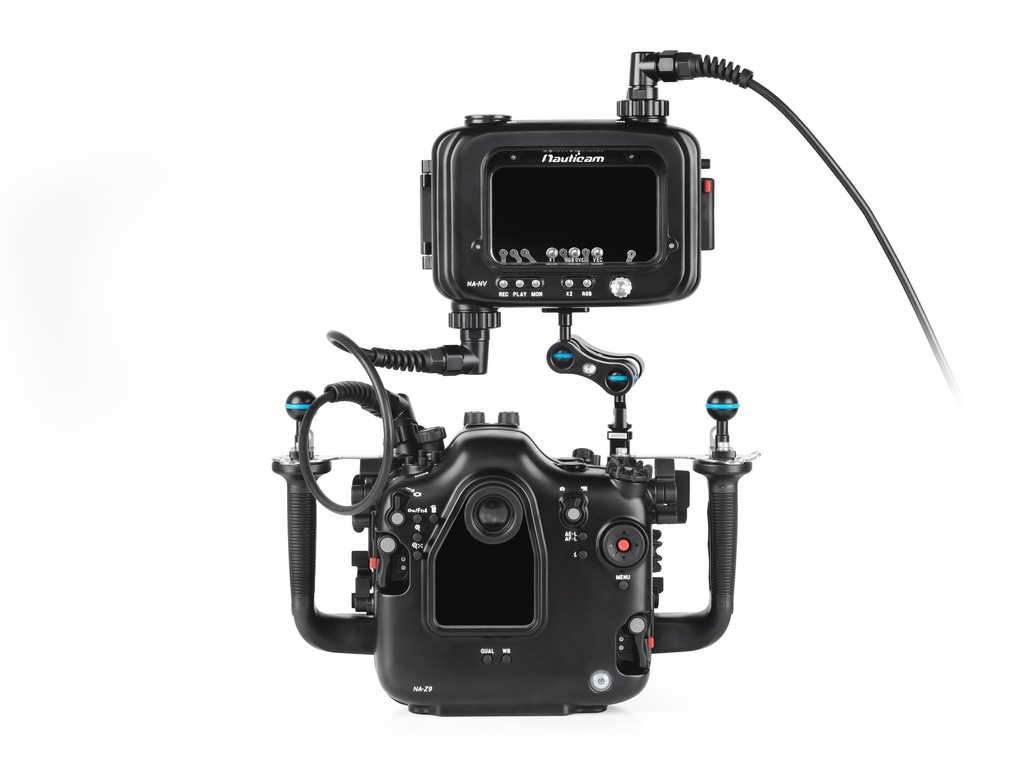

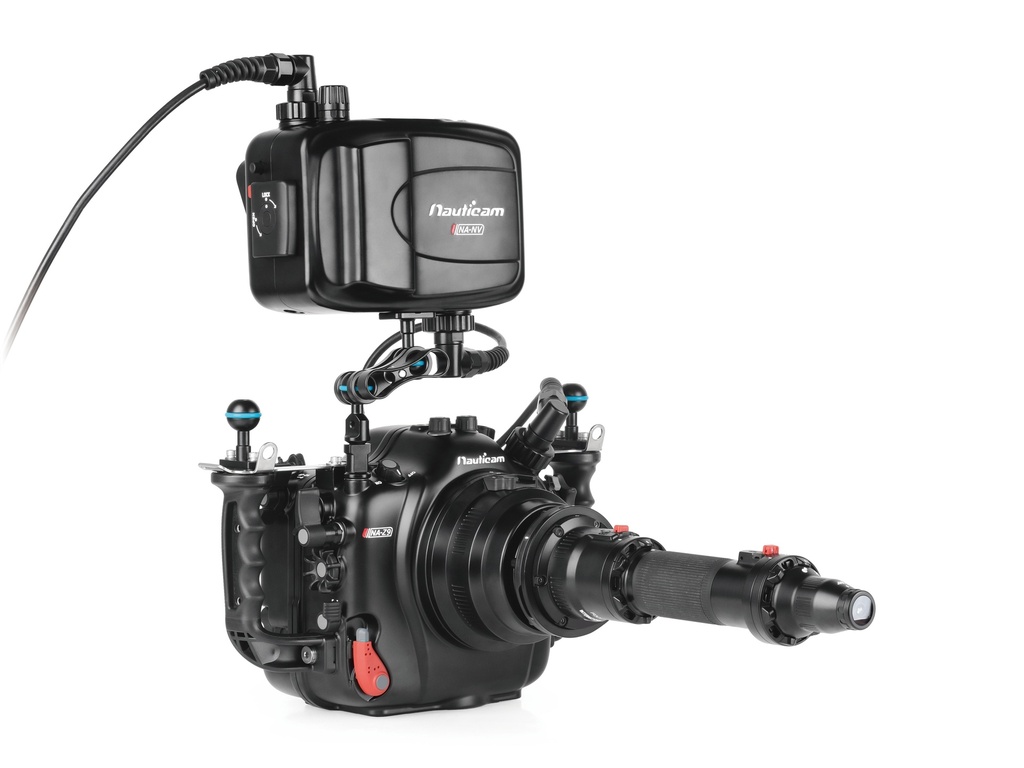

4)  SDI Output accessories required for Surface Monitor

25058 M16 SDI Bulkhead

25080 M28-M16 Step Down Adaptor (from SN A446755 onwards.)

25060 SDI cable in 0.4m length (for connection from SDI bulkhead to monitor)

25706 M28 Angled SDI bulkhead with BNC plug in 0.4m length (for connection from SDI bulkhead to monitor)

25065 SDI surface monitor cable in 45m length (for connection from SDI Bulkhead to Surface Monitor on land)

Other optional items:

25064 SDI surface monitor cable in 15m length (for connection from SDI Bulkhead to Surface Monitor on land)

25059 SDI cable extension adaptor

25062 SDI cable in 5m length (for connection between SDI Bulkheads)

25063 SDI cable in 30m length (for connection between SDI Bulkheads)



Housing O-rings:

90137 Housing o-ring (I.D.=170mm, C.S.=2.5mm)
