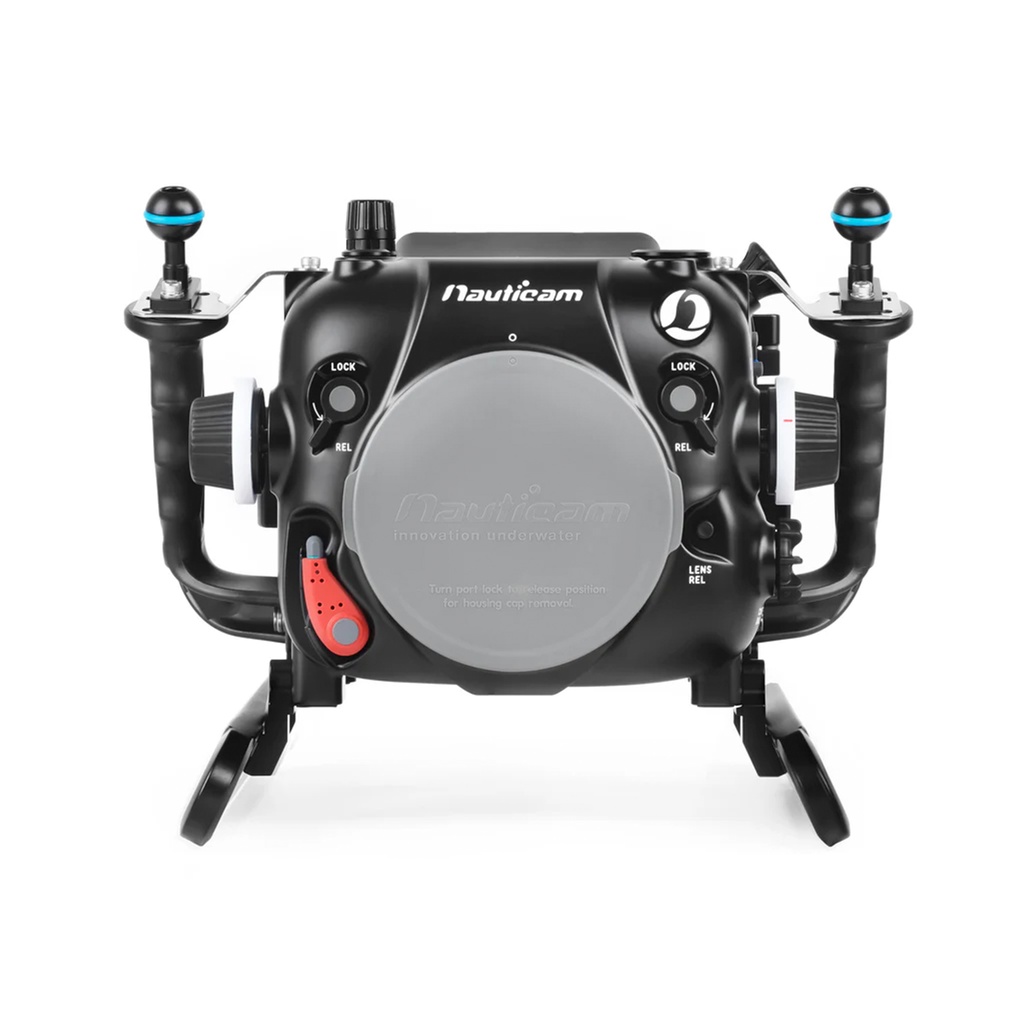

The Nauticam NA-C400 Underwater Housing

The Nauticam NA-C400 is a professional underwater aluminum housing that builds on Nauticam's extensive cinema housing lineup.  The NA-C400 features the large N120 port opening shared with other Canon RF and EF-mount cameras such as the R5II and R5C.  This allows for the use of identical lens and port combinations when using a combination of RF-mount Canon cameras on a project with Nauticam housings.

Feature summary

• Rotary style housing lock with N120 port Lock system

• Internal monitor support: Canon EOS C400 LCD monitor

• Mechanical Control includes Power On/Off, Control Dial, Zoom, Focus and Lens REL.

• Electronic Control Function buttons list below (through Remote A)

  • a. Main Control Board
    • Left, Right, Up, Down and SET
    • 1, 2, WB, WB SET, Menu/REC Review, and SET

    • *Short press for MENU, and long press can activate REC REVIEW

  • b. Left Control Board

    • Up, Down, ND, ISO+, ISO-

  • c. Right Control Board

    • REC, 3, 4, IRIS+, IRIS-

Mission Control

Nauticam engineers obsess over placing essential controls where they are needed most so you never miss a shot looking for a button, dial or lever.  Nauticam's cinema lineup features large cinema-style lens control dials for precise control of focus and zoom.  Exposure and capture controls are placed within easy reach of the ergonomic handles.

In addition to mechanical controls for Power, Zoom, Focus and Lens Release, the NA-C400 features electronic controls at the rear, and both sides of the housing through the camera's remote functionality.  The left handle adjacent controls are for 'Up', 'Down', 'ISO+', and 'ISO-'.  Right handle adjacent controls are for 'Rec', 'Fn3', 'Fn4', 'IRIS+' and 'IRIS-'.  The main control board accesses 'Left', 'Right', 'Up', 'Down', 'Set', '1', '2', 'Set', 'MENU/REC Review'.

LCD Monitor Support

The C400 features a detachable LCD screen that can be easily integrated into the NA-C400.  The LCD monitor is supported inside the housing and is mounted at the rear of the camera with a supplied bracket that allows it to be easily viewed underwater through the shaded rear window making for a streamlined filming solution.

HMDI/SDI

The NA-C400 supports Nauticam's optional HDMI 2.0 and 1.4 system that can accommodate external monitors or recorders in Nauticam housings. SDI output is also available for either surface monitoring or supported monitors.  The NA-C400 has 1 M28 and 5 M16 bulkheads to accommodate a variety of configurations to suit mounted or remote setups.

Battery

The NA-C400 can accommodate either the BP-A30N or BP-A60N batteries or a combination of the BP-A30N and an FXLION NANO THREE 150Wh Micro V-Mount battery for extended runtimes.

In the Box

• NA-C400 Housing with vacuum valve pre-installed

• Housing Cap

• 2x Handles with mounting balls and 2x handle brackets

• Panasonic CR-2450 Battery (pre-installed for moisture alarm)

• Spare main O-ring, O-ring remover and lubricant

• Set of Allen Keys

• Housing skids

• Monitor Shade

• Safety box
