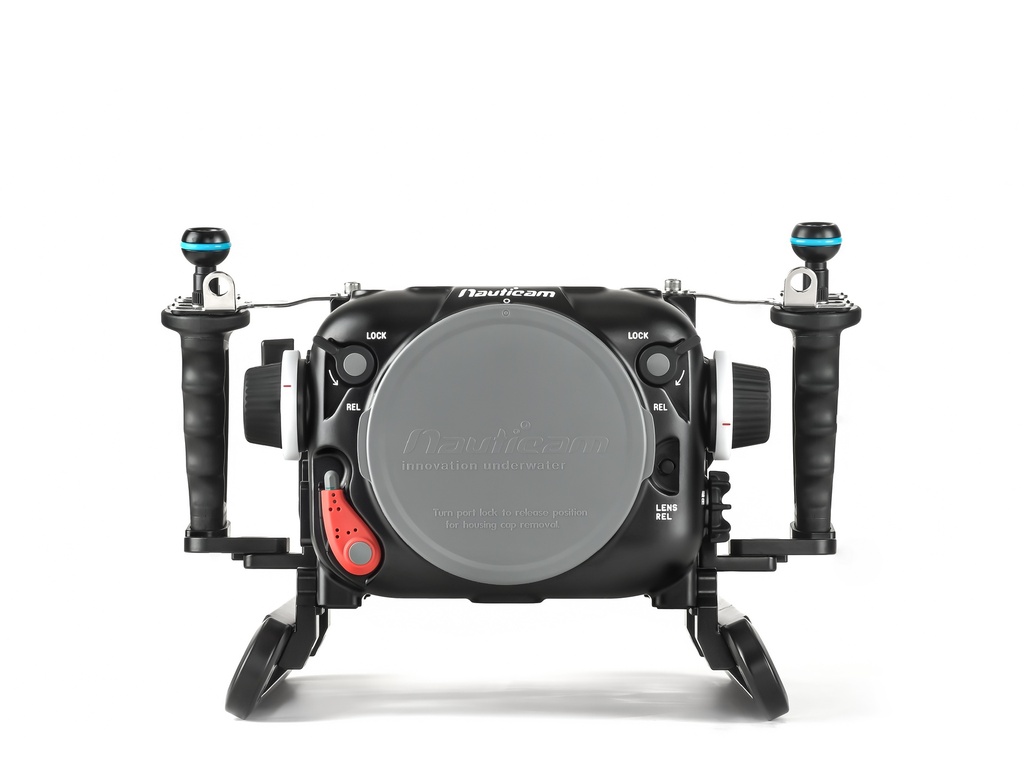

Nauticam Komodo Housing for RED Komodo 6K and Ninja V Monitor (excl. monitor)

Komodo is RED's smallest and most affordable camera to date. With 6K resolution, 16 stops of dynamic range, and global shutter Komodo packs an incredible amount of power in the palm of your hand. When paired with the Nauticam housing an easy-to-use and travel-friendly cinema system is created.

The Nauticam KOMODO Housing

The Nauticam KOMODO housing is officially RED APPROVED. The housing is engineered in a similar fashion to previous Epic LT and DSMC2 LT housings, providing the most compact and travel-friendly system possible. Komodo offers seamless integration with DSLR lenses and the same N120 port system used in Nauticam DSLR and Cinema systems. Enjoy unmatched user-friendly setup and intuitive operation including tool-less set up and tear down in minutes. Batteries can be swapped without ever removing the camera from the housing, and lens changes can be accomplished in seconds.

The Nauticam KOMODO housing uses the N120 Cinema port system, shared with Nauticam's other N120 platform cameras which allows for an easy transition to the Nauticam Komodo from other N120 Nauticam systems. The N120 system also provides access to Nauticam's line of professional premium optics such as the WACP-1/2 and SMC-1/2.

The housing also features adjustable handles with easy access to the cinema-style zoom and focus knobs. On top of the housing is a 1/4"-20 cheese plate which allows for a wide variety of accessory mounting points.

The Nauticam KOMODO is also backed by Nauticam's 2-year warranty.

Lens Support

The RED KOMODO features a Canon RF lens mount, but currently RED is only offering support of Canon EF lenses. The Nauticam KOMODO housing offers full support of the Canon EF to EOS R Adaptor along with the Canon EF to EOS R Adaptor with Variable ND Filter. The left side of the housing features an easily accessible command wheel for smooth ND changes. Once RED releases RF lens support, the Nauticam KOMODO housing will be ready and fully compatible. Regardless of EF or RF lens selection, changing lenses is quick, easy, and doesn't require any tools.

Note that when changing between RF and EF lenses, the camera must be removed from the housing to remove or install the RF to EF adapter. Nauticam is constantly testing new lenses to provide optimized port and extension combinations. Large cinema-styled control wheels on the housing, located within easy reach of the handles, provide precise manual focus and zoom control with supported lenses when used with the corresponding lens gear set.

Not being limited to using DSLR lenses is crucial for cinema systems and the Nauticam KOMODO housing, when used with the 16410 N120 to N200 Port Adapter can support the use of Cinema Lenses and the associated N200 Port System. Installation is quick, easy, and requires no tools allowing seamless lens switching in the field - even when changing between DSLR and Cinema lenses.

Internal Monitor Support

The Komodo has a built-in monitor on top of the camera. The Nauticam Komodo features a large window for using the KOMODO's built-in monitor to be used for an extremely streamlined solution. If an additional monitoring option is required, the Ninja V-S monitor is an ideal lightweight monitoring solution for the RED Komodo. The Ninja Monitor Back options for the Komodo Housing support the use of the Ninja V monitor (AtomX SDI Module required) inside the rear of the housing allowing the monitor to be viewed by the camera operator from a natural filming position. The monitor back features control buttons for the on-screen buttons of either monitor.

External Monitor Support

The Ninja V monitor can also be mounted in the external Nauticam Atomos Ninja V-S housing  and be connected via SDI bulkheads and cables allowing greater flexibility when positioning the monitor on the Nauticam Komodo housing.

Battery Compatibility

The system supports Canon BP-batteries and the housing will fit up to two Canon BP-975 batteries with the standard housing back. When using the Ninja V Monitor Back, dual BP-955 can be used. The Ninja V monitor supports up to the Sony NP-F750 battery. Swapping batteries is as simple as opening the housing as the camera does not need to be removed to access the batteries.

Ethernet Remote Control

While the Nauticam KOMODO housing is engineered to allow for full control by the operator, it also supports an ethernet surface feed in 5m (pole cam) and 45m (studio) lengths. Within the housing, there is space to install a small ethernet router which would allow for full control of the camera at the surface through the RedControl App.

Vacuum Check and Leak Detection System

The Nauticam KOMODO housing features Nauticam's field-tested Vacuum Check and Leak Detection System that provides constant updates on the water-tight and safe-to-dive status of the housing. By drawing a slight vacuum inside the housing using a reliable and compact manual hand-pump, the system is able to ensure water-tightness before entering the water as well as throughout the dive. A simple color-coded LED lighting system, easily visible at the rear of the housing lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur. The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action-packed dive.

In The Box

• Komodo Housing
• 25625 M16 Vacuum Valve II
• 90120 Housing O-ring, lubricant, O-ring remover
• 2x Handles with mounting balls
• Monitor Shade (only included with Ninja V monitor back)
• CR2032 Battery (for moisture alarm and vacuum system)
• Allen Wrench Set
• Housing Skids
• Wheeled Case with Custom fit foam insert
• 2x 0.25kg Trim Weights
• 2x 0.5kg Trim Weights
