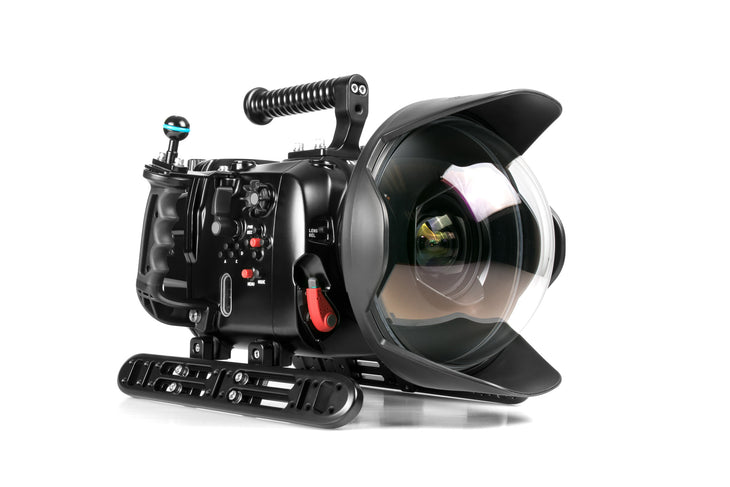

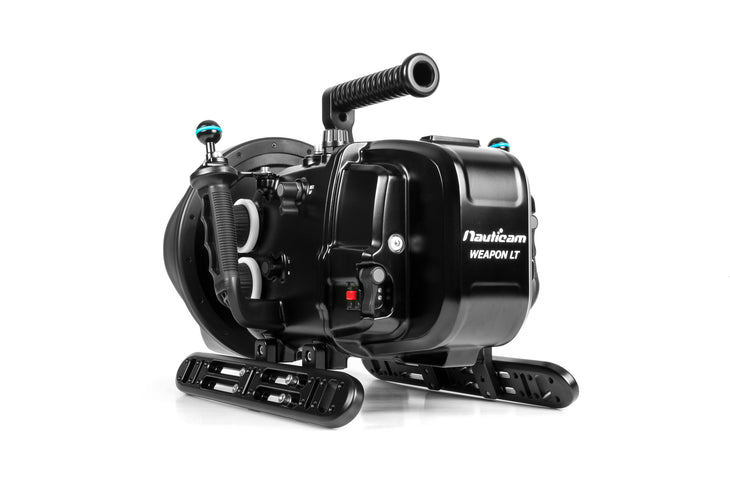

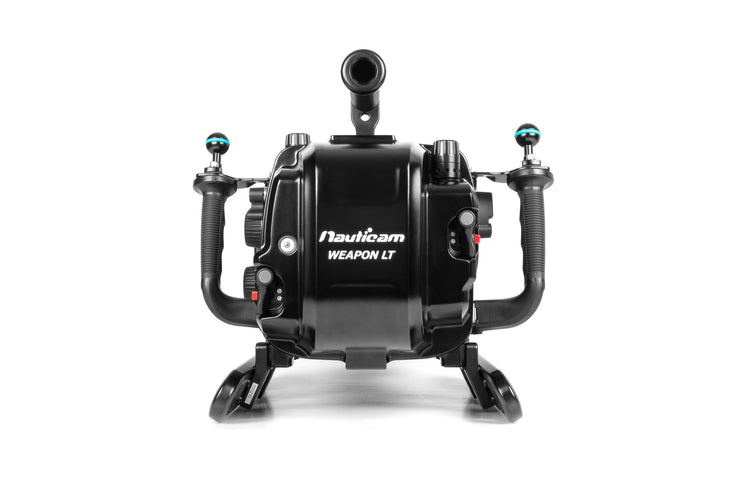

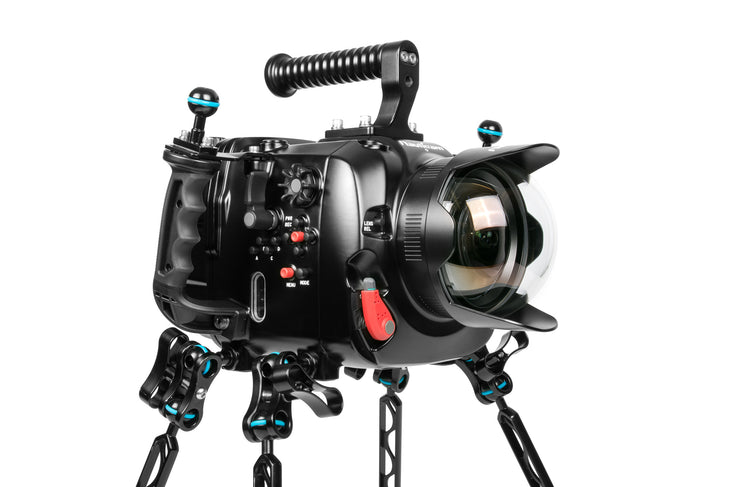

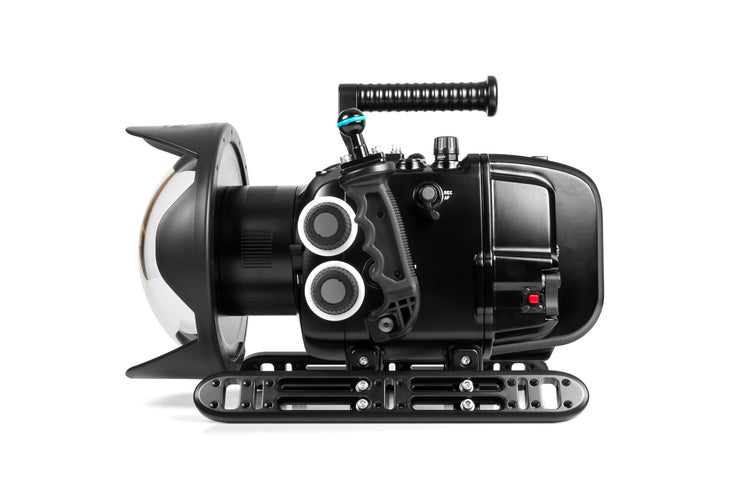

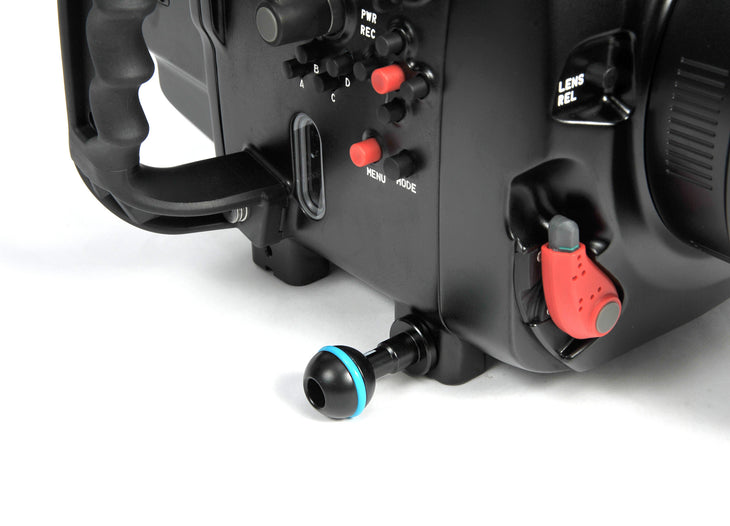

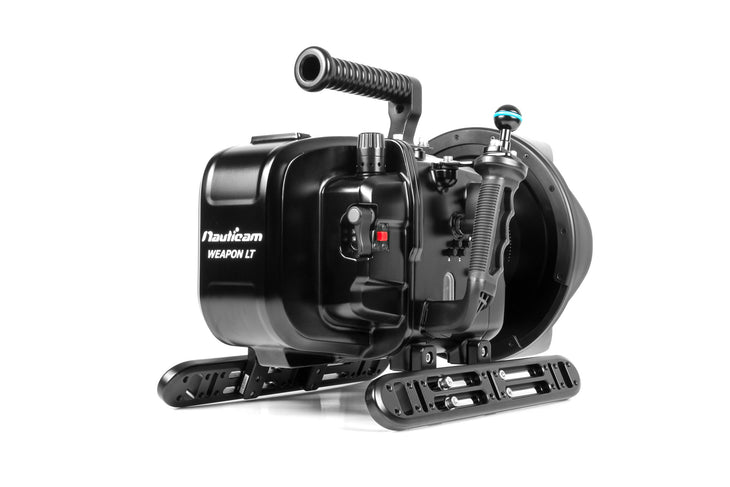

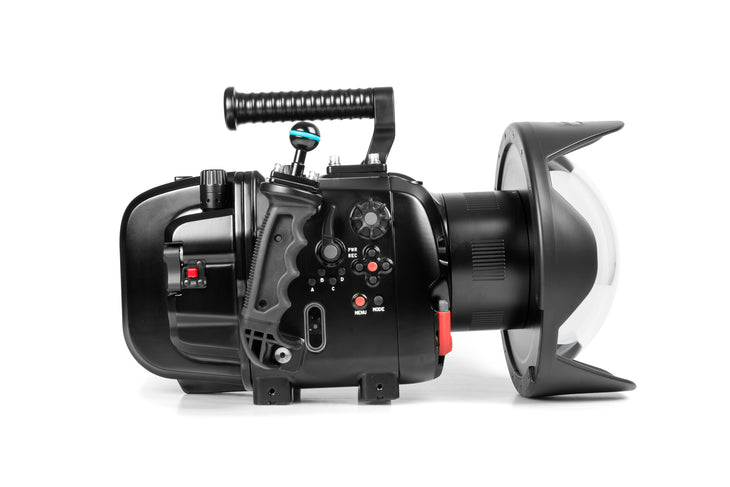

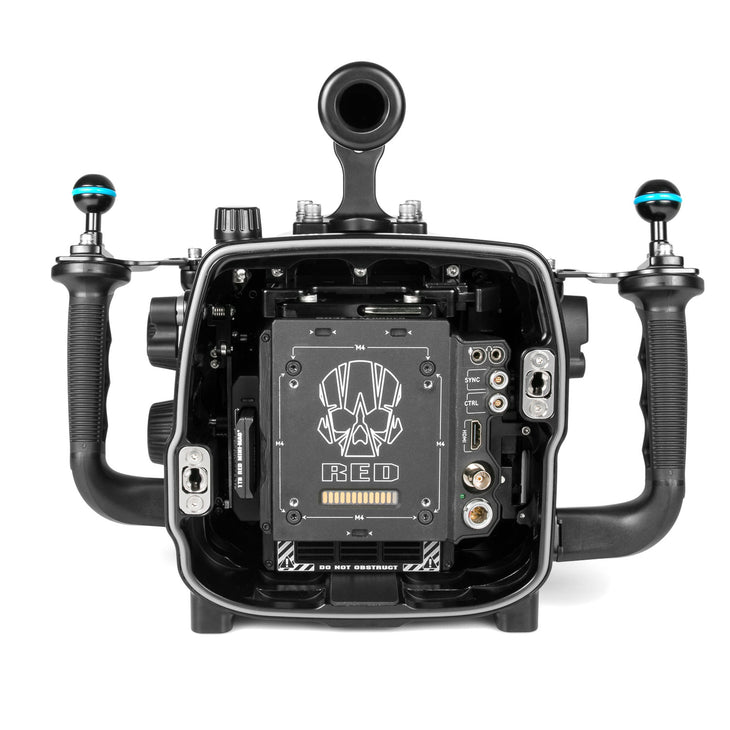

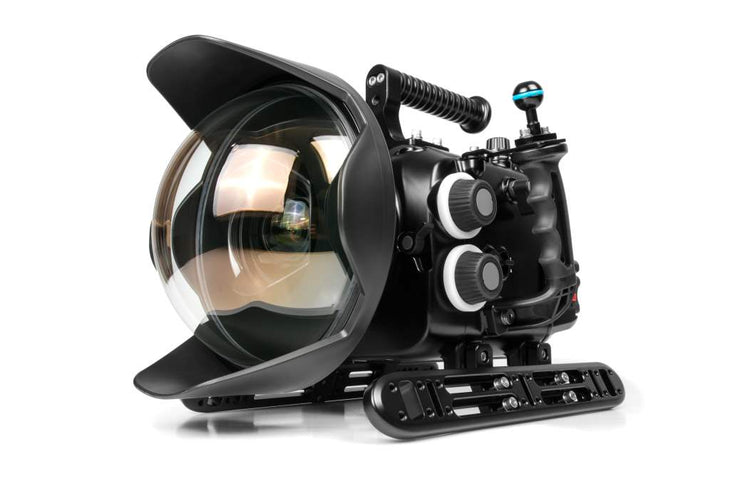

Nauticam Weapon LT Housing for RED DSMC2 Camera System (N120 Port) - 16109

The RED Weapon series of DSMC2 cinema cameras brings the option for capturing up to full-frame 8K resolution RAW underwater video. A camera this capable deserves a housing equally powerful and customizable. The Nauticam Weapon LT housing supports a wide variety of options to take full advantage of the latest RED cinema cameras in the lightest and easiest to operate underwater housing for cinema cameras available today. This housing also supports the full line of RED DSMC2 BRAINS including the Epic-W 8K, Scarlet-W 5K, and Red Raven 4.5K.

The Nauticam Weapon LT Underwater Housing

The Nauticam Weapon LT housing is the smallest, lightest, and easiest to operate underwater housing for RED Cameras available. On location, the usability of this system is unmatched. Set up and tear down in minutes, easily swap batteries and recording media while the camera is mounted in the housing, and lens changes in seconds. The small size and light weight dramatically decrease resistance in water, especially when free diving.

This version of the housing uses the N120 port system which allows for the use of even the largest diameter DSLR lenses such as the Canon Ultra-Wide Zoom EF 11-24mm f/4 USM. When paired with the Monstro VV sensor the Weapon will capture the full 126º05' rectilinear field of view.

External Monitor Support

The Weapon LT housing supports the use of optional bulkheads to support a variety of external monitors with either SDI or LEMO connectivity. With LEMO support the use of the REDTOUCH monitor is possible removing the need for monitor battery changes as was necessary with SDI monitors like the SmallHD.

Integrated Vacuum Check and Leak Detection System

The Nauticam vacuum check and leak detection system is shipped with Weapon LT as standard equipment. Combined with an accessory vacuum valve (PN 25625), this monitoring system provides constant updates on the water tight and safe-to-dive status of the housing. A simple color coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur.

The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action packed dive.

Required RED Components:

• RED DSMC2 Sidekick - This allows control access within the housing.
• RED Lens Mount
• RED DSMC Canon Mount
• RED PL Mount if using this 16410 adaptor.
• Nauticam N120 Nikonos RS Lens Adaptor
• Battery Mount and Input/Output Adaptor
• RED DSMC2 V-Lock I/O Expander (All in one solution)
• RED DSMC2 Base Expander, plus one of the following:
• RED DSMC2 V-Lock Battery Module
• RED DSMC2 Redvolt XL Module
• Wooden Camera Cable-less V-Mount - This is most versatile as it allows you to mount the battery lower allowing taller batteries to fit within the housing.
• RED Mini-Mag

Supported Battery Configurations:

• RED DSMC2 Redvolt XL Module
• Redvolt XL Battery
• RED DSMC2 V-Lock I/O Expander
• 1 or 2 PAGLink PL96 or PL150 Batteries
• Switronix Hyper Core Slim
• IDX Endura CUE-D150 146Wh
• RED DSMC2 Base Expander with Wooden Camera Cable-less V-Mount (low position)
• 1 or 2 PAGLink PL96 or PL150 Batteries
• Switronix Hyper Core Slim
• IDX Endure CUE-D150 146Wh
• RED Brick
• BLUESHAPE BV065-BV150
• BLUESHAPE BV100HD-BV150HD
• BLUESHAPE BV100HD-BV150HD SPLASH
• BeBob V98RM Cine
• IDX Endura CUE-D150 146Wh
• SWIT S-8192S 92 +92Wh Split Style V-Mount
• RED DSMC2 Base Expander with Element Technica V-Mount Module
• 1 or 2 PAGLink PL96 or PL150 Batteries
• Switronic Hyper Core Slim
• RED DSMC2 Base Expander with Element Technica Gold Mount Moduler
• Anton Bauer Dionic HC

In The Box

• (1) 16109 NA-Weapon LT Housing for RED DSMC2
• (1) 28111 Nauticam N120 Housing Body Cap
• (1) Nauticam Left and Right Handles
• (1) 25625 Nauticam M16 Vacuum Valve II (Pushbutton Release)
• (1) 90171 Nauticam Allen Key Set
• (2) 90121 Nauticam Housing O-Ring Red LT
•  (1) NAM0084 Nauticam O-Ring Remover Tool
•  (1) 25016 Nauticam Lubricant
•  (1) Pelican 1620 Wheeled Case with Custom fit foam insert
