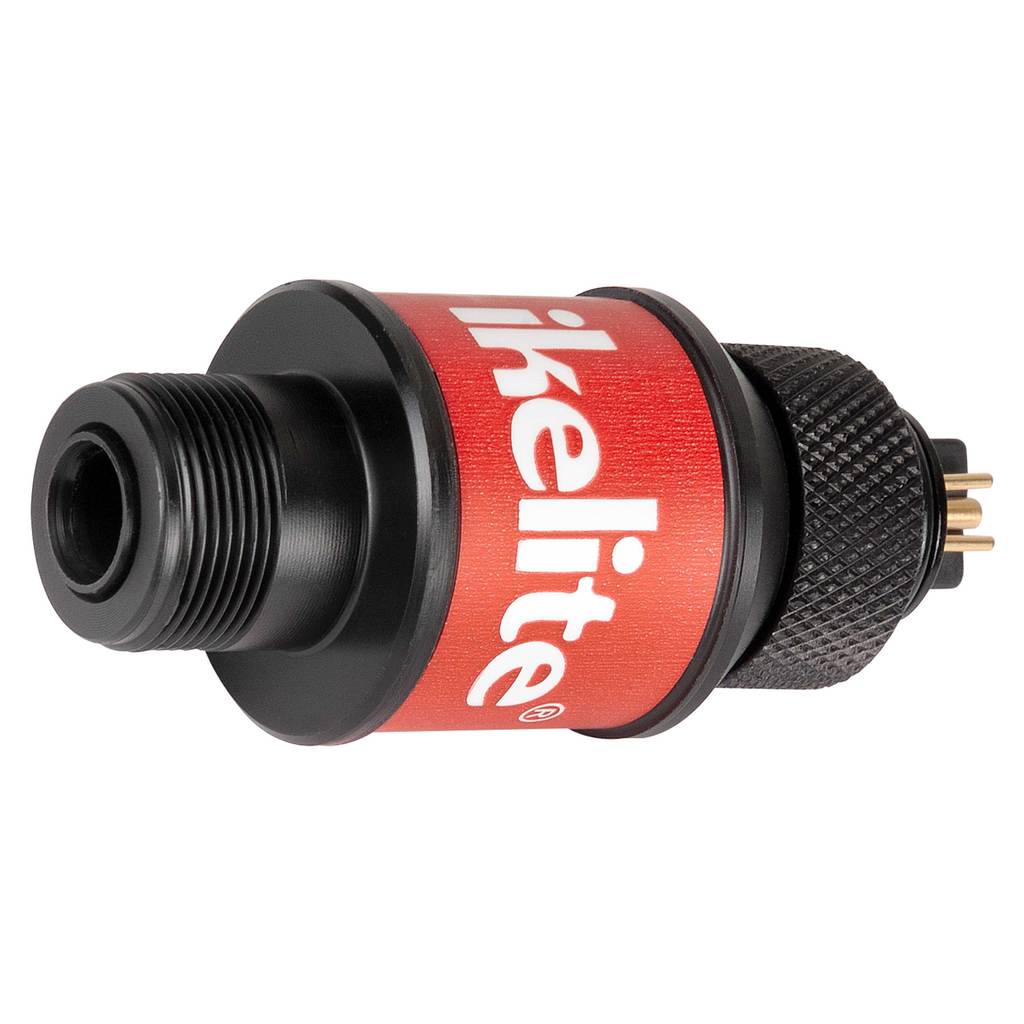

Ikelite RC1 Olympus & Panasonic TTL Receiver for DS Strobes - 4412

Enjoy true Olympus or Panasonic LUMIX TTL strobe exposure via fiber optic connection with your compatible Ikelite DS strobe.

See photos taken underwater with the RC1 TTL Receiver and Olympus Tough TG-5 camera...

With the RC1 TTL Receiver and a compatible camera with RC flash mode, actual exposure data is calibrated and communicated directly by the camera. This is far more accurate and consistent than "slave TTL" modes built into some underwater strobes which watch the camera's built-in flash and react.

An individual RC1 TTL Receiver and compatible fiber optic cord is needed for each strobe. Use of two strobes requires two receivers. See strobe and cable compatibility information below.

This product attaches to an Ikelite DS strobe. It is not intended to be attached to a housing and will provide no functionality if attached to a housing bulkhead. This receiver is not compatible with non-Ikelite strobes or non-digital Ikelite strobes.

Refer to housing and strobe compatibility information below. For AOI Underwater Housings you may need the # 4413 RC1 Olympus TTL Receiver for AOI LED Flash Trigger and DS Strobes instead.

RC Mode TTL Strobe Exposure

The Sensor makes DS Strobes compatible with the Olympus and Panasonic LUMIX RC flash mode, providing automatic TTL exposure. For accurate performance set the DS strobe to TTL.

Manual Strobe Exposure

The strobe's output may be adjusted using the manual power settings built into the strobe (varies by model). Make sure the camera’s flash mode is set to manual. Choose the minimum flash output necessary in the camera to trigger the DS strobe. This will conserve the camera’s battery power.

Camera and Housing Compatibility

Ikelite Housing Models:

• Olympus OM-D E-M10 Mark III in Ikelite Housing # 6950.13
• Olympus Stylus 1s in Ikelite Housing # 6139.51
• Olympus Tough TG-3, TG-4 in Ikelite Housing # 6233.03 / 6233.04 / 6233.05
• Olympus Tough TG-5, TG-6 in Ikelite Housing # 6233.06 / 6233.07
• OM System Tough TG-7 in Ikelite Housing # 6233.06 / 6233.07

Non-Ikelite Housing Models:

• Olympus OM-D E-M1 Mark II with FL-LM3 flash in Olympus or Nauticam Housing
• Olympus OM-D E-M5 Mark II with FL-LM3 flash in Olympus, Nauticam, or Isotta Housing
• Olympus OM-D E-M10 in Nauticam Housing
• Olympus OM-D E-M10 Mark II in Nauticam Housing
• Olympus OM-D E-M10 Mark III in Nauticam Housing
• Olympus OM-D E-M10 Mark IV in Nauticam Housing
• Olympus Tough TG-3, TG-4 in Olympus, Nauticam, or Recsea Housing
• Olympus Tough TG-5, TG-6 in Olympus PT-059, Nauticam, Isotta, or Recsea Housing
• OM System Tough TG-7 in Olympus PT-059, Nauticam, Isotta, or Recsea Housing
• Panasonic LUMIX GH3, GH4 with DMW-FL70 flash in any housing that supports use of the DMW-FL70 flash
• Panasonic LUMIX GH5, GH5s with DMW-FL70 flash in Nauticam or any housing that supports use of the DMW-FL70 flash
• Panasonic LUMIX GX8 with DMW-FL70 flash in Nauticam Housing
• Panasonic LUMIX LX100 II with VEK0V37Z1-A flash **RC1 Receivers built on or after November 9, 2018 and designated by a 1.1 on the receiver body

For AOI Underwater Housings with LED Flash Trigger in RC Mode use the modified RC1 Receiver # 4413 instead.

Strobe and Cord Compatibility

Fiber Optic Cord Compatibility:

• Ikelite Fiber Optic Coiled Cord # 4501
• INON Optical D Cable "Non-wireless type" L-Connector
• SEA&SEA Fiber Optic Cable (L-type) # 50107
• SEA&SEA Fiber Optic Cable II # 50128
• Olympus UW Fiber Optic Cable PTCB-E02
• Nauticam Universal Optical Fiber Cable # 26216

Consult with your housing manufacturer for information on what type of fitting is provided at the housing end. The fiber optic ports on Ikelite housings are made to the same standard as SEA&SEA and Olympus brands.

Strobe Compatibility:

• Ikelite DS50 above serial # 70000
• Ikelite D51
• Ikelite DS125 above serial # 5000
• Ikelite DS160, DS161, DS162
• Ikelite DS200 above serial # 7163
• Ikelite DS230, DS232

This product is not compatible with non-digital Ikelite strobes, SEA&SEA, INON, or other non-Ikelite strobes.

In the Box

• TTL receiver
• Connector protector
• Silicone lubricant 1cc tube
