Canon EOS R5 - Ikelite 200DL Housing - 71764-DLX - Deluxe Housing Package

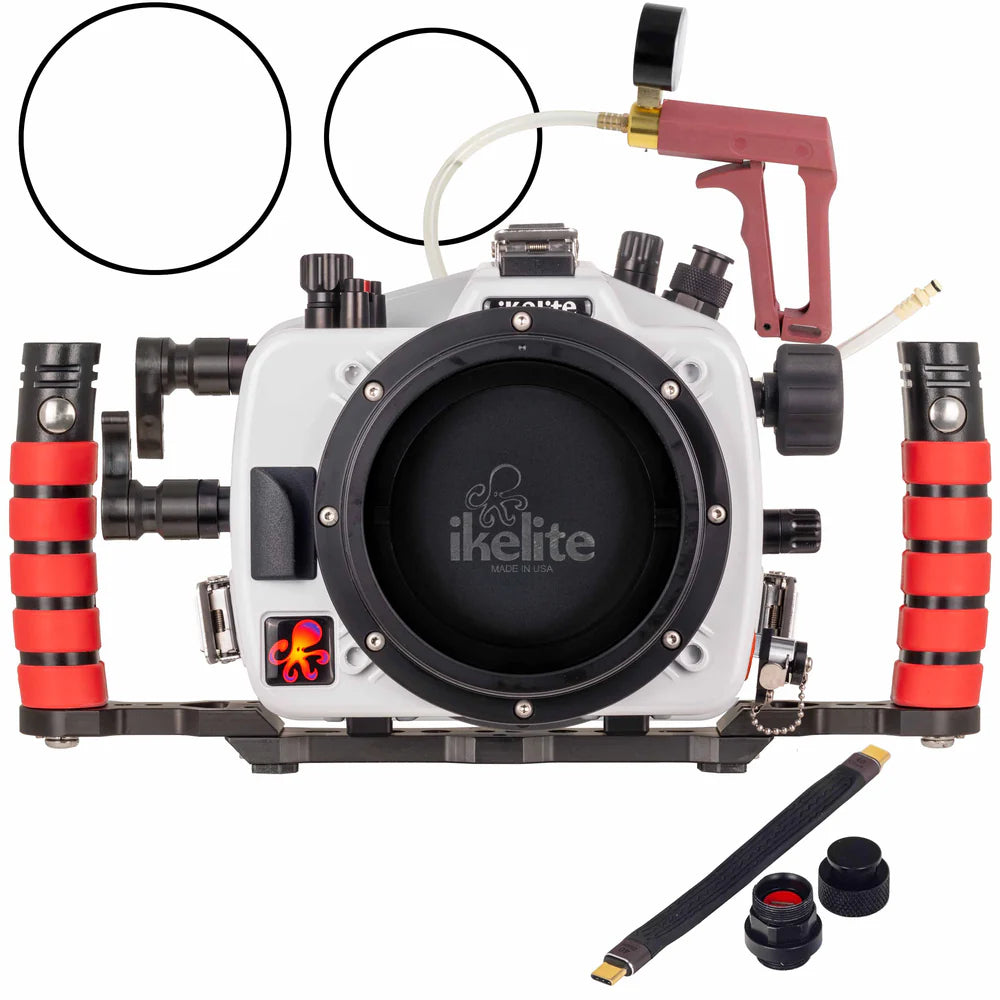

Deluxe Housing includes: Tray with Dual Handles, Trigger Extensions, Vacuum Pump, USB-C Charging & Data Transfer Bulkhead and a set of spare O-Rings.

About the Deluxe Version

We've set up the Deluxe 200DL Underwater Housing for Canon EOS R5 exactly the way we would use it with Dual Tray with Dual Handles, Trigger Extensions, Vacuum Pump, USB-C Charging & Data Transfer Bulkhead, and a set of spare O-Rings.

This is a full featured and durable waterproof housing for Canon EOS R5 full-frame mirrorless digital cameras. Suitable for scuba, snorkel, surf, pool, and any application in or around the water.

The housing provides full creative control over the camera. A dual-action lens release control makes it easy to use either EF or RF series lenses. Our custom ABS-PC blend is lighter than aluminum yet strong enough for almost anything you want to throw at it.

The included Vacuum Pump with Gauge allows you to check for leaks prior to entering the water.

The first-of-its-kind USB-C Charging & Data Transfer Bulkhead allows you to offload photos and top off the battery without removing your camera and lens from the housing.

About the Housing

A full featured and durable waterproof housing for Canon EOS R5 full-frame mirrorless digital cameras. Suitable for scuba, snorkel, surf, pool, and any application in or around the water.The housing provides full creative control over the camera. A dual-action lens release control makes it easy to use either EF or RF series lenses. Our custom ABS-PC blend is lighter than aluminum yet strong enough for almost anything you want to throw at it.

Our housing for the Canon EOS R5 is available in two versions:

• 71764 200DL Housing with a depth rating up to 200 feet (60 meters)
• 73764 50DL Housing with a depth rating up to 50 feet (15 meters)

Control access and layout is the same between the two models. The 200DL features an optical magnified viewfinder and flash bulkhead with manual hotshoe.

This housing requires the addition of a compatible DL Lens Port for waterproof operation. Lens Port not included.

LENS PORT REQUIRED (Sold Separately).

Canon EOS R5 Mirrorless Camera

The 2020 Canon EOS R5 is one of the most hotly anticipated new camera from Canon in the past ten years. Featuring a brand new 45 megapixel CMOS sensor in a durable weather-sealed body with OLED electronic viewfinder. Videographers can shoot 8K RAW video at 30p and 24p or oversampled 4K footage at up to 120p.

Auto focus is extremely fast and accurate even in low light settings with its Dual Pixel AF II system, 1053 autofocus points, and a Deep Learning feature that allows it to track both people and animals. An image stabilization system inherited from the EOS R can reduce camera shake up to 8 stops depending on which lens is attached.

Canon continues to expand their line of RF mount lenses designed for mirrorless camera bodies. Additionally Canon shooters can also use their favorite EF mount lenses thanks to the EF-EOS R Mount Adapter.

Lens Ports

This housing features our robust Dry Lock (DL) port system. "Dry Lock" refers to the placement of the o-ring on the outside of the port mount. This improves visibility and reduces the chances of water dropping onto your precious camera sensor. DL ports are the lightest on the market, yet robust and capable of standing up to rough surf. Attachment is quick and secure. A system of extensions can accommodate a huge variety of lenses with ease.

Most popular zoom lenses and select lens focus rings can be engaged using simple gearing that puts adjustment right at your fingertips. A large, soft-touch knob on the side of the housing makes fine tuned adjustments a breeze. Zoom and focus gears differ depending on which lens you are using. Zoom gears sold separately.

Vacuum System

The included vacuum valve allows you to pressurize the housing to check for leaks prior to putting your expensive equipment in the water. Use of the vacuum valve requires a compatible Vacuum Pump with Gauge # 47011, sold separately.

There is no greater assurance than being able to see your camera and o-ring seal through the back of the housing. Our signature open-groove design suspends the rear o-ring in a natural position that is easier to maintain and more reliable than forcing the o-ring into a channel. Once the housing is closed you can see the o-ring form a solid, waterproof seal.

TTL Strobe Exposure

This housings supports your choice of shooting manual strobes or adding TTL electronics depending on your application. The included manual hotshoe with Ikelite ICS-5 bulkhead supports manual strobe exposure with a wide variety of strobes including Ikelite, SEA&SEA, INON, and others.

Enjoy the fastest and most accurate strobe exposure on the market by adding the DL5 DS Link Canon TTL Converter and CT1 TTL Hotshoe Kit # 46075 and a compatible Ikelite DS strobe. The DS Link can be programmed to the camera's specific TTL protocol and supports both first curtain and rear curtain sync up to the camera's maximum flash sync speed.  Exposure compensation can be used added or subtracted in the camera. A push button and indicator light on the side of the converter make it simple to switch back and forth between TTL and manual exposure underwater.

Reliable locking connectors between the hotshoe and bulkhead make it easy to install the CT1 TTL Hotshoe or carry back up parts when traveling to remote locations.

Ergonomics

Good ergonomics are critical when you need to concentrate on composition, focus, and proper exposure. Large, curved control levers put the most important controls right where you need them: shutter and autofocus (via the AF-L button). This combination allows you to shoot with or without back button focus, an advanced technique that is useful for tack sharp focus of super macro and fast moving subjects. Each lever can be extended using the optional Trigger Extension # 4077.95 for perfect spacing when using a right-hand handle.

The rotating controls are all operated intuitively via premium soft-touch knobs. An oversized, lobed knob puts the zoom/focus knob at your fingertips while your left hand stays on the handle. Stainless steel, direct-drive rotating controls are virtually fail-safe and user serviceable and adjustable in a pinch.

All rear camera buttons are accessible by smooth action, hard anodized aluminum push buttons for reliable performance and easy maintenance. These controls are clearly labeled by laser engraving on the back of the housing that never fades or falls off.

Set-Up

The camera mount is front-loading for easy installation and removal. A small mounting plate attaches to the bottom of the camera and secures in the front of the housing. The camera mounting plate does not need to be removed from the camera for surface use or when changing the battery or memory cards. The mounting plate features a 1/4-20 threaded mount on the bottom so that it can be attached to a tripod on the surface.

Wi-Fi

Use the camera's built-in wi-fi feature to download photos to another device without removing the camera from the housing. The WiFi feature is only usable above water within close proximity to the connected device.

Viewfinders

The included Super-Eye Viewfinder provides an enhanced view of the camera's optical viewfinder when viewed through a dive mask. The viewfinder removes quickly and easily for the attachment of an optional Straight Magnified Viewfinder (Type 2) # 6890.1 or 45° Magnified Viewfinder (Type 3) # 6891.3. The angle of a 45º viewfinder is more ergonomic when shooting underwater plus it provides a larger and brighter view than the standard Super-Eye.

M16 Accessory Port

The spare M16 threaded accessory port provides an attachment point for third party accessories including HDMI bulkheads.

Handling & Travel

The housing, tray, and handles have been optimized to reduce weight while maintaining strength and durability. The Right-Hand Quick Release Handle # 4077.02 (sold separately) can be added or removed depending on your needs. The precision machined aluminum base features 1/4-20 tripod mounting sockets and additional mounting locations for future accessories. The base and handle can be quickly removed when breaking down your system for travel.

A 1/4-20 threaded mounting point is located front and center on the housing above the lens port mount. This mount can be used to attach lightweight accessories like a focus light or GoPro camera.

If you're shooting with two strobe or lighting arms, then a top handle can be added to carry to and from the dive site. Top handles are available in a Cable Grip # 4080.09 or Aluminum Top Handle # 4080.08. The rigid aluminum version provides additional mounting points for lighting and accessories.

Adding a dedicated focus light to your top mount or strobe arm is highly recommended for more accurate autofocus in low light settings.

Construction

Our new ABS-PC blend front is durable, provides improved contrast and visibility, keeps your camera running cooler in the sun, and is significantly lighter weight than aluminum alternatives.

Every housing is made in the USA, individually inspected for fit, and water pressure tested to 200 feet (60m).

Non-Ikelite Strobes

SEA&SEA, INON, and Retra strobes with an electrical connection can be triggered in manual exposure modes using an electrical sync cord. Strobes without an electrical sync cord connection cannot be attached to this system unless slaved off of a hard-wired strobe.

Ikelite Non-Digital Strobes

Older non-digital strobes featuring an ICS-5 electrical sync cord bulkhead can be used with this system in manual exposure modes.

Fiber Optic

Fiber optic only strobes are not compatible with this installation. An external strobe must be connected by electrical sync cord.

Remote Triggering

Strobes with remote slave capabilities may be triggered off of a flash attached to the housing by electrical sync cord. Ikelite DS strobes support remote triggering using the Optical Slave Converter # 4405 or the Water Wizard system (manufactured and sold by Aquatica).

Compatibility

This housing is only compatible with Canon EOS R5 cameras as shipped by the manufacturer. Unless otherwise noted, this housing does not accommodate the use of add-on grips, battery grips, eyepieces, LCD covers, or other accessories.

Differences in lens and control placement prevent other camera models from being used in or adapted to this housing. We are not aware of any other models which may be used in or adapted to this particular housing.

In the Box

• Housing
• Rear O-ring # 0132.59 (installed)
• Front O-ring # 0132.45 (installed)
• Zoom Gear Retainer # 75900 (installed)
• Port Hole Cover # 0200.92 (installed)
• Waterproof Bulkhead Cap # 9104.7 (installed)
• Base with Left-Hand Quick Release Handle # 4077.67 (installed)
• Tool for Zoom Gear Retainer # 0945.06
• .050" Hex Key # 0945.11
• Silicone Lubricant 1cc Tube
