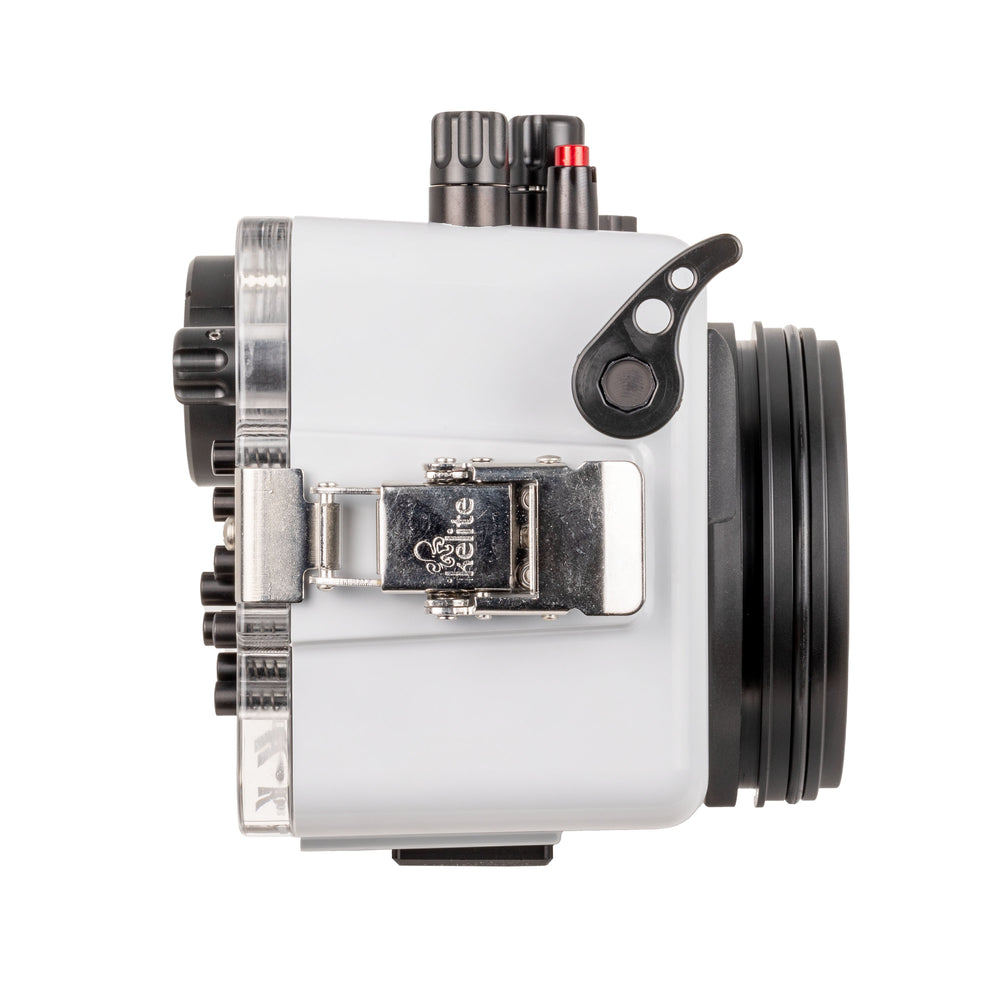

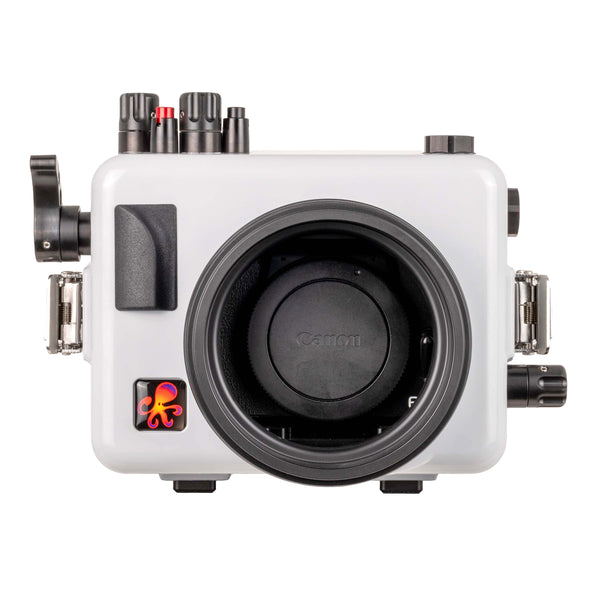

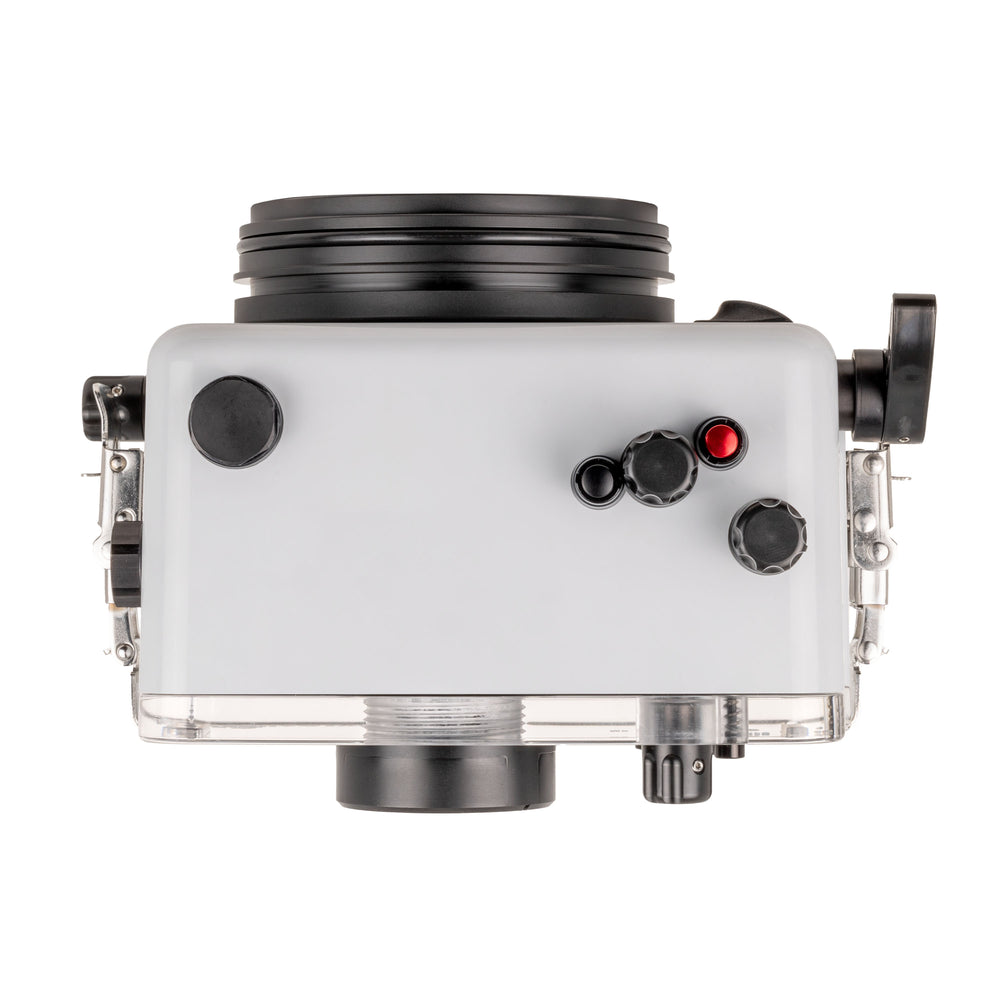

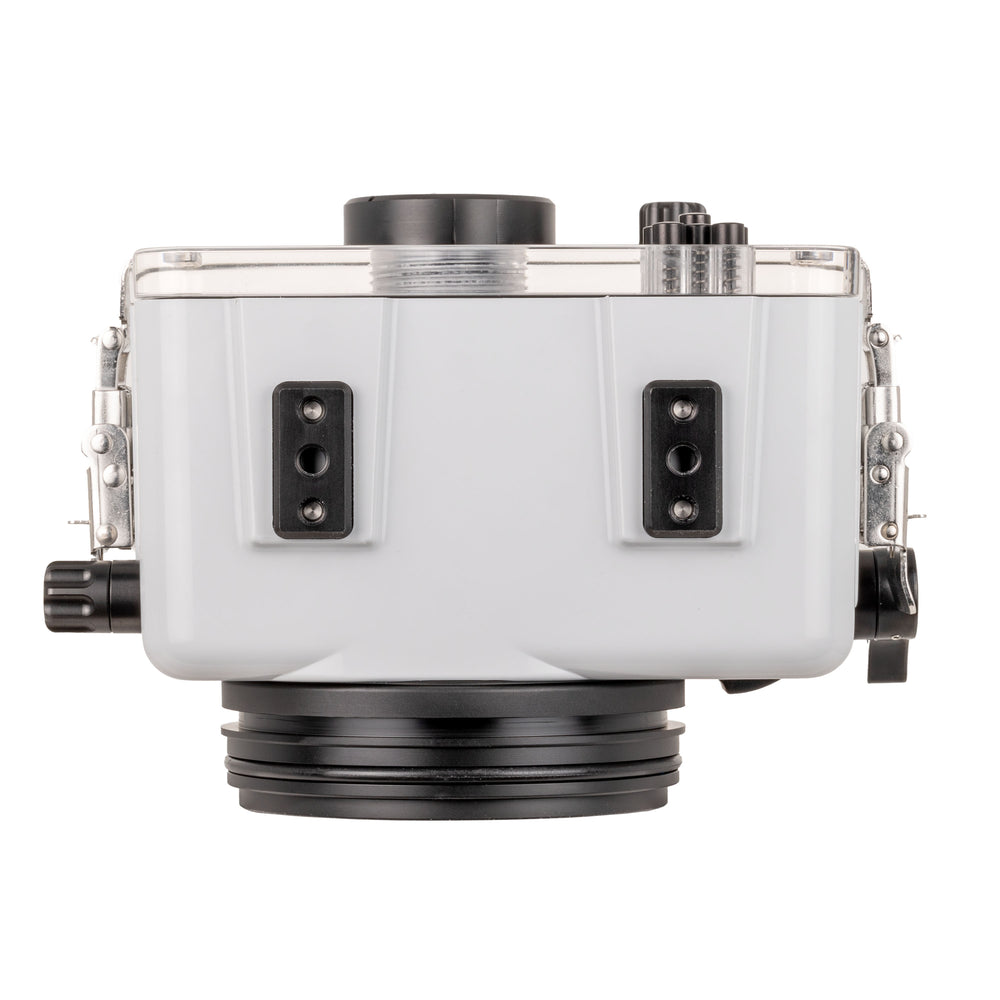

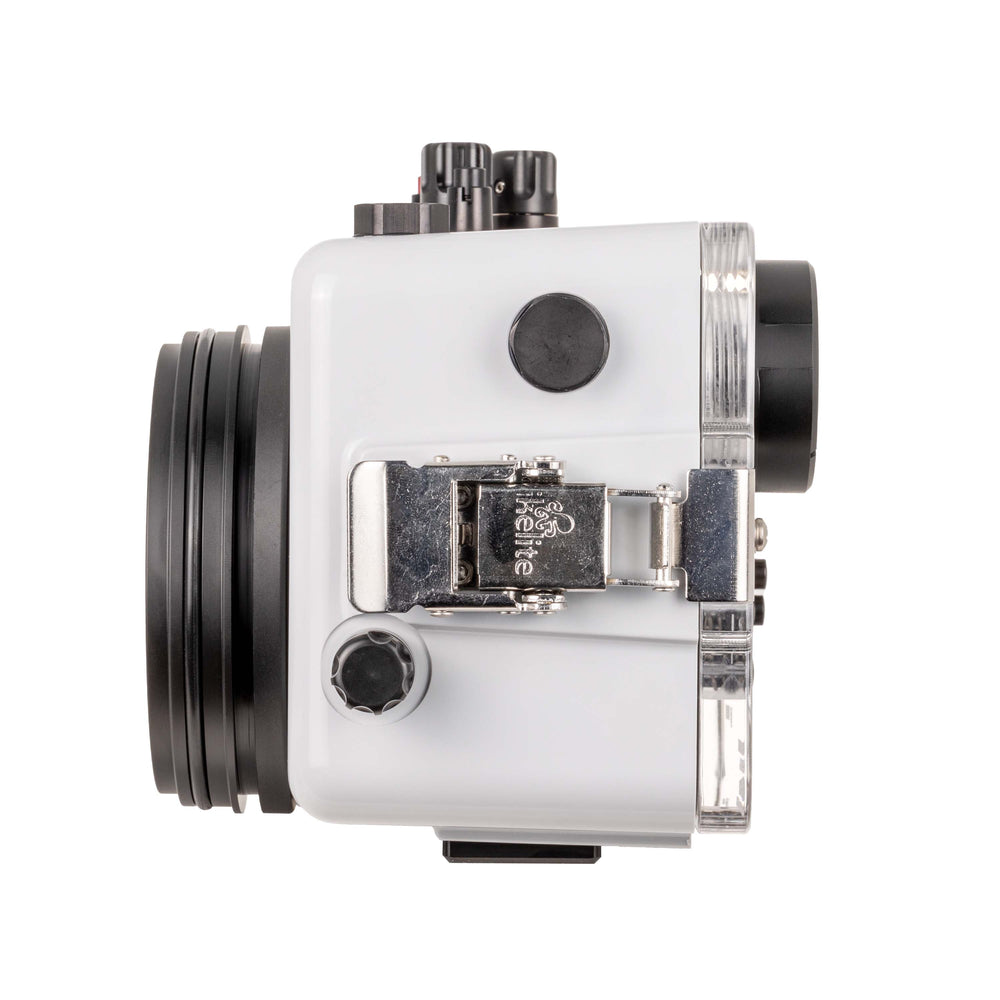

Canon EOS M50, M50 Mk II, Kiss M - Ikelite 200DLM/A Housing - 69740

A professional grade, compact waterproof housing for Canon EOS M50, EOS M50 Mark II, and EOS Kiss M mirrorless digital cameras. This system is perfect for any application in or around the water from scuba to surf to pool. This housing replaces the previous model for the EOS M50 Mark I # 6973.15. This housing requires the addition of a compatible DLM Lens Port for waterproof operation. Lens Port not included.

Controls and Ergonomics

A trigger-type shutter lever control is designed for optimal sensitivity and a natural motion when shooting underwater. The standard control hugs the side of the housing for comfortable use when hand holding. The lever can be easily extended using the optional Shutter Trigger Extension # 4077.95 for more comfortable reach when using a handle grip.

Soft-touch knobs are easy to grip with or without gloves on and provide quick access to important controls including front and rear dials and the mode control.

Hard anodized aluminum push buttons are extremely lightweight and resistant to salt build-up and corrosion. The back of the housing features laser engraved control symbols which will never fade or fall off.

Camera Installation

The camera mount is front-loading for easy installation and removal. A small mounting plate attaches to the bottom of the camera and secures in the front of the housing. The camera mounting plate does not need to be removed from the camera for surface use or when changing the battery or memory cards. The mounting plate features a 1/4-20 threaded mount on the bottom so that it can be attached to a tripod on the surface.

Lens Options

High quality yet affordable optics are available for an extensive range of lenses from wide angle fisheye to macro. Our custom optical grade acrylic domes provide the color, clarity, and durability of glass at a fraction of the weight and cost. Glass flat ports are available for macro lenses.

The DLM port system is designed to be tough enough for heavy surf and to provide reliability in remote locations. The lens port attaches without twisting, threading, or complex mechanisms.

Lens port sold separately. A compatible lens port is required for waterproof use.

Viewfinders

The included Supereye Viewfinder provides an enhanced view of the camera's optical viewfinder when viewed through a dive mask.

Get the brightest and sharpest view of the camera's OLED EVF by adding an optional Magnified Viewfinder. The Supereye removes quickly and easily for the attachment of an Straight Magnified Viewfinder # 6890.2 or 45° Magnified Viewfinder (Type 3) # 6891.3.

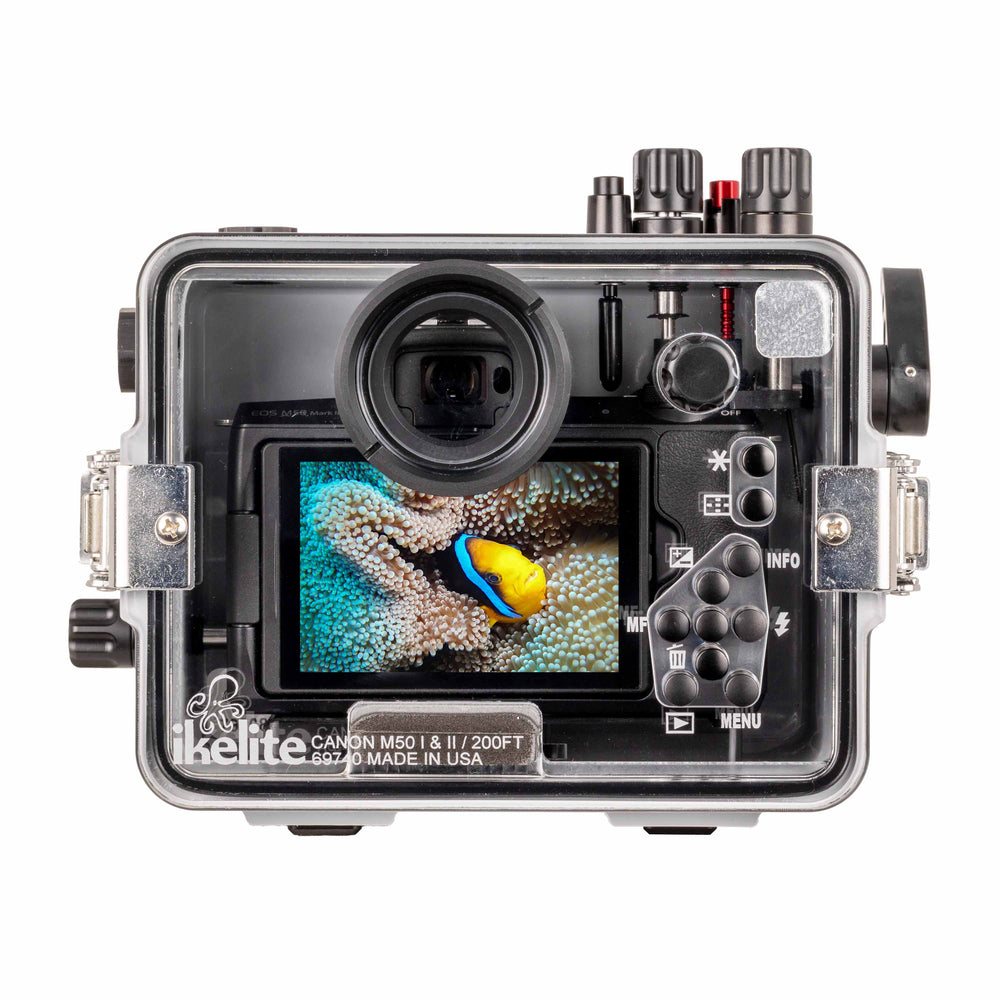

The camera's large, super-bright LCD screen is viewable through the back of the housing and can be tilted prior to installation in the housing for a a better view underwater.

Sealing and Vacuum Testing

There is no greater assurance than being able to see your camera and o-ring seal through the back of the housing. Our signature open-groove design suspends the rear o-ring in a natural position that is easier to maintain and more reliable than forcing the o-ring into a channel. Once the housing is closed you can see the o-ring form a solid, waterproof seal.

A spare 1/2-20 threaded accessory port is provided on the side of the housing for easily installation of the optional Vacuum Kit # 47012. A hand pump with gauge allows you to draw a vacuum on the housing to simulate water pressure and check for leaks prior to entering the water.

Every unit is water pressure tested to 200 feet (60m) before it leaves our facility in Indianapolis.

Durability and Corrosion Free Performance

A custom ABS-PC blend housing provides strength and performance year after year with minimal maintenance. The ABS-PC material is fundamentally corrosion-proof and considerably lighter than aluminum. The specially formulated color deflects the sun to keep your camera running cooler, longer. Compared to black or clear housings, the light color provides superior contrast for enhanced view of the camera, LCD screen, and o-ring seal.

Made in USA

Ikelite products are designed, built and tested in the USA. We use locally sourced, top-grade materials. Our housings are built by hand and individually tested for fit and function. We back our products with over 50 years of experience and the best reputation for service within the dive industry.

Constant-On Lighting

A bright constant-on video light can be used instead of or in addition to a flash. A constant-on light is not as bright as a strobe flash. Constant-on lights do provide added versatility because they can be used for focus assist and for improved colors when shooting video.

Light is absorbed as it travels through even short distances underwater, making colors appear dull or monochromatic. To preserve the natural colors of your subject, it's important to stay within arm's reach, no more than 3-4 feet (1m) away.

There is a simple rule that brighter is better underwater. A high-quality lighting system can produce magazine quality results with almost any camera system.

Compatibility

Differences in lens and control placement prevent other Canon cameras from being used in this housing. The Canon EOS M50 cameras are not compatible with any other Ikelite housing models.

This housing is only compatible with the Canon EOS M50, EOS M50 Mark II, and EOS Kiss M cameras as shipped by the manufacturer. Unless otherwise noted, this housing does not accommodate the use of add-on grips, battery grips, eyepieces, LCD covers, or other accessories.

In the Box

• Housing
• Rear o-ring # 0110 (installed)
• Front o-ring # 0132.36 (installed)
• Waterproof bulkhead cap # 9104.7 (installed)
• Silicone lubricant 1cc tube
