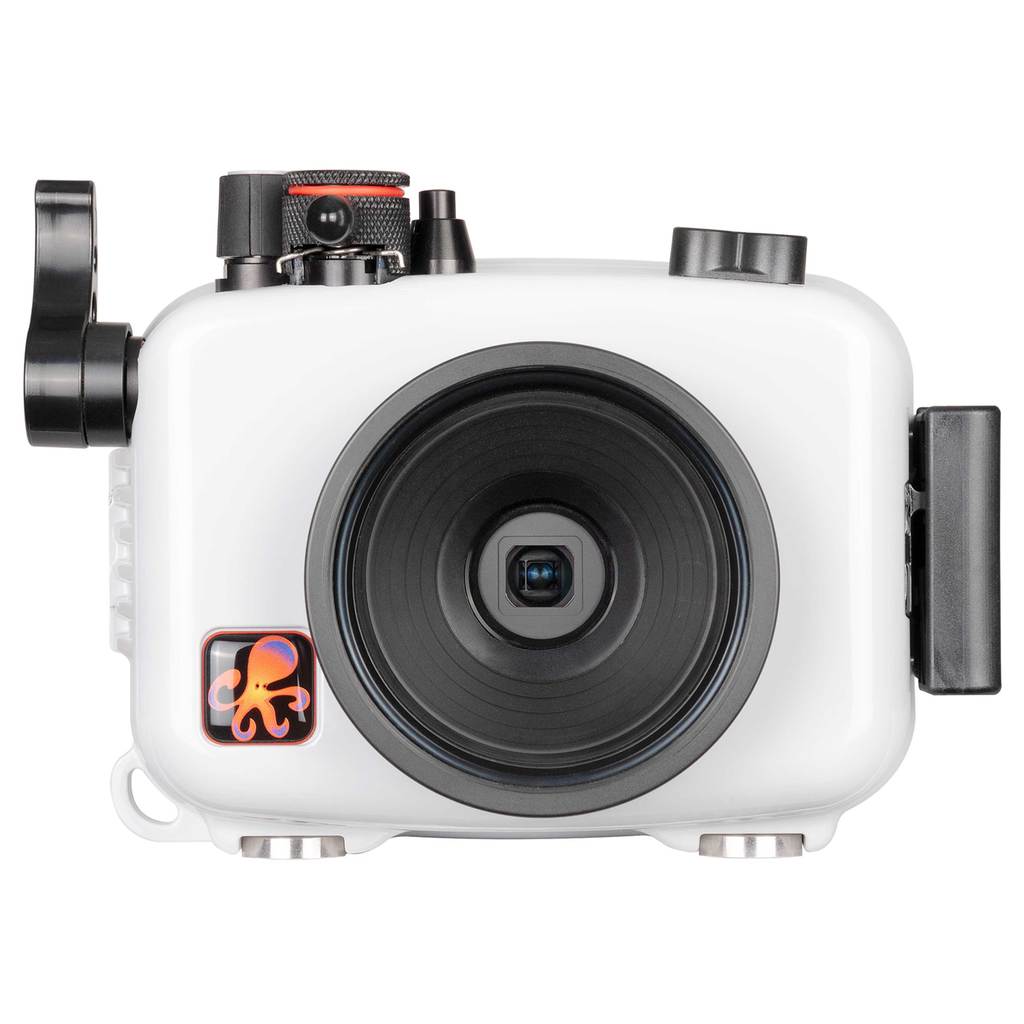

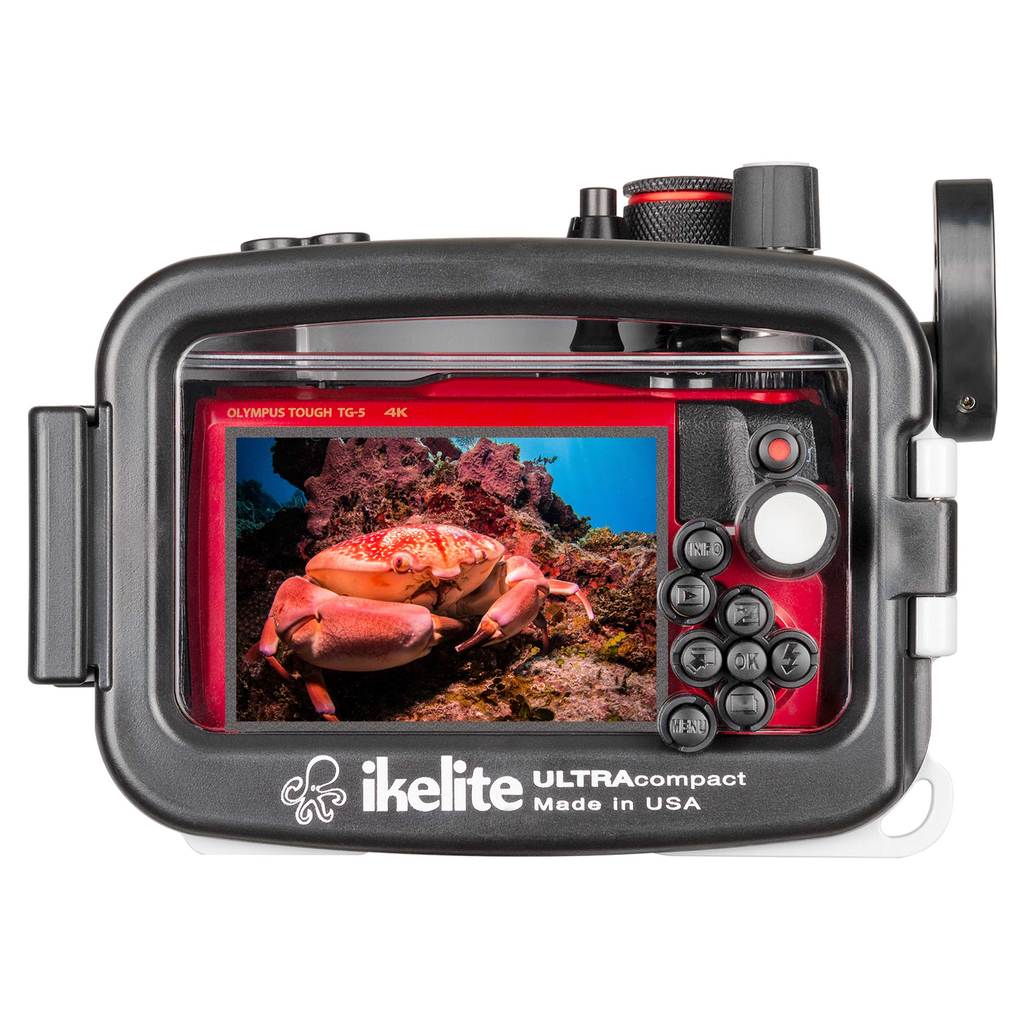

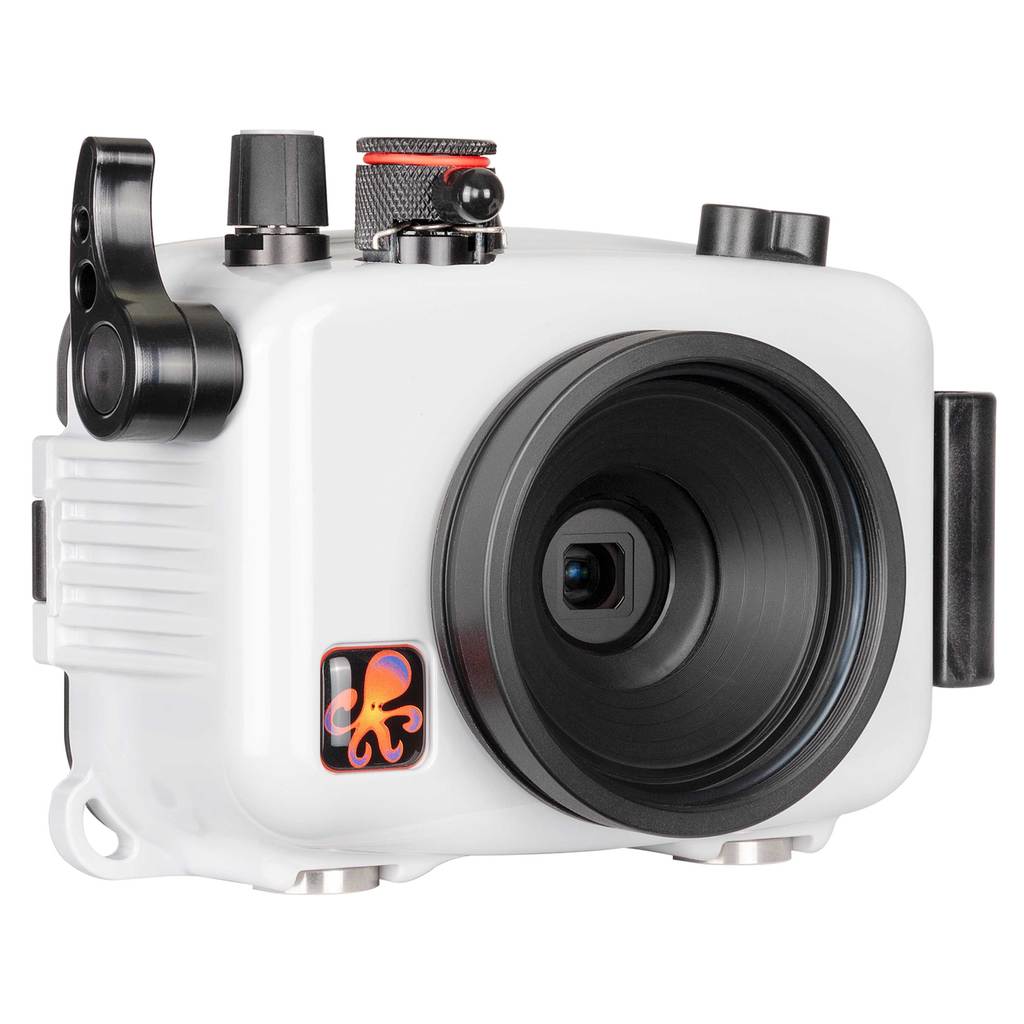

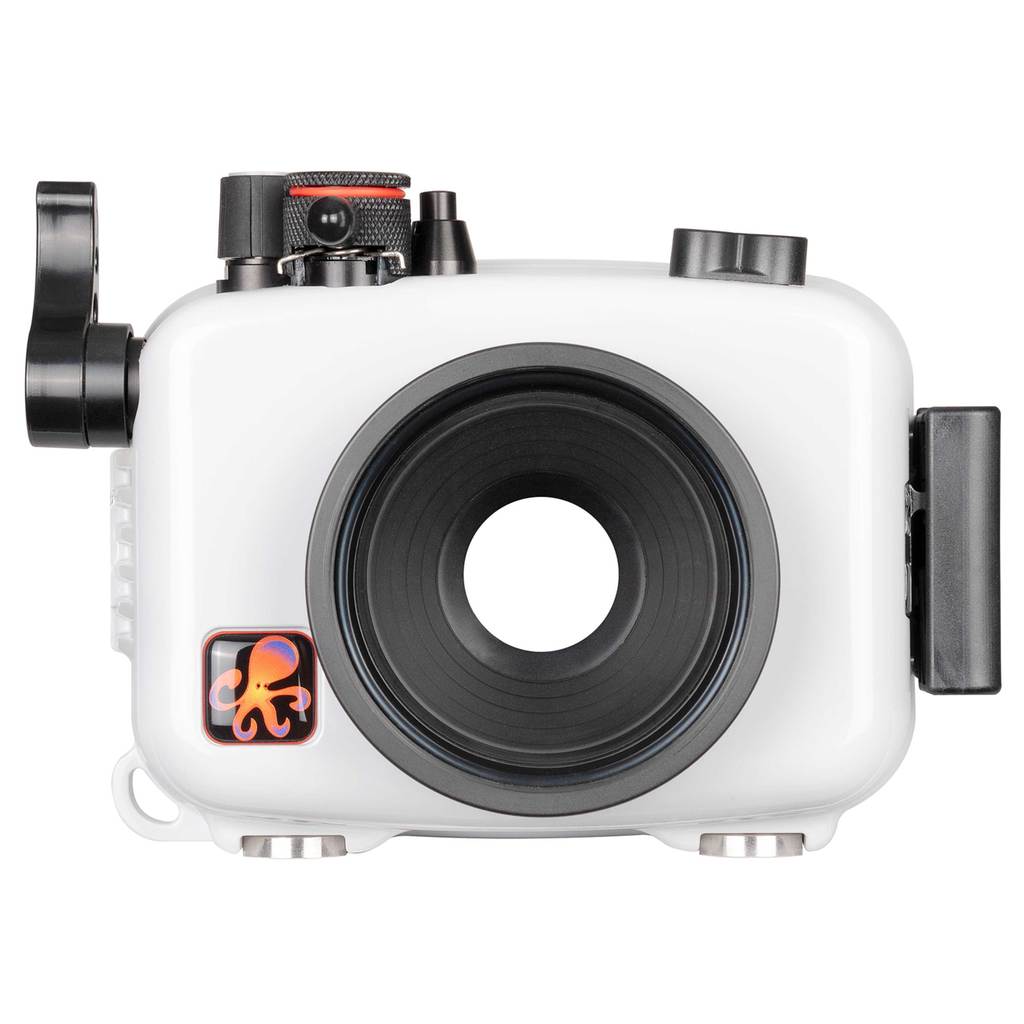

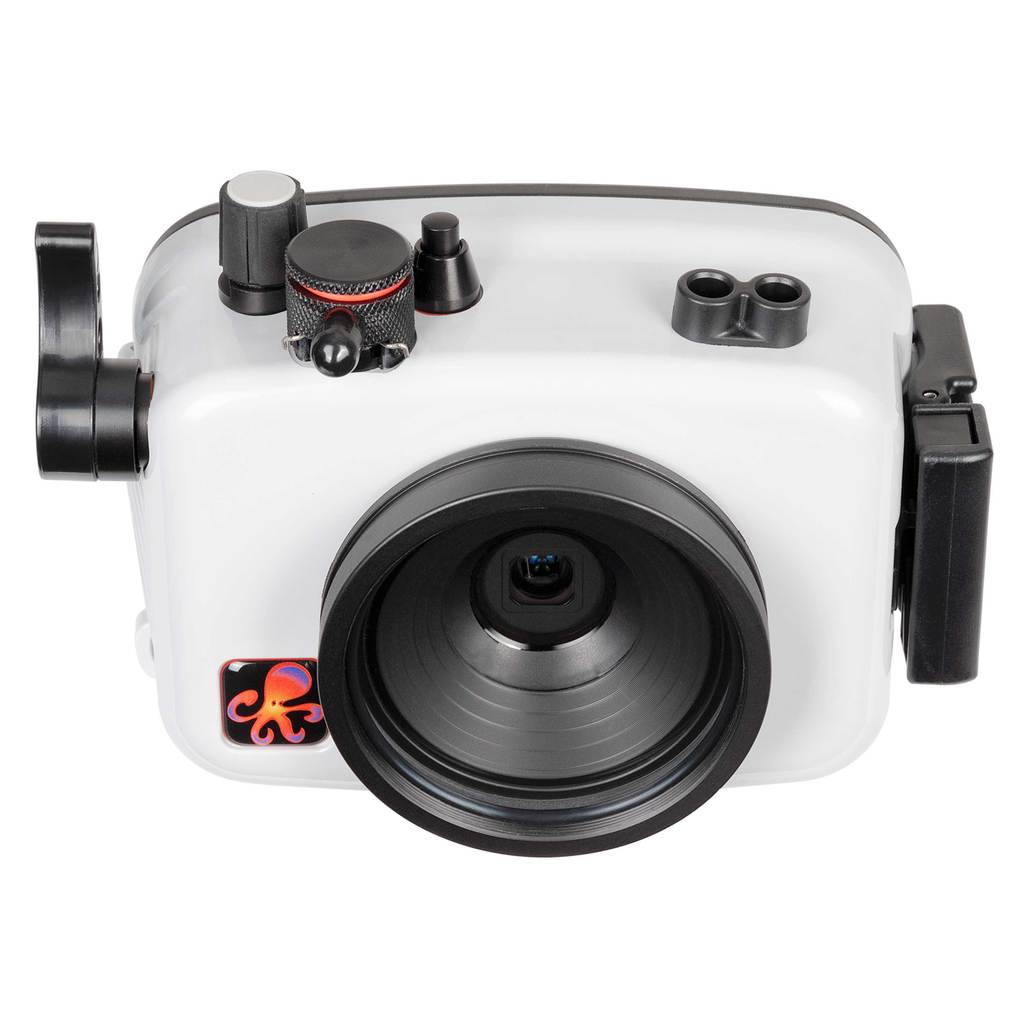

OM System TG-7, Olympus Tough TG-5, TG-6 - Ikelite housing 6233.06

A full featured and durable waterproof housing for OM System TG-7**, Olympus Tough TG-5, and TG-6 cameras. Suitable for scuba, snorkel, surf, pool, and any application in or around the water.

Deeper and More Durable

Enjoy full control of your camera to depths of up to 200 feet (60 meters). Our housing for TG-7, TG-6, and TG-5 cameras is built to last with a rugged design and field serviceable controls.

The Best Lens Support

Expand on the camera's 25-100mm zoom range with a full line of accessory lenses to customize your housing for every scenario from snorkeling to wreck diving. And only the Ikelite ULTRAcompact housing accepts the incredible FCON-T02 conversion lens which is the lightest and easiest way to go from full fisheye to close up macro on the same dive.

Bright, Bold Photos

Pair your housing with the Ecko Fiber or RC165 strobe for instant gratification with automated RC TTL flash exposure.

Ikelite products are designed, built and tested in the USA. We use locally sourced, top-grade materials. Our housings are built by hand and individually tested for fit, function and waterproof integrity. We back our products with over 50 years of experience and service within the dive industry.

Camera compatibility

Older TG-series cameras are not usable in this housing due to differences in lens and control placement. ** Housings produced after October 1, 2023 (serial number UC68462 and above) are updated to fit the OM System TG-7 camera. Older housings can be modified to fit the newer camera.

Wide angle, macro + filters

Our 3-inch diameter ports feature a 67mm thread on the front for the easy attachment of external wide angle and macro wet lenses. Wide angle lenses make objects appear smaller, so that you can fit more into your frame underwater. Macro close-up lenses make small objects appear larger, so that tiny creatures will fill your frame.

The DC1 6" Dome Port # 6401 offers the best of everything: wide angle, macro, and over-under all on one dive. This special dome port replaces the housing's standard port and provides sharp 25mm wide angle, full zoom through and macro capabilities, and is perfect for split shots (half-in, half-out of the water).

The Dome Port for Olympus FCON-T02 Fisheye for Olympus TG-6 # 64361 is also available.

The WD-3 Wide Angle Dome provides mid-range angle of view with no vignetting (dark shadows in the corners of the image).

The W-30 Wide Angle Lens, INON UWL-95S M67, and other 67mm threaded wide angle lenses, provide a wider maximum angle of view. Because these are separated from the camera's lens by glass, air, and water, some vignetting and edge distortion will be present. These effects can be reduced or eliminated by using a smaller aperture, zooming in slightly, and/or cropping in post-production.

External macro lenses with 67mm threads from INON, Epoque, and other manufacturers, can be attached directly to the front of the housing's port.

3-inch diameter color filters press directly onto these ports. Most wide angle lenses require a 3.6-inch diameter color filter. Refer to the product page for information on color filter compatibility.

In the Box

• Housing
• Port cover # 0200
• Vinyl break-away safety lanyard # 0321.10
• Silicone lubricant # 0184.1
• 1 year manufacturer warranty
