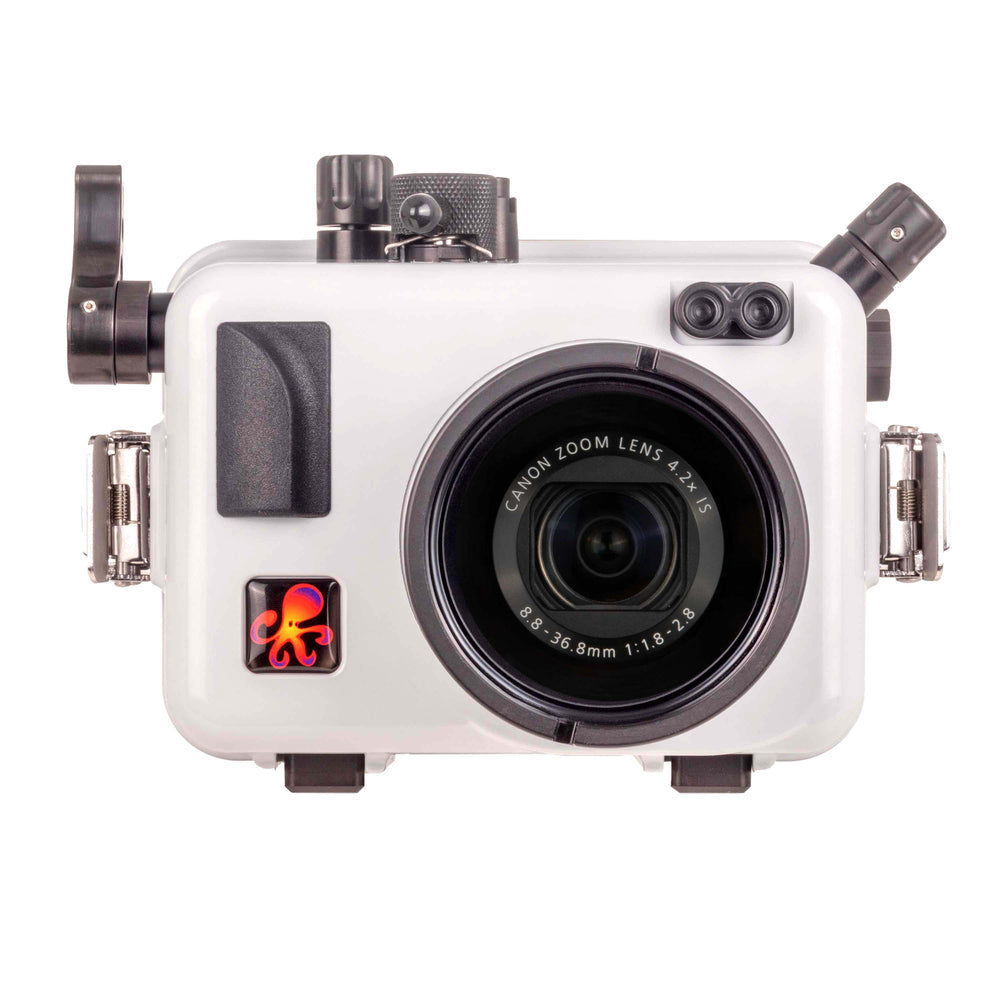

Canon PowerShot G7 X Mk III - Ikelite Housing 6146.09

Underwater Housing for Canon PowerShot G7 X Mark III

The Canon PowerShot G7 X Mark III is a great choice for underwater use. The bright 24-100mm zoom lens is ideal for use with external wide angle lenses. A large 1"-type CMOS sensor, 4K UHD video resolution, manual exposure modes, and RAW image capture are key advantages when shooting underwater.

This housing is designed to use the full capabilities of the camera up to depths of 200 feet (60 meters). A perfectly clear back provides a view of the camera and o-ring seal. The back is removable, not hinged, for extra durability and easier camera access. It attaches quickly and easily with two heavy duty stainless steel locking latches. All important camera controls are accessed via fully serviceable controls with premium soft touch control knobs. Ikelite housings are manufactured in the USA and come with an unparalleled access to support, photo advice, and service.

Construction

Our ABS-PC blend housing provides strength and corrosion free performance year with minimal maintenance. The specially formulated color deflects the sun to keep your camera running cooler, longer. Compared to black or clear housings, the light color provides superior contrast for enhanced view of the camera, LCD screen, and o-ring seal.

Ikelite products are designed, built and tested in the USA. We use locally sourced, top-grade materials. Our housings are built by hand and individually tested for fit, function and waterproof integrity. We back our products with over 50 years of experience and service within the dive industry.

Ergonomics

Drop-in camera loading makes this housing a breeze to set up and shoot. Good ergonomics are critical when you need to concentrate on composition, focus, and proper exposure. A large, curved control lever puts the shutter control right where you need it. The shutter lever can be extended using the optional Trigger Extension # 4077.95 for perfect spacing when using a right-hand handle.

The rotating controls are all operated intuitively via premium soft-touch knobs. Stainless steel, direct-drive rotating controls are virtually fail-safe and user serviceable and adjustable in a pinch.

All rear camera buttons are accessible by smooth action, hard anodized aluminum push buttons for reliable performance and easy maintenance. These controls are clearly labeled by laser engraving on the back of the housing that never fades or falls off.

The camera's large LCD screen can be seen clearly through the back of the housing.

Flash

Due to the position of the camera's flash in relation to its lens, the built-in flash is not suitable to illuminate photos under water. For the best color and clarity, we recommend adding a filter, strobe, or constant-on light.

Two ports are provided for the connection of up to two Ikelite-, SEA&SEA-, or Olympus-type fiber optic cords. Any Ikelite DS strobe may be connected using the Fiber Optic Converter # 4401.3 and Fiber Optic Cord # 4501. The AF35 strobe is not compatible with this housing.

Tray with Handle(s)

The optional Action Tray II with Left Hand Quick Release Handle # 2605.04 and Action Tray II Extension with Right Handle # 2605.05 provide a balanced grip and are the perfect platform for adding lighting accessories.

The Action Tray mounts to the bottom of the housing with two 1/4-20 threaded screws for secure and rotation-free use. Our uniquely curved grips are rubberized for a comfortable grip and provide a quick release mechanism for adding and removing light arms.

Zoom, super macro, and semi-wide angle

The standard 3" diameter optical glass port accommodates the camera's full 24-100mm zoom range underwater.

Sealing and Vacuum Testing

There is no greater assurance than being able to see your camera and o-ring seal through the back of the housing. Our signature open-groove design suspends the rear o-ring in a natural position that is easier to maintain and more reliable than forcing the o-ring into a channel. Once the housing is closed you can see the o-ring form a solid, waterproof seal.

A spare 1/2-20 threaded accessory port is provided on the side of the housing for easily installation of the optional Vacuum Kit # 47012. A hand pump with gauge allows you to draw a vacuum on the housing to simulate water pressure and check for leaks prior to entering the water.

Every unit is water pressure tested to 200 feet (60m) before it leaves our facility in Indianapolis.

Compatibility

This housing is only compatible with the Canon PowerShot G7 X Mark III camera as shipped by the manufacturer. Other Canon cameras, including other G7X models, are not usable in this housing due to differences in control placement.

In the Box

Housing
Rear o-ring # 0109 (installed)
Vinyl port cover # 0200 (installed)
.050" hex key # 0945.11
1/16" hex key # 0945.16
Silicone lubricant 1cc tube

200 ft (60 m) depth rating
Controls for all camera functions except Flash pop-up button (flash must be extended when installing the camera in the housing)
Two built-in fiber optic ports
Slightly negative buoyancy in fresh water
1/4-20 threaded tray mounting with 3" (76mm) spacing
Weighs 2.3 lb (1061 g)
6.9 x 5.5 x 5" (175 x 140 x 127 mm)
3.0" diameter glass lens port supports full zoom range 24-100mm
2 year limited warranty

Canon G7X Mark III Vignetting Wide Angle Lens

Vignetting will be present at 24mm when using external wide angle lenses like the INON UWL-H100 28M67 Type 1 (shown).
