Maximum Underwater Angle of View 141°

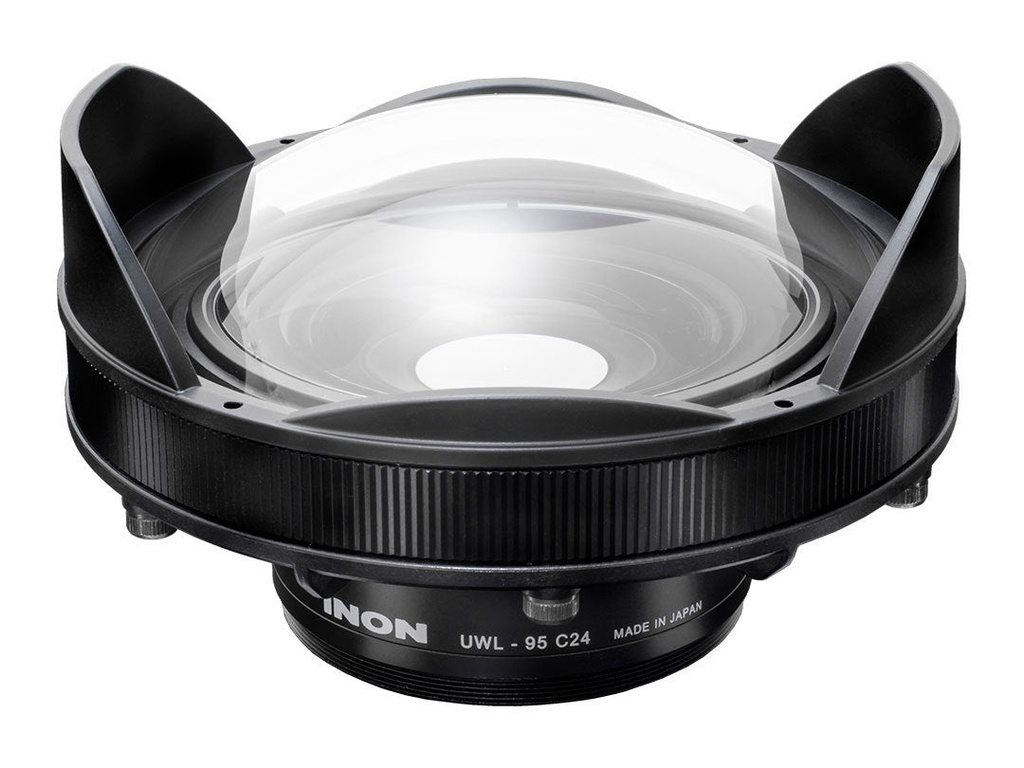

Installing the Dome Lens Unit III will increase UWL-95S M52, UWL-95S M67, UWL-95S XD, UWL-95 C24 M52/M67(disc) native underwater coverage approx. 95° to approx. 141°.

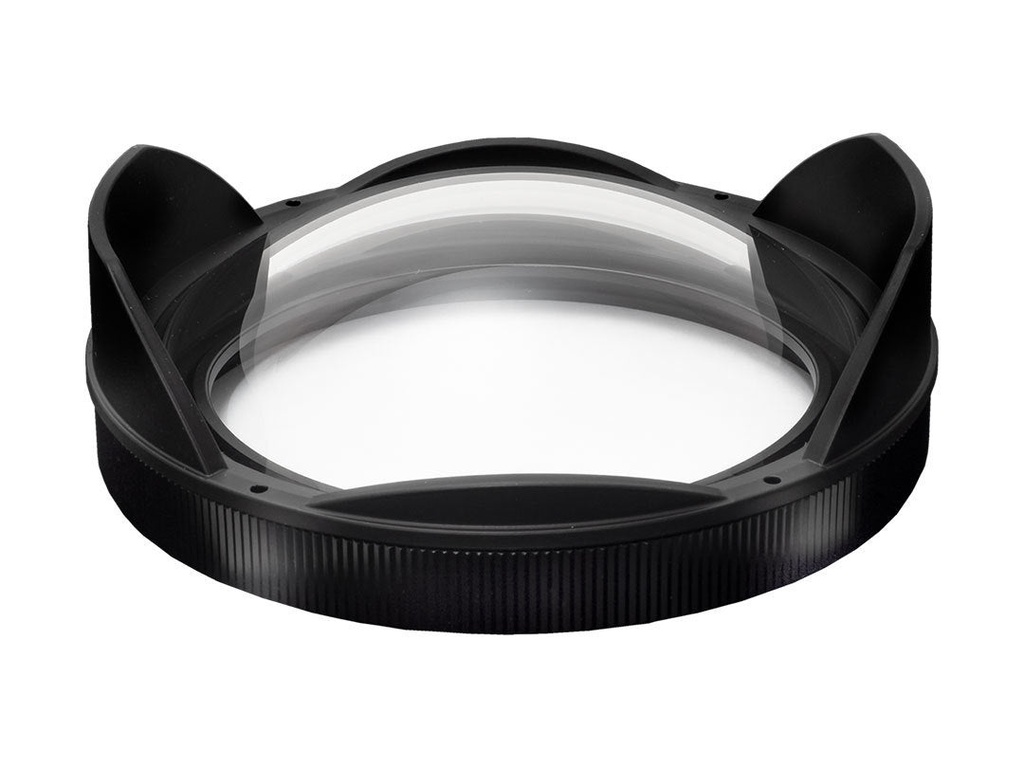

Two Different Dome Materials to Choose; Acrylic or Glass
The Dome Lens Unit IIIG Using Multicoated Optical Glass
Optical multi-coating effectively suppresses flare/ghosting likely to happen in clear and bright underwater condition to provide quality images with appropriate contrast. The glass version delivers stable results in any situation, so is recommendable for those shooting in various scenes.
The Dome Lens Unit IIIA Using High Transparency Optical Acrylic Material
High transparency and lightweight optical acrylic dome provides quality image on a level with that of optical glass dome. Acrylic is better tolerated than polycarbonate to discoloration by inevitable ultraviolet rays outdoors or scratches during long-term usage assuring underwater use. The acrylic version is budget-friendly so would be good choice for those thinking to start wide angle photography.
It is now possible to shoot Sony RX100M3/M4/M5A from the wide end/24mm and Olympus TG series from the wide end/25mm without vignetting. With Dome Lens Unit III, you don't have to zoom in unlike previous generation dome lens which needs to zoom in or change camera zoom setting to eliminate vignetting.
Usable with All Zoom Range
Usable throughout all zoom range when the lens unit is being attached on a housing. For confirmed usable camera/housing click here, or contact us.
Minimum Focusing Distance 0cm
As same as the UWL-95S/UWL-95S XD wide lens, a combination with the Dome Lens Unit III keeps same minimum focusing distance 0cm. Both Close Focus Wide Angle (CFWA) imaging just in front of a subject or wide imaging to capture broad seascape are possible through the same lens combination.
*At zoom wide end setting.
Selectable Dome Material When Repairing
Either acrylic or glass material is available when purchasing replacement dome. The dome material is replaceable one to another when repairing based on usage or budget as both material use same dome lens barrel.
*The Dome Lens Unit III is a dedicated option for the UWL-95S/UWL-95S XD and not usable by itself.
