INON Arm series is manufactured by machined lightweight aluminum alloy to benefit high-precision, light weight and extraordinary strength. Unlike molding or casting, this manufacturing system obtains accuracy of "0.01mm" providing very smooth fitting between ball-joint and clamp. The diameter of ball-joint is 24mm/0.9", equipping O-Ring providing firm and reliable clamping but you never feel any stress when you adjust arm position by loosening a clamp. INON Arm O-Ring is made of ozone-proof and weather-proof silicon rubber.

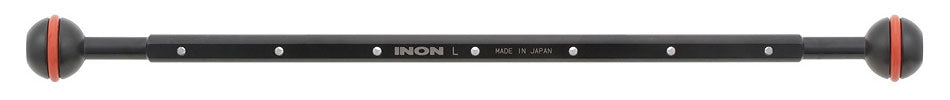

Aluminum alloy arm designed as stick shape to have less water resistant, ample durability and super lightweight body all together. Five different effective lengths (center to center distance between both ends balls) from 75mm/3.0in (Stick Arm XS-T) to 320mm/12.6in (Stick Arm L) are available to select to suit to a lens or subject. Stick Arms carry broad expandability and various functions with wide range of optional accessories attached on the middle of the arm.

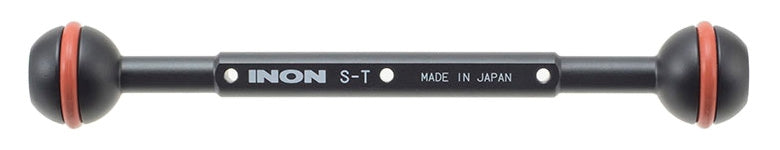

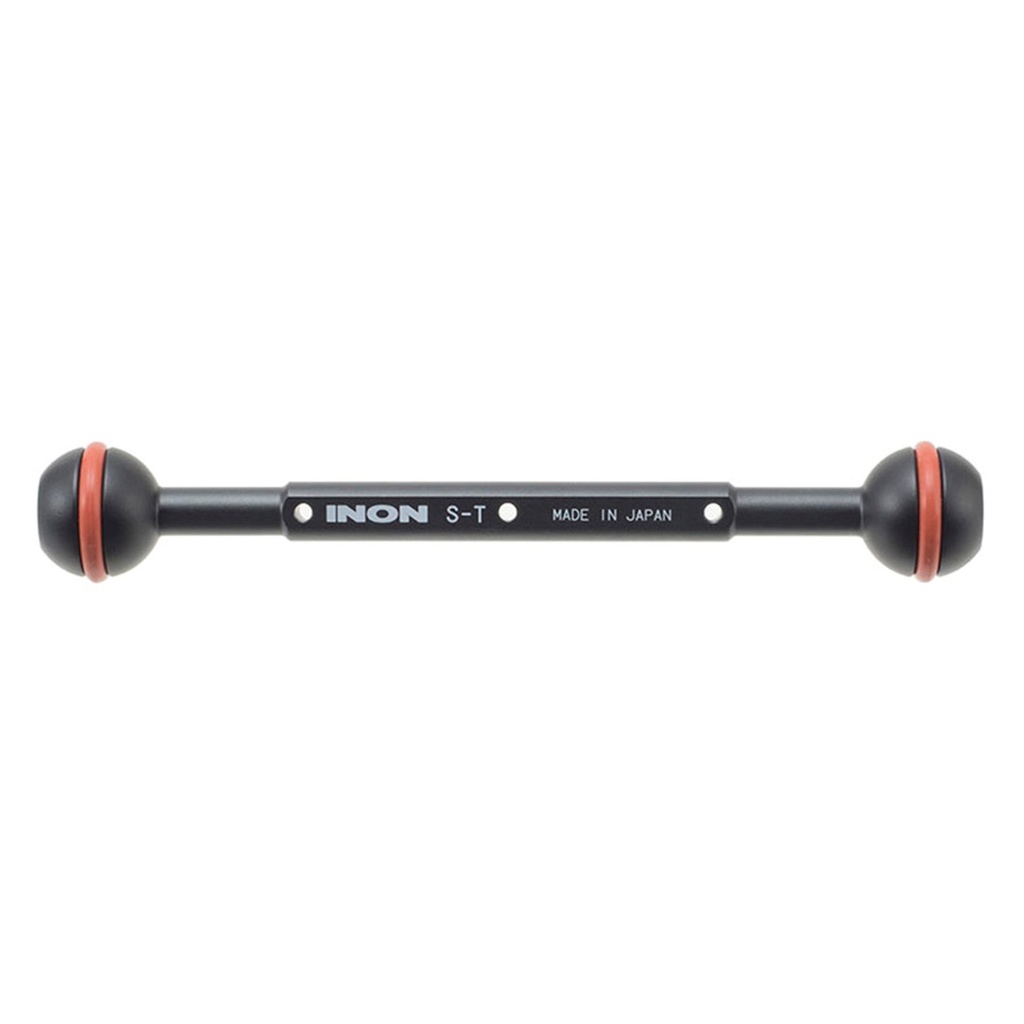

Stick Arm S-T
- Full length: 170mm (6.7in)
- Effective length: 150mm (5.9in)
- Weight: 57g (2.0oz) [air] / approx.34g (1.2oz) [underwater]
Compatible options:
- M5 Joint + Shoe Base Spacer
- M5 Joint + Lens Holder for Float Arm
- M6 Joint + Direct Base III
- M6 Joint + Direct Base YS RT
- Stick Arm Float S (one)
- UW Tripod Hub
Mounting Options
Lens Holder
From size SS-T (120mm) and up, you can mount Inon lenses using the Inon M5 joint on the Inon LD Lens Holder for Float Arm, the Inon AD Lens Holder for Float Arm.
Mount any M67 thread lens using an M5 Joint and the Inon M67 Lens Holder for Float Arm.
Want to Mount a Nauticam Lens Holder? From size SS-T (120mm) and up, mount Nauticam lenses using the Inon M5 joint and the Nauticam Bayonet Lens Holder for Inon Float Arms 83254.
Other Mounts
|
|
|
|
M5 Joint + Lens Holder |
M5 Joint + Shoe Base Spacer + Shoe Base II |
M6 Joint + Direct Base III |
Stick Arm Float S (not compatible with XS or SS) |
