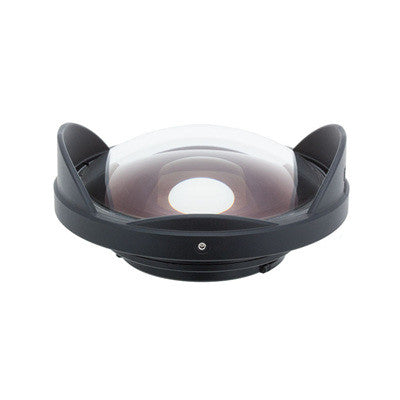

The UFL-G140 SD provides wild wide underwater footage nearly the same view angle as using action camera on land.
Compatible camera
To attach this lens to your GoPro, you'll need the correct Inon SD Front Mask for your iteration of the GoPro HERO.
- OLYMPUS STYLUS TG-Tracker
- SONY FDR-X3000/X3000R
- SONY HDR-AS300/AS300R
- GoPro® HERO12 Black
- GoPro® HERO11 Black
- GoPro® HERO10 Black
- GoPro® HERO9 Black
- GoPro® HERO8 Black
- GoPro® HERO7 Black
- GoPro® HERO6 Black
- GoPro® HERO5 Black
- GoPro® HERO+LCD
- GoPro® HERO+
- GoPro® HERO
- GoPro® HERO4
- GoPro® HERO3+
- GoPro® HERO3
Ultra Wide Even Under Water
Though an action camera is equipped with ultra wide lens, its coverage underwater will dramatically narrow down due to different refraction ratio between air and water.
For example, maximum angle of view of GoPro® HERO12 Black is approx. 156° on land which will narrow down to approx. 94° when we put the camera in genuine dive housing and bring it underwater due to different refraction index. The INON UFL-G140 SD provides ultra wide semi-fisheye imaging with angle of view 140° underwater enabling wild underwater video work only with action cameras.
* Measured angle of view by INON or calculated angle of view underwater based on the measured angle of view. Not confirmed by camera manufacture. The measured angle of view of “HERO3+ Silver Edition” is approx. 142°(air) which is less wide than the “Black Edition”. So angle of view underwater with this lens is less than 140°. The “HERO3+ White Edition” has not been tested.
Dynamic CFWA Imaging
Shooting through the INON UFL-G140 SD lens enables you to shoot a subject at close range to benefit deformed and/or perspective result.
The native depth of field (DoF) of the GoPro® HERO10 Black on land is approx. 60cm/2ft to ∞. With the INON UFL-G140 SD, DoF underwater will be extended to 4cm/1.6in to ∞ closer to camera side.
* DoF on land is based on focal length/aperture of camera lens and pixel pitch of the image sensor. DoF underwater is measured from "the forefront of the lens".
Professional-level Image Quality
The UFL-G140 SD is constructed of 4 elements in 4 groups. Rear element is made from high refractive index glass lens to minimize whole size dramatically without sacrificing performance. Front acrylic dome has five layers multi-coating on its inner surface providing as same grade of image quality as like optical glass dome at affordable pricing.
*Note that a lens adapter other than INON SD Front Mask may degrade image quality significantly as such adapter is not optimized for use with INON lens. Using such an adapter is not recommended and may void product warranty.
Speedy Lens Exchange by SD Mount
Bayonet INON SD Mount compatible to support friendly and speedy lens exchange underwater. Compatible with AD Lens Holder to hold a lens when not in use.
Notes
[When using for GoPro®]
* Always set camera's Field of View (FOV) to [WIDE]/[Ultra Wide]. Using [Medium] or [Narrow] won't bring optimal performance of this lens.
* Not usable for [SuperView™] as this mode adds software-based deformation effect resulting from processing original 4:3 aspect ratio to 16:9 enhancing more aberrations when using an attachment lens. It would not recommendable to use [SuperView™] when using the UCL-G165 SD lens.
* Since this lens provides ultra wide angle of view, it is recommended to set Spot Meter to [ON] when using external lighting source (LED flashlight etc.). Setting Spot Meter to [OFF] may have washout if the external lighting device aims center of the frame.
[When using for TG-Tracker]
* Activate image stabilization function of the camera while shooting video to avoid vignetting. When taking still images, do not use attachment lens to avoid significant vignetting on image corners.
* Since the camera is designed to offer optimal focusing performance for close range subject, usable range of DoF (depth of field) with this lens is "1cm/0.4in to 80cm/2.6ft" and distant subject beyond this range gets blur.
[When using for FDR-X3000/HDR-AS300]
* Select SteadyShot (Movie) [Act] when shooting video as [Std] and [OFF] cause slight vignetting. Select SteadyShot (Still) [ON] when shooting still image. Excessive camera movement may result vignetting even SteadyShot (Movie) [Act] is selected.
* Always set camera's angle setting to [Wide]. Using [Medium] or [Narrow] won't bring optimal performance of this lens.
