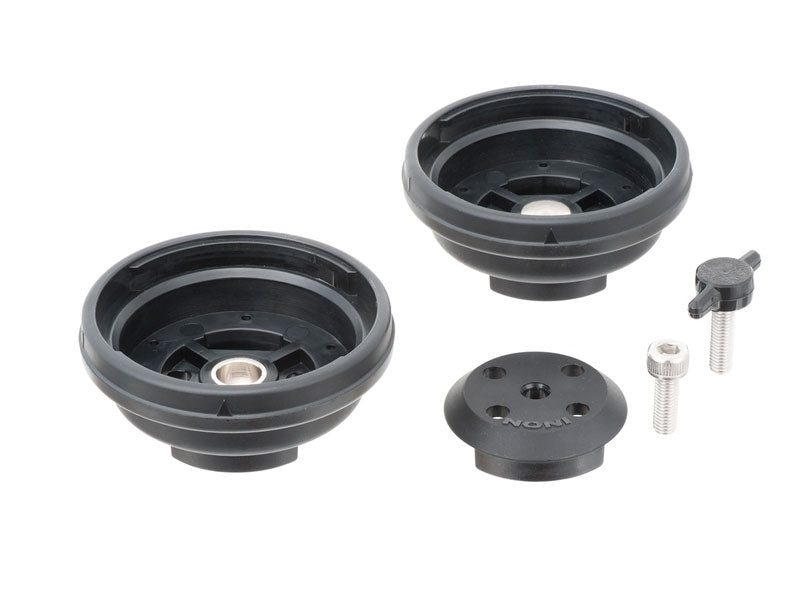

A lens holder attached on an Arm etc. to carry AD series, 28AD series attachment lenses. Compatible product is sandwiched between Lens Holder [screw] and Lens Holder hole, or Lens Holder screw and Lens Holder Base of this product.
The Lens Holder hole is usable instead of "AD Lens Holder for Float Arm" as well.
Usable to hold SD Mount series attachment lenses for GoPro® as well.
Weight:
When attached on single side
38g(1.3oz) [air] / approx.12g (0.4oz) [underwater]
When attached on both sides
57g (2.0oz) [air] / approx.18g (0.6oz) [underwater]
Compatible Arm/Base
Installed with Lens Holder [screw] and Lens Holder [hole]
Installed with Lens Holder [screw] and Lens Holder Base
Arm SS/S/M/L
- YS Arm MS/M
- Grip Base D4 (optional D Holder Extension Bar is necessary.)
- Grip Base M1 (optional D Holder Extension Bar is necessary.)
- D Holder (optional D Holder Extension Bar is necessary.)
- Grip Base DIII w/ Rubber Grip D
- Grip Base DII w/ Rubber Grip D
Installing Lens Holder [hole] by a screw
- Float Arm S/M/ML
- Mega Float Arm S/M
- M5 Joint + Stick Arm SS-T/S-T/M-T/L
- M5 Joint + Multi Ball Arm ML/L/LL/XL
- Mega Float Tube S/M
Compatible Lenses
- UWL-100 28AD,
- UWL-105 AD,
- UFL-165 AD,
- UCL-165 AD,
- UFL-G140 SD,
- UCL-G165 SD
