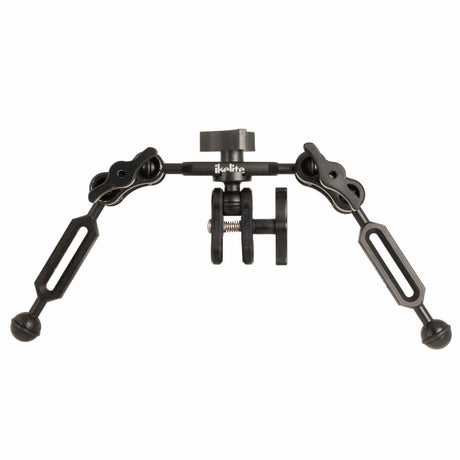

Ikelite Ball Arm for HDMI Monitors - 4080.12

A reticulating ball arm system is the best way to mount an external monitor. This allows the monitor housing to be moved in all directions - up, down, left, right, and rotationally - quickly and easily. The ball clamps can be loosened slightly underwater to allow one-handed repositioning of the monitor when changing shooting positions or to provide access to the rear housing controls.

For example, the monitor can sit above the housing when shooting a subject below you or directly behind the housing when framing macro. This avoids the awkwardness of re-learning how to aim your lens because your image is no longer in line with it.

The sliding ball mount allows for approximately 2.25" (5.7cm) left-to-right movement to offset the monitor for even easier access to rear controls.

A 3-point ball arm is the most ergonomic and versatile way to mount an HDMI monitor to your housing. The ball clamps can be loosened slightly underwater to allow one-handed repositioning of the whole monitor set-up when changing shooting positions or to provide uninhibited access to the rear housing controls. A top Cable Grip # 4080.09 is essential for carrying any system around on the surface in-between dives.

Attachment

This ball arm is mounted to an Ikelite 200DL underwater housing using:

• (2) Standard Ball Clamps #4081.2if shooting without lights
• OR (2) Triple Ball Clamps if shooting with lights
• (2) Ball at Quick Release Mount # 4081.31
• Right-Hand Quick Release Handle # 4077.02
• (2) Trigger Extensions # 4077.95* for shutter and back-button focus

These items are sold separately.

The external monitor housing must come with a top-mounted 1" (2.5cm) ball mount. We do not offer ball mount adapters for external monitor housings at this time.

*  Housings below serial # 73600 require Trigger Extension # 4077.93.

Buoyancy & Trim

Some external monitor housings are positively buoyant and may benefit from the addition of the Trim Weight System # 47140 to the bottom of the tray and handles for improved balance and handling.

Additional Reading

Large Bore M24 Port Modifications for HDMI Monitor Bulkheads

Achieve a Perfectly Balanced DSLR or Mirrorless Housing

Explaining Underwater Monitors Benefits (Underwater Photography Guide)

In the Box

• (3) 5" Ball Arm # 4081.05
• (3) Standard Ball Clamp # 4801.2
• Sliding Ball Mount # 4081.72
